◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#19430) — 158 parça

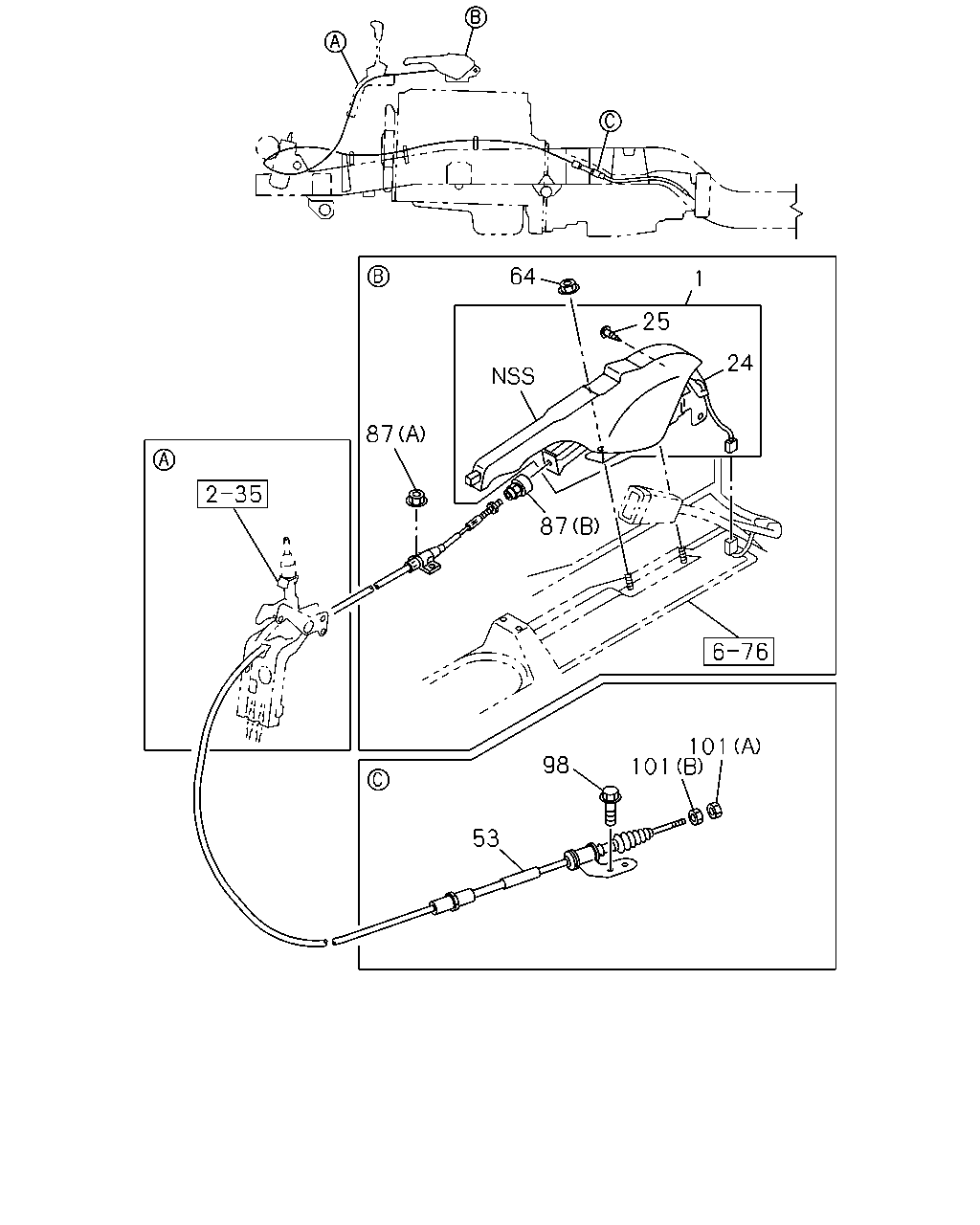

çizim 47855
64 1 25 24 87 87 101 101 98 53
BalonParca AdiParca NoAdetTipApplied Date
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-439-1 01 1 0102-0108
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-930-0 01 1 0109-0110
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-2 01 1 0111-0501
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97585-445-2 01 1 0502-0610
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97409-385-0 01 1 0611-1305
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97427-522-0 01 1 1306-
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 0102-0108
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109-1305
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306-
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0111-
53 04.779 CABLE; PARK BRK,FRT LWR
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-3 01 1 0102-0112
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0201-0207
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0208-0301
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0302-0501
53 04.779 CABLE; PARK BRK,FRT LWR
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 		8-97357-180-3 01 1 0502-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0201-0207
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0208-0301
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0302-0501
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0102-0610
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611-
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0102-0602
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603-
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 0102-0310
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0311-0611
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0612-
98 04.785 BOLT; RR COVER
03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0102-0112
98 04.785 BOLT; RR COVER
M/T MBP6P(RNC) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0201-0207
98 04.785 BOLT; RR COVER
M/T MBP6P(RNC),M/T MZZ6U(RSF) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0208-0301
98 04.785 BOLT; RR COVER
M/T MZZ6U(RSF) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0302-0512
98 04.785 BOLT; RR COVER
M/T MZZ6U(RSF) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0601-
101 04.785 NUT; CABLE TO LEVER
02.559 (A) M8 		9-09110-408-0 01 1 0102-0112
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC) 02.559 (A) M8 		9-09110-408-0 01 1 0201-0207
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),M/T MZZ6U(RSF) 02.559 (A) M8 		9-09110-408-0 01 1 0208-0301
101 04.785 NUT; CABLE TO LEVER
M/T MZZ6U(RSF) 02.559 (A) M8 		9-09110-408-0 01 1 0302-0512
101 04.785 NUT; CABLE TO LEVER
M/T MZZ6U(RSF) 02.334 (A) M8 		0-91110-508-0 01 1 0601-
101 04.785 NUT; CABLE TO LEVER
(B) M8 FLANGE 		9-46259-016-0 01 1 0102-0112
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC) (B) M8 FLANGE 		9-46259-016-0 01 1 0201-0207
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 0208-0301
101 04.785 NUT; CABLE TO LEVER
M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 0302-

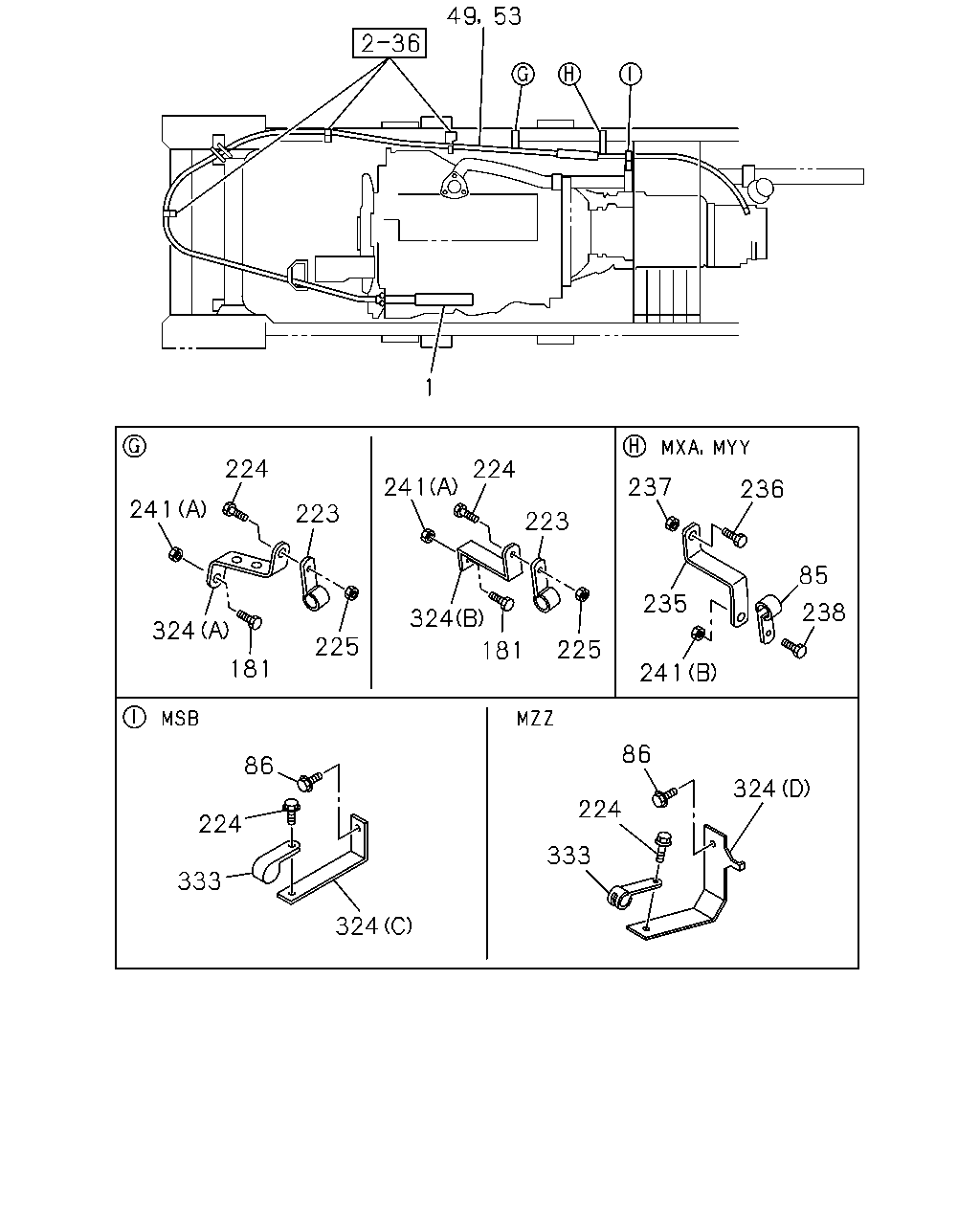

çizim 49969
49 53 1 224 224 241 237 236 241 223 223 85 235 238 324 324 225 225 181 181 241 86 86 324 224 224 333 333 324
BalonParca AdiParca NoAdetTipApplied Date
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-439-1 01 1 0102-0108
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-930-0 01 1 0109-0110
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-2 01 1 0111-0501
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97585-445-2 01 1 0502-0610
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97409-385-0 01 1 0611-1305
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97427-522-0 01 1 1306-
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> 		8-97215-434-0 01 1 0201-0301
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> 		8-97350-535-0 01 1 0302-0501
49 04.779 CABLE; PARKING BRK
4HE1-TCS ENG(RDS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-98010-844-0 01 1 0502-
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) M/T MXA5R(RMT) FRAME STRAIGHT TYPE<7KJ> 		8-97215-433-0 01 1 0201-0301
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-97350-534-0 01 1 0302-
53 04.779 CABLE; PARK BRK,FRT LWR
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-3 01 1 0102-0112
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0201-0207
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0208-0301
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0302-0501
53 04.779 CABLE; PARK BRK,FRT LWR
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 		8-97357-180-3 01 1 0502-
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0201-0207
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0208-0301
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0302-0501
85 04.785 CLIP; BRKT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> ID=12 L=70 		1-09700-097-1 01 1 0201-0301
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) ID=12 L=70 		1-09700-097-1 01 1 0201-0301
85 04.785 CLIP; BRKT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> ID=12 L=70 		1-09700-097-1 01 1 0302-0501
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) M/T MYY5T(RSM) ID=12 L=70 		1-09700-097-1 01 1 0302-0501
85 04.785 CLIP; BRKT
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> ID=12 L=70 		1-09700-097-1 01 1 0502-
86 04.785 BOLT
FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0102-0112
86 04.785 BOLT
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0201-0207
86 04.785 BOLT
M/T MBP6P(RNC),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0208-0301
86 04.785 BOLT
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0302-0512
86 04.785 BOLT
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X16 FLANGE 		0-28151-016-0 01 1 0601-
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0102-0512
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0601-
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 ID=16 L=28 		9-09525-556-0 01 1 0102-0606
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 06.672 ID=16 L=28 		0-95235-556-0 01 1 0607-
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0102-0112
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0102-0112
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201-0207
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201-0207
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208-0301
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208-0301
224 04.785 BOLT; CABLE CLIP
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0512
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0512
224 04.785 BOLT; CABLE CLIP
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0102-0602
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-
235 04.785 BRACKET; CONT CABLE TO FRAME
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97148-597-3 01 1 0201-0301
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) 		8-97148-597-3 01 1 0201-0301
235 04.785 BRACKET; CONT CABLE TO FRAME
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97325-052-0 01 1 0302-0501
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97325-052-0 01 1 0302-0501
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-97325-052-0 01 1 0502-
236 04.785 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0201-0301
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0201-0301
236 04.785 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0302-0501
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MYY5T(RSM) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0302-0501
236 04.785 BOLT; BRKT TO FRAME
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0502-0512
236 04.785 BOLT; BRKT TO FRAME
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0601-
237 04.785 NUT; BRKT TO FRAME
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0201-0301
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) M10 FLANGE 		0-91150-110-0 01 1 0201-0301
237 04.785 NUT; BRKT TO FRAME
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0302-0501
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MYY5T(RSM) M10 FLANGE 		0-91150-110-0 01 1 0302-0501
237 04.785 NUT; BRKT TO FRAME
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0502-0602
237 04.785 NUT; BRKT TO FRAME
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-
238 04.785 BOLT; CLIP TO BRKT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201-0301
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201-0301
238 04.785 BOLT; CLIP TO BRKT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0501
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) M/T MYY5T(RSM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0501
238 04.785 BOLT; CLIP TO BRKT
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512
238 04.785 BOLT; CLIP TO BRKT
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0102-0602
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603-
241 04.785 NUT; BRKT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0201-0301
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0201-0301
241 04.785 NUT; BRKT
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0302-0501
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MYY5T(RSM) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0302-0501
241 04.785 NUT; BRKT
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602
241 04.785 NUT; BRKT
M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97181-745-0 01 1 0102-0112
324 04.785 BRACKET
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97181-745-0 01 1 0201-0301
324 04.785 BRACKET
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97307-874-0 01 1 0208-
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0102-0501
324 04.785 BRACKET
4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0502-
324 04.785 BRACKET
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97103-822-1 01 1 0201-0501
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97103-822-1 01 1 0201-0501
324 04.785 BRACKET
4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97103-822-1 01 1 0502-
333 04.785 CLIP; CABLE
FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 0102-0112
333 04.785 CLIP; CABLE
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 0201-0207
333 04.785 CLIP; CABLE
M/T MBP6P(RNC),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 0208-0301
333 04.785 CLIP; CABLE
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 0302-0606
333 04.785 CLIP; CABLE
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		0-95235-096-0 01 1 0607-

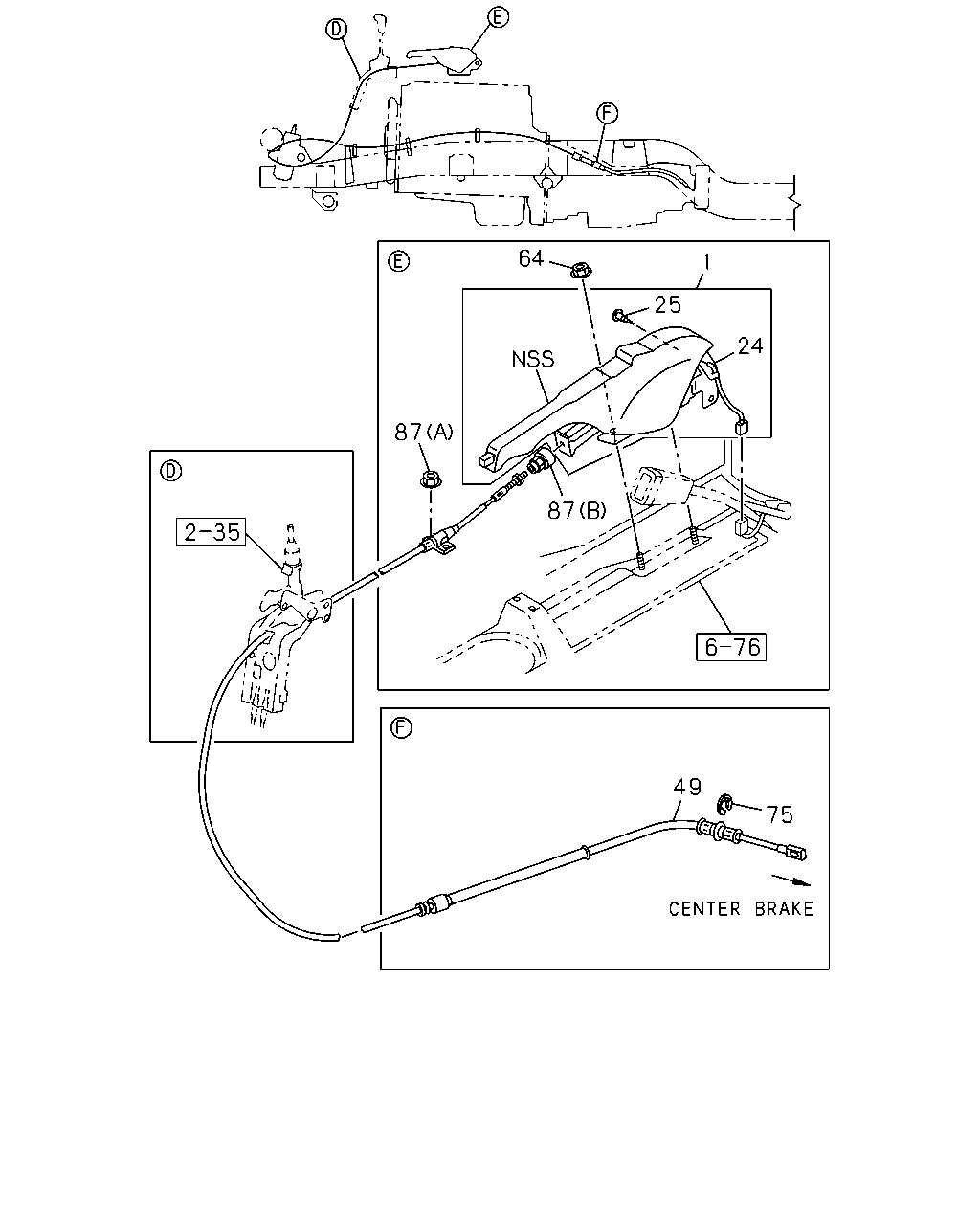

çizim 51325
64 1 25 24 87 87 49 75
BalonParca AdiParca NoAdetTipApplied Date
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-439-1 01 1 0102-0108
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-930-0 01 1 0109-0110
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-2 01 1 0111-0501
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97585-445-2 01 1 0502-0610
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97409-385-0 01 1 0611-1305
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97427-522-0 01 1 1306-
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 0102-0108
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109-1305
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306-
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0111-
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> 		8-97215-434-0 01 1 0201-0301
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> 		8-97350-535-0 01 1 0302-0501
49 04.779 CABLE; PARKING BRK
4HE1-TCS ENG(RDS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-98010-844-0 01 1 0502-
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) M/T MXA5R(RMT) FRAME STRAIGHT TYPE<7KJ> 		8-97215-433-0 01 1 0201-0301
49 04.779 CABLE; PARKING BRK
4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-97350-534-0 01 1 0302-
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0102-0610
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611-
75 04.790 RING; SNAP,HAND BRK CABLE
4HF1 ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0201-0301
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT) 04.681 ID=12 		9-09185-412-0 01 1 0201-0301
75 04.790 RING; SNAP,HAND BRK CABLE
4HF1 ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0302-0501
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MYY5T(RSM) 04.681 ID=12 		9-09185-412-0 01 1 0302-0501
75 04.790 RING; SNAP,HAND BRK CABLE
4HF1 ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0502-0604
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1-TCS ENG(RDS) M/T MYY5T(RSM) 04.681 ID=12 		9-09185-412-0 01 1 0502-0604
75 04.790 RING; SNAP,HAND BRK CABLE
4HF1 ENG(RLS) ID=12 		0-91805-512-0 01 1 0605-
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1-TCS ENG(RDS) M/T MYY5T(RSM) ID=12 		0-91805-512-0 01 1 0605-
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0102-0602
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603-
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 0102-0310
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0311-0611
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
