Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#19428) — 373 parça

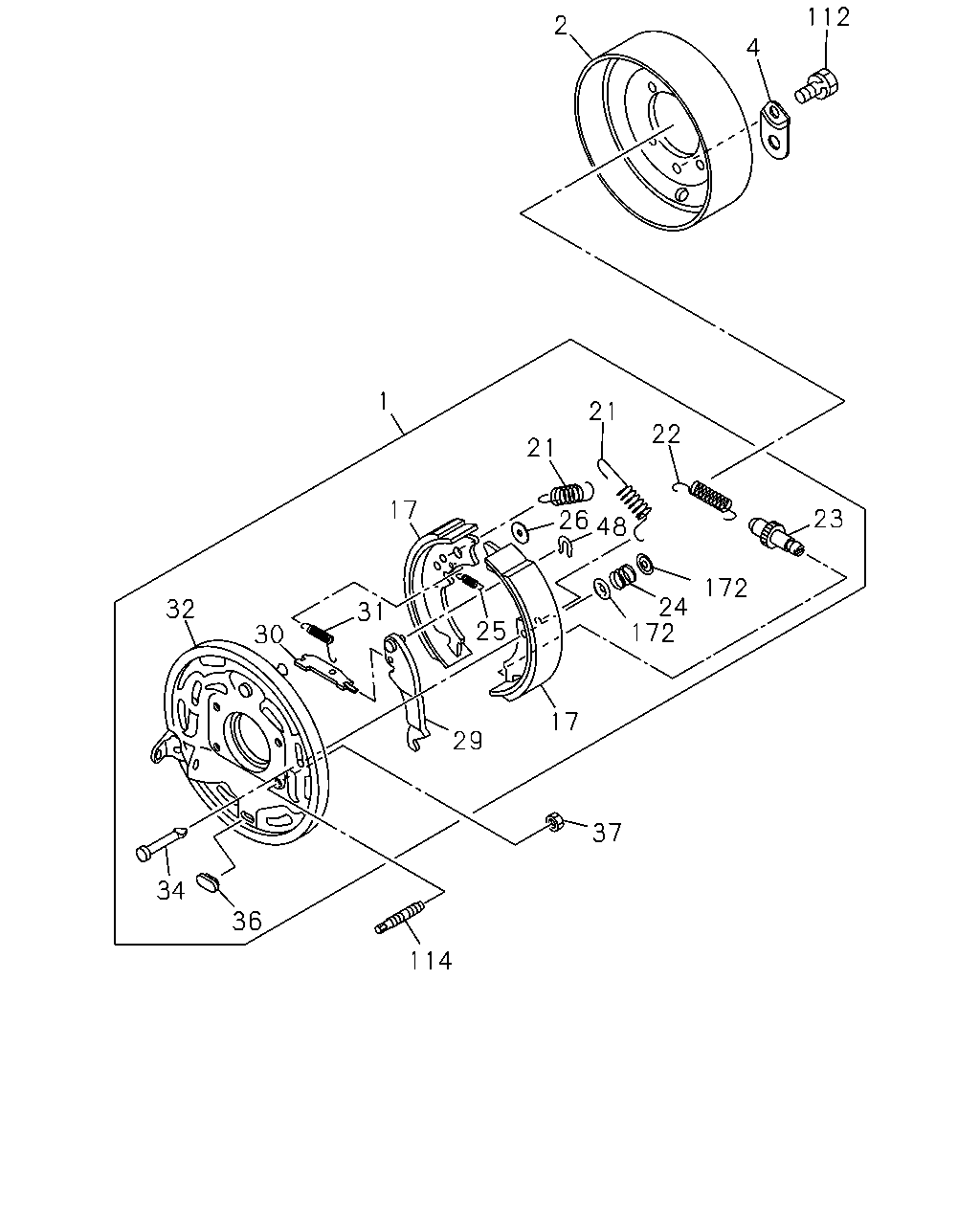

112 2 4 1 21 22 21 17 23 26 48 172 31 24 172 32 25 30 17 29 37 34 36 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.610 BRAKE ASM; CENTER,PARKING M/T MXA5R(RMT)	8-97100-212-2	01	1	0201-0301
1	05.610 BRAKE ASM; CENTER,PARKING M/T MYY5T(RSM)	8-97308-175-0	01	1	0302-0611
1	05.610 BRAKE ASM; CENTER,PARKING M/T MYY5T(RSM)	8-98029-922-0	01	1	0612-
2	05.605 DRUM; PARKING BRK	1-46211-042-3	01	1	0102-0112
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	0201-0301
2	05.605 DRUM; PARKING BRK M/T MXA5R(RMT)	8-97033-989-1	01	1	0201-0301
2	05.605 DRUM; PARKING BRK M/T MYY5T(RSM)	8-97033-989-1	01	1	0302-0501
2	05.605 DRUM; PARKING BRK 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97033-989-1	01	1	0502-
2	05.605 DRUM; PARKING BRK M/T MZZ6U(RSF)	1-46211-057-0	01	1	0208-0301
2	05.605 DRUM; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46211-057-0	01	1	0302-0501
2	05.605 DRUM; PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46211-057-1	01	1	0502-
4	05.606 COVER; ADJ HOLE	1-46219-061-1	02	1	0102-0112
4	05.606 COVER; ADJ HOLE M/T MBP6P(RNC)	1-46219-061-1	02	1	0201-0301
4	05.606 COVER; ADJ HOLE M/T MXA5R(RMT)	5-46219-001-0	01	1	0201-0301
4	05.606 COVER; ADJ HOLE M/T MYY5T(RSM)	5-46219-001-0	01	1	0302-0604
4	05.606 COVER; ADJ HOLE M/T MYY5T(RSM)	8-98029-820-0	01	1	0605-
17	05.606 SHOE; PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-97042-934-1	02	1	0502-
17	05.606 SHOE; PARKING BRK	8-97042-934-1	02	1	0102-0112
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC)	8-97042-934-1	02	1	0201-0207
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97042-934-1	02	1	0208-0301
17	05.606 SHOE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97042-934-1	02	1	0302-0410
17	05.606 SHOE; PARKING BRK M/T MXA5R(RMT)	8-97020-250-2	02	1	0201-0301
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM)	8-97020-250-2	02	1	0302-
17	05.606 SHOE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97042-934-1	02	1	0411-0501
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-09583-280-0	01	1	0502-
21	05.606 SPRING; RETURN,PARKING BRK SHOE	1-09583-280-0	01	1	0102-0112
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC)	1-09583-280-0	01	1	0201-0207
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-09583-280-0	01	1	0208-0301
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09583-280-0	01	1	0302-0410
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	0201-0301
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM) 05.605	8-94132-157-0	02	1	0302-
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09583-280-0	01	1	0411-0501
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MXA5R(RMT) 05.605	8-94107-618-0	01	1	0201-0301
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MYY5T(RSM) 05.605	8-94107-618-0	01	1	0302-
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46240-004-0	01	1	0502-0706
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98043-963-0	01	1	0707-
23	05.615 SCREW; ADJ,PARKING BRK SHOE	1-46240-004-0	01	1	0102-0112
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC)	1-46240-004-0	01	1	0201-0207
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-46240-004-0	01	1	0208-0301
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46240-004-0	01	1	0302-0410
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT)	5-47165-025-0	01	1	0201-0301
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM)	5-47165-025-0	01	1	0302-0611
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM)	8-98043-954-0	01	1	0612-
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46240-004-0	01	1	0411-0501
24	05.605 SPRING; BRK SHOE M/T MXA5R(RMT)	8-94132-155-0	02	1	0201-0301
24	05.605 SPRING; BRK SHOE M/T MYY5T(RSM)	8-94132-155-1	02	1	0302-
25	05.605 SPRING; SHOE ALIGNMENT M/T MXA5R(RMT)	8-94132-156-0	01	1	0201-0301
25	05.605 SPRING; SHOE ALIGNMENT M/T MYY5T(RSM)	8-94132-156-0	01	1	0302-
26	05.605 PLATE; SHOE GUIDE M/T MXA5R(RMT)	9-09851-986-0	01	1	0201-0301
26	05.605 PLATE; SHOE GUIDE M/T MYY5T(RSM)	9-09851-986-0	01	1	0302-0611
26	05.605 PLATE; SHOE GUIDE M/T MYY5T(RSM)	8-98043-959-0	01	1	0612-
29	04.591 LEVER; PARKING BRK M/T MXA5R(RMT) 05.605	8-97027-125-0	01	1	0201-0301
29	04.591 LEVER; PARKING BRK M/T MYY5T(RSM) 05.605	8-97027-125-0	01	1	0302-0611
29	04.591 LEVER; PARKING BRK M/T MYY5T(RSM)	8-98043-949-0	01	1	0612-
30	05.605 STRUT; PARKING BRK M/T MXA5R(RMT)	8-94311-779-0	01	1	0201-0301
30	05.605 STRUT; PARKING BRK M/T MYY5T(RSM)	8-94311-779-0	01	1	0302-0611
30	05.605 STRUT; PARKING BRK M/T MYY5T(RSM)	8-98043-953-0	01	1	0612-
31	05.605 SPRING; SHOE TO STRUT M/T MXA5R(RMT)	8-94132-158-0	01	1	0201-0301
31	05.605 SPRING; SHOE TO STRUT M/T MYY5T(RSM)	8-94132-158-0	01	1	0302-
32	05.610 PLATE; SUPPORT,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46213-069-0	01	1	0502-
32	05.610 PLATE; SUPPORT,PARKING BRK	1-46213-069-0	01	1	0102-0112
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC)	1-46213-069-0	01	1	0201-0207
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-46213-069-0	01	1	0208-0301
32	05.610 PLATE; SUPPORT,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46213-069-0	01	1	0302-0410
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5R(RMT)	8-94311-780-1	01	1	0201-0301
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM)	8-97308-176-0	01	1	0302-
32	05.610 PLATE; SUPPORT,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46213-069-0	01	1	0411-0501
34	05.605 PIN; BRK SHOE M/T MXA5R(RMT)	8-94132-159-0	02	1	0201-0301
34	05.605 PIN; BRK SHOE M/T MYY5T(RSM)	8-94132-159-0	02	1	0302-0611
34	05.605 PIN; BRK SHOE M/T MYY5T(RSM)	8-98043-955-0	02	1	0612-
36	05.606 GROMMET; ADJ HOLE M/T MXA5R(RMT) 05.117	5-47169-002-0	01	1	0201-0301
37	05.610 NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	0102-0112
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC) M14 FLANGE	1-09440-048-0	04	1	0201-0207
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC),M/T MZZ6U(RSF) M14 FLANGE	1-09440-048-0	04	1	0208-0301
37	05.610 NUT; SUPPORT PLATE 4HE1 ENG(RLY) M/T MZZ6U(RSF) M14 FLANGE	1-09440-048-0	04	1	0302-0501
37	05.610 NUT; SUPPORT PLATE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) M14 FLANGE	1-09440-048-0	04	1	0502-0604
37	05.610 NUT; SUPPORT PLATE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) M14 FLANGE	8-97365-444-0	04	1	0605-
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0201-0301
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM) M12 LOCK NUT	8-97248-173-0	04	1	0302-0604
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM) M12 LOCK NUT	8-98029-927-0	04	1	0605-
48	05.605 RETAINER; PIN,PARKING BRK M/T MXA5R(RMT) 05.158	9-46349-005-1	01	1	0201-0301
48	05.605 RETAINER; PIN,PARKING BRK M/T MYY5T(RSM) 05.158	9-46349-005-1	01	1	0302-0611
48	05.605 RETAINER; PIN,PARKING BRK M/T MYY5T(RSM)	8-98043-958-0	01	1	0612-
112	05.606 BOLT; COVER TO BRK DRUM M/T MXA5R(RMT) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0201-0301
112	05.606 BOLT; COVER TO BRK DRUM M/T MYY5T(RSM) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0302-0512
112	05.606 BOLT; COVER TO BRK DRUM M/T MYY5T(RSM) 00.662 M6X16 W/LK WASHER	0-50540-616-0	01	1	0601-
114	05.605 STUD; SUPPORT PLATE M/T MXA5R(RMT)	8-97289-002-0	04	1	0201-0301
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM)	8-97289-280-0	04	1	0302-0604
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM)	8-98029-929-0	04	1	0605-
114	05.605 STUD; SUPPORT PLATE M/T MZZ6U(RSF) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0208-0301
114	05.605 STUD; SUPPORT PLATE 4HE1 ENG(RLY) M/T MZZ6U(RSF) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0302-0501
114	05.605 STUD; SUPPORT PLATE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0502-0604
114	05.605 STUD; SUPPORT PLATE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) M14X22.5 L=42.5	8-97365-445-0	04	1	0605-
172	05.605 CUP; SHOE HOLD M/T MXA5R(RMT) 05.043	9-47162-033-0	04	1	0201-0301
172	05.605 CUP; SHOE HOLD M/T MYY5T(RSM) 05.043	9-47162-033-0	04	1	0302-0611
172	05.605 CUP; SHOE HOLD M/T MYY5T(RSM)	8-98043-956-0	04	1	0612-

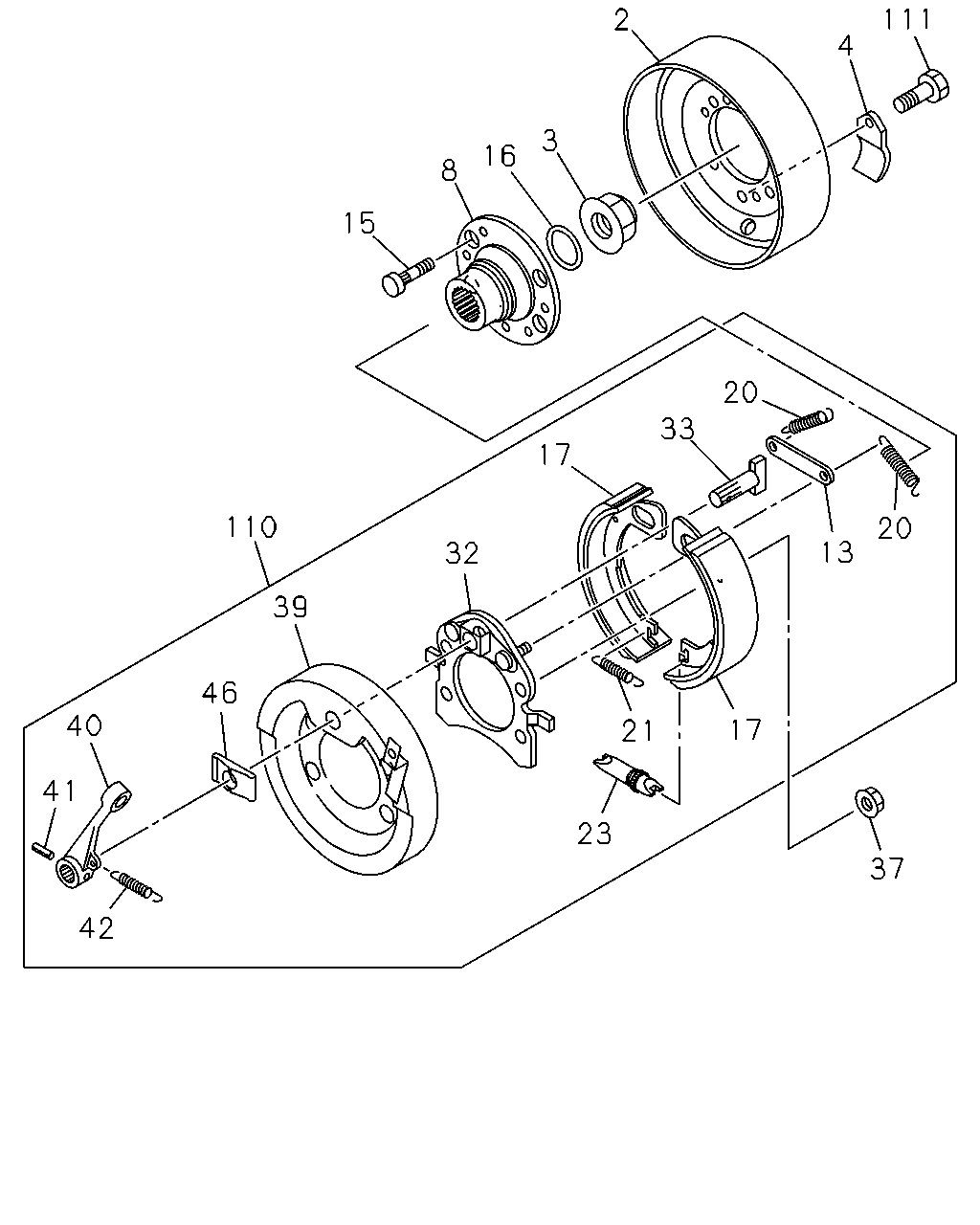

2 111 4 3 16 8 15 20 33 17 110 20 13 32 39 46 40 17 21 41 23 37 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.605 DRUM; PARKING BRK	1-46211-042-3	01	1	0102-0112
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	0201-0301
2	05.605 DRUM; PARKING BRK M/T MXA5R(RMT)	8-97033-989-1	01	1	0201-0301
2	05.605 DRUM; PARKING BRK M/T MYY5T(RSM)	8-97033-989-1	01	1	0302-0501
2	05.605 DRUM; PARKING BRK 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97033-989-1	01	1	0502-
2	05.605 DRUM; PARKING BRK M/T MZZ6U(RSF)	1-46211-057-0	01	1	0208-0301
2	05.605 DRUM; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46211-057-0	01	1	0302-0501
2	05.605 DRUM; PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46211-057-1	01	1	0502-
3	05.610 NUT; LK M33 FLANGE	1-09449-077-0	01	1	0102-0112
3	05.610 NUT; LK M/T MBP6P(RNC) M33 FLANGE	1-09449-077-0	01	1	0201-0301
4	05.606 COVER; ADJ HOLE	1-46219-061-1	02	1	0102-0112
4	05.606 COVER; ADJ HOLE M/T MBP6P(RNC)	1-46219-061-1	02	1	0201-0301
4	05.606 COVER; ADJ HOLE M/T MXA5R(RMT)	5-46219-001-0	01	1	0201-0301
4	05.606 COVER; ADJ HOLE M/T MYY5T(RSM)	5-46219-001-0	01	1	0302-0604
4	05.606 COVER; ADJ HOLE M/T MYY5T(RSM)	8-98029-820-0	01	1	0605-
8	05.605 FLANGE; PARKING BRK	1-37243-254-0	01	1	0102-0112
8	05.605 FLANGE; PARKING BRK M/T MBP6P(RNC)	1-37243-254-0	01	1	0201-0301
8	05.605 FLANGE; PARKING BRK M/T MZZ6U(RSF)	8-97252-811-1	01	1	0208-0301
8	05.605 FLANGE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97252-811-1	01	1	0302-0501
8	05.605 FLANGE; PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-97252-811-1	01	1	0502-0604
8	05.605 FLANGE; PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98044-142-0	01	1	0605-
13	05.615 BRACE; PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46239-003-0	01	1	0502-
13	05.615 BRACE; PARKING BRK	1-46239-003-0	01	1	0102-0112
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC)	1-46239-003-0	01	1	0201-0207
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-46239-003-0	01	1	0208-0301
13	05.615 BRACE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46239-003-0	01	1	0302-0410
13	05.615 BRACE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46239-003-0	01	1	0411-0501
15	05.605 BOLT; FLANGE M12X39	1-09046-001-2	04	1	0102-0112
15	05.605 BOLT; FLANGE M/T MBP6P(RNC) M12X39	1-09046-001-2	04	1	0201-0301
16	05.606 GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0102-0112
16	05.606 GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6P(RNC) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0201-0301
17	05.606 SHOE; PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-97042-934-1	02	1	0502-
17	05.606 SHOE; PARKING BRK	8-97042-934-1	02	1	0102-0112
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC)	8-97042-934-1	02	1	0201-0207
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97042-934-1	02	1	0208-0301
17	05.606 SHOE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97042-934-1	02	1	0302-0410
17	05.606 SHOE; PARKING BRK M/T MXA5R(RMT)	8-97020-250-2	02	1	0201-0301
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM)	8-97020-250-2	02	1	0302-
17	05.606 SHOE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97042-934-1	02	1	0411-0501
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-09586-002-0	02	1	0502-
20	05.606 SPRING; RETURN,SECONDARY,PARKING	1-09586-002-0	02	1	0102-0112
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC)	1-09586-002-0	02	1	0201-0207
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-09586-002-0	02	1	0208-0301
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09586-002-0	02	1	0302-0410
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09586-002-0	02	1	0411-0501
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-09583-280-0	01	1	0502-
21	05.606 SPRING; RETURN,PARKING BRK SHOE	1-09583-280-0	01	1	0102-0112
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC)	1-09583-280-0	01	1	0201-0207
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-09583-280-0	01	1	0208-0301
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09583-280-0	01	1	0302-0410
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	0201-0301
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM) 05.605	8-94132-157-0	02	1	0302-
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09583-280-0	01	1	0411-0501
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46240-004-0	01	1	0502-0706
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98043-963-0	01	1	0707-
23	05.615 SCREW; ADJ,PARKING BRK SHOE	1-46240-004-0	01	1	0102-0112
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC)	1-46240-004-0	01	1	0201-0207
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-46240-004-0	01	1	0208-0301
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46240-004-0	01	1	0302-0410
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT)	5-47165-025-0	01	1	0201-0301
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM)	5-47165-025-0	01	1	0302-0611
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM)	8-98043-954-0	01	1	0612-
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46240-004-0	01	1	0411-0501
32	05.610 PLATE; SUPPORT,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46213-069-0	01	1	0502-
32	05.610 PLATE; SUPPORT,PARKING BRK	1-46213-069-0	01	1	0102-0112
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC)	1-46213-069-0	01	1	0201-0207
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-46213-069-0	01	1	0208-0301
32	05.610 PLATE; SUPPORT,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46213-069-0	01	1	0302-0410
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5R(RMT)	8-94311-780-1	01	1	0201-0301
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM)	8-97308-176-0	01	1	0302-
32	05.610 PLATE; SUPPORT,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46213-069-0	01	1	0411-0501
33	05.605 SHAFT; CAM,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46251-009-0	01	1	0502-0706
33	05.605 SHAFT; CAM,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98043-961-0	01	1	0707-
33	05.605 SHAFT; CAM,PARKING BRK	1-46251-009-0	01	1	0102-0112
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC)	1-46251-009-0	01	1	0201-0207
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-46251-009-0	01	1	0208-0301
33	05.605 SHAFT; CAM,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46251-009-0	01	1	0302-0410
33	05.605 SHAFT; CAM,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46251-009-0	01	1	0411-0501
37	05.610 NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	0102-0112
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC) M14 FLANGE	1-09440-048-0	04	1	0201-0207
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC),M/T MZZ6U(RSF) M14 FLANGE	1-09440-048-0	04	1	0208-0301
37	05.610 NUT; SUPPORT PLATE 4HE1 ENG(RLY) M/T MZZ6U(RSF) M14 FLANGE	1-09440-048-0	04	1	0302-0501
37	05.610 NUT; SUPPORT PLATE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) M14 FLANGE	1-09440-048-0	04	1	0502-0604
37	05.610 NUT; SUPPORT PLATE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) M14 FLANGE	8-97365-444-0	04	1	0605-
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0201-0301
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM) M12 LOCK NUT	8-97248-173-0	04	1	0302-0604
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM) M12 LOCK NUT	8-98029-927-0	04	1	0605-
39	05.610 COVER; DUST,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46213-075-0	01	1	0502-
39	05.610 COVER; DUST,PARKING BRK	1-46213-075-0	01	1	0102-0112
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC)	1-46213-075-0	01	1	0201-0207
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-46213-075-0	01	1	0208-0301
39	05.610 COVER; DUST,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46213-075-0	01	1	0302-0410
39	05.610 COVER; DUST,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46213-075-0	01	1	0411-0501
40	05.605 LEVER; CM/SHF,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46252-041-0	01	1	0502-0706
40	05.605 LEVER; CM/SHF,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98047-550-0	01	1	0707-
40	05.605 LEVER; CM/SHF,PARKING BRK	1-46252-041-0	01	1	0102-0109
40	05.605 LEVER; CM/SHF,PARKING BRK	1-46252-033-1	01	1	0110-0112
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6P(RNC)	1-46252-033-1	01	1	0201-0301
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MZZ6U(RSF)	1-46252-041-0	01	1	0208-0301
40	05.605 LEVER; CM/SHF,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46252-041-0	01	1	0302-0410
40	05.605 LEVER; CM/SHF,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46252-041-0	01	1	0411-0501
41	05.605 PIN; KNOCK,LEVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	9-09878-594-0	01	1	0502-
41	05.605 PIN; KNOCK,LEVER	9-09878-594-0	01	1	0102-0112
41	05.605 PIN; KNOCK,LEVER M/T MBP6P(RNC)	9-09878-594-0	01	1	0201-0207
41	05.605 PIN; KNOCK,LEVER M/T MBP6P(RNC),M/T MZZ6U(RSF)	9-09878-594-0	01	1	0208-0301
41	05.605 PIN; KNOCK,LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF)	9-09878-594-0	01	1	0302-0410
41	05.605 PIN; KNOCK,LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF)	9-09878-594-0	01	1	0411-0501
42	05.605 SPRING; RETURN,LEVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-09583-041-0	01	1	0502-
42	05.605 SPRING; RETURN,LEVER	1-09583-041-0	01	1	0102-0112
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC)	1-09583-041-0	01	1	0201-0207
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-09583-041-0	01	1	0208-0301
42	05.605 SPRING; RETURN,LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09583-041-0	01	1	0302-0410
42	05.605 SPRING; RETURN,LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09583-041-0	01	1	0411-0501
46	05.605 WASHER; LEVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-09509-057-0	01	1	0502-
46	05.605 WASHER; LEVER	1-09509-057-0	01	1	0102-0112
46	05.605 WASHER; LEVER M/T MBP6P(RNC)	1-09509-057-0	01	1	0201-0207
46	05.605 WASHER; LEVER M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-09509-057-0	01	1	0208-0301
46	05.605 WASHER; LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09509-057-0	01	1	0302-0410
46	05.605 WASHER; LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09509-057-0	01	1	0411-0501

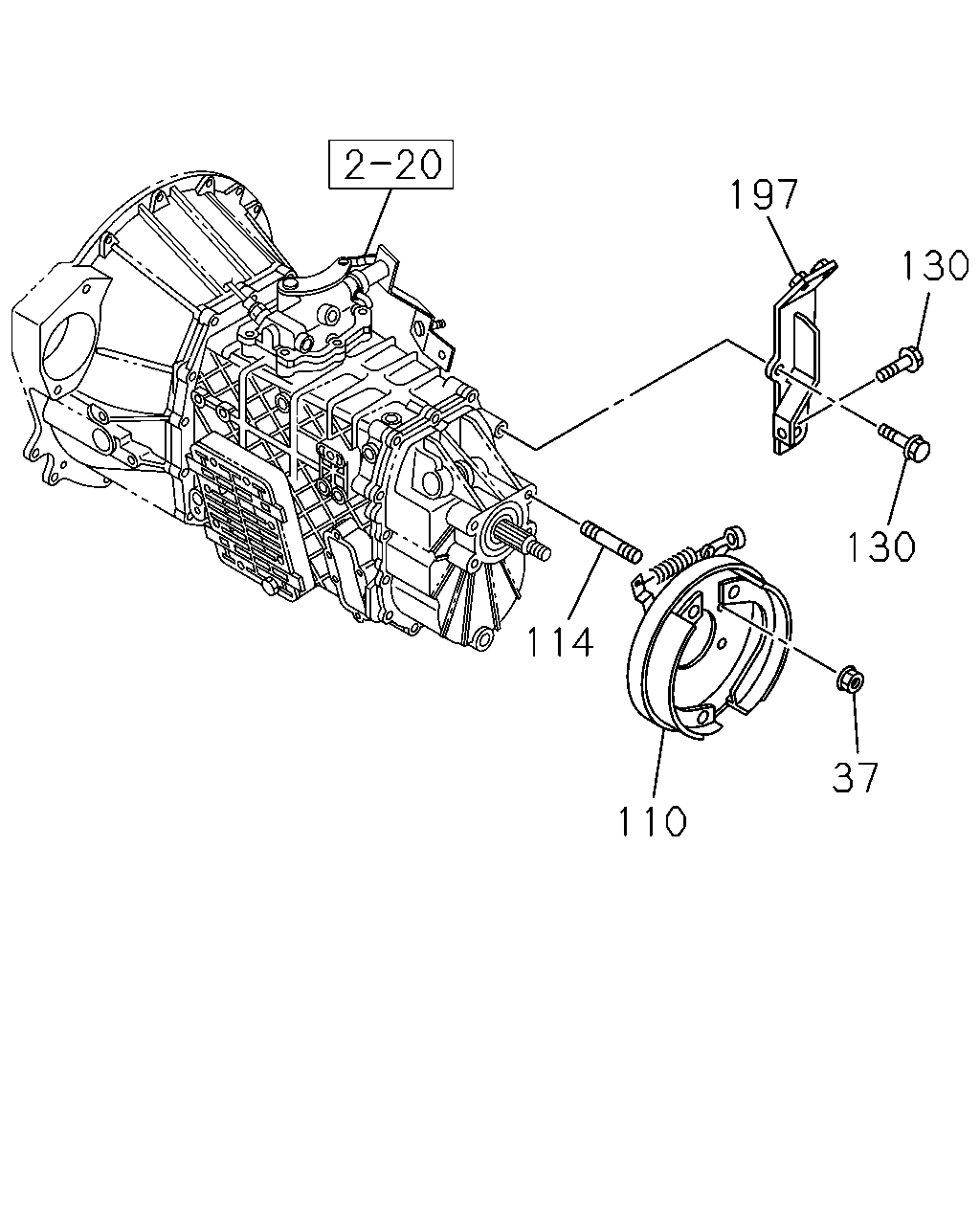

110	05.610 BRAKE ASM; PARKING	8-97041-474-3	01	1	0102-0109
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	1-46200-260-0	01	1	0201-0301
110	05.610 BRAKE ASM; PARKING M/T MZZ6U(RSF)	8-97041-474-3	01	1	0208-0301
110	05.610 BRAKE ASM; PARKING 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97041-474-3	01	1	0302-0410
110	05.610 BRAKE ASM; PARKING 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97205-628-0	01	1	0411-0501
110	05.610 BRAKE ASM; PARKING 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-97205-628-0	01	1	0502-0706
110	05.610 BRAKE ASM; PARKING 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98034-305-0	01	1	0707-
111	05.606 BOLT; COVER,CHECK HOLE 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	0102-0112
111	05.606 BOLT; COVER,CHECK HOLE M/T MBP6P(RNC) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	0201-0301

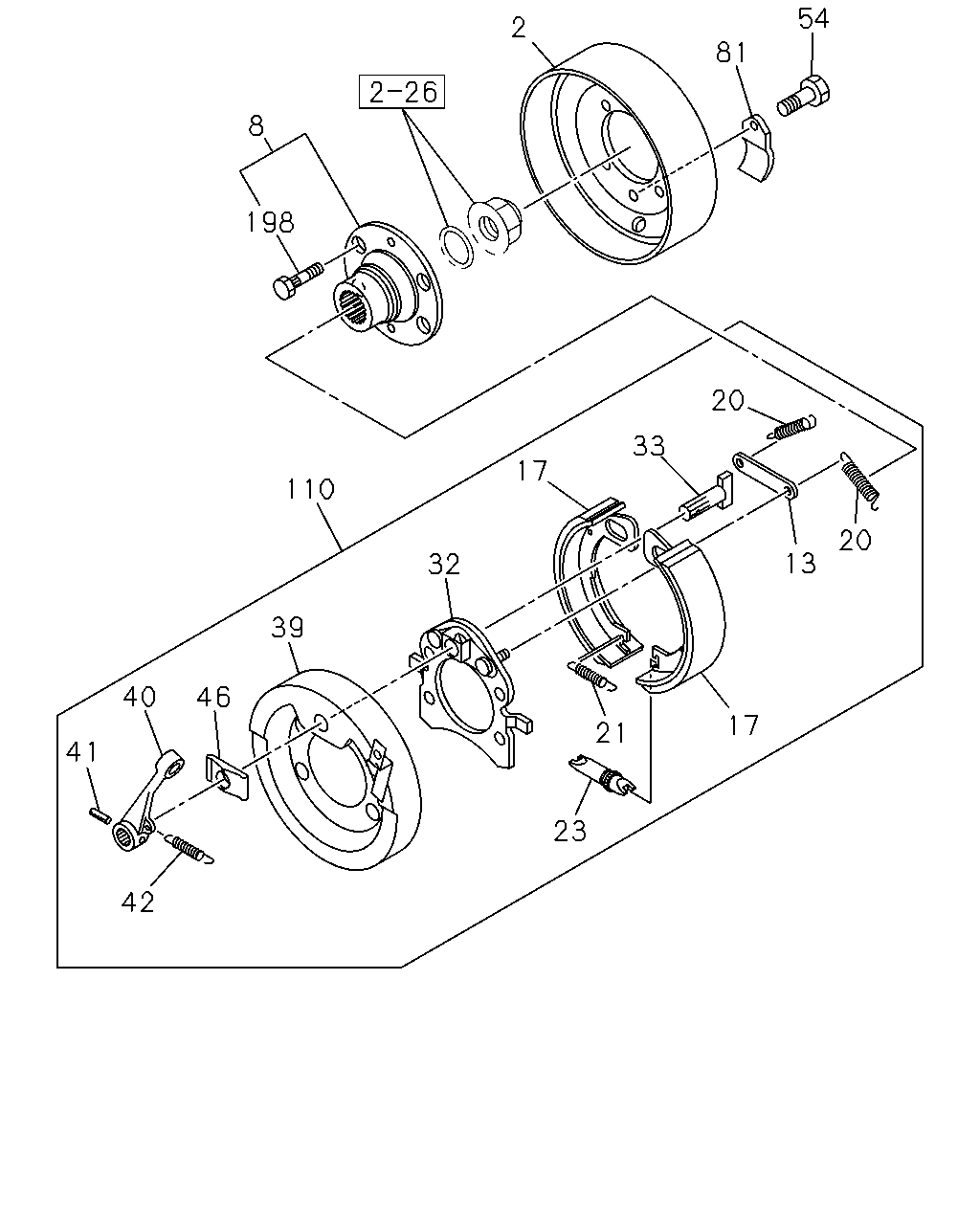

54 2 81 8 198 20 33 17 110 20 13 32 39 40 46 17 21 41 23 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.605 DRUM; PARKING BRK	1-46211-042-3	01	1	0102-0112
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	0201-0301
2	05.605 DRUM; PARKING BRK M/T MXA5R(RMT)	8-97033-989-1	01	1	0201-0301
2	05.605 DRUM; PARKING BRK M/T MYY5T(RSM)	8-97033-989-1	01	1	0302-0501
2	05.605 DRUM; PARKING BRK 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97033-989-1	01	1	0502-
2	05.605 DRUM; PARKING BRK M/T MZZ6U(RSF)	1-46211-057-0	01	1	0208-0301
2	05.605 DRUM; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46211-057-0	01	1	0302-0501
2	05.605 DRUM; PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46211-057-1	01	1	0502-
8	05.605 FLANGE; PARKING BRK	1-37243-254-0	01	1	0102-0112
8	05.605 FLANGE; PARKING BRK M/T MBP6P(RNC)	1-37243-254-0	01	1	0201-0301
8	05.605 FLANGE; PARKING BRK M/T MZZ6U(RSF)	8-97252-811-1	01	1	0208-0301
8	05.605 FLANGE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97252-811-1	01	1	0302-0501
8	05.605 FLANGE; PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-97252-811-1	01	1	0502-0604
8	05.605 FLANGE; PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98044-142-0	01	1	0605-
13	05.615 BRACE; PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46239-003-0	01	1	0502-
13	05.615 BRACE; PARKING BRK	1-46239-003-0	01	1	0102-0112
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC)	1-46239-003-0	01	1	0201-0207
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-46239-003-0	01	1	0208-0301
13	05.615 BRACE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46239-003-0	01	1	0302-0410
13	05.615 BRACE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46239-003-0	01	1	0411-0501
17	05.606 SHOE; PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-97042-934-1	02	1	0502-
17	05.606 SHOE; PARKING BRK	8-97042-934-1	02	1	0102-0112
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC)	8-97042-934-1	02	1	0201-0207
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC),M/T MZZ6U(RSF)	8-97042-934-1	02	1	0208-0301
17	05.606 SHOE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97042-934-1	02	1	0302-0410
17	05.606 SHOE; PARKING BRK M/T MXA5R(RMT)	8-97020-250-2	02	1	0201-0301
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM)	8-97020-250-2	02	1	0302-
17	05.606 SHOE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97042-934-1	02	1	0411-0501
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-09586-002-0	02	1	0502-
20	05.606 SPRING; RETURN,SECONDARY,PARKING	1-09586-002-0	02	1	0102-0112
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC)	1-09586-002-0	02	1	0201-0207
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-09586-002-0	02	1	0208-0301
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09586-002-0	02	1	0302-0410
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09586-002-0	02	1	0411-0501
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-09583-280-0	01	1	0502-
21	05.606 SPRING; RETURN,PARKING BRK SHOE	1-09583-280-0	01	1	0102-0112
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC)	1-09583-280-0	01	1	0201-0207
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-09583-280-0	01	1	0208-0301
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09583-280-0	01	1	0302-0410
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	0201-0301
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM) 05.605	8-94132-157-0	02	1	0302-
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09583-280-0	01	1	0411-0501
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46240-004-0	01	1	0502-0706
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98043-963-0	01	1	0707-
23	05.615 SCREW; ADJ,PARKING BRK SHOE	1-46240-004-0	01	1	0102-0112
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC)	1-46240-004-0	01	1	0201-0207
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-46240-004-0	01	1	0208-0301
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46240-004-0	01	1	0302-0410
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MXA5R(RMT)	5-47165-025-0	01	1	0201-0301
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM)	5-47165-025-0	01	1	0302-0611
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM)	8-98043-954-0	01	1	0612-
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46240-004-0	01	1	0411-0501
32	05.610 PLATE; SUPPORT,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46213-069-0	01	1	0502-
32	05.610 PLATE; SUPPORT,PARKING BRK	1-46213-069-0	01	1	0102-0112
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC)	1-46213-069-0	01	1	0201-0207
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-46213-069-0	01	1	0208-0301
32	05.610 PLATE; SUPPORT,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46213-069-0	01	1	0302-0410
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MXA5R(RMT)	8-94311-780-1	01	1	0201-0301
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM)	8-97308-176-0	01	1	0302-
32	05.610 PLATE; SUPPORT,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46213-069-0	01	1	0411-0501
33	05.605 SHAFT; CAM,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46251-009-0	01	1	0502-0706
33	05.605 SHAFT; CAM,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98043-961-0	01	1	0707-
33	05.605 SHAFT; CAM,PARKING BRK	1-46251-009-0	01	1	0102-0112
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC)	1-46251-009-0	01	1	0201-0207
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-46251-009-0	01	1	0208-0301
33	05.605 SHAFT; CAM,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46251-009-0	01	1	0302-0410
33	05.605 SHAFT; CAM,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46251-009-0	01	1	0411-0501
39	05.610 COVER; DUST,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46213-075-0	01	1	0502-
39	05.610 COVER; DUST,PARKING BRK	1-46213-075-0	01	1	0102-0112
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC)	1-46213-075-0	01	1	0201-0207
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-46213-075-0	01	1	0208-0301
39	05.610 COVER; DUST,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46213-075-0	01	1	0302-0410
39	05.610 COVER; DUST,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46213-075-0	01	1	0411-0501
40	05.605 LEVER; CM/SHF,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46252-041-0	01	1	0502-0706
40	05.605 LEVER; CM/SHF,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98047-550-0	01	1	0707-
40	05.605 LEVER; CM/SHF,PARKING BRK	1-46252-041-0	01	1	0102-0109
40	05.605 LEVER; CM/SHF,PARKING BRK	1-46252-033-1	01	1	0110-0112
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6P(RNC)	1-46252-033-1	01	1	0201-0301
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MZZ6U(RSF)	1-46252-041-0	01	1	0208-0301
40	05.605 LEVER; CM/SHF,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46252-041-0	01	1	0302-0410
40	05.605 LEVER; CM/SHF,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46252-041-0	01	1	0411-0501
41	05.605 PIN; KNOCK,LEVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	9-09878-594-0	01	1	0502-
41	05.605 PIN; KNOCK,LEVER	9-09878-594-0	01	1	0102-0112
41	05.605 PIN; KNOCK,LEVER M/T MBP6P(RNC)	9-09878-594-0	01	1	0201-0207
41	05.605 PIN; KNOCK,LEVER M/T MBP6P(RNC),M/T MZZ6U(RSF)	9-09878-594-0	01	1	0208-0301
41	05.605 PIN; KNOCK,LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF)	9-09878-594-0	01	1	0302-0410
41	05.605 PIN; KNOCK,LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF)	9-09878-594-0	01	1	0411-0501
42	05.605 SPRING; RETURN,LEVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-09583-041-0	01	1	0502-
42	05.605 SPRING; RETURN,LEVER	1-09583-041-0	01	1	0102-0112
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC)	1-09583-041-0	01	1	0201-0207
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-09583-041-0	01	1	0208-0301
42	05.605 SPRING; RETURN,LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09583-041-0	01	1	0302-0410
42	05.605 SPRING; RETURN,LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09583-041-0	01	1	0411-0501
46	05.605 WASHER; LEVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-09509-057-0	01	1	0502-
46	05.605 WASHER; LEVER	1-09509-057-0	01	1	0102-0112
46	05.605 WASHER; LEVER M/T MBP6P(RNC)	1-09509-057-0	01	1	0201-0207
46	05.605 WASHER; LEVER M/T MBP6P(RNC),M/T MZZ6U(RSF)	1-09509-057-0	01	1	0208-0301
46	05.605 WASHER; LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09509-057-0	01	1	0302-0410
46	05.605 WASHER; LEVER 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-09509-057-0	01	1	0411-0501
54	05.606 BOLT; COVER M/T MZZ6U(RSF) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	0208-0301
54	05.606 BOLT; COVER 4HE1 ENG(RLY) M/T MZZ6U(RSF) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	0302-0501
54	05.606 BOLT; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	0502-0604
54	05.606 BOLT; COVER 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) 03.403 M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0605-
81	05.606 COVER; CHECK HOLE,PARKING BRK M/T MZZ6U(RSF)	1-46219-061-1	02	1	0208-0301
81	05.606 COVER; CHECK HOLE,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46219-061-1	02	1	0302-0306
81	05.606 COVER; CHECK HOLE,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6U(RSF)	1-46219-019-0	02	1	0307-0501
81	05.606 COVER; CHECK HOLE,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	1-46219-019-0	02	1	0502-0604
81	05.606 COVER; CHECK HOLE,PARKING BRK 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98031-861-0	02	1	0605-
110	05.610 BRAKE ASM; PARKING	8-97041-474-3	01	1	0102-0109
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	1-46200-260-0	01	1	0201-0301
110	05.610 BRAKE ASM; PARKING M/T MZZ6U(RSF)	8-97041-474-3	01	1	0208-0301
110	05.610 BRAKE ASM; PARKING 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97041-474-3	01	1	0302-0410
110	05.610 BRAKE ASM; PARKING 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97205-628-0	01	1	0411-0501
110	05.610 BRAKE ASM; PARKING 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-97205-628-0	01	1	0502-0706
110	05.610 BRAKE ASM; PARKING 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98034-305-0	01	1	0707-
198	05.605 BOLT; KNURL M/T MZZ6U(RSF) M12X39	1-09046-001-2	04	1	0208-0301
198	05.605 BOLT; KNURL 4HE1 ENG(RLY) M/T MZZ6U(RSF) M12X39	1-09046-001-2	04	1	0302-0501
198	05.605 BOLT; KNURL 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) M12X39	1-09046-001-2	04	1	0502-0604
198	05.605 BOLT; KNURL 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) M12X39	8-97365-446-0	04	1	0605-

197 130 130 114 37 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	05.610 NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	0102-0112
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC) M14 FLANGE	1-09440-048-0	04	1	0201-0207
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC),M/T MZZ6U(RSF) M14 FLANGE	1-09440-048-0	04	1	0208-0301
37	05.610 NUT; SUPPORT PLATE 4HE1 ENG(RLY) M/T MZZ6U(RSF) M14 FLANGE	1-09440-048-0	04	1	0302-0501
37	05.610 NUT; SUPPORT PLATE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) M14 FLANGE	1-09440-048-0	04	1	0502-0604
37	05.610 NUT; SUPPORT PLATE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) M14 FLANGE	8-97365-444-0	04	1	0605-
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0201-0301
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM) M12 LOCK NUT	8-97248-173-0	04	1	0302-0604
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM) M12 LOCK NUT	8-98029-927-0	04	1	0605-
110	05.610 BRAKE ASM; PARKING	8-97041-474-3	01	1	0102-0109
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	1-46200-260-0	01	1	0201-0301
110	05.610 BRAKE ASM; PARKING M/T MZZ6U(RSF)	8-97041-474-3	01	1	0208-0301
110	05.610 BRAKE ASM; PARKING 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97041-474-3	01	1	0302-0410
110	05.610 BRAKE ASM; PARKING 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97205-628-0	01	1	0411-0501
110	05.610 BRAKE ASM; PARKING 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-97205-628-0	01	1	0502-0706
110	05.610 BRAKE ASM; PARKING 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-98034-305-0	01	1	0707-
114	05.605 STUD; SUPPORT PLATE M/T MXA5R(RMT)	8-97289-002-0	04	1	0201-0301
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM)	8-97289-280-0	04	1	0302-0604
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM)	8-98029-929-0	04	1	0605-
114	05.605 STUD; SUPPORT PLATE M/T MZZ6U(RSF) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0208-0301
114	05.605 STUD; SUPPORT PLATE 4HE1 ENG(RLY) M/T MZZ6U(RSF) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0302-0501
114	05.605 STUD; SUPPORT PLATE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0502-0604
114	05.605 STUD; SUPPORT PLATE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) M14X22.5 L=42.5	8-97365-445-0	04	1	0605-
130	05.605 BOLT; BRKT M/T MZZ6U(RSF) 04.525 M10X25 FLANGE	0-28181-025-0	03	1	0208-0301
130	05.605 BOLT; BRKT 4HE1 ENG(RLY) M/T MZZ6U(RSF) 04.525 M10X25 FLANGE	0-28181-025-0	03	1	0302-0501
130	05.605 BOLT; BRKT 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) 04.525 M10X25 FLANGE	0-28181-025-0	03	1	0502-0512
130	05.605 BOLT; BRKT 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) 02.042 M10X25 FLANGE	0-28151-025-0	03	1	0601-
197	05.605 BRACKET; CENTER BRAKE CABLE M/T MZZ6U(RSF)	8-97244-812-0	01	1	0208-0301
197	05.605 BRACKET; CENTER BRAKE CABLE 4HE1 ENG(RLY) M/T MZZ6U(RSF)	8-97244-812-0	01	1	0302-0501
197	05.605 BRACKET; CENTER BRAKE CABLE 4HE1-TCS ENG(RDS) M/T MZZ6U(RSF)	8-97244-812-0	01	1	0502-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
