Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#19424) — 257 parça

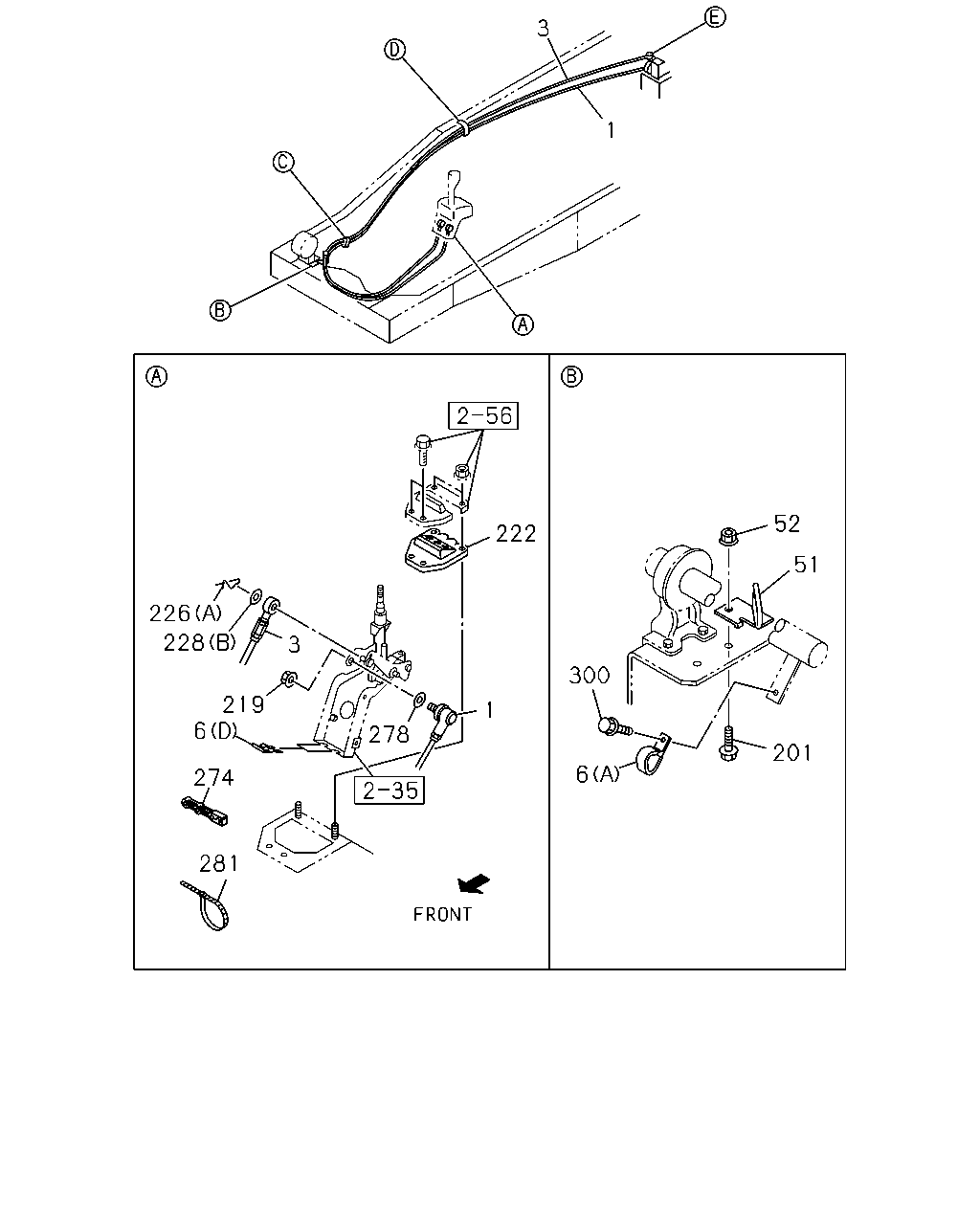

3 1 52 222 51 226 228 3 300 219 6 1 278 201 6 274 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.854 CABLE; SHIFT,TRANS CONT L=3123	8-97202-562-0	01	1	0102-0112	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123	8-97202-562-0	01	1	0201-0301	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021	8-97350-440-0	01	1	0302-0501		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021	8-97351-347-0	01	1	0204-0301	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077	8-97351-346-0	01	1	0204-0301			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3108	8-97350-438-1	01	1	0302-0501				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-98009-296-1	01	1	0502-0911				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-98146-853-0	01	1	0912-				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=2975	8-97096-512-2	01	1	0201-0301			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3006	8-97350-433-1	01	1	0302-0501				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3006	8-97350-433-1	01	1	0502-0911				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3006	8-98146-847-0	01	1	0912-				●
1	00.854 CABLE; SHIFT,TRANS CONT L=3123	8-97307-916-1	01	1	0208-0301		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123	8-97307-916-1	01	1	0302-0501		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3134	8-97357-181-3	01	1	0502-0911		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3134	8-98146-850-0	01	1	0912-		●
3	00.852 CABLE; SELECT,TRANS CONT L=3259	8-97202-561-0	01	1	0102-0112	●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3259	8-97202-561-0	01	1	0201-0301	●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3100	8-97350-441-0	01	1	0302-0501		●
3	00.852 CABLE; SELECT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3044	8-97096-507-2	01	1	0201-0301			●
3	00.852 CABLE; SELECT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3063	8-97350-434-0	01	1	0302-0501				●
3	00.852 CABLE; SELECT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3063	8-97350-434-0	01	1	0502-				●
3	00.852 CABLE; SELECT,TRANS CONT L=3202	8-97307-881-2	01	1	0208-0301		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3202	8-97307-881-2	01	1	0302-0501		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3217	8-97357-182-4	01	1	0502-		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3165	8-97350-439-0	01	1	0302-0501				●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3165	8-98009-286-1	01	1	0502-				●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	0102-0207	●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	0208-0301	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> 00.854 (C) ID=22.2	1-09701-209-1	01	1	0302-		●		●
6	04.047 CLIP; CABLE (D)	8-97011-448-0	02	1	0102-0112	●
6	04.047 CLIP; CABLE (D)	8-97011-448-0	02	1	0201-0301	●	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	0302-		●		●
6	04.047 CLIP; CABLE (B)	8-97036-332-1	01	1	0102-0112	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-332-1	01	1	0201-0301	●	●	●
6	04.047 CLIP; CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-332-1	01	1	0302-0501		●		●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-332-1	01	1	0502-		●		●
6	04.047 CLIP; CABLE (A)	8-97036-333-1	02	1	0102-0112	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	02	1	0201-0301	●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	02	1	0302-0501		●		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0502-0504		●		●
6	04.047 CLIP; CABLE 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0502-0504				●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0505-		●		●
6	04.047 CLIP; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0505-		●		●
6	04.047 CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0102-0207	●
6	04.047 CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0208-0301	●	●
6	04.047 CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0302-0501		●		●
6	04.047 CLIP; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (E) ID=19.2	8-97211-011-0	01	1	0502-		●		●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (E) ID=19.2	8-97211-011-0	02	1	0201-0301			●
51	04.010 BRACKET; GEAR CONT FRAME STRAIGHT TYPE<7KJ>	8-97214-437-0	01	1	0507-		●		●
51	04.010 BRACKET; GEAR CONT FRAME STRAIGHT TYPE<7KJ>	8-97214-437-0	01	1	0102-0112	●
51	04.010 BRACKET; GEAR CONT FRAME STRAIGHT TYPE<7KJ>	8-97214-437-0	01	1	0201-0301	●	●	●
51	04.010 BRACKET; GEAR CONT FRAME STRAIGHT TYPE<7KJ>	8-97214-437-0	01	1	0302-0501		●		●
52	04.047 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●		●
52	04.047 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●		●
52	04.047 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0102-0112	●
52	04.047 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301	●	●	●
52	04.047 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0501		●		●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0102-0112	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0301	●	●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0501		●		●
201	04.032 BOLT; BRKT 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0506		●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512		●		●
201	04.032 BOLT; BRKT 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512		●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●		●
201	04.032 BOLT; BRKT 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0102-0112	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0201-0301	●	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0	8-94363-045-0	01	1	0302-		●		●
222	04.010 GROMMET; CABLE	8-97091-890-0	01	1	0102-0112	●
222	04.010 GROMMET; CABLE	8-97091-890-0	01	1	0201-0301	●	●	●
222	04.010 GROMMET; CABLE	8-97091-890-0	01	1	0302-0506		●		●
222	04.010 GROMMET; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97091-890-0	01	1	0507-		●		●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0102-0112	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0201-0301	●	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	0302-		●		●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0102-0112	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0201-0301	●	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	0302-		●		●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0102-0112	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0201-0301	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0302-		●		●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0102-0112	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0201-0301	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	0302-0605		●		●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-		●		●
274	04.008 CLIP; CONT CABLE	8-97093-491-1	01	1	0102-0112	●
274	04.008 CLIP; CONT CABLE	8-97093-491-1	01	1	0201-0301	●	●	●
274	04.008 CLIP; CONT CABLE FLOOR REMOTE SHIFT<M11>	8-97093-491-1	01	1	0302-		●		●
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0102-0112	●
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0201-0301	●	●	●
278	00.854 WASHER; LK,SHIFT WIRE FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0302-0604		●		●
278	00.854 WASHER; LK,SHIFT WIRE FLOOR REMOTE SHIFT<M11> ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-		●		●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0102-0112	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0201-0301	●	●	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0302-		●		●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0102-0112	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0301	●	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0501		●		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●		●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0102-0112	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301	●	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0501		●		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●		●
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0201-0301			●
300	00.854 BOLT; CLIP 4HF1 ENG(RLS) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0302-0512				●
300	00.854 BOLT; CLIP 4HF1 ENG(RLS) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-				●

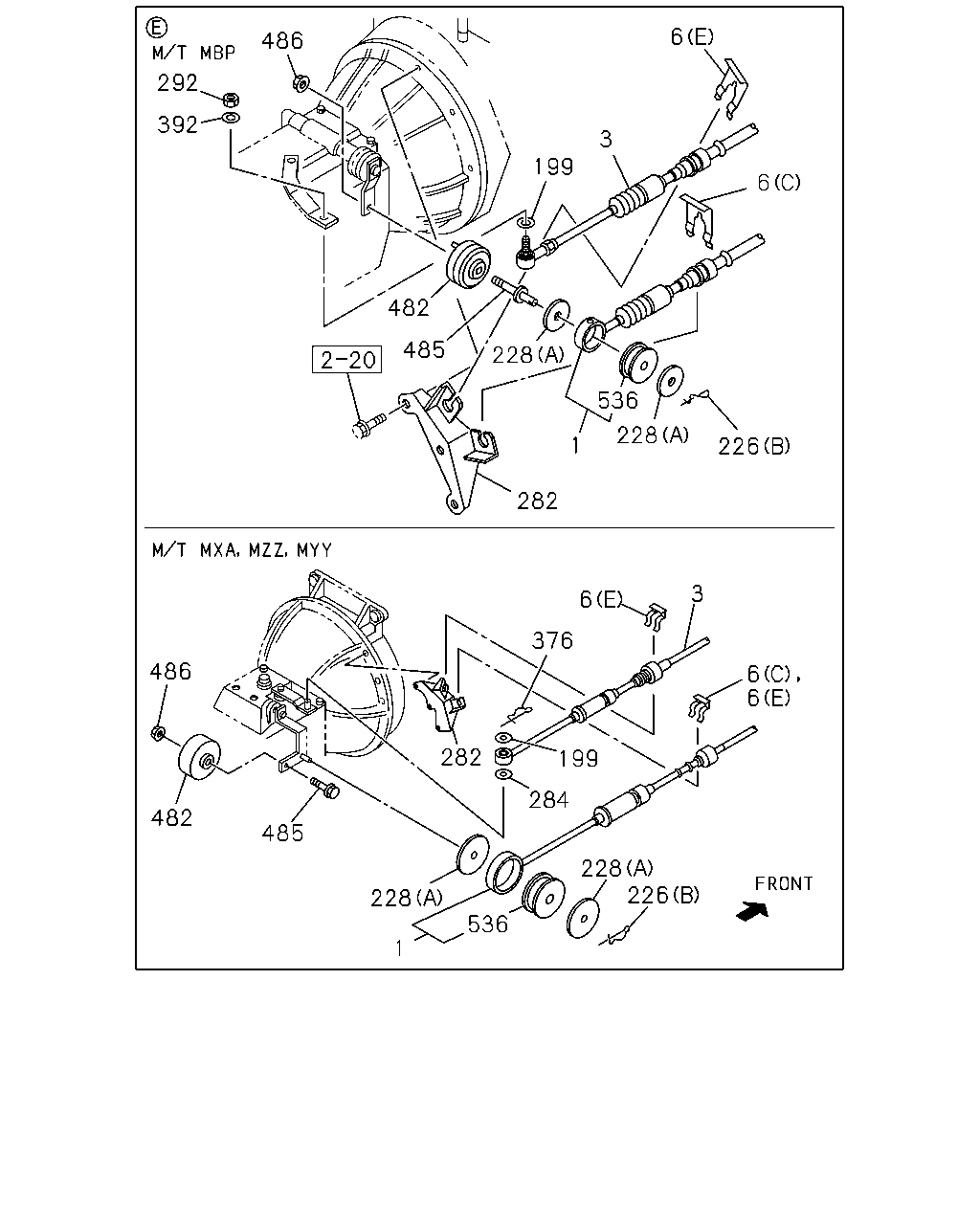

6 486 292 392 3 199 6 482 228 485 536 228 1 226 282 3 6 376 486 6 6 282 199 284 482 485 228 226 228 536 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.854 CABLE; SHIFT,TRANS CONT L=3123	8-97202-562-0	01	1	0102-0112	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123	8-97202-562-0	01	1	0201-0301	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021	8-97350-440-0	01	1	0302-0501		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3021	8-97351-347-0	01	1	0204-0301	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3077	8-97351-346-0	01	1	0204-0301			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3108	8-97350-438-1	01	1	0302-0501				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-98009-296-1	01	1	0502-0911				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3108	8-98146-853-0	01	1	0912-				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=2975	8-97096-512-2	01	1	0201-0301			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3006	8-97350-433-1	01	1	0302-0501				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3006	8-97350-433-1	01	1	0502-0911				●
1	00.854 CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3006	8-98146-847-0	01	1	0912-				●
1	00.854 CABLE; SHIFT,TRANS CONT L=3123	8-97307-916-1	01	1	0208-0301		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3123	8-97307-916-1	01	1	0302-0501		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3134	8-97357-181-3	01	1	0502-0911		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3134	8-98146-850-0	01	1	0912-		●
3	00.852 CABLE; SELECT,TRANS CONT L=3259	8-97202-561-0	01	1	0102-0112	●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3259	8-97202-561-0	01	1	0201-0301	●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3100	8-97350-441-0	01	1	0302-0501		●
3	00.852 CABLE; SELECT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3044	8-97096-507-2	01	1	0201-0301			●
3	00.852 CABLE; SELECT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> L=3063	8-97350-434-0	01	1	0302-0501				●
3	00.852 CABLE; SELECT,TRANS CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3063	8-97350-434-0	01	1	0502-				●
3	00.852 CABLE; SELECT,TRANS CONT L=3202	8-97307-881-2	01	1	0208-0301		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3202	8-97307-881-2	01	1	0302-0501		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3217	8-97357-182-4	01	1	0502-		●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3165	8-97350-439-0	01	1	0302-0501				●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> L=3165	8-98009-286-1	01	1	0502-				●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	0102-0207	●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	0208-0301	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> 00.854 (C) ID=22.2	1-09701-209-1	01	1	0302-		●		●
6	04.047 CLIP; CABLE (D)	8-97011-448-0	02	1	0102-0112	●
6	04.047 CLIP; CABLE (D)	8-97011-448-0	02	1	0201-0301	●	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	0302-		●		●
6	04.047 CLIP; CABLE (B)	8-97036-332-1	01	1	0102-0112	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-332-1	01	1	0201-0301	●	●	●
6	04.047 CLIP; CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-332-1	01	1	0302-0501		●		●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-332-1	01	1	0502-		●		●
6	04.047 CLIP; CABLE (A)	8-97036-333-1	02	1	0102-0112	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	02	1	0201-0301	●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	02	1	0302-0501		●		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0502-0504		●		●
6	04.047 CLIP; CABLE 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0502-0504				●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0505-		●		●
6	04.047 CLIP; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0505-		●		●
6	04.047 CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0102-0207	●
6	04.047 CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0208-0301	●	●
6	04.047 CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0302-0501		●		●
6	04.047 CLIP; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (E) ID=19.2	8-97211-011-0	01	1	0502-		●		●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (E) ID=19.2	8-97211-011-0	02	1	0201-0301			●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0102-0112	●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0201-0207			●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0208-0301		●	●
199	04.012 WASHER; PL,SELECT FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	01	1	0302-0605		●		●
199	04.012 WASHER; PL,SELECT FLOOR REMOTE SHIFT<M11> 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-		●		●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0102-0112	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0201-0301	●	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	0302-		●		●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0102-0112	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0201-0301	●	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	0302-		●		●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0102-0112	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0201-0301	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0302-		●		●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0102-0112	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0201-0301	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	0302-0605		●		●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-		●		●
282	04.010 BRACKET; TRANS SIDE	8-97040-198-1	01	1	0102-0301	●
282	04.010 BRACKET; TRANS SIDE	8-97182-260-0	01	1	0201-0301			●
282	04.010 BRACKET; TRANS SIDE FLOOR REMOTE SHIFT<M11>	8-97311-441-1	01	1	0302-				●
282	04.010 BRACKET; TRANS SIDE	8-97311-442-1	01	1	0208-		●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0102-0112	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0201-0207			●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0208-0301		●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14	5-09550-002-0	01	1	0302-		●		●
292	04.047 NUT; CABLE TO RELAY LEVER 04.037 M8 T=8.0	8-94363-045-0	01	1	0102-0301	●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0201-0207			●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0208-0301		●	●
376	04.047 PIN; SNAP,SELECT CABLE FLOOR REMOTE SHIFT<M11> L=23	8-94170-378-0	01	1	0302-		●		●
392	00.854 WASHER; LK,SELECT CABLE,CAB 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0102-0301	●
482	04.047 WEIGHT; SHIFT CABLE	8-97079-982-2	01	1	0102-0301	●
482	04.047 WEIGHT; SHIFT CABLE	8-97066-730-2	01	1	0208-0301		●
482	04.047 WEIGHT; SHIFT CABLE	8-97066-730-2	01	1	0302-0305		●		●
485	04.047 BOLT; WEIGHT L=88	8-97017-375-0	01	1	0102-0301	●
485	04.047 BOLT; WEIGHT M12X60 FLANGE	0-28091-260-0	01	1	0208-0301		●
485	04.047 BOLT; WEIGHT M12X60 FLANGE	0-28091-260-0	01	1	0302-0305		●		●
486	04.047 NUT; WEIGHT 06.509 M12 FLANGE	8-94436-194-0	01	1	0102-0207	●
486	04.047 NUT; WEIGHT 06.509 M12 FLANGE	8-94436-194-0	01	1	0208-0301	●	●
486	04.047 NUT; WEIGHT 06.509 M12 FLANGE	8-94436-194-0	01	1	0302-0305		●		●
536	00.854 DAMPER; CABLE FRAME STRAIGHT TYPE<7KJ>	8-98097-681-0	01	1	0102-0301	●		●
536	00.854 DAMPER; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ>	8-98097-681-0	01	1	0302-		●		●

279 6 303 294 300 6 201 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	0102-0207	●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	0208-0301	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> 00.854 (C) ID=22.2	1-09701-209-1	01	1	0302-		●		●
6	04.047 CLIP; CABLE (D)	8-97011-448-0	02	1	0102-0112	●
6	04.047 CLIP; CABLE (D)	8-97011-448-0	02	1	0201-0301	●	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	0302-		●		●
6	04.047 CLIP; CABLE (B)	8-97036-332-1	01	1	0102-0112	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-332-1	01	1	0201-0301	●	●	●
6	04.047 CLIP; CABLE 4HF1 ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-332-1	01	1	0302-0501		●		●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B)	8-97036-332-1	01	1	0502-		●		●
6	04.047 CLIP; CABLE (A)	8-97036-333-1	02	1	0102-0112	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	02	1	0201-0301	●	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	02	1	0302-0501		●		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0502-0504		●		●
6	04.047 CLIP; CABLE 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0502-0504				●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0505-		●		●
6	04.047 CLIP; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (A)	8-97036-333-1	01	1	0505-		●		●
6	04.047 CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0102-0207	●
6	04.047 CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0208-0301	●	●
6	04.047 CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0302-0501		●		●
6	04.047 CLIP; CABLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (E) ID=19.2	8-97211-011-0	01	1	0502-		●		●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (E) ID=19.2	8-97211-011-0	02	1	0201-0301			●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0102-0112	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0301	●	●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0501		●		●
201	04.032 BOLT; BRKT 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0506		●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512		●		●
201	04.032 BOLT; BRKT 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512		●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●		●
201	04.032 BOLT; BRKT 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
279	04.047 BRACKET; CABLE TO FRAME	8-97171-065-0	01	1	0102-0301	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97171-065-0	01	1	0302-0501		●
279	04.047 BRACKET; CABLE TO FRAME 4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ>	8-97171-065-0	01	1	0502-		●
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0102-0112	●
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0102-0112	●
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301	●		●
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301	●
294	00.854 NUT; CLIP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0501		●
294	00.854 NUT; CLIP 4HE1-TCS ENG(RDS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
294	00.854 NUT; CLIP 4HE1-TCS ENG(RDS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0102-0112	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0301	●	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0501		●		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●		●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0102-0112	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301	●	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0501		●		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●		●
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0201-0301			●
300	00.854 BOLT; CLIP 4HF1 ENG(RLS) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0302-0512				●
300	00.854 BOLT; CLIP 4HF1 ENG(RLS) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-				●
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0102-0112	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301	●	●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602		●		●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
