◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶

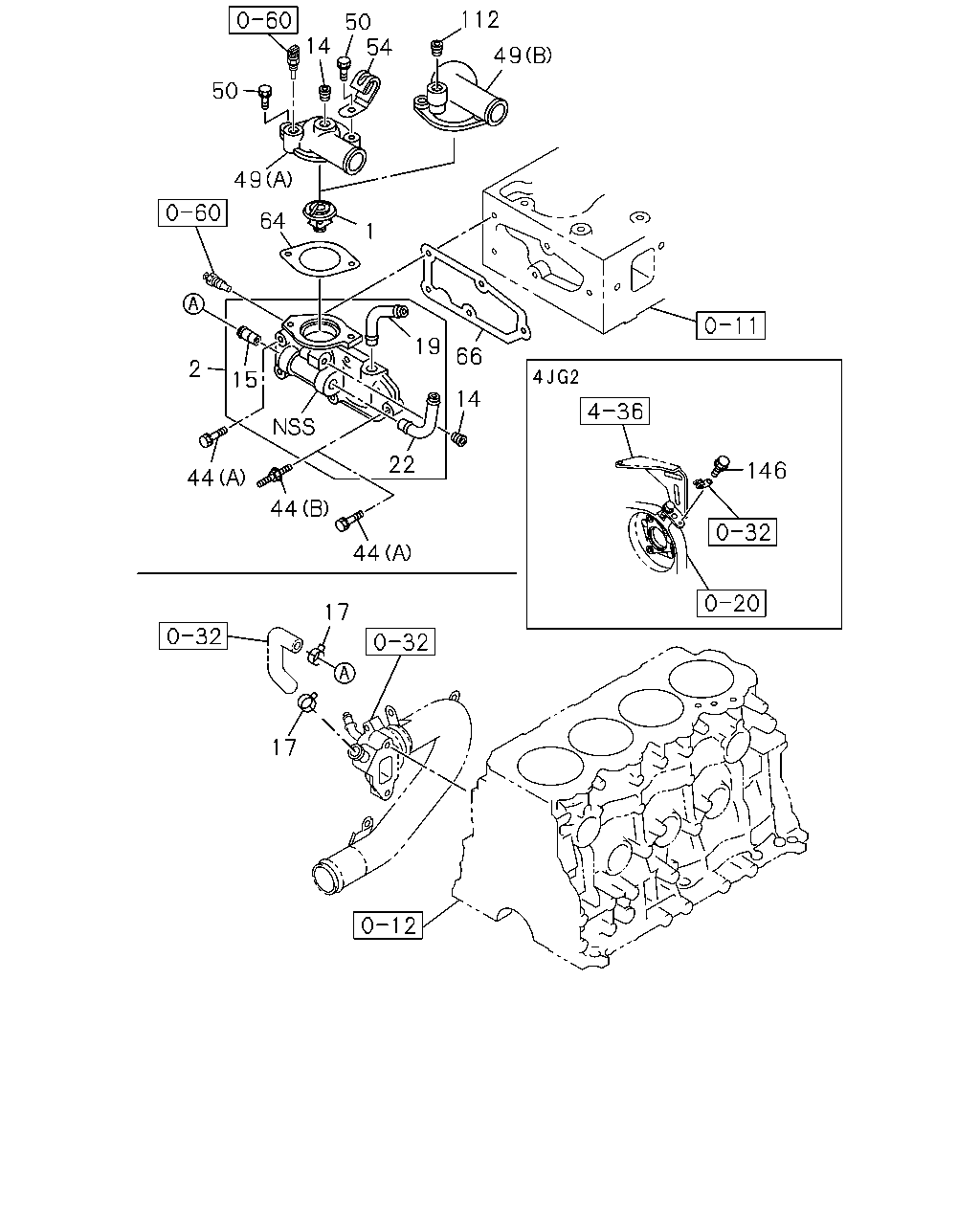

0-31 — THERMOSTAT AND HOUSING (#19422) — 33 parça

112 50 54 14 49 50 49 64 1 19 66 2 15 14 22 146 44 44 44 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.246 THERMOSTAT 82C	8-97089-891-0	01	1	0108-0301	●
1	01.246 THERMOSTAT CHARGE AIR COOLER<6PL> 82C	8-97089-891-0	01	1	0108-0301		●
1	01.246 THERMOSTAT 82C	8-97361-770-0	01	1	0302-	●
1	01.246 THERMOSTAT CHARGE AIR COOLER<6PL> 82C	8-97361-770-0	01	1	0302-		●
2	01.251 HOUSING; THERMOSTAT	8-97117-243-0	01	1	0108-	●
2	01.251 HOUSING; THERMOSTAT CHARGE AIR COOLER<6PL>	8-97117-243-0	01	1	0108-		●
14	01.252 PLUG; SW 01.073 PT3/8	5-09605-005-0	02	1	0108-	●
15	01.251 PIPE; BYPASS	8-94343-211-1	01	1	0108-	●
15	01.251 PIPE; BYPASS CHARGE AIR COOLER<6PL>	8-94343-211-1	01	1	0108-		●
17	01.166 CLIP; WATER HOSE ID=20.8	8-94125-862-1	02	1	0108-	●
17	01.166 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> ID=20.8	8-94125-862-1	02	1	0108-		●
19	01.252 PIPE; HSG TO HTR	8-94478-870-1	01	1	0108-	●
19	01.252 PIPE; HSG TO HTR CHARGE AIR COOLER<6PL>	8-94478-870-1	01	1	0108-		●
22	03.278 PIPE; HTR,RETURN	8-94478-869-2	01	1	0108-	●
22	03.278 PIPE; HTR,RETURN CHARGE AIR COOLER<6PL>	8-94478-869-2	01	1	0108-		●
44	01.252 BOLT; HSG TO HD 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	0108-	●
44	01.252 BOLT; HSG TO HD CHARGE AIR COOLER<6PL> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	0108-		●
44	01.252 BOLT; HSG TO HD (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	0108-	●
44	01.252 BOLT; HSG TO HD CHARGE AIR COOLER<6PL> (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	0108-		●
49	01.153 PIPE; WATER OUTLET (A)	8-97183-181-0	01	1	0108-	●
49	01.153 PIPE; WATER OUTLET CHARGE AIR COOLER<6PL> (B)	8-97249-274-1	01	1	0108-		●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0108-	●
50	01.252 BOLT; OUTLET PIPE CHARGE AIR COOLER<6PL> M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0108-		●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=12	5-09700-331-0	01	1	0108-0302	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE CHARGE AIR COOLER<6PL> 02.559 ID=12	5-09700-331-0	01	1	0108-0302		●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 01.150 ID=12	8-97367-983-0	01	1	0303-	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE CHARGE AIR COOLER<6PL> 01.150 ID=12	8-97367-983-0	01	1	0303-		●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252	8-94365-674-2	01	1	0108-	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 01.252	8-94365-674-2	01	1	0108-		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0108-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97216-156-0	01	1	0108-		●
112	01.251 PLUG CHARGE AIR COOLER<6PL> 01.073 PT3/8	5-09605-005-0	01	1	0108-		●
146	01.166 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0108-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
