0-30 — WATER PUMP AND CORROSION RESISTOR (#19421) — 12 parça

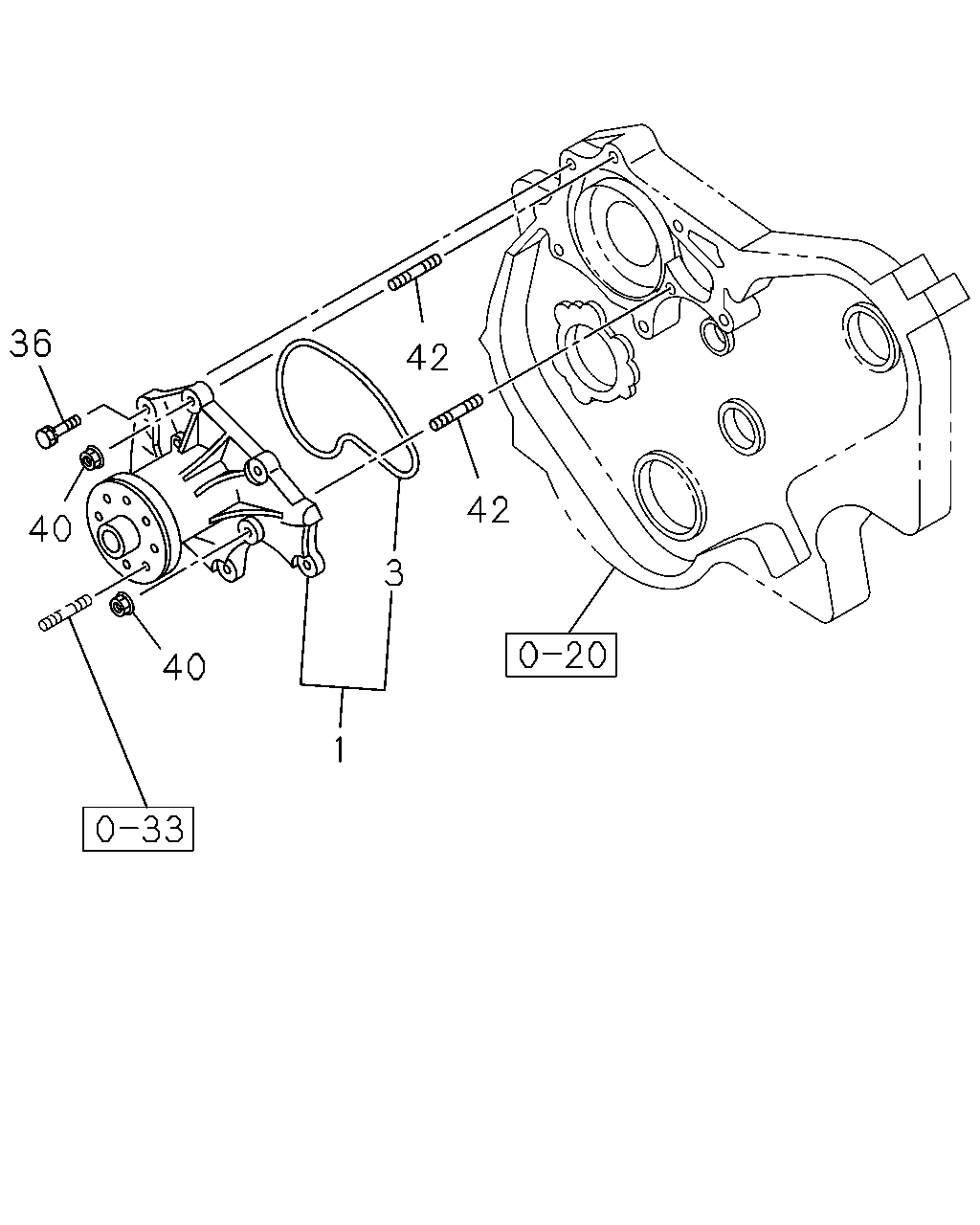

çizim 51669
36 42 42 40 3 40 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.069 PUMP ASM; WATER,W/GASKET 8-97105-012-2 01 1 0108-0201 ●
1 01.069 PUMP ASM; WATER,W/GASKET 8-97105-012-3 01 1 0202- ●
1 01.069 PUMP ASM; WATER,W/GASKET
CHARGE AIR COOLER<6PL> 		8-97105-012-3 01 1 0202- ●
1 01.069 PUMP ASM; WATER,W/GASKET
CHARGE AIR COOLER<6PL> 		8-97123-330-2 01 1 0108-0201 ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94178-081-0 01 1 0108- ●
3 01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 		8-94178-081-0 01 1 0108- ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 0108- ●
36 00.386 BOLT; WATER PUMP TO C/BL
CHARGE AIR COOLER<6PL> 03.330 M8X55 W/LK WASHER 		5-09000-084-1 05 1 0108- ●
40 07.874 NUT; WATER PUMP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ●
40 07.874 NUT; WATER PUMP
CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ●
42 01.073 STUD; WATER PUMP
09.173 M8X22 L=34 		9-04110-822-0 02 1 0108- ●
42 01.073 STUD; WATER PUMP
CHARGE AIR COOLER<6PL> 09.173 M8X22 L=34 		9-04110-822-0 02 1 0108- ●
