4-61 — SHOCK ABSORBER; REAR SUSPENSION (#1942) — 19 parça

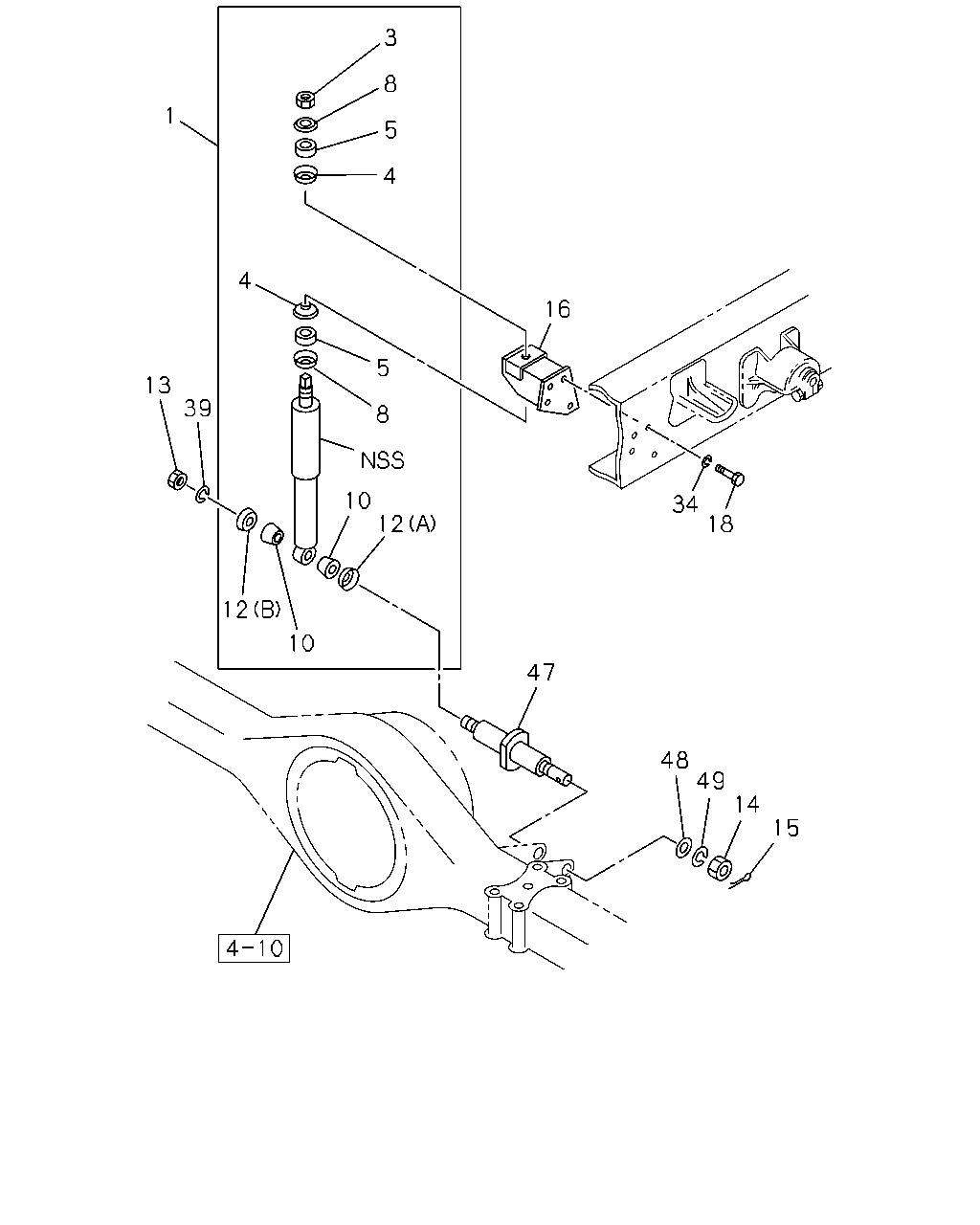

çizim 96494
3 8 1 5 4 4 16 5 13 39 8 10 12 34 18 12 10 47 48 49 14 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 ABSORBER ASM; SHOCK,RR
REAR SHOCK ABSORBER<GL6> 		1-51630-171-1 02 1 9207- ● ●
3 NUT; S/ABS
REAR SHOCK ABSORBER<GL6> M14 		9-99111-414-0 06 1 9207- ● ●
4 WASHER; CENTER,S/ABS
REAR SHOCK ABSORBER<GL6> ID=20.8 		9-51631-041-0 04 1 9207- ● ●
5 BUSHING; RUBBER,S/ABS,UPR
REAR SHOCK ABSORBER<GL6> 		9-51631-039-0 04 1 9207- ● ●
8 WASHER; S/ABS
REAR SHOCK ABSORBER<GL6> ID=16.5 		9-51631-040-0 04 1 9207- ● ●
10 BUSHING; RUBBER,S/ABS
REAR SHOCK ABSORBER<GL6> 		9-51631-026-0 04 1 9207- ● ●
12 WASHER; S/ABS TO RR AXLE
REAR SHOCK ABSORBER<GL6> (A) ID=27 		9-51631-027-0 02 1 9207- ● ●
12 WASHER; S/ABS TO RR AXLE
REAR SHOCK ABSORBER<GL6> (B) ID=21 		9-51631-028-0 02 1 9207- ● ●
13 NUT; LWR,RR S/ABS
REAR SHOCK ABSORBER<GL6> M20 SLOTTED 		9-99116-420-0 02 1 9207- ● ●
14 NUT; S/ABS PIN SETTING
REAR SHOCK ABSORBER<GL6> M18 		9-99110-518-0 02 1 9207- ● ●
15 PIN; SPLIT,S/ABS PIN
REAR SHOCK ABSORBER<GL6> OD=3.7 L=30 		9-08114-030-0 02 1 9207- ● ●
16 BRACKET; S/ABS,RR
REAR SHOCK ABSORBER<GL6> 		1-51681-519-0 01 1 9207- ● ●
16 BRACKET; S/ABS,RR
REAR SHOCK ABSORBER<GL6> 		1-51681-518-0 01 1 9207- ● ●
18 BOLT; S/ABS BRKT
REAR SHOCK ABSORBER<GL6> M14X40 		0-20801-440-0 08 1 9207- ● ●
34 WASHER; LK,S/ABS BRKT
REAR SHOCK ABSORBER<GL6> ID=14.2 		9-09150-814-0 08 1 9207- ● ●
39 WASHER; PL,S/ABS
REAR SHOCK ABSORBER<GL6> ID=21 		9-09160-520-0 02 1 9207- ● ●
47 PIN; S/ABS SETTING
REAR SHOCK ABSORBER<GL6> 		1-51682-088-0 02 1 9207- ● ●
48 WASHER; PL,S/ABS PIN
REAR SHOCK ABSORBER<GL6> ID=19 OD=44 		9-09164-718-0 02 1 9207- ● ●
49 WASHER; LK,S/ABS PIN
REAR SHOCK ABSORBER<GL6> ID=18.2 		9-09150-618-0 02 1 9207- ● ●
