0-27 — EXHAUST MANIFOLD (#19419) — 58 parça

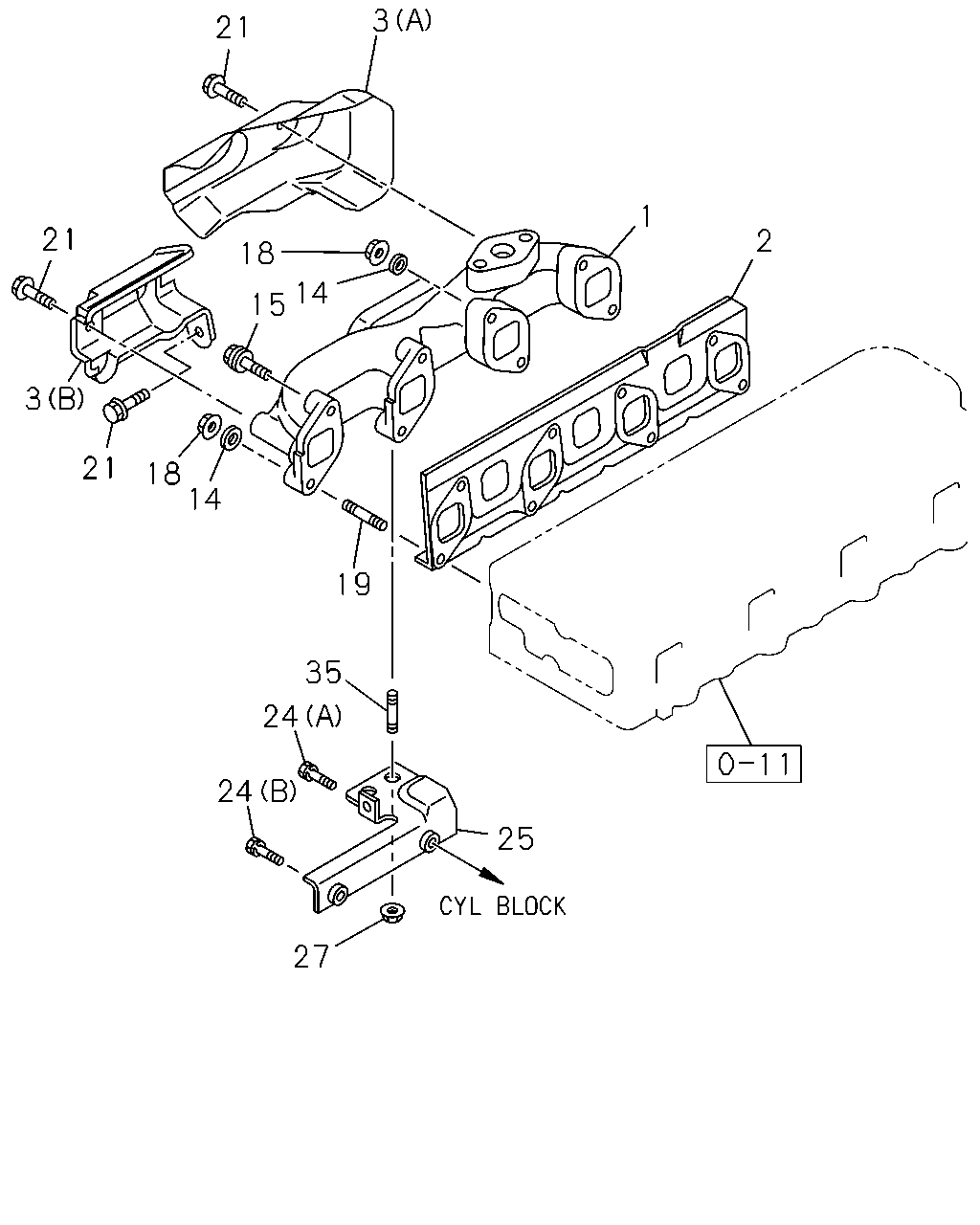

3 21 1 21 2 18 14 15 3 21 18 14 19 35 24 24 25 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.601 MANIFOLD; EXHAUST	8-97039-474-3	01	1	0108-	●
1	03.601 MANIFOLD; EXHAUST CHARGE AIR COOLER<6PL>	8-97289-434-0	01	1	0108-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97109-216-2	01	1	0108-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97350-317-0	01	1	0211-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97350-317-0	01	1	0211-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97259-886-1	01	1	0108-0210		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	0108-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	0108-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97912-766-0	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97252-524-1	01	1	0108-0306		●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL>	8-97920-418-1	01	1	0307-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (C)	8-97252-525-1	01	1	0108-		●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0108-	●
14	03.604 WASHER; PL,EXH MANIF CHARGE AIR COOLER<6PL> ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0108-		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0108-	●
15	03.604 BOLT; EXH MANIF CHARGE AIR COOLER<6PL> M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0108-		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0108-	●
18	03.604 NUT; EXH MANIF CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	02	1	0108-		●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	0108-	●
19	03.604 STUD; MANIF TO CYL HD CHARGE AIR COOLER<6PL> M8X35 L=46	8-97048-055-1	02	1	0108-		●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0108-	●
21	03.604 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0108-		●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0108-	●
21	03.604 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0108-		●
24	03.613 BOLT; BRKT,EXH MANIF 02.510 (A) M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	0108-	●
24	03.613 BOLT; BRKT,EXH MANIF 03.890 (B) M10X32 W/LK WASHER	0-50141-032-0	01	1	0108-	●
25	03.602 BRACKET; EXH MANIF	8-97145-973-0	01	1	0108-	●
25	03.602 BRACKET; EXH MANIF CHARGE AIR COOLER<6PL>	8-97188-069-0	01	1	0108-		●
27	03.602 NUT; BRKT,EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	01	1	0108-	●
35	03.604 STUD; BRKT M8X20 L=29	5-09300-069-0	01	1	0108-	●

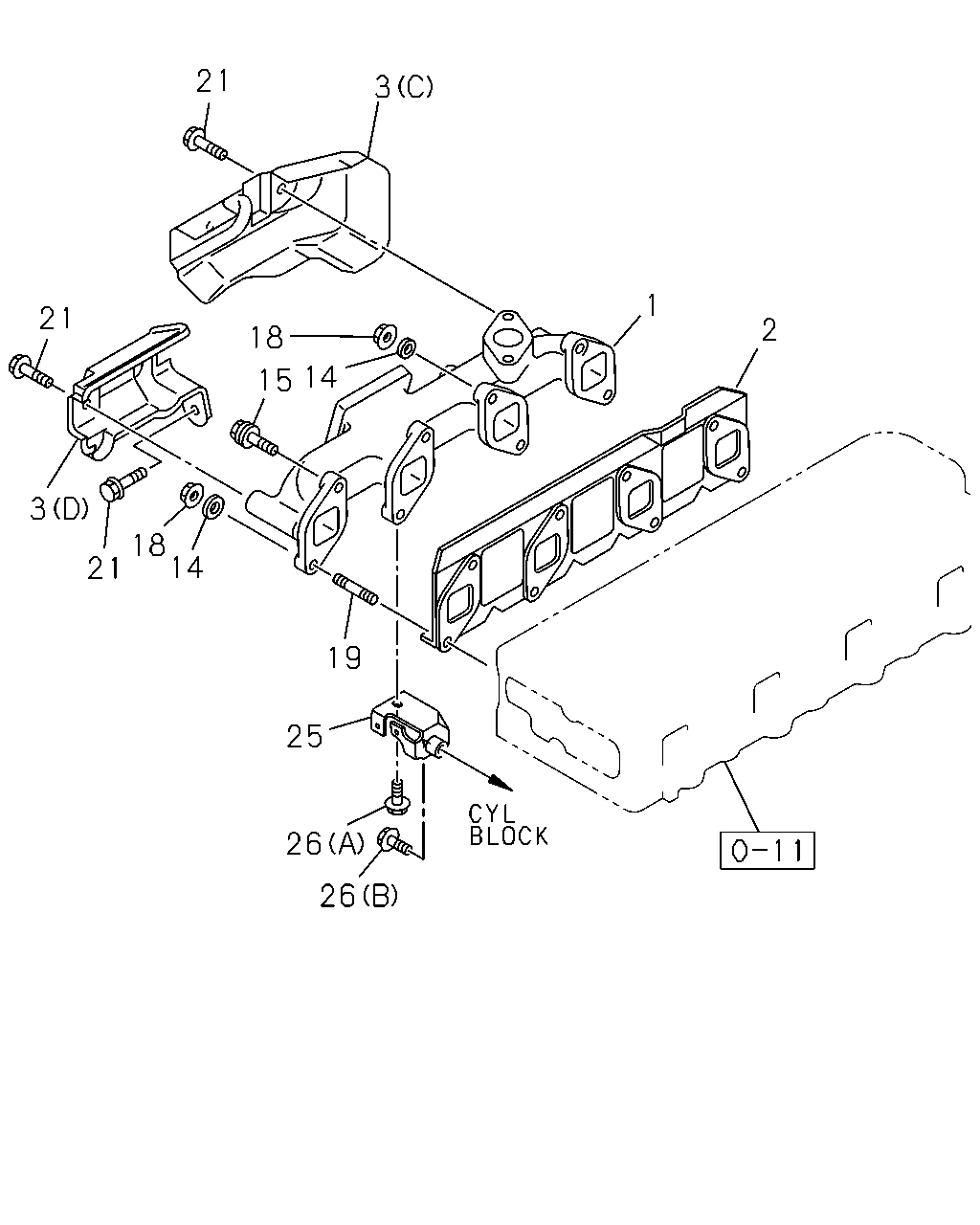

21 3 1 21 2 18 14 15 3 18 14 21 19 25 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.601 MANIFOLD; EXHAUST	8-97039-474-3	01	1	0108-	●
1	03.601 MANIFOLD; EXHAUST CHARGE AIR COOLER<6PL>	8-97289-434-0	01	1	0108-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97109-216-2	01	1	0108-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97350-317-0	01	1	0211-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97350-317-0	01	1	0211-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97259-886-1	01	1	0108-0210		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	0108-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	0108-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97912-766-0	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97252-524-1	01	1	0108-0306		●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL>	8-97920-418-1	01	1	0307-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (C)	8-97252-525-1	01	1	0108-		●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0108-	●
14	03.604 WASHER; PL,EXH MANIF CHARGE AIR COOLER<6PL> ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0108-		●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0108-	●
15	03.604 BOLT; EXH MANIF CHARGE AIR COOLER<6PL> M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0108-		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0108-	●
18	03.604 NUT; EXH MANIF CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	02	1	0108-		●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	0108-	●
19	03.604 STUD; MANIF TO CYL HD CHARGE AIR COOLER<6PL> M8X35 L=46	8-97048-055-1	02	1	0108-		●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0108-	●
21	03.604 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0108-		●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0108-	●
21	03.604 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0108-		●
25	03.602 BRACKET; EXH MANIF	8-97145-973-0	01	1	0108-	●
25	03.602 BRACKET; EXH MANIF CHARGE AIR COOLER<6PL>	8-97188-069-0	01	1	0108-		●
26	03.602 BOLT; BRKT TO EXH MANIF CHARGE AIR COOLER<6PL> 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	0108-		●
26	03.602 BOLT; BRKT TO EXH MANIF CHARGE AIR COOLER<6PL> 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	0108-		●
