◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#19418) — 46 parça

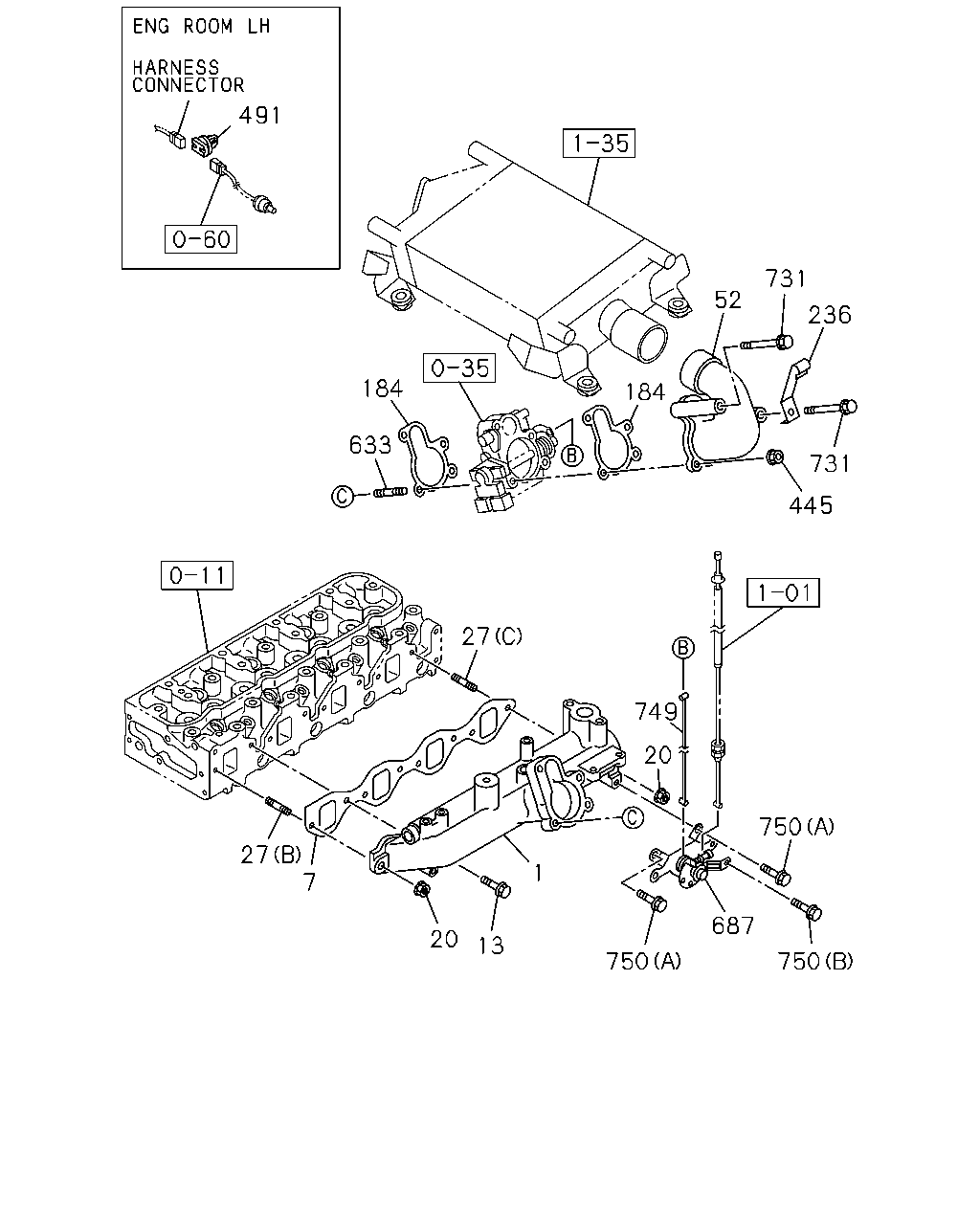

çizim 50521
491 731 52 236 184 184 633 731 445 27 749 20 750 27 7 1 687 20 13 750 750
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.265 MANIFOLD; INL 8-97139-649-1 01 1 0108-0308 ●
1 03.265 MANIFOLD; INL 8-97253-952-0 01 1 0309- ●
1 03.265 MANIFOLD; INL
CHARGE AIR COOLER<6PL> 		8-97249-064-4 01 1 0108- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-0 01 1 0108- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 		8-97301-838-0 01 1 0108- ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 06 1 0108- ●
13 03.275 BOLT; INL MANIF
CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE 		0-28080-825-0 06 1 0108- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0108- ●
20 03.275 NUT; INL MANIF
CHARGE AIR COOLER<6PL> 00.854 M8 FLANGE 		5-09440-005-0 02 1 0108- ●
27 03.275 STUD; INL MANIF
03.901 (A) M8X25 L=37 		9-04110-825-0 02 1 0108- ●
27 03.275 STUD; INL MANIF
CHARGE AIR COOLER<6PL> 03.901 (B) M8X25 L=37 		9-04110-825-0 01 1 0108- ●
27 03.275 STUD; INL MANIF
CHARGE AIR COOLER<6PL> 00.219 (C) M8X35 L=46 		9-09630-034-1 01 1 0108- ●
52 01.097 PIPE; INL 8-97188-068-1 01 1 0108- ●
52 01.097 PIPE; INL
CHARGE AIR COOLER<6PL> 		8-97249-223-2 01 1 0108- ●
184 03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 		8-97214-127-0 02 1 0108- ●
236 03.162 CLIP; ACCEL CABLE
CHARGE AIR COOLER<6PL> 		8-97309-195-1 01 1 0108- ●
445 03.275 NUT; THROTTLE BODY TO MANIF
CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ●
491 01.152 CLIP; CONNECTOR
OD=7 H=1.2 		8-94364-750-0 01 1 0108- ●
491 01.152 CLIP; CONNECTOR
ENG QUICK WARM UP SYSTEM<6JZ> OD=7 H=1.2 		8-94364-750-0 01 1 0108- ●
633 03.275 STUD; THROTTLE BODY
CHARGE AIR COOLER<6PL> 01.060 M8X55 L=71 		9-04020-855-0 02 1 0108- ●
687 03.415 LEVER
CHARGE AIR COOLER<6PL> 		8-97263-653-5 01 1 0108- ●
731 02.559 BOLT; THROTTLE ASM
CHARGE AIR COOLER<6PL> 02.277 M8X130 FLANGE 		0-28085-813-0 02 1 0108- ●
749 03.480 CABLE ASM; ENG CONTROL
CHARGE AIR COOLER<6PL> 		8-97263-742-0 01 1 0108- ●
750 03.483 BOLT; LEVER
CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0108- ●
750 03.483 BOLT; LEVER
CHARGE AIR COOLER<6PL> 09.171 (B) M14X20 FLANGE 		0-28881-420-0 01 1 0108- ●
çizim 53135
114 53 185 52 61 185 95 62 61 27 1 7 13 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.265 MANIFOLD; INL 8-97139-649-1 01 1 0108-0308 ●
1 03.265 MANIFOLD; INL 8-97253-952-0 01 1 0309- ●
1 03.265 MANIFOLD; INL
CHARGE AIR COOLER<6PL> 		8-97249-064-4 01 1 0108- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-0 01 1 0108- ●
7 03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 		8-97301-838-0 01 1 0108- ●
13 03.275 BOLT; INL MANIF
01.531 M8X25 FLANGE 		0-28080-825-0 06 1 0108- ●
13 03.275 BOLT; INL MANIF
CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE 		0-28080-825-0 06 1 0108- ●
20 03.275 NUT; INL MANIF
00.854 M8 FLANGE 		5-09440-005-0 02 1 0108- ●
20 03.275 NUT; INL MANIF
CHARGE AIR COOLER<6PL> 00.854 M8 FLANGE 		5-09440-005-0 02 1 0108- ●
27 03.275 STUD; INL MANIF
03.901 (A) M8X25 L=37 		9-04110-825-0 02 1 0108- ●
27 03.275 STUD; INL MANIF
CHARGE AIR COOLER<6PL> 03.901 (B) M8X25 L=37 		9-04110-825-0 01 1 0108- ●
27 03.275 STUD; INL MANIF
CHARGE AIR COOLER<6PL> 00.219 (C) M8X35 L=46 		9-09630-034-1 01 1 0108- ●
52 01.097 PIPE; INL 8-97188-068-1 01 1 0108- ●
52 01.097 PIPE; INL
CHARGE AIR COOLER<6PL> 		8-97249-223-2 01 1 0108- ●
53 03.602 BOLT; INL PIPE
00.780 M8X30 W/LK WASHER 		0-50040-830-0 02 1 0108- ●
61 03.273 CLIP; CONNECTOR HOSE
ID=65-82 		8-97131-942-0 02 1 0108- ●
62 03.265 HOSE; CONNECTOR 8-97137-018-1 01 1 0108- ●
95 03.278 CLIP; RUBBER HOSE
00.446 ID=12 		5-09700-350-0 01 1 0108- ●
114 03.265 HOSE; VAC,INT THROTTLE 8-97259-674-0 01 1 0108- ●
185 03.273 RUBBER; MTG,INL MANIF,UPR
(B) ID=12 OD=24 T=4.5 		8-94403-670-0 02 1 0108- ●
185 03.273 RUBBER; MTG,INL MANIF,UPR
(A) 		8-94434-927-0 02 1 0108- ●
