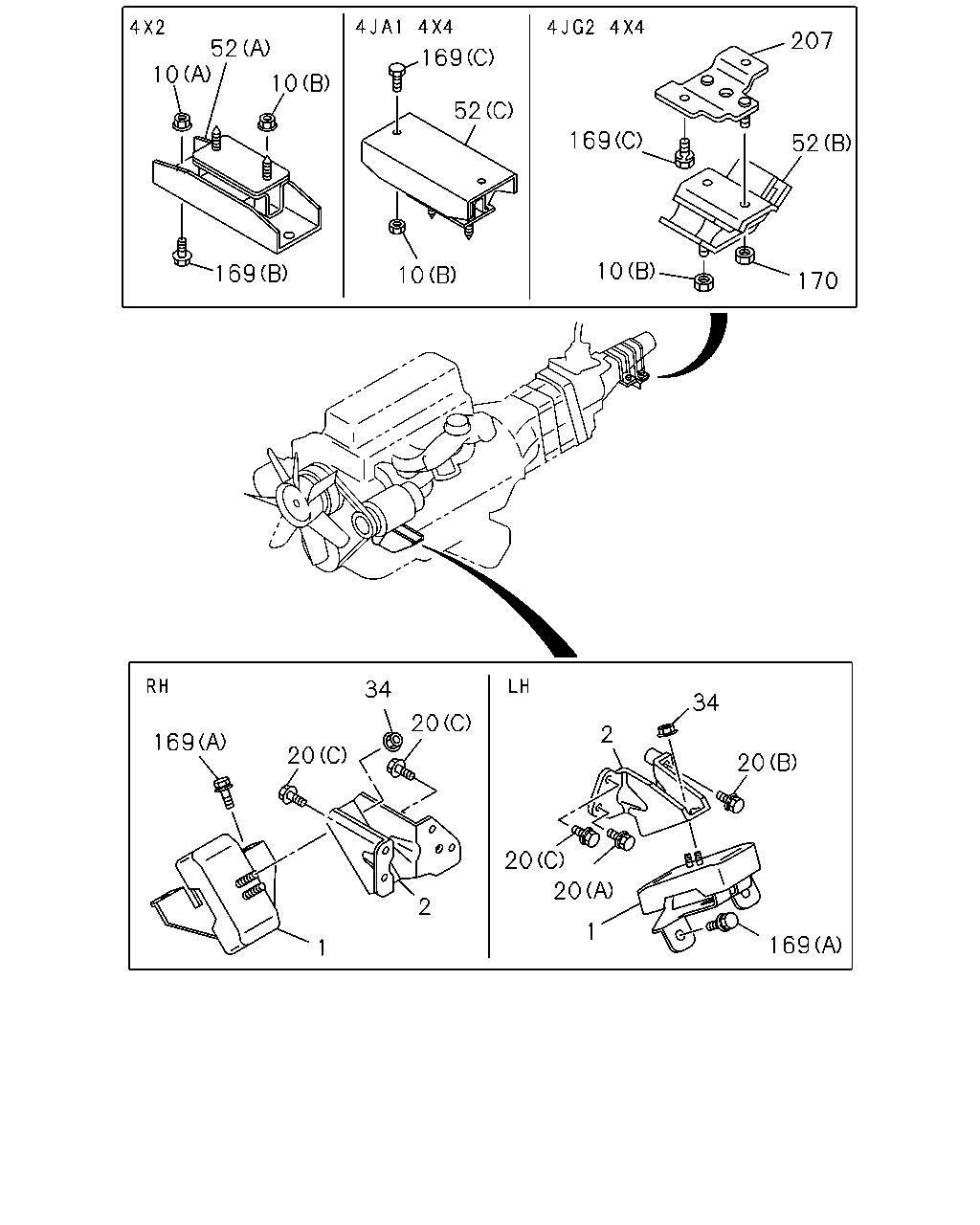

0-22 — ENGINE MOUNTING (#19417) — 26 parça

207 52 169 10 10 52 169 52 10 169 10 170 34 34 20 2 169 20 20 20 20 2 1 169 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	0108-	●
1	00.027 RUBBER; ENG FOOT,FRT CHARGE AIR COOLER<6PL>	8-97086-076-1	01	1	0108-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	0108-	●
1	00.027 RUBBER; ENG FOOT,FRT CHARGE AIR COOLER<6PL>	8-97039-189-3	01	1	0108-		●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	0108-	●
2	00.029 FOOT; ENG CHARGE AIR COOLER<6PL>	8-97038-196-1	01	1	0108-		●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	0108-	●
2	00.029 FOOT; ENG CHARGE AIR COOLER<6PL>	8-97038-195-1	01	1	0108-		●
10	04.085 NUT; MTG RUBBER (B) RR SUPPORT M10 FLANGE	8-94126-973-0	02	1	0108-	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) 04.785 (A) RR SUPPORT M10 FLANGE	0-91150-110-0	02	1	0108-	●	●
20	00.029 BOLT; ENG FOOT 02.277 (C) M10X22 W/LK WASHER	0-50041-022-0	06	1	0108-	●
20	00.029 BOLT; ENG FOOT CHARGE AIR COOLER<6PL> 02.277 (C) M10X22 W/LK WASHER	0-50041-022-0	06	1	0108-		●
20	00.029 BOLT; ENG FOOT 09.171 (B) M10X35 W/LK WASHER	0-50041-035-0	01	1	0108-	●
20	00.029 BOLT; ENG FOOT CHARGE AIR COOLER<6PL> 09.171 (B) M10X35 W/LK WASHER	0-50041-035-0	01	1	0108-		●
20	00.029 BOLT; ENG FOOT 00.002 (A) M14X25 W/LK WASHER	0-50041-425-0	01	1	0108-	●
20	00.029 BOLT; ENG FOOT CHARGE AIR COOLER<6PL> 00.002 (A) M14X25 W/LK WASHER	0-50041-425-0	01	1	0108-		●
34	00.002 NUT; RUBBER TO ENG 08.917 M10 FLANGE	0-91150-210-0	04	1	0108-	●
34	00.002 NUT; RUBBER TO ENG CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	04	1	0108-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) (B)	8-97039-196-6	01	1	0108-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) (A)	8-94434-208-1	01	1	0108-	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) (C)	8-94458-384-3	01	1	0108-		●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-97035-564-0	04	1	0108-	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0108-	●	●
169	00.029 BOLT; SUPPORT 4X4(TFS***) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	0108-	●	●
170	00.029 NUT; SUPPORT 4X4(TFS***) 04.785 M10 FLANGE	0-91150-110-0	02	1	0108-	●
207	00.029 BRACKET; SUPPORT,FRAME 4X4(TFS***)	8-97063-019-3	01	1	0108-	●
