0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#19415) — 133 parça

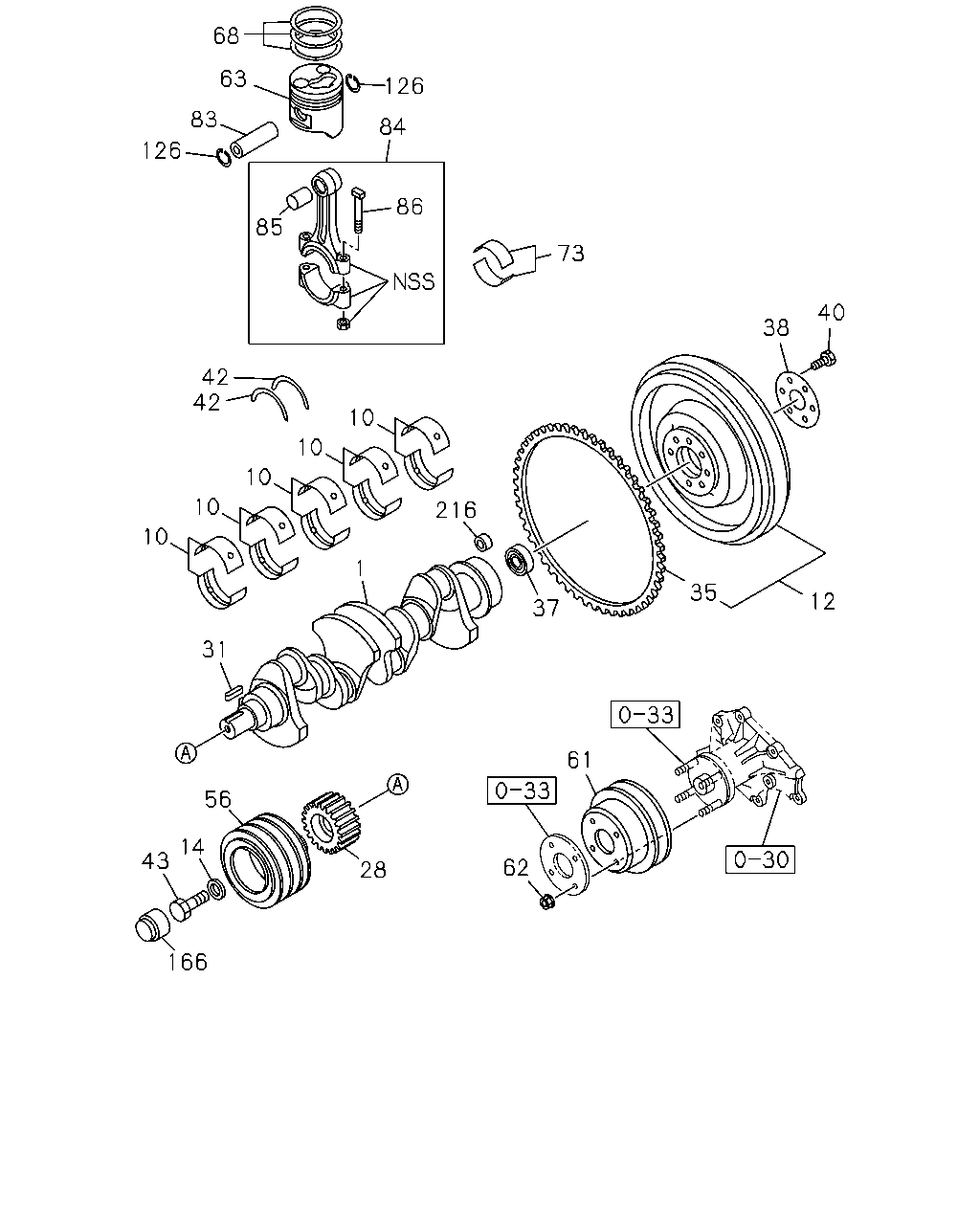

68 63 126 83 84 126 86 85 73 40 38 42 42 10 10 10 10 216 10 1 35 12 37 31 61 56 14 43 62 28 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-97190-930-1	01	1	0108-	●
1	00.646 CRANKSHAFT CHARGE AIR COOLER<6PL>	8-97249-041-0	01	1	0108-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0203-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0203-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	0108-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0203-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	0108-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0203-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	0108-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0203-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> GREEN	8-97287-437-0	05	1	0108-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> BLACK	8-97287-438-0	05	1	0108-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> BLUE	8-97287-439-0	05	1	0108-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> BROWN	8-97287-440-0	05	1	0108-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> YELLOW	8-97287-441-0	05	1	0108-		●
12	00.666 FLYWHEEL W/RING GEAR	8-97021-401-2	01	1	0108-	●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL>	8-97249-214-0	01	1	0108-		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0108-	●
14	00.662 WASHER; PULLEY DAMPER CHARGE AIR COOLER<6PL> ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0108-		●
28	00.728 GEAR; CR/SHF CHARGE AIR COOLER<6PL> Z=30	8-97240-011-2	01	1	0108-		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0108-	●
31	00.662 KEY; FEATHER,CR/SHF CHARGE AIR COOLER<6PL> 00.729	8-94201-641-0	01	1	0108-		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0108-	●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> Z=108	8-94419-602-1	01	1	0108-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	0108-	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT CHARGE AIR COOLER<6PL> 00.649	9-00090-679-0	01	1	0108-		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0108-	●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> 00.669	8-94133-970-0	01	1	0108-		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0108-	●
40	00.669 BOLT; FLYWHEEL CHARGE AIR COOLER<6PL> M13X36	8-97065-984-1	08	1	0108-		●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0108-	●
42	00.095 WASHER; THRUST,CR/SHF CHARGE AIR COOLER<6PL>	8-94454-605-0	02	1	0108-		●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0108-	●
43	00.662 BOLT; CR/SHF PULLEY CHARGE AIR COOLER<6PL> M16X43	5-09000-273-2	01	1	0108-		●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	0108-	●
56	00.659 PULLEY; CR/SHF DAMPER CHARGE AIR COOLER<6PL> 3-GROOVE	8-97289-473-0	01	1	0108-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0108-0207	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0208-	●
61	00.659 PULLEY; FAN DRIVE CHARGE AIR COOLER<6PL> 1-GROOVE OD=120	8-94459-815-3	01	1	0208-		●
61	00.659 PULLEY; FAN DRIVE CHARGE AIR COOLER<6PL> 1-GROOVE	8-94146-638-1	01	1	0108-0207		●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	0108-	●
62	01.060 NUT; FAN PULLEY CHARGE AIR COOLER<6PL> 07.829 M6 FLANGE	5-09440-004-0	04	1	0108-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-622-1	04	1	0108-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-623-1	04	1	0108-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97319-083-2	04	1	0108-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97319-084-2	04	1	0108-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	0108-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97319-087-0	04	1	0108-		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	0108-0210	●
73	00.616 METAL SET; CONN ROD,STANDARD CHARGE AIR COOLER<6PL>	8-94372-193-1	04	1	0108-0210		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-	●
73	00.616 METAL SET; CONN ROD,STANDARD CHARGE AIR COOLER<6PL>	8-97358-234-0	04	1	0211-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	0108-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-94454-479-0	04	1	0108-		●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	0307-	●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	0108-0306	●
84	00.603 ROD ASM; CONN CHARGE AIR COOLER<6PL>	8-97252-850-3	04	1	0108-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0307-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0108-0306	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97288-551-0	04	1	0108-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0307-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0108-0306	●
86	00.623 BOLT; CONNROD CHARGE AIR COOLER<6PL> M11X59	5-12235-009-0	08	1	0108-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	0108-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-94133-969-0	08	1	0108-		●
166	00.659 RUBBER; SPACE,PULLEY CHARGE AIR COOLER<6PL>	8-97231-528-0	01	1	0108-		●
216	00.293 DOWEL CHARGE AIR COOLER<6PL>	8-97259-856-0	01	1	0108-		●

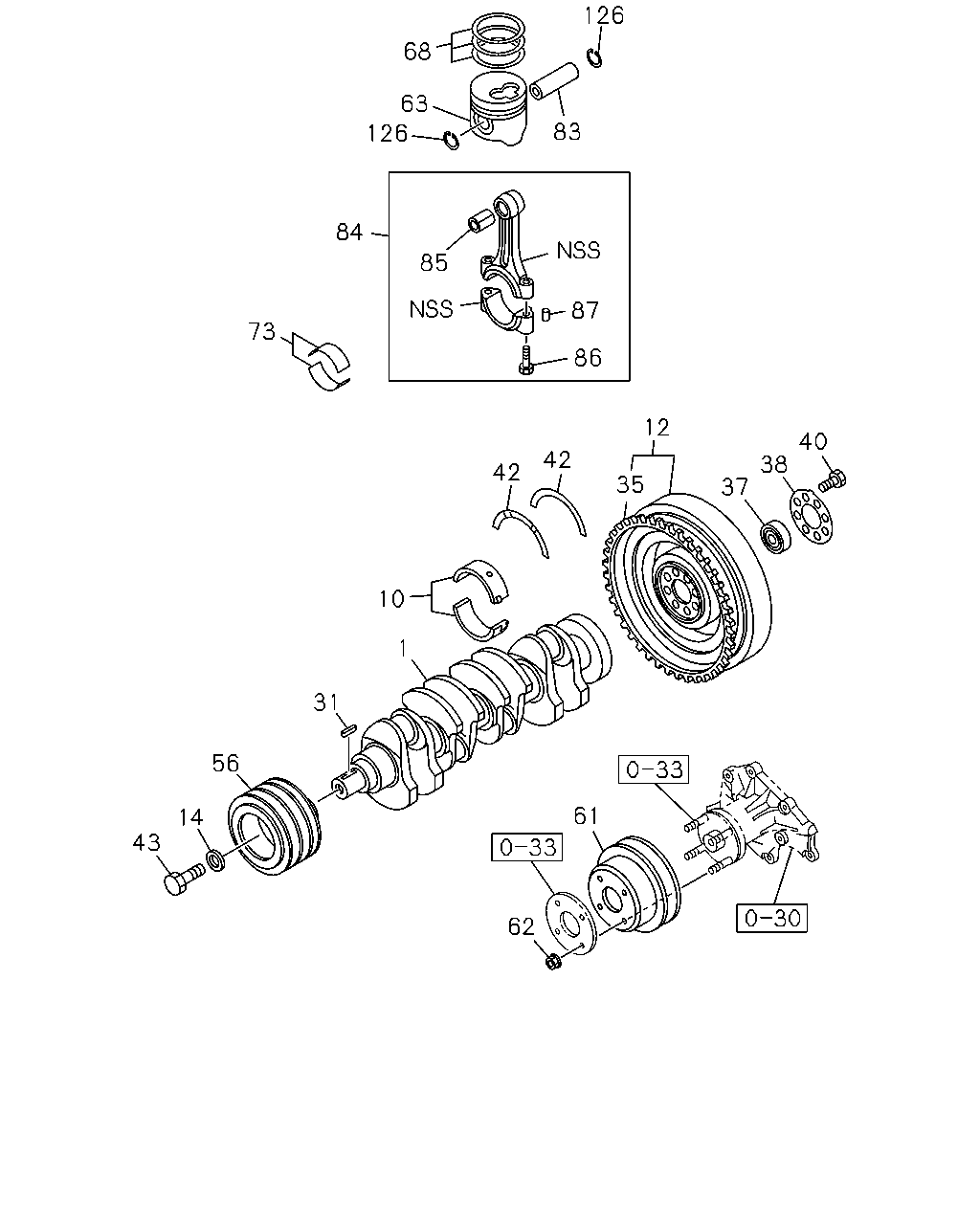

126 68 63 83 126 84 85 87 73 86 12 40 42 38 42 35 37 10 1 31 56 61 14 43 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-97190-930-1	01	1	0108-	●
1	00.646 CRANKSHAFT CHARGE AIR COOLER<6PL>	8-97249-041-0	01	1	0108-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0203-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0203-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	0108-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0203-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	0108-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0203-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	0108-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0203-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> GREEN	8-97287-437-0	05	1	0108-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> BLACK	8-97287-438-0	05	1	0108-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> BLUE	8-97287-439-0	05	1	0108-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> BROWN	8-97287-440-0	05	1	0108-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CHARGE AIR COOLER<6PL> YELLOW	8-97287-441-0	05	1	0108-		●
12	00.666 FLYWHEEL W/RING GEAR	8-97021-401-2	01	1	0108-	●
12	00.666 FLYWHEEL CHARGE AIR COOLER<6PL>	8-97249-214-0	01	1	0108-		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0108-	●
14	00.662 WASHER; PULLEY DAMPER CHARGE AIR COOLER<6PL> ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0108-		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0108-	●
31	00.662 KEY; FEATHER,CR/SHF CHARGE AIR COOLER<6PL> 00.729	8-94201-641-0	01	1	0108-		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0108-	●
35	00.673 GEAR; RING CHARGE AIR COOLER<6PL> Z=108	8-94419-602-1	01	1	0108-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	0108-	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT CHARGE AIR COOLER<6PL> 00.649	9-00090-679-0	01	1	0108-		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0108-	●
38	00.862 WASHER; FLYWHEEL CHARGE AIR COOLER<6PL> 00.669	8-94133-970-0	01	1	0108-		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0108-	●
40	00.669 BOLT; FLYWHEEL CHARGE AIR COOLER<6PL> M13X36	8-97065-984-1	08	1	0108-		●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0108-	●
42	00.095 WASHER; THRUST,CR/SHF CHARGE AIR COOLER<6PL>	8-94454-605-0	02	1	0108-		●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0108-	●
43	00.662 BOLT; CR/SHF PULLEY CHARGE AIR COOLER<6PL> M16X43	5-09000-273-2	01	1	0108-		●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97182-904-0	01	1	0108-	●
56	00.659 PULLEY; CR/SHF DAMPER CHARGE AIR COOLER<6PL> 3-GROOVE	8-97289-473-0	01	1	0108-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0108-0207	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-3	01	1	0208-	●
61	00.659 PULLEY; FAN DRIVE CHARGE AIR COOLER<6PL> 1-GROOVE OD=120	8-94459-815-3	01	1	0208-		●
61	00.659 PULLEY; FAN DRIVE CHARGE AIR COOLER<6PL> 1-GROOVE	8-94146-638-1	01	1	0108-0207		●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	0108-	●
62	01.060 NUT; FAN PULLEY CHARGE AIR COOLER<6PL> 07.829 M6 FLANGE	5-09440-004-0	04	1	0108-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-622-1	04	1	0108-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-623-1	04	1	0108-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX	8-97319-083-2	04	1	0108-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX	8-97319-084-2	04	1	0108-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	0108-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97319-087-0	04	1	0108-		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	0108-0210	●
73	00.616 METAL SET; CONN ROD,STANDARD CHARGE AIR COOLER<6PL>	8-94372-193-1	04	1	0108-0210		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-	●
73	00.616 METAL SET; CONN ROD,STANDARD CHARGE AIR COOLER<6PL>	8-97358-234-0	04	1	0211-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	0108-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-94454-479-0	04	1	0108-		●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	0307-	●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	0108-0306	●
84	00.603 ROD ASM; CONN CHARGE AIR COOLER<6PL>	8-97252-850-3	04	1	0108-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0307-	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0108-0306	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-97288-551-0	04	1	0108-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0307-	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0108-0306	●
86	00.623 BOLT; CONNROD CHARGE AIR COOLER<6PL> M11X59	5-12235-009-0	08	1	0108-		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0307-	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0108-0306	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	0108-	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL>	8-94133-969-0	08	1	0108-		●
