0-14 — CAMSHAFT AND VALVE (#19414) — 104 parça

85 87 86 84 78 78 78 56 55 78 78 78 86 85 95 86 53 83 55 54 88 81 54 78 89 84 78 56 65 65 71 68 72 71 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	00.296 VALVE; INL	8-97131-729-0	04	1	0108-	●
4	00.296 VALVE; INL CHARGE AIR COOLER<6PL>	8-97131-729-0	04	1	0108-		●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0108-	●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97043-861-1	04	1	0108-		●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0108-	●
53	00.353 SHAFT; ROCKER ARM CHARGE AIR COOLER<6PL>	8-97036-197-0	01	1	0108-		●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0108-	●
54	00.349 WASHER; ROCKER SPR CHARGE AIR COOLER<6PL> ID=19.1 OD=23	8-94341-906-0	06	1	0108-		●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0108-	●
55	00.356 PLUG; ROCKER SHAFT END CHARGE AIR COOLER<6PL>	9-12626-005-0	02	1	0108-		●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0108-	●
56	00.349 RING; SNAP,ROCKER ARM CHARGE AIR COOLER<6PL> ID=17.5	9-09180-019-0	02	1	0108-		●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0108-	●
65	00.310 COLLAR; SPLIT CHARGE AIR COOLER<6PL>	5-12565-004-0	16	1	0108-		●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	0108-	●
68	00.303 SPRING; VLV CHARGE AIR COOLER<6PL> ID=26.25	8-94433-247-0	08	1	0108-		●
71	00.309 SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	0108-	●
71	00.309 SEAT; SPR CHARGE AIR COOLER<6PL> (B) LOWER OD=34	5-12563-001-0	08	1	0108-		●
71	00.309 SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	0108-	●
71	00.309 SEAT; SPR CHARGE AIR COOLER<6PL> (A) UPPER OD=32.8	8-94133-731-2	08	1	0108-		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0108-	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97120-307-0	08	1	0108-		●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	0108-	●
78	00.333 ARM; ROCKER CHARGE AIR COOLER<6PL>	8-94152-344-0	08	1	0108-		●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0108-	●
81	00.429 SCREW; ADJ,ROCKER ARM CHARGE AIR COOLER<6PL> M8X30	8-94152-283-1	08	1	0108-		●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0108-	●
83	00.787 NUT; ADJ SCREW,LK CHARGE AIR COOLER<6PL> 08.915 M8	9-09111-508-0	08	1	0108-		●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0108-	●
84	00.349 BRACKET; ROCKER SHAFT,INTER CHARGE AIR COOLER<6PL>	8-94152-345-1	04	1	0108-		●
85	00.349 BOLT; BRKT (A) M8X15,M10X60 L=82	8-94433-304-0	02	1	0108-	●
85	00.349 BOLT; BRKT CHARGE AIR COOLER<6PL> (A) M8X15,M10X60 L=82	8-94433-304-0	02	1	0108-		●
85	00.349 BOLT; BRKT (B) M8X37 & M10X60 L=104	8-94437-493-1	01	1	0108-	●
85	00.349 BOLT; BRKT CHARGE AIR COOLER<6PL> (B) M8X37 & M10X60 L=104	8-94437-493-1	01	1	0108-		●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0108-	●
86	00.349 WASHER; ROCKER ARM FIX CHARGE AIR COOLER<6PL> ID=10.5	9-09164-010-0	04	1	0108-		●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0108-	●
87	00.349 BOLT; ROCKER SHAFT CHARGE AIR COOLER<6PL> M10X60	8-94433-302-0	01	1	0108-		●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0108-	●
88	00.426 ROD; PUSH CHARGE AIR COOLER<6PL>	8-94143-203-0	08	1	0108-		●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0108-	●
89	00.459 TAPPET; VLV CHARGE AIR COOLER<6PL>	8-94438-305-1	08	1	0108-		●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0108-	●
95	00.376 SPRING; ROCKER SHAFT CHARGE AIR COOLER<6PL>	8-94341-905-0	03	1	0108-		●

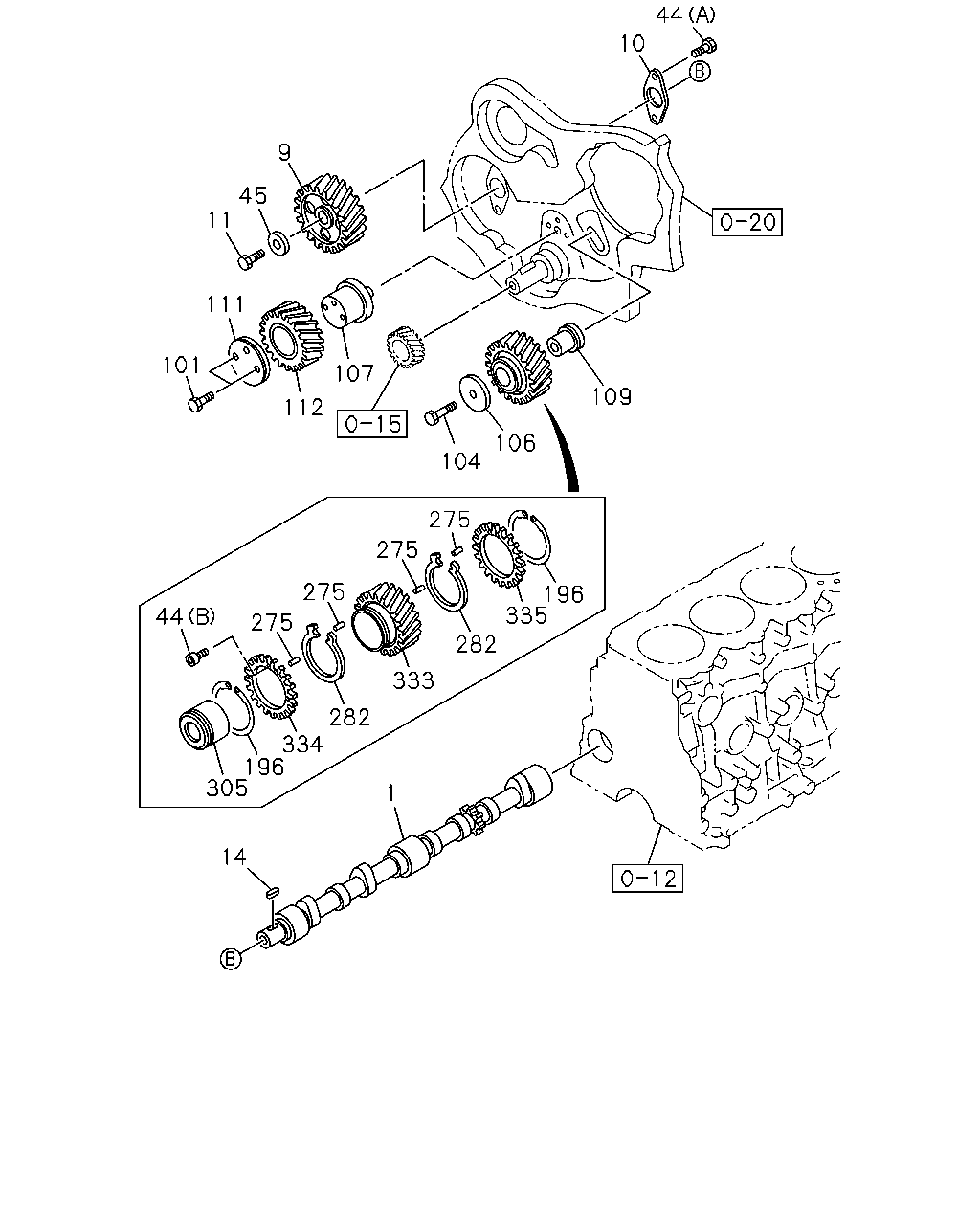

44 10 9 45 11 111 101 107 109 112 106 104 275 275 275 196 335 44 275 282 333 282 334 196 305 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0108-	●
1	00.519 CAMSHAFT CHARGE AIR COOLER<6PL>	8-97287-657-0	01	1	0108-		●
9	00.736 GEAR; CM/SHF CHARGE AIR COOLER<6PL> Z=60	8-97240-012-2	01	1	0108-		●
10	00.533 PLATE; THRUST CHARGE AIR COOLER<6PL>	8-94110-480-1	01	1	0108-		●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	0108-	●
11	00.533 BOLT; THRUST PLATE TO C/BL CHARGE AIR COOLER<6PL> M12X47	8-94433-407-0	01	1	0108-		●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0108-	●
14	00.738 KEY; CM/SHF CHARGE AIR COOLER<6PL> 08.960	9-08000-718-0	01	1	0108-		●
44	00.738 BOLT CHARGE AIR COOLER<6PL> (B) M6X30 HEX SOCKET	9-05820-630-0	01	1	0108-		●
44	00.738 BOLT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0108-		●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0108-	●
45	00.738 WASHER; GEAR CAM CHARGE AIR COOLER<6PL> ID=13 OD=36	5-12519-002-1	01	1	0108-		●
101	00.724 BOLT; THRUST COLLAR CHARGE AIR COOLER<6PL> M8X53 FLANGE	8-97223-999-0	02	1	0108-		●
104	00.724 BOLT; SHAFT IDLE CHARGE AIR COOLER<6PL> M12X77	8-94129-384-1	01	1	0108-		●
106	00.724 WASHER; IDLE GEAR SHAFT CHARGE AIR COOLER<6PL> 00.738 ID=13 OD=36	5-12519-002-1	01	1	0108-		●
107	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-021-0	01	1	0108-0308		●
107	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97943-224-0	01	1	0309-		●
109	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-023-1	01	1	0108-0308		●
109	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97943-225-0	01	1	0309-		●
111	00.724 COLLAR; THRUST,IDLE GEAR CHARGE AIR COOLER<6PL>	8-94171-289-0	01	1	0108-		●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> Z=43	8-97240-014-1	01	1	0108-		●
196	00.724 RING; SNAP CHARGE AIR COOLER<6PL>	8-97245-684-1	02	1	0108-		●
275	00.724 PIN; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97245-683-0	04	1	0108-		●
282	00.738 SPRING; GEAR CHARGE AIR COOLER<6PL>	8-97245-337-0	02	1	0108-		●
305	00.724 BEARING; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-019-1	01	1	0108-		●
333	00.724 GEAR; IDLE,MAIN CHARGE AIR COOLER<6PL> Z=52	8-97240-018-2	01	1	0108-		●
334	00.724 GEAR; IDLE,FRT CHARGE AIR COOLER<6PL> Z=52	8-97264-988-1	01	1	0108-		●
335	00.724 GEAR; IDLE,RR CHARGE AIR COOLER<6PL> Z=52	8-97245-231-1	01	1	0108-		●

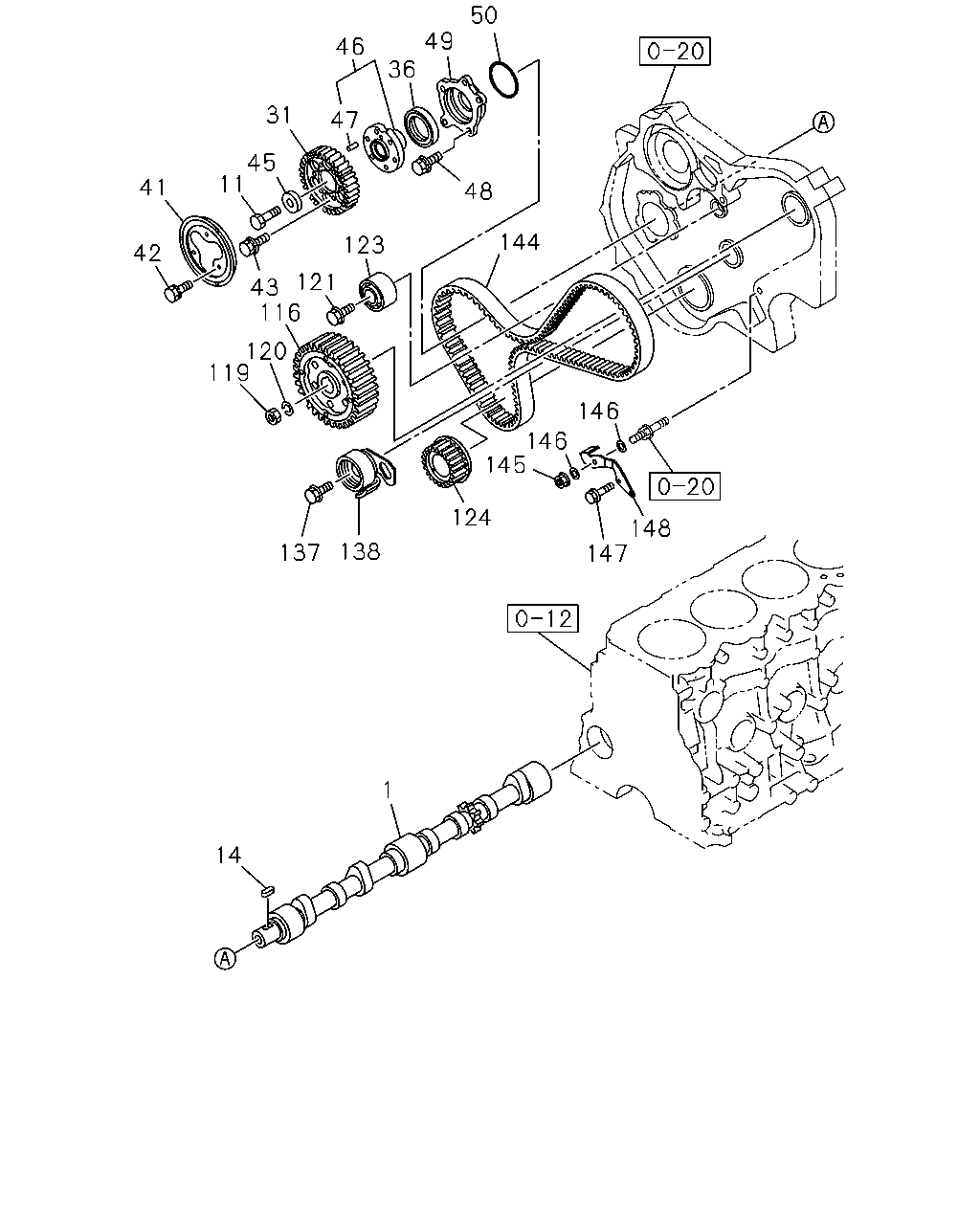

50 49 36 46 31 47 45 11 41 48 144 123 42 121 43 116 120 119 146 146 145 124 148 147 138 137 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0108-	●
1	00.519 CAMSHAFT CHARGE AIR COOLER<6PL>	8-97287-657-0	01	1	0108-		●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	0108-	●
11	00.533 BOLT; THRUST PLATE TO C/BL CHARGE AIR COOLER<6PL> M12X47	8-94433-407-0	01	1	0108-		●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0108-	●
14	00.738 KEY; CM/SHF CHARGE AIR COOLER<6PL> 08.960	9-08000-718-0	01	1	0108-		●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	0108-	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=7.0	8-97080-562-0	01	1	0108-0207	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=6.5	8-97352-745-0	01	1	0208-	●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	0108-	●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	0108-	●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	0108-	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0108-	●
45	00.738 WASHER; GEAR CAM CHARGE AIR COOLER<6PL> ID=13 OD=36	5-12519-002-1	01	1	0108-		●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-1	01	1	0108-	●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	0108-	●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	0108-	●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	0108-	●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97080-893-0	01	1	0108-	●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	0108-	●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	0108-	●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	0108-	●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	0108-	●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	0108-	●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	0108-	●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	0108-	●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	0108-	●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	0108-	●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	0108-	●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0108-	●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0108-	●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	0108-	●
