0-13 — OIL PAN AND LEVEL GAUGE (#19413) — 49 parça

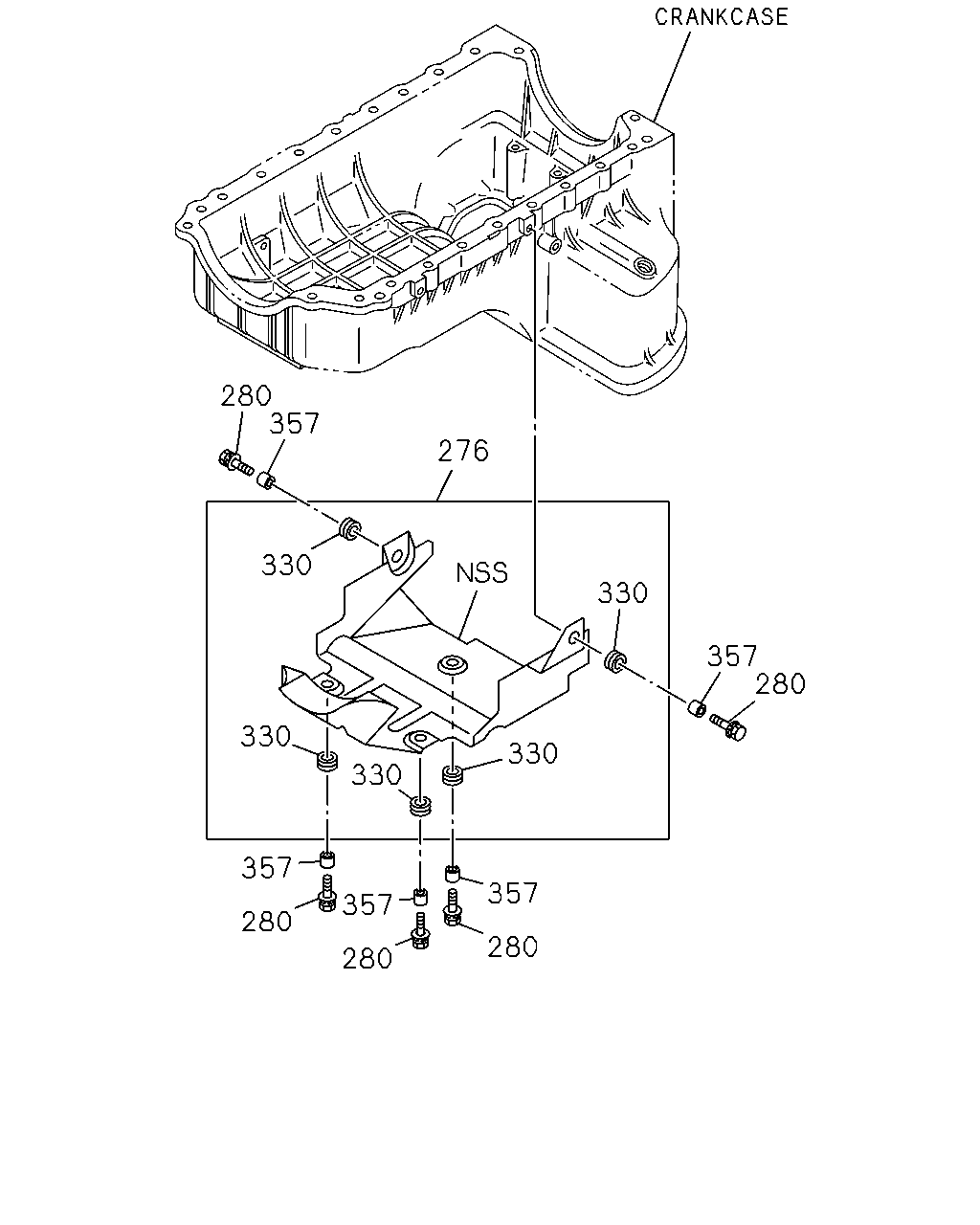

çizim 52207
280 357 276 330 330 357 280 330 330 330 357 357 357 280 280 280
BalonParca AdiParca NoAdetTipApplied Date A B
276 01.516 COVER; CRANKCASE
CHARGE AIR COOLER<6PL> 		8-97310-792-1 01 1 0108- ●
280 01.430 BOLT; COVER
CHARGE AIR COOLER<6PL> 00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0108- ●
330 01.516 RUBBER; MTG,CRANKCASE COVER
CHARGE AIR COOLER<6PL> 00.034 OD=22 		8-94140-428-1 05 1 0108- ●
357 01.516 BUSHING; COVER
CHARGE AIR COOLER<6PL> 		8-97311-623-0 05 1 0108-0211 ●
357 01.516 BUSHING; COVER
CHARGE AIR COOLER<6PL> 		8-97361-926-0 05 1 0212-0308 ●
357 01.516 BUSHING; COVER
CHARGE AIR COOLER<6PL> 		8-97371-498-0 05 1 0309- ●

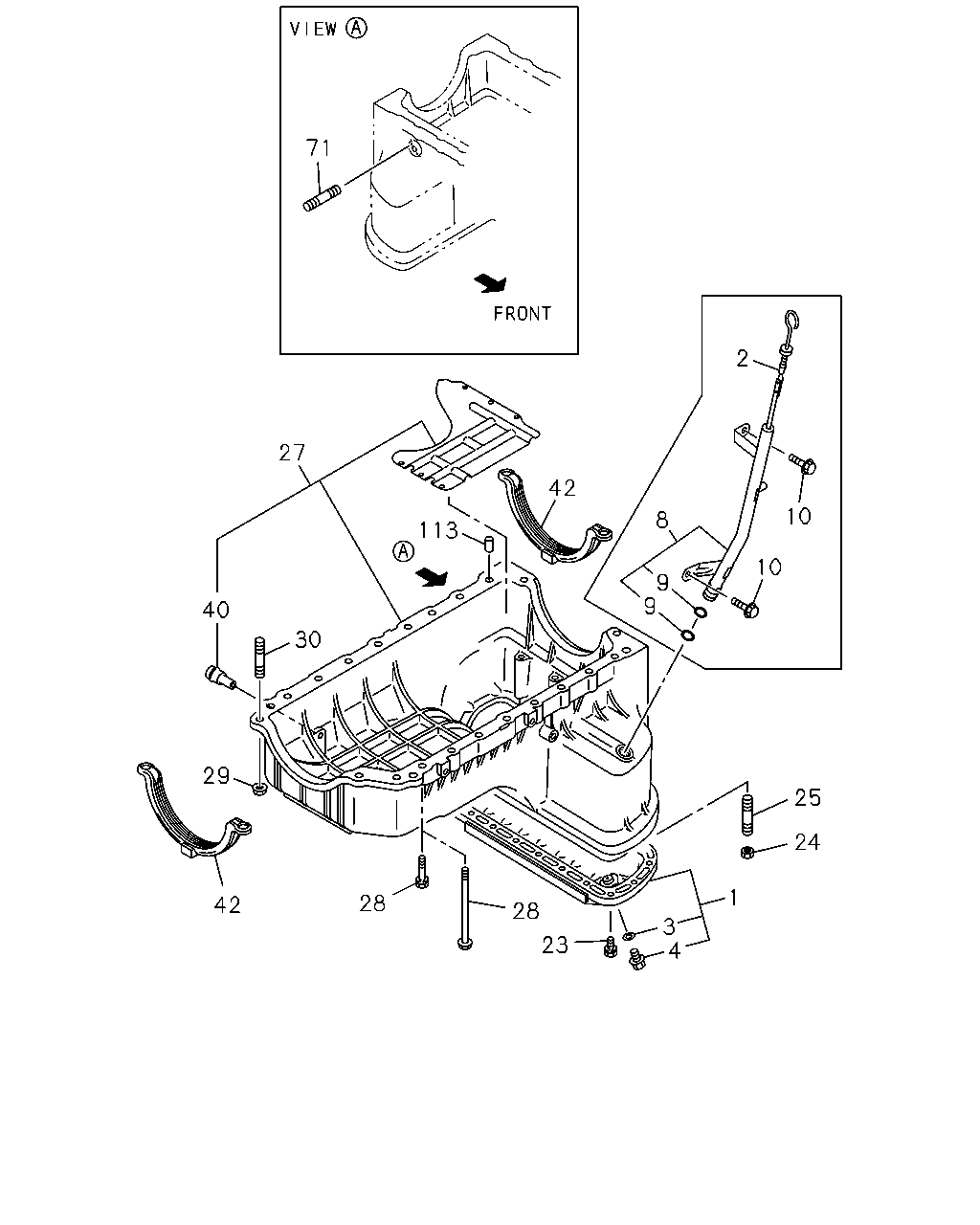

çizim 53527
71 2 27 42 10 8 113 10 9 9 40 30 29 25 24 1 28 42 28 3 4 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97248-860-1 01 1 0108- ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-97248-862-1 01 1 0108- ● ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0108- ●
2 01.516 GAUGE; OIL LEVEL
CHARGE AIR COOLER<6PL> 		8-97085-167-0 01 1 0108- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94158-328-0 01 1 0108- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=14.2 OD=24 		8-94158-328-0 01 1 0108- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0108- ●
4 01.453 PLUG; DRAIN,OIL
CHARGE AIR COOLER<6PL> 03.001 M14X14 		8-94152-613-0 01 1 0108- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97113-145-0 01 1 0108- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
CHARGE AIR COOLER<6PL> 		8-97302-689-0 01 1 0108- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0108-0212 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). 		5-09623-002-0 02 1 0301- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> ID=11 		5-09623-002-0 02 1 0301- ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0108- ●
10 01.516 BOLT; GUIDE TUBE
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0108- ●
23 01.428 BOLT; OIL PAN
M6X13 W/PL WASHER 		8-97135-141-0 15 1 0108- ●
23 01.428 BOLT; OIL PAN
CHARGE AIR COOLER<6PL> M6X13 W/PL WASHER 		8-97135-141-0 15 1 0108- ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97137-836-0 02 1 0108- ●
24 01.453 NUT; OIL PAN
CHARGE AIR COOLER<6PL> M6 W/LK WASHER 		8-97137-836-0 02 1 0108- ●
25 01.453 STUD; OIL PAN
01.428 M6X12 L=21 		9-04110-612-0 02 1 0108- ●
25 01.453 STUD; OIL PAN
CHARGE AIR COOLER<6PL> 01.428 M6X12 L=21 		9-04110-612-0 02 1 0108- ●
27 01.426 CRANKCASE
W/BAFFLE-PLATE & PIPE 		8-97120-920-1 01 1 0108-0210 ●
27 01.426 CRANKCASE 8-97359-517-0 01 1 0211- ●
27 01.426 CRANKCASE
CHARGE AIR COOLER<6PL> 		8-97191-841-0 01 1 0108-0210 ●
27 01.426 CRANKCASE
CHARGE AIR COOLER<6PL> 		8-97358-796-0 01 1 0211- ●
28 01.780 BOLT; CRANKCASE TO C/BL
M8X120 FLANGE 		0-28085-812-0 01 1 0108- ●
28 01.780 BOLT; CRANKCASE TO C/BL
CHARGE AIR COOLER<6PL> M8X120 FLANGE 		0-28085-812-0 01 1 0108- ●
28 01.780 BOLT; CRANKCASE TO C/BL
00.727 M8X32 W/LK WASHER 		0-50040-832-0 19 1 0108- ●
28 01.780 BOLT; CRANKCASE TO C/BL
CHARGE AIR COOLER<6PL> 00.727 M8X32 W/LK WASHER 		0-50040-832-0 19 1 0108- ●
29 01.426 NUT; CRANKCASE
07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ●
29 01.426 NUT; CRANKCASE
CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ●
30 01.780 STUD; CRANKCASE
08.981 M8X35 L=47 		9-04110-835-0 02 1 0108- ●
30 01.780 STUD; CRANKCASE
CHARGE AIR COOLER<6PL> 08.981 M8X35 L=47 		9-04110-835-0 02 1 0108- ●
40 01.426 NIPPLE; OIL RETURN HOSE VAC PUMP
01.531 		5-11369-038-0 01 1 0108- ●
40 01.426 NIPPLE; OIL RETURN HOSE VAC PUMP
CHARGE AIR COOLER<6PL> 01.531 		5-11369-038-0 01 1 0108- ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97120-933-0 01 1 0108- ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> FRONT 		8-97120-933-0 01 1 0108- ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97123-342-0 01 1 0108- ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> REAR 		8-97123-342-0 01 1 0108- ●
71 01.428 STUD; OIL DRAIN PIPE
M8X18 L=30 		9-04110-818-0 02 1 0108- ●
71 01.428 STUD; OIL DRAIN PIPE
CHARGE AIR COOLER<6PL> M8X18 L=30 		9-04110-818-0 02 1 0108- ●
113 01.453 PIN; STRAIGHT
01.428 		9-09878-597-0 02 1 0108- ●
113 01.453 PIN; STRAIGHT
CHARGE AIR COOLER<6PL> 01.428 		9-09878-597-0 02 1 0108- ●
