0-11 — CYLINDER HEAD (#19411) — 38 parça

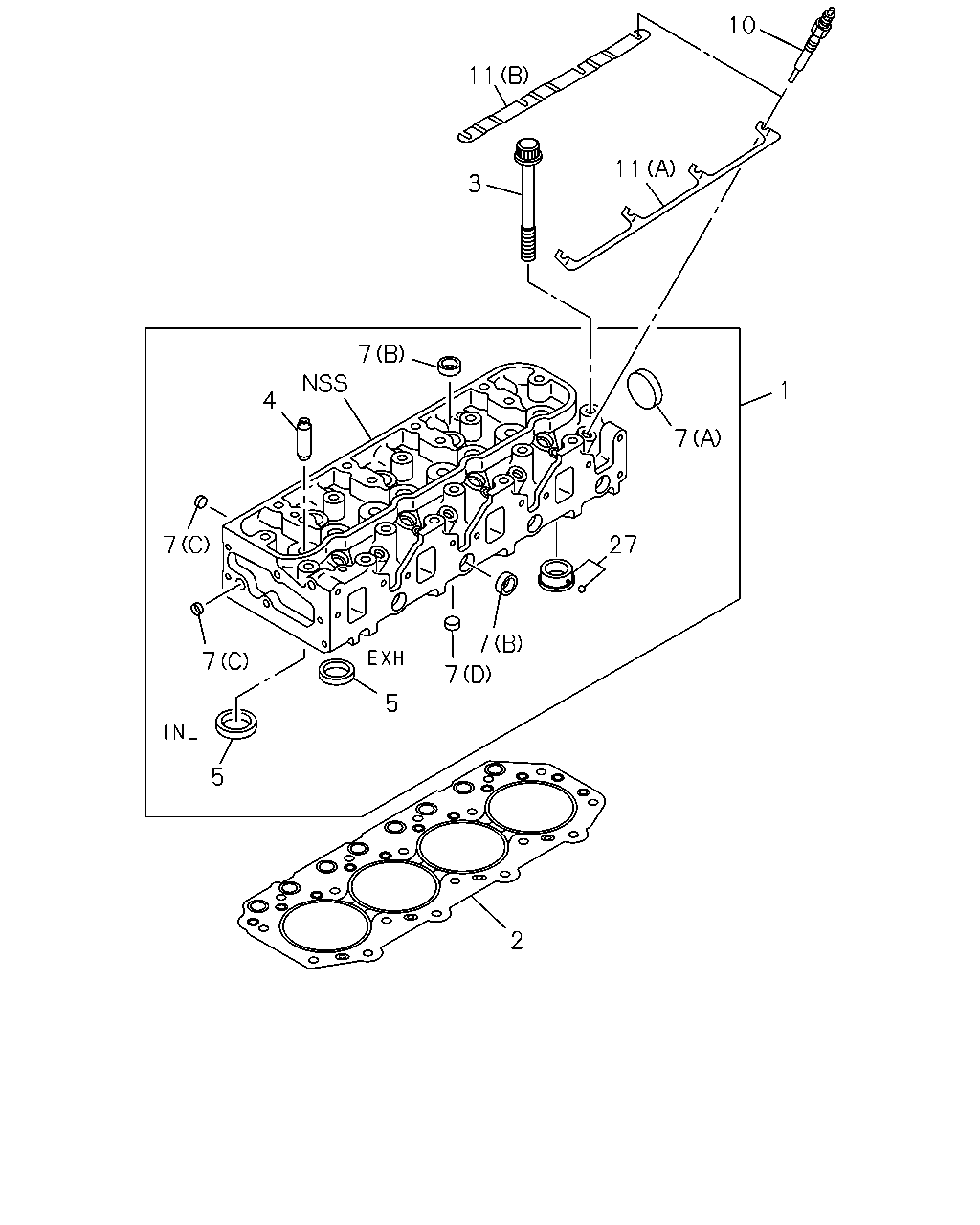

çizim 11251
10 11 11 3 7 1 4 7 27 7 7 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-97086-338-6 01 1 0108- ●
1 00.269 HEAD ASM; CYL
CHARGE AIR COOLER<6PL> 		8-97289-430-2 01 1 0108- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 0108- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 0108- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 0108- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		8-94332-326-0 01 1 0108-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		8-94332-327-0 01 1 0108-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		8-94332-328-0 01 1 0108-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0108- ●
3 00.293 BOLT; CYL HD TO BLOCK
CHARGE AIR COOLER<6PL> M11X122 		8-97133-416-1 18 1 0108- ●
4 00.283 GUIDE; VLV 5-11721-016-0 08 1 0108- ●
4 00.283 GUIDE; VLV
CHARGE AIR COOLER<6PL> 		5-11721-016-0 08 1 0108- ●
5 00.253 SEAT; VLV INSERT
INLET OD=42.7 		8-97254-813-0 04 1 0108-0207 ●
5 00.253 SEAT; VLV INSERT
INLET OD=42.7 		8-97254-813-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
CHARGE AIR COOLER<6PL> INLET OD=42.7 		8-97254-813-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0108-0207 ●
5 00.253 SEAT; VLV INSERT
CHARGE AIR COOLER<6PL> EXHAUST OD=36.7 		8-94130-559-0 04 1 0108-0207 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97231-229-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
CHARGE AIR COOLER<6PL> EXHAUST 		8-97231-229-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
CHARGE AIR COOLER<6PL> INLET 		8-97083-162-0 04 1 0108-0207 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) REAR OD=45 		1-09600-005-1 01 1 0108-0207 ●
7 00.253 CUP; SEALING,CYL HEAD
CHARGE AIR COOLER<6PL> (A) REAR OD=45 		1-09600-005-1 01 1 0108-0207 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) REAR OD=45 		8-97351-451-0 01 1 0208- ●
7 00.253 CUP; SEALING,CYL HEAD
CHARGE AIR COOLER<6PL> (A) REAR OD=45 		8-97351-451-0 01 1 0208- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) FRONT 1 Q'TY SIDE 4 Q'TY OD=12.3 		5-09600-013-0 05 1 0108- ●
7 00.253 CUP; SEALING,CYL HEAD
CHARGE AIR COOLER<6PL> (C) FRONT 1 Q'TY SIDE 4 Q'TY OD=12.3 		5-09600-013-0 05 1 0108- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) LOWER OD=16 		5-11129-006-0 03 1 0108- ●
7 00.253 CUP; SEALING,CYL HEAD
CHARGE AIR COOLER<6PL> (D) LOWER OD=16 		5-11129-006-0 03 1 0108- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		8-97209-609-0 07 1 0108- ●
7 00.253 CUP; SEALING,CYL HEAD
CHARGE AIR COOLER<6PL> (B) OD=22 		8-97209-609-0 06 1 0108- ●
10 02.270 PLUG; GLOW
NGK 		8-97044-037-2 04 1 0108- ●
10 02.270 PLUG; GLOW
CHARGE AIR COOLER<6PL> BOSCH 		8-97306-519-2 04 1 0108- ●
11 02.251 CONNECTOR; GLOW PLUG
(B) 		8-97146-518-0 01 1 0108- ●
11 02.251 CONNECTOR; GLOW PLUG
CHARGE AIR COOLER<6PL> (A) 		8-97146-517-0 01 1 0108- ●
27 00.253 PLUG; HOT 8-97086-450-0 04 1 0108- ●
