0-10 — CYLINDER HEAD COVER (#19410) — 55 parça

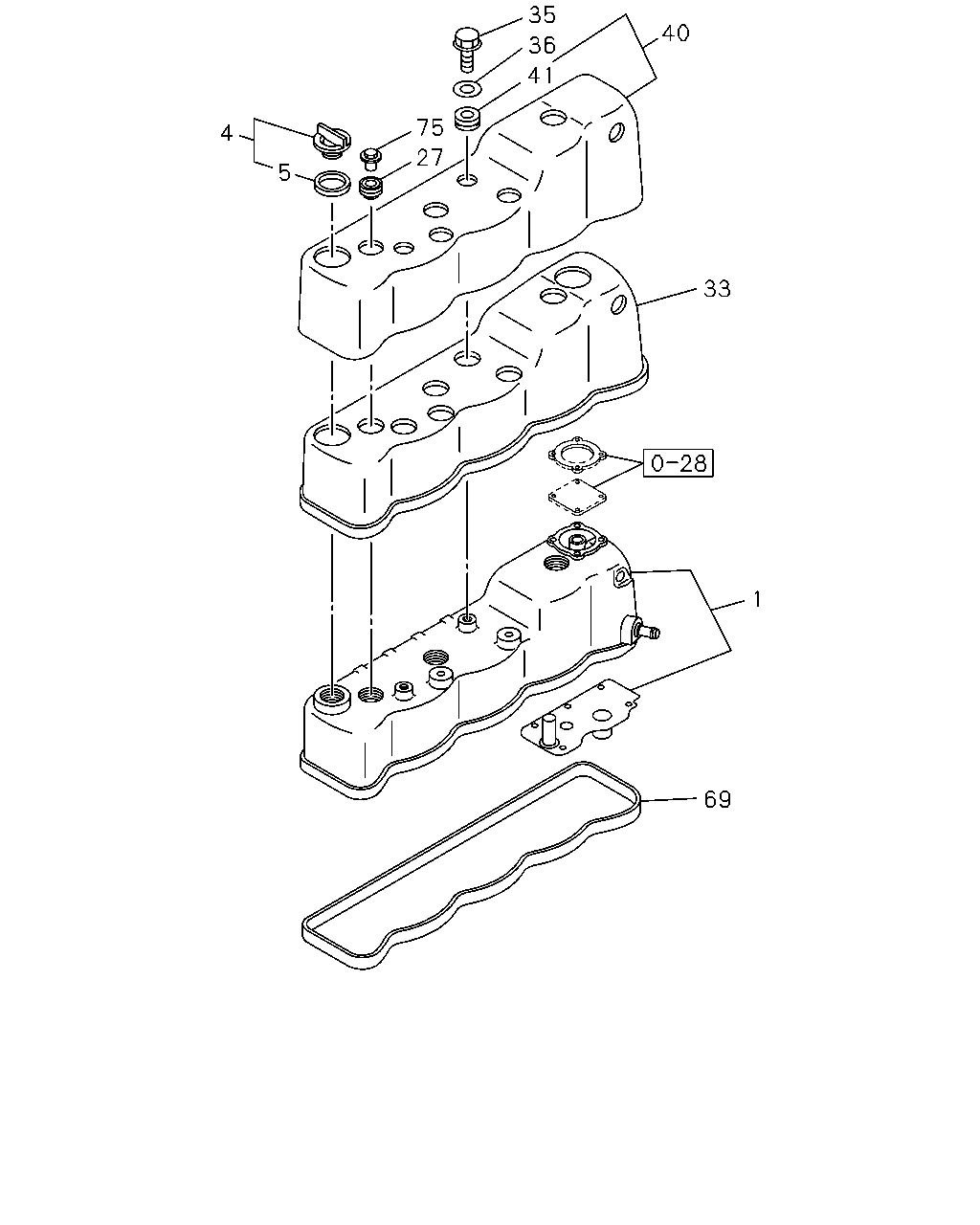

35 40 36 41 75 4 27 5 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.386 COVER; CYL HD	8-97113-147-0	01	1	0108-	●
1	00.386 COVER; CYL HD CHARGE AIR COOLER<6PL>	8-97249-225-0	01	1	0108-0302		●
1	00.386 COVER; CYL HD CHARGE AIR COOLER<6PL>	8-97354-425-0	01	1	0303-		●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	0108-	●
4	01.758 CAP; OIL FILLER CHARGE AIR COOLER<6PL>	8-94425-685-2	01	1	0108-		●
5	01.758 GASKET; OIL FILLER 00.413 ID=32 OD=40	8-94123-623-1	01	1	0108-	●
5	01.758 GASKET; OIL FILLER CHARGE AIR COOLER<6PL> 00.413 ID=32 OD=40	8-94123-623-1	01	1	0108-		●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0108-	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> ID=19.5	8-97263-801-1	03	1	0108-		●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97131-707-3	01	1	0108-0110	●
33	00.386 RUBBER; SPACE,CYL HD COVER CHARGE AIR COOLER<6PL>	8-97252-871-0	01	1	0108-0110		●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97252-871-0	01	1	0111-0301	●
33	00.386 RUBBER; SPACE,CYL HD COVER CHARGE AIR COOLER<6PL>	8-97252-871-0	01	1	0111-0301		●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97365-746-0	01	1	0302-	●
33	00.386 RUBBER; SPACE,CYL HD COVER CHARGE AIR COOLER<6PL>	8-97365-746-0	01	1	0302-		●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0108-	●
35	00.293 BOLT; NOISE SHIELD COVER CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0108-		●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0108-	●
36	00.413 WASHER; PL,NOISE SHIELD COVER CHARGE AIR COOLER<6PL> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0108-		●
40	00.386 COVER	8-97043-018-0	01	1	0108-	●
40	00.386 COVER CHARGE AIR COOLER<6PL>	8-97252-869-1	01	1	0108-		●
41	00.413 GROMMET; HD COVER,OUTER	8-94256-959-0	02	1	0108-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97161-131-0	01	1	0108-0301	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97161-131-0	01	1	0108-0301		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0302-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97349-416-0	01	1	0302-		●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0108-	●
75	00.413 NUT; CAP,HD COVER CHARGE AIR COOLER<6PL> M8 OD=19	8-94158-108-0	03	1	0108-		●

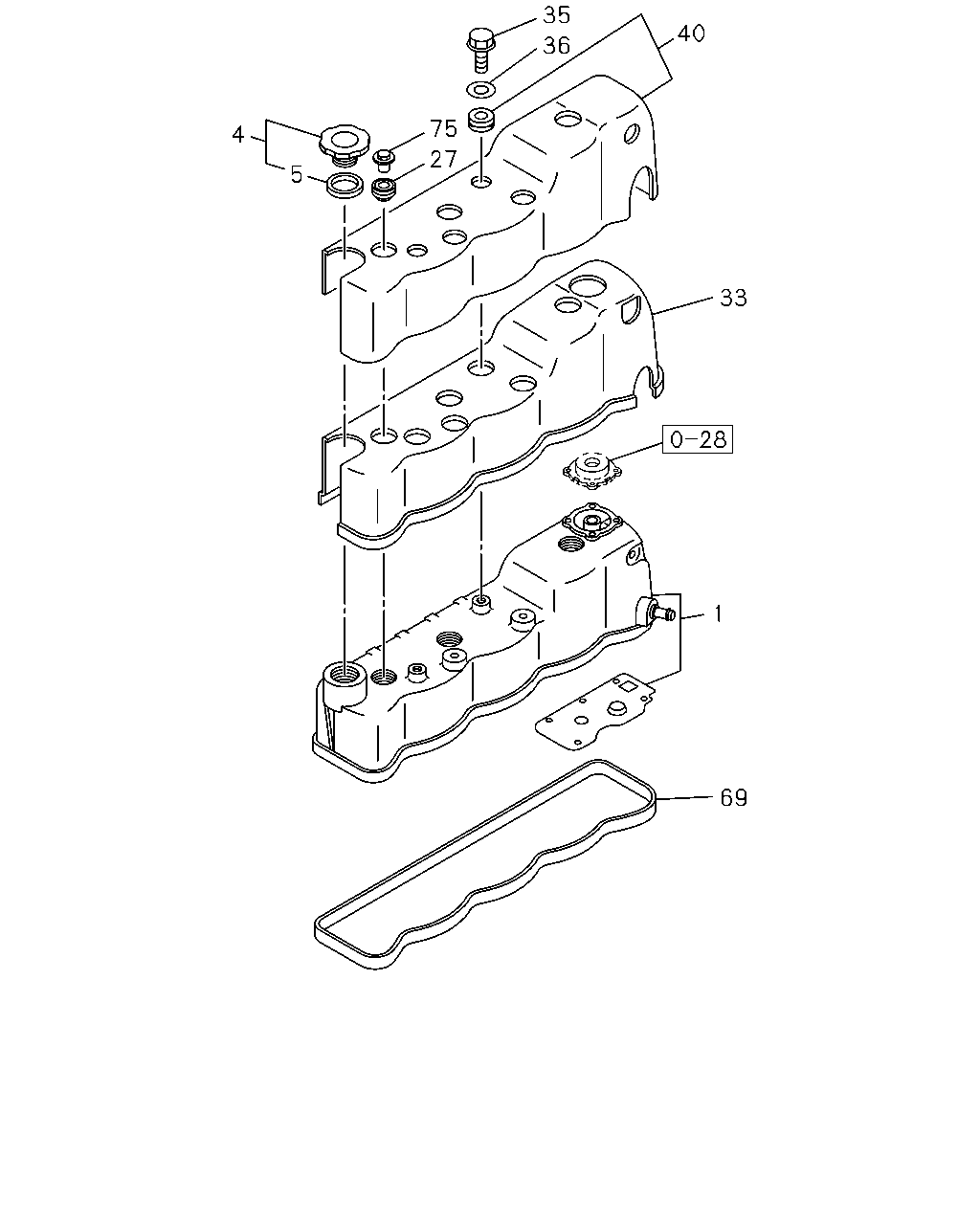

35 40 36 75 4 27 5 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.386 COVER; CYL HD	8-97113-147-0	01	1	0108-	●
1	00.386 COVER; CYL HD CHARGE AIR COOLER<6PL>	8-97249-225-0	01	1	0108-0302		●
1	00.386 COVER; CYL HD CHARGE AIR COOLER<6PL>	8-97354-425-0	01	1	0303-		●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	0108-	●
4	01.758 CAP; OIL FILLER CHARGE AIR COOLER<6PL>	8-94425-685-2	01	1	0108-		●
5	01.758 GASKET; OIL FILLER 00.413 ID=32 OD=40	8-94123-623-1	01	1	0108-	●
5	01.758 GASKET; OIL FILLER CHARGE AIR COOLER<6PL> 00.413 ID=32 OD=40	8-94123-623-1	01	1	0108-		●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0108-	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> ID=19.5	8-97263-801-1	03	1	0108-		●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97131-707-3	01	1	0108-0110	●
33	00.386 RUBBER; SPACE,CYL HD COVER CHARGE AIR COOLER<6PL>	8-97252-871-0	01	1	0108-0110		●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97252-871-0	01	1	0111-0301	●
33	00.386 RUBBER; SPACE,CYL HD COVER CHARGE AIR COOLER<6PL>	8-97252-871-0	01	1	0111-0301		●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97365-746-0	01	1	0302-	●
33	00.386 RUBBER; SPACE,CYL HD COVER CHARGE AIR COOLER<6PL>	8-97365-746-0	01	1	0302-		●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0108-	●
35	00.293 BOLT; NOISE SHIELD COVER CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0108-		●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0108-	●
36	00.413 WASHER; PL,NOISE SHIELD COVER CHARGE AIR COOLER<6PL> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0108-		●
40	00.386 COVER	8-97043-018-0	01	1	0108-	●
40	00.386 COVER CHARGE AIR COOLER<6PL>	8-97252-869-1	01	1	0108-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97161-131-0	01	1	0108-0301	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97161-131-0	01	1	0108-0301		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0302-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97349-416-0	01	1	0302-		●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0108-	●
75	00.413 NUT; CAP,HD COVER CHARGE AIR COOLER<6PL> M8 OD=19	8-94158-108-0	03	1	0108-		●
