◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#19409) — 24 parça

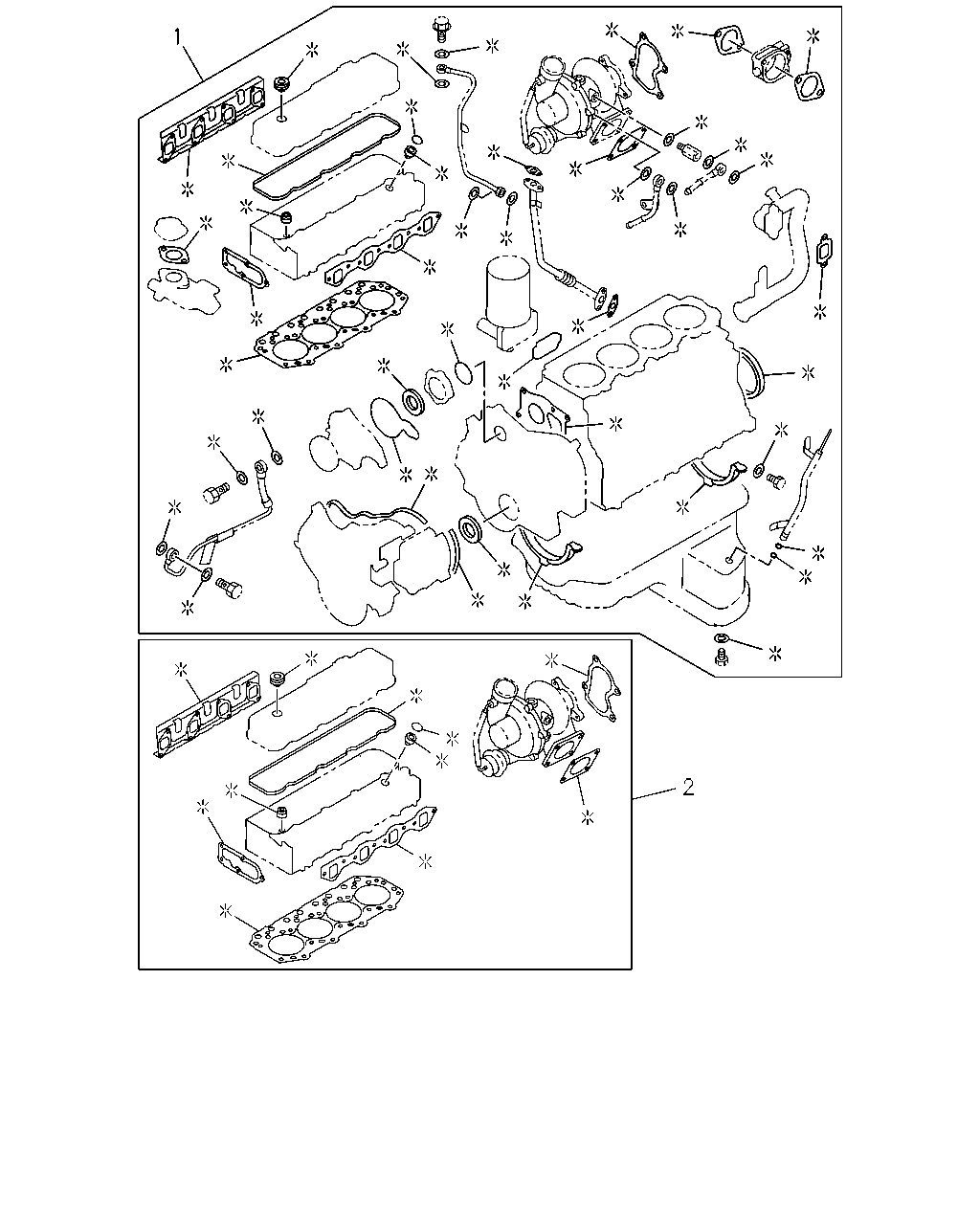

çizim 11291
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-679-5 01 1 0108- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-680-5 01 1 0108- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-681-5 01 1 0108- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-122-3 01 1 0108- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-123-3 01 1 0108- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-124-3 01 1 0108- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-694-3 01 1 0108- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-695-3 01 1 0108- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-696-3 01 1 0108- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-125-2 01 1 0108- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-126-2 01 1 0108- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-127-2 01 1 0108- ●

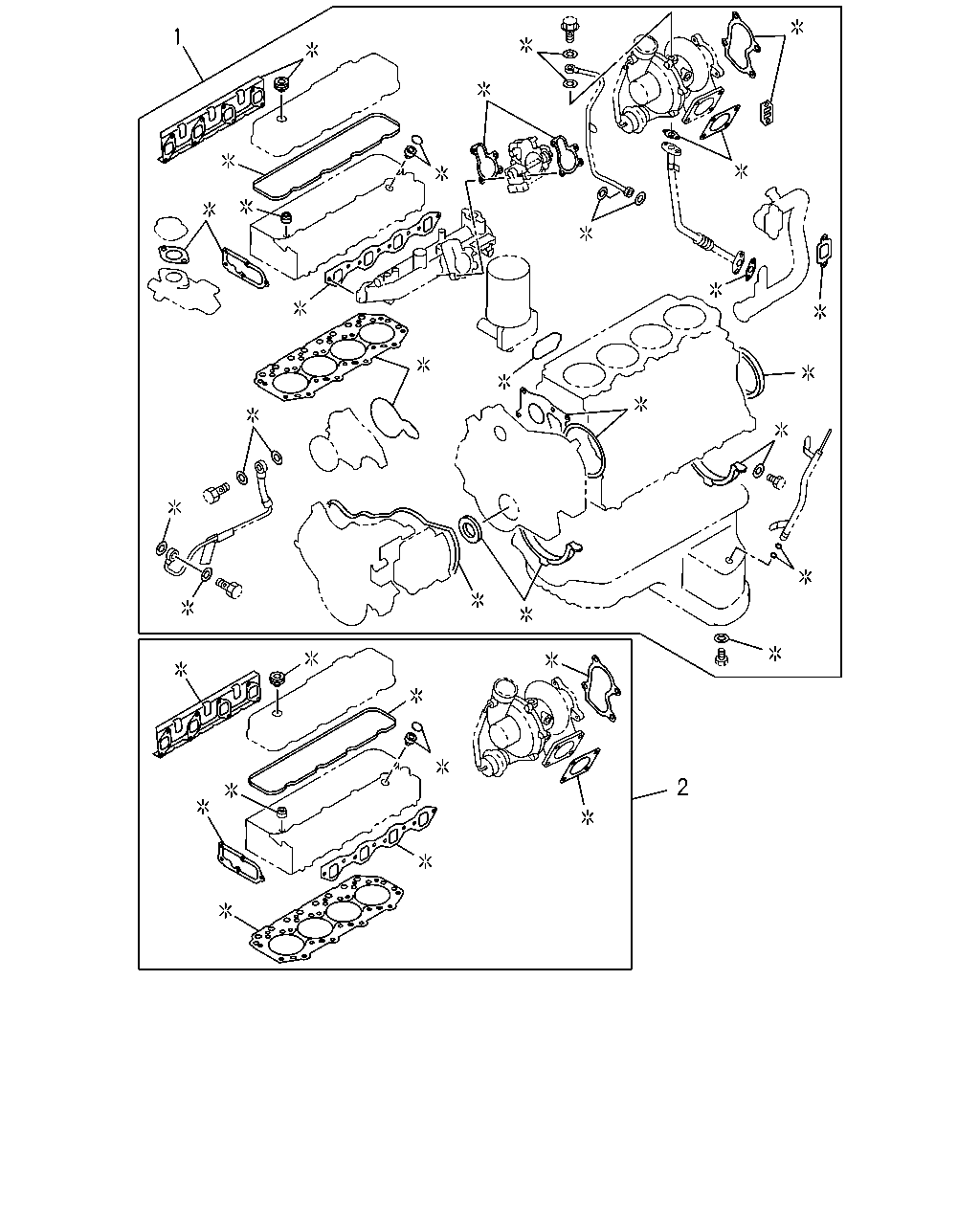

çizim 11293
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-679-5 01 1 0108- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-680-5 01 1 0108- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-681-5 01 1 0108- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-122-3 01 1 0108- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-123-3 01 1 0108- ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-124-3 01 1 0108- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-694-3 01 1 0108- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-695-3 01 1 0108- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-696-3 01 1 0108- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-125-2 01 1 0108- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-126-2 01 1 0108- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-127-2 01 1 0108- ●
