8-28 — CHASSIS ELECTRICAL (#19402) — 78 parça

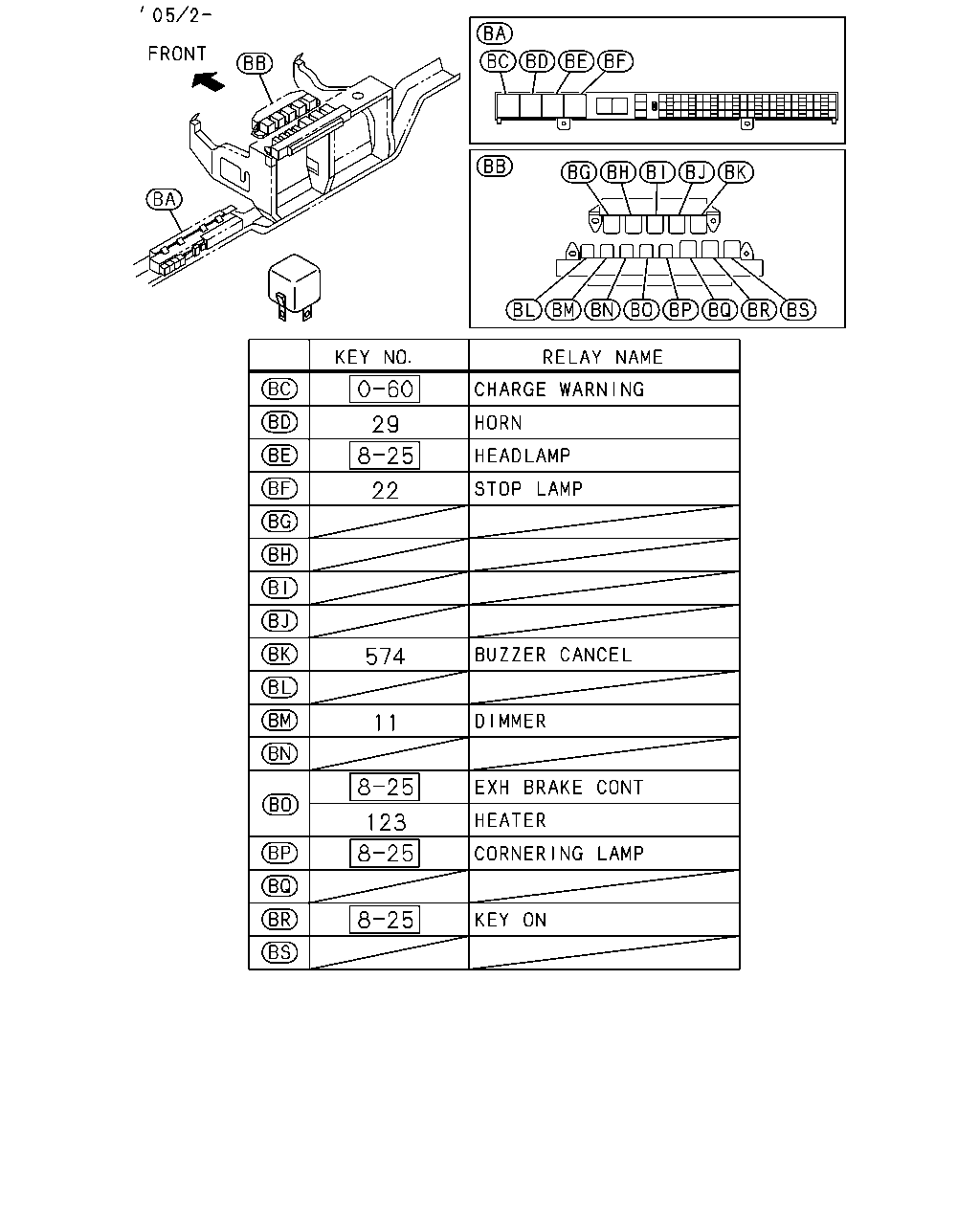

çizim 11010
29 22 574 11 123
BalonParca AdiParca NoAdetTipApplied Date A B
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0201-0501 ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0804 ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0805- ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0201-0501 ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0804 ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0805- ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0201-0501 ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0804 ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0805- ● ●
123 02.270 RELAY; HTR
4HK1 ENG(RJS) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0805- ●
574 02.510 RELAY; CANCEL,BUZZER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0805- ●
çizim 11894
22 11 29
BalonParca AdiParca NoAdetTipApplied Date A B
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0201-0501 ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0804 ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0805- ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0201-0501 ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0804 ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0805- ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0201-0501 ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0804 ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0805- ● ●

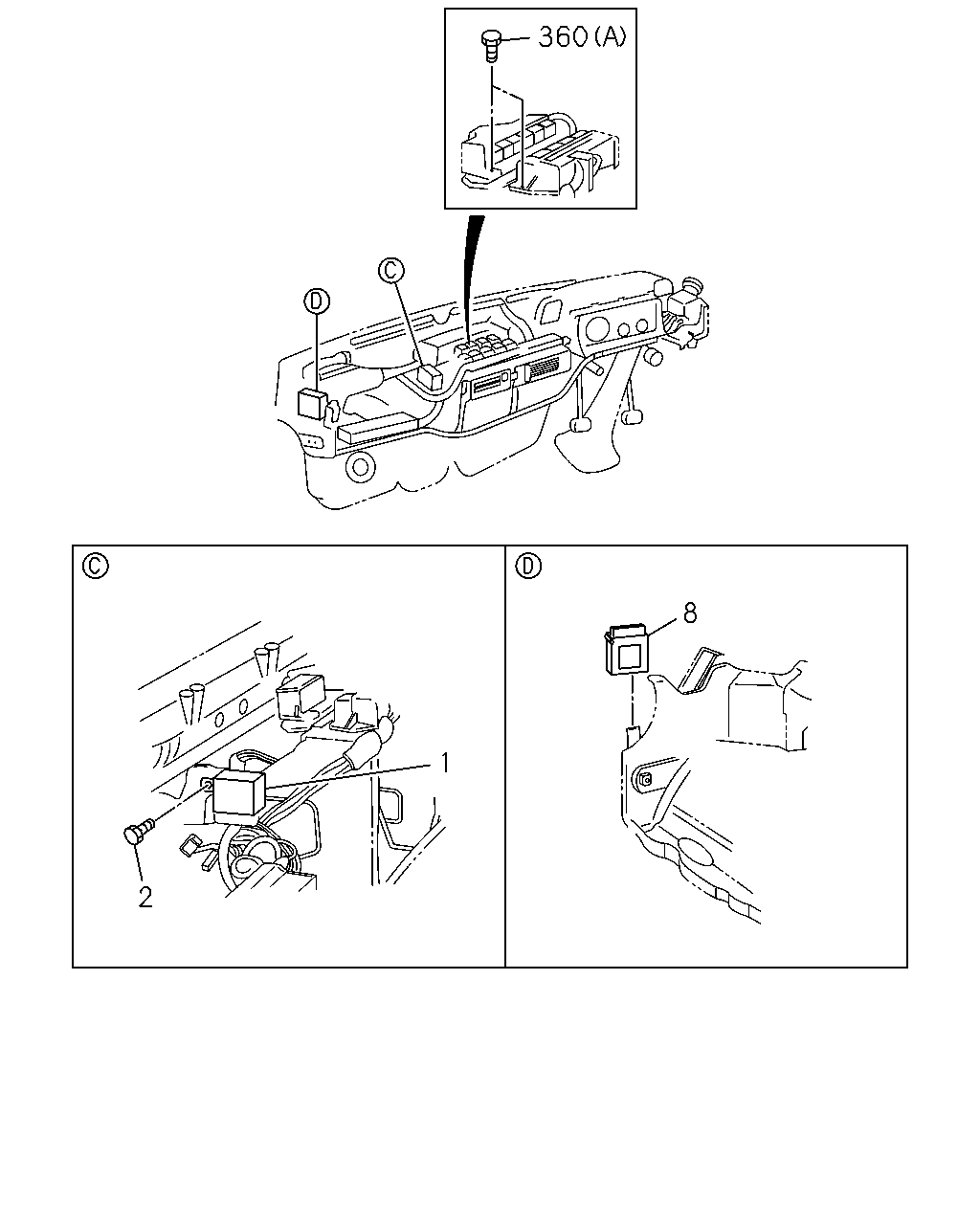

çizim 11948
360 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER 8-97086-508-1 01 1 0201-0212 ●
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0301-0804 ●
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0805- ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0201-0804 ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0805-1210 ● ●
2 02.892 BOLT; FLASHER UNIT
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97184-233-0 01 1 0201-0301 ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0302-0804 ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0805- ● ●
360 02.483 BOLT; RELAY BOX
01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0201-0501 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
360 02.483 BOLT; RELAY BOX
02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 0201-0501 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0201-0804 ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0805-1210 ● ●
360 02.483 BOLT; RELAY BOX
02.587 (B) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ●
360 02.483 BOLT; RELAY BOX
4HK1 ENG(RJS) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 03 1 0805- ●
çizim 51788
361 584
BalonParca AdiParca NoAdetTipApplied Date A B
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0201-0804 ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0805-1210 ● ●
361 02.559 BOLT; CONNECTOR
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0201-0804 ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0805-1210 ● ●
361 02.559 BOLT; CONNECTOR
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1211- ● ●
584 02.440 SENSOR; PRESSURE
4HK1 ENG(RJS) 02.510 		8-09350-899-1 01 1 0805-0810 ●
584 02.440 SENSOR; PRESSURE
4HK1 ENG(RJS) 		8-28180-175-0 01 1 0811- ●
çizim 51821
45 44 46 100 360 100 360
BalonParca AdiParca NoAdetTipApplied Date A B
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN<6KK> 		8-97109-363-0 01 1 0201-0301 ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97211-741-2 01 1 0201-0804 ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97211-741-2 01 1 0805- ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 		8-97109-364-1 01 1 0201-0301 ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG> 		8-97109-364-1 01 1 0302-0804 ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG> 		8-97109-364-1 01 1 0805- ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 		8-97211-740-1 01 1 0201-0301 ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN<6HG> 		8-97211-740-2 01 1 0302-0804 ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN<6HG> 		8-97211-740-2 01 1 0805- ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0201-0301 ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0302-0804 ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0805-1004 ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1005- ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0201-0301 ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0302-0804 ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0805-1004 ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ●
100 09.277 NUT; RELAY BOX COVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0201-0501 ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ●
100 09.277 NUT; RELAY BOX COVER
4HF1 ENG(RLS) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ●
100 09.277 NUT; RELAY BOX COVER
4HK1 ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0805- ●
360 02.483 BOLT; RELAY BOX
01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0201-0501 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
360 02.483 BOLT; RELAY BOX
02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 0201-0501 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ●
360 02.483 BOLT; RELAY BOX
4HF1 ENG(RLS) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0201-0804 ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0805-1210 ● ●
360 02.483 BOLT; RELAY BOX
02.587 (B) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ●
360 02.483 BOLT; RELAY BOX
4HK1 ENG(RJS) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 03 1 0805- ●
