Isuzu WW
▶
TRUCKS
▶
NPR
▶
50916 - NPR(BUS CHAS)RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#19401) — 25 parça
Tümü
A - NPC5JK
B - NPC5JN
◀
[826A] NO.2 (10 parça)
[826A] NO.1 (15 parça)
▶
234
469
549
635
448
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

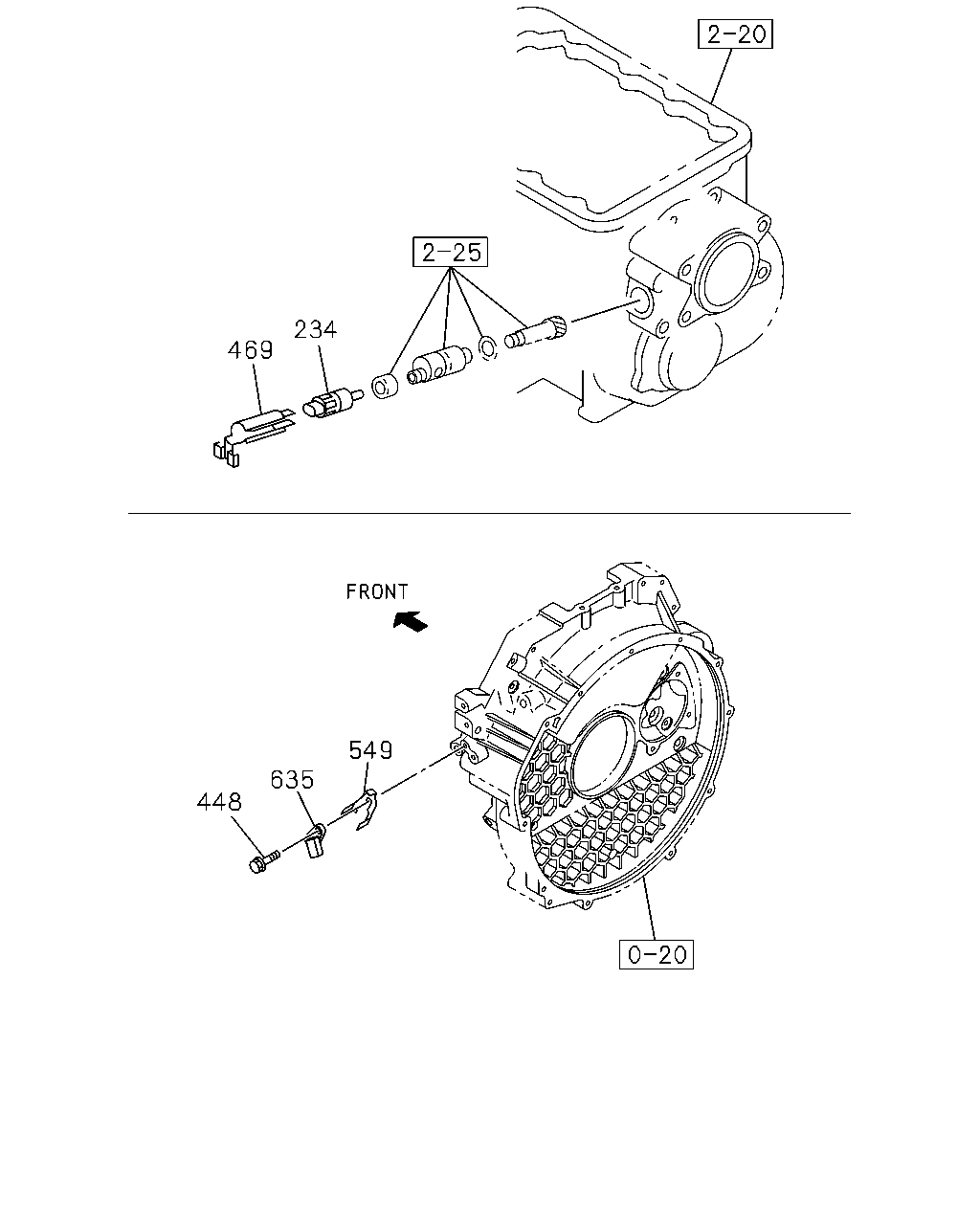

234
03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM
8-97256-525-0
01
1
0201-0501
●
234
03.682 SENSOR; VEHICLE SPD
4HF1 ENG(RLS) 4 PULSE ALUMINUM
8-97256-525-0
01
1
0502-
●
234
03.682 SENSOR; VEHICLE SPD
4HK1 ENG(RJS) 25 PULSE ALUMINUM
8-97328-058-1
01
1
0805-
●
448
02.500 BOLT; SENSOR
4HF1 ENG(RLS) 00.738 M6X16 FLANGE
0-28080-616-0
01
1
0201-0512
●
448
02.500 BOLT; SENSOR
4HF1 ENG(RLS) 09.242 M6X16 FLANGE
0-28050-616-0
01
1
0601-0804
●
448
02.500 BOLT; SENSOR
09.242 M6X16 FLANGE
0-28050-616-0
01
1
0805-
●
●
469
03.682 PROTECTOR; SPEED SENSOR
8-97168-308-0
01
1
0201-0301
●
549
02.510 SHEET
4HF1 ENG(RLS) 09.743
8-97161-633-2
01
1
0201-
●
635
09.750 SENSOR; TACHOMETER
4HF1 ENG(RLS) CALSONIC KANSEI
8-97163-104-0
01
1
0201-
●
635
09.750 SENSOR; TACHOMETER
4HK1 ENG(RJS) DENSO
8-97306-113-1
01
1
0805-
●
21
2
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

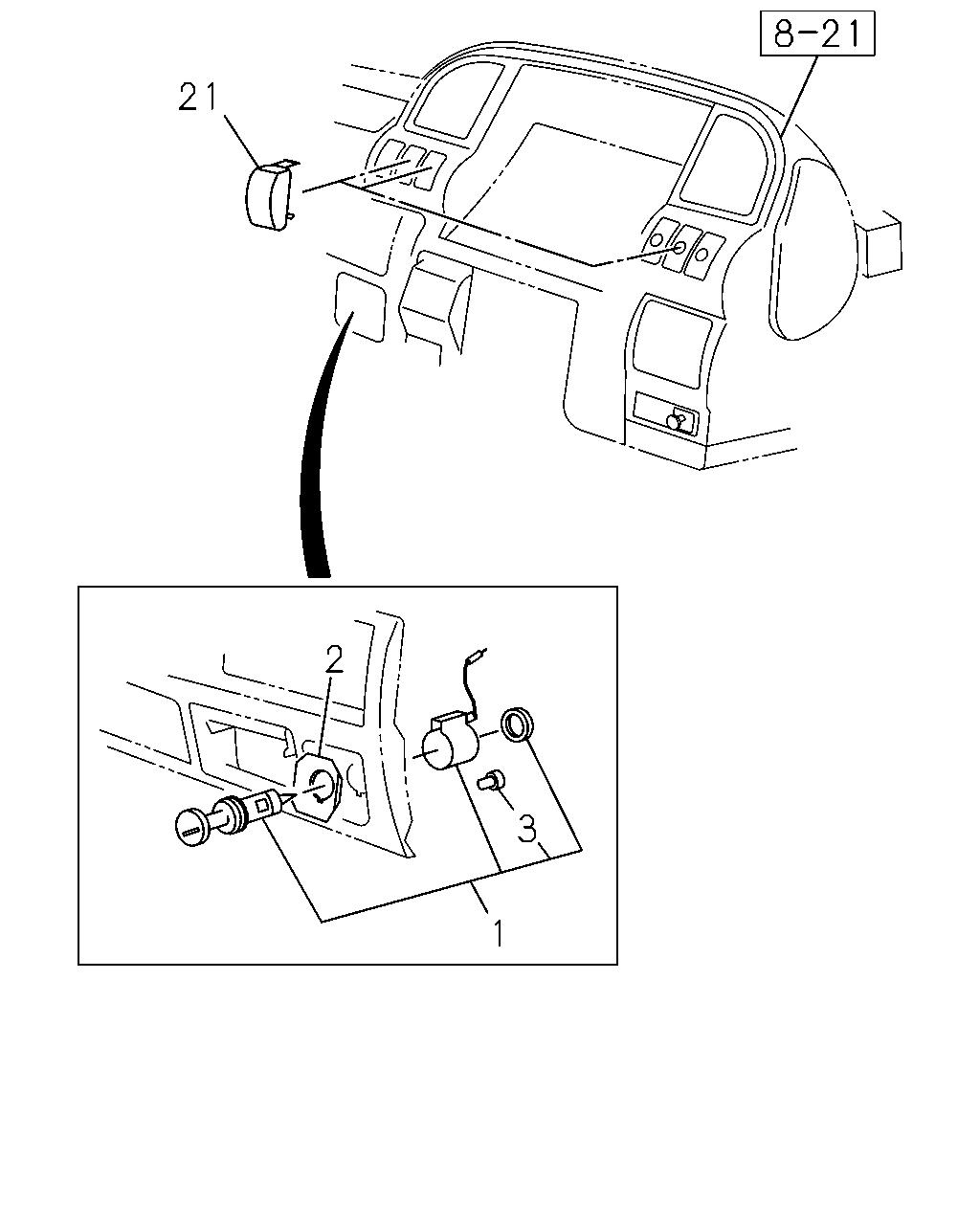

1
09.709 LIGHTER; CIGAR
8-97320-325-0
01
1
0201-0804
●
1
09.709 LIGHTER; CIGAR
8-97320-325-0
01
1
0805-
●
●
2
09.709 BEZEL; CIGAR LIGHTER
8-97853-159-1
01
1
0201-0706
●
2
09.709 BEZEL; CIGAR LIGHTER
8-98091-060-0
01
1
0707-0804
●
2
09.709 BEZEL; CIGAR LIGHTER
8-98091-060-0
01
1
0805-
●
●
3
08.991 BULB; CIGAR LIGHTER
28V 1.8W
8-97173-159-0
01
1
0201-0804
●
3
08.991 BULB; CIGAR LIGHTER
28V 1.8W
8-97173-159-0
01
1
0805-
●
●
21
09.744 COVER; HOLE
8-97136-694-0
01
1
0201-0501
●
21
09.744 COVER; HOLE
8-97136-694-0
01
1
0201-0501
●
21
09.744 COVER; HOLE
8-97136-694-0
01
1
0201-0501
●
21
09.744 COVER; HOLE
4HF1 ENG(RLS)
8-97136-694-0
01
1
0502-0804
●
21
09.744 COVER; HOLE
8-97136-694-0
01
1
0502-0804
●
21
09.744 COVER; HOLE
8-97136-694-0
01
1
0805-
●
●
21
09.744 COVER; HOLE
4HF1 ENG(RLS)
8-97136-694-0
01
1
0805-
●
21
09.744 COVER; HOLE
4HK1 ENG(RJS)
8-97136-694-0
01
1
0805-
●
