◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50916 - NPR(BUS CHAS)RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#19399) — 278 parça

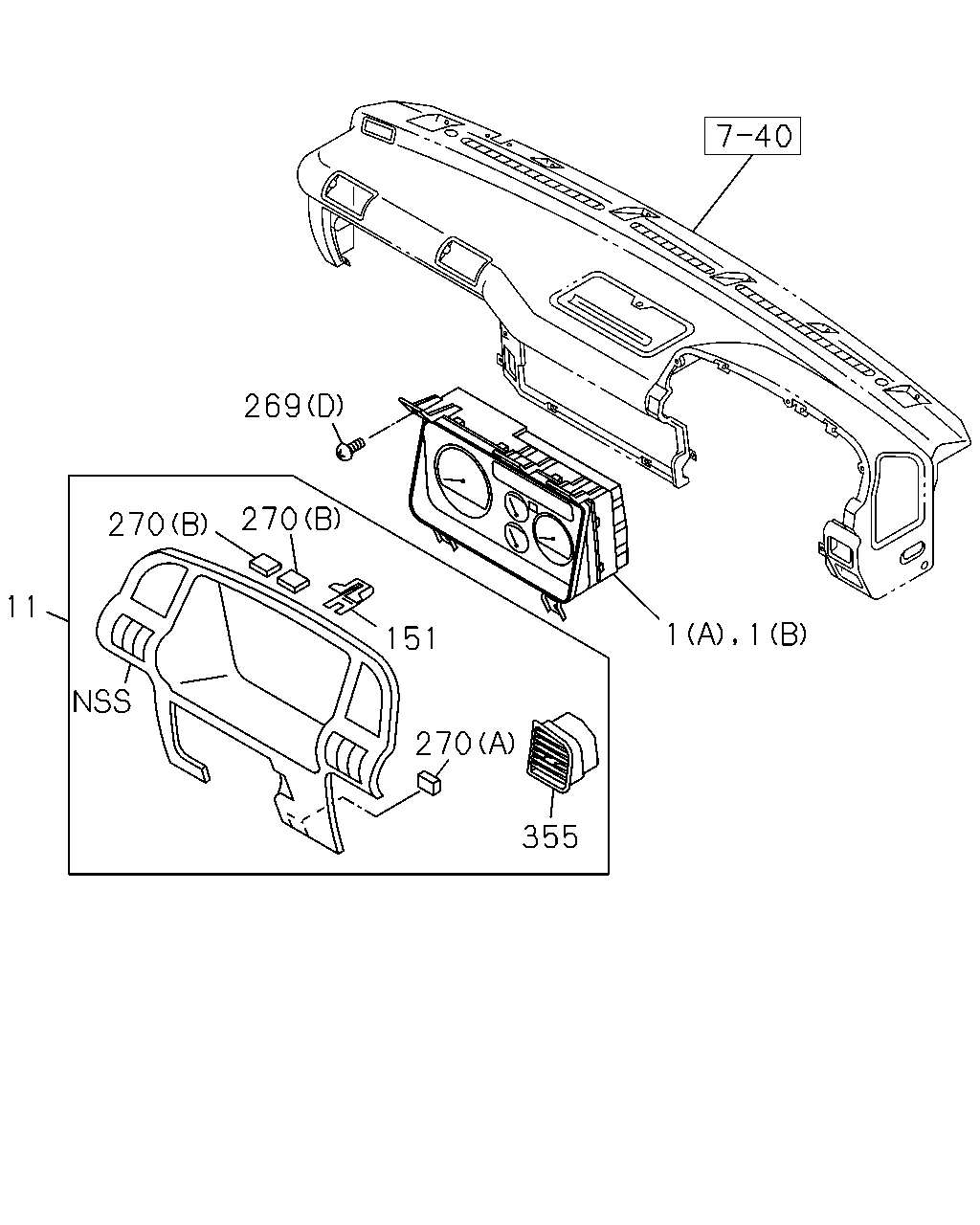

çizim 11399
269 270 270 11 1 1 151 270 355
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-98179-899-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97170-609-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97383-493-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97383-493-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97170-607-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97383-492-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97383-492-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97170-596-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97383-490-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97170-600-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HK1 ENG(RJS) TACHOMETER<U16> (B) 		8-98000-514-4 01 1 0805- ●
1 09.735 METER COMPL; CLUSTER
4HK1 ENG(RJS) EXC. TACHOMETER<U16> (B) 		8-98000-513-3 01 1 0805- ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 0201-0804 ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 0805- ● ●
151 09.747 CLIP; METER CLUSTER 8-97217-066-0 07 1 0201-0804 ●
151 09.747 CLIP; METER CLUSTER 8-97217-066-0 07 1 0805- ● ●
269 09.743 SCREW; METER CLUSTER
08.225 (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0201-0804 ●
269 09.743 SCREW; METER CLUSTER
08.225 (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0805-1210 ● ●
269 09.743 SCREW; METER CLUSTER
02.587 (D) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 05 1 1211- ● ●
269 09.743 SCREW; METER CLUSTER
(B) 		8-97185-523-0 01 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (B) 		8-97185-523-0 01 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-523-0 01 1 1207- ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (A) 		8-97185-525-0 06 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-525-0 06 1 1207- ●
269 09.743 SCREW; METER CLUSTER
(C) 		8-97185-528-0 05 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (C) 		8-97185-528-0 05 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 		8-97185-528-0 05 1 1207- ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (E) 		8-97185-524-0 08 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> (E) 		8-97185-524-0 08 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-97185-524-0 08 1 1207- ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (E) 		8-97185-524-0 07 1 1207- ●
270 09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 0201-0804 ●
270 09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 0805- ● ●
270 09.743 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0201-0804 ●
270 09.743 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0805- ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0201-0804 ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0805- ● ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0201-0804 ●
355 09.748 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0805- ● ●

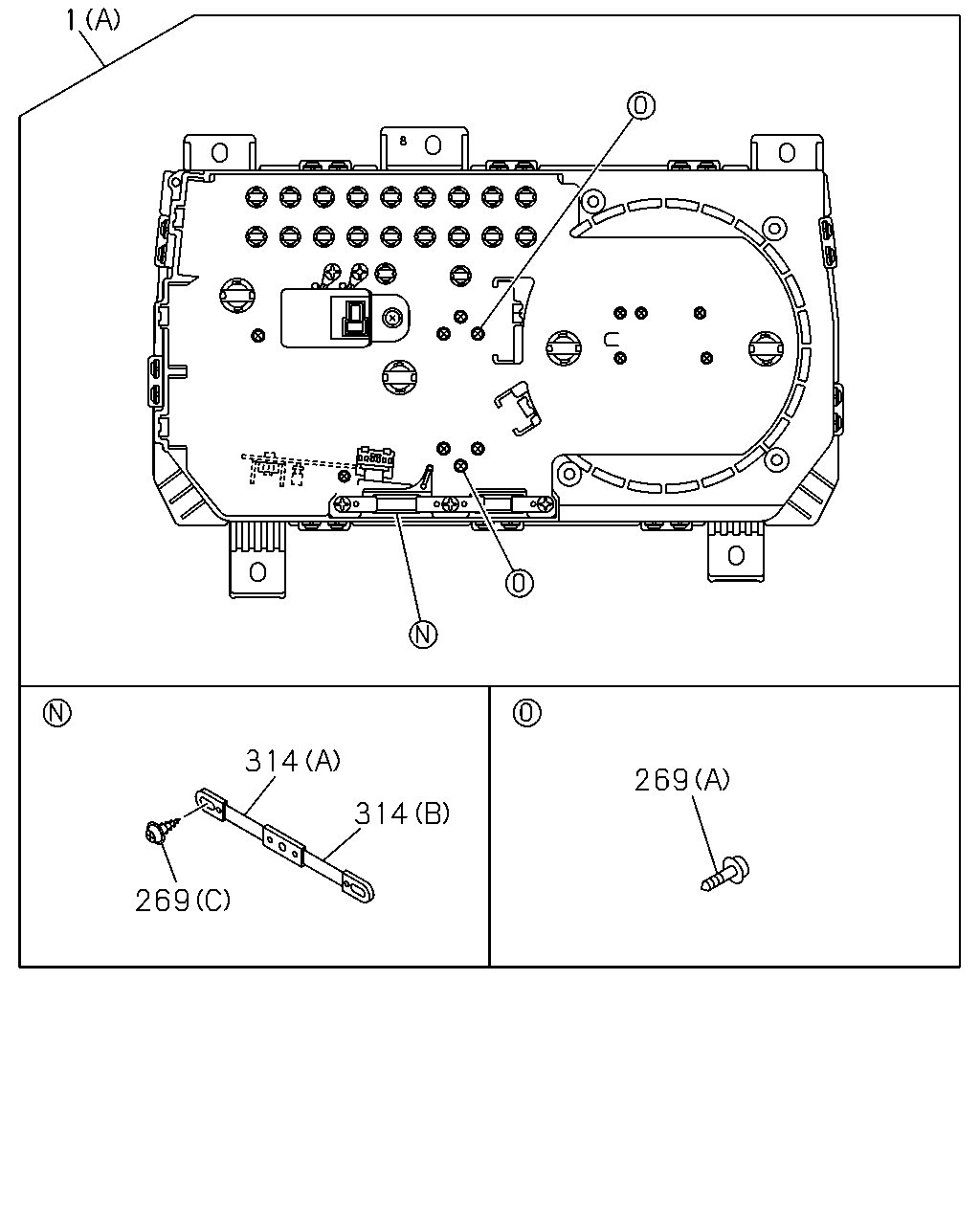

çizim 11499
1 314 269 314 269
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-98179-899-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97170-609-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97383-493-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97383-493-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97170-607-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97383-492-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97383-492-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97170-596-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97383-490-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97170-600-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HK1 ENG(RJS) TACHOMETER<U16> (B) 		8-98000-514-4 01 1 0805- ●
1 09.735 METER COMPL; CLUSTER
4HK1 ENG(RJS) EXC. TACHOMETER<U16> (B) 		8-98000-513-3 01 1 0805- ●
269 09.743 SCREW; METER CLUSTER
08.225 (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0201-0804 ●
269 09.743 SCREW; METER CLUSTER
08.225 (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0805-1210 ● ●
269 09.743 SCREW; METER CLUSTER
02.587 (D) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 05 1 1211- ● ●
269 09.743 SCREW; METER CLUSTER
(B) 		8-97185-523-0 01 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (B) 		8-97185-523-0 01 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-523-0 01 1 1207- ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (A) 		8-97185-525-0 06 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-525-0 06 1 1207- ●
269 09.743 SCREW; METER CLUSTER
(C) 		8-97185-528-0 05 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (C) 		8-97185-528-0 05 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 		8-97185-528-0 05 1 1207- ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (E) 		8-97185-524-0 08 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> (E) 		8-97185-524-0 08 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-97185-524-0 08 1 1207- ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (E) 		8-97185-524-0 07 1 1207- ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
(A) 		8-97185-515-0 01 1 0201-0501 ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HF1 ENG(RLS) (A) 		8-97185-515-0 01 1 0502-1206 ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-515-0 01 1 1207- ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
(B) 		8-97185-516-0 01 1 0201-0501 ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HF1 ENG(RLS) (B) 		8-97185-516-0 01 1 0502-1206 ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-516-0 01 1 1207- ●

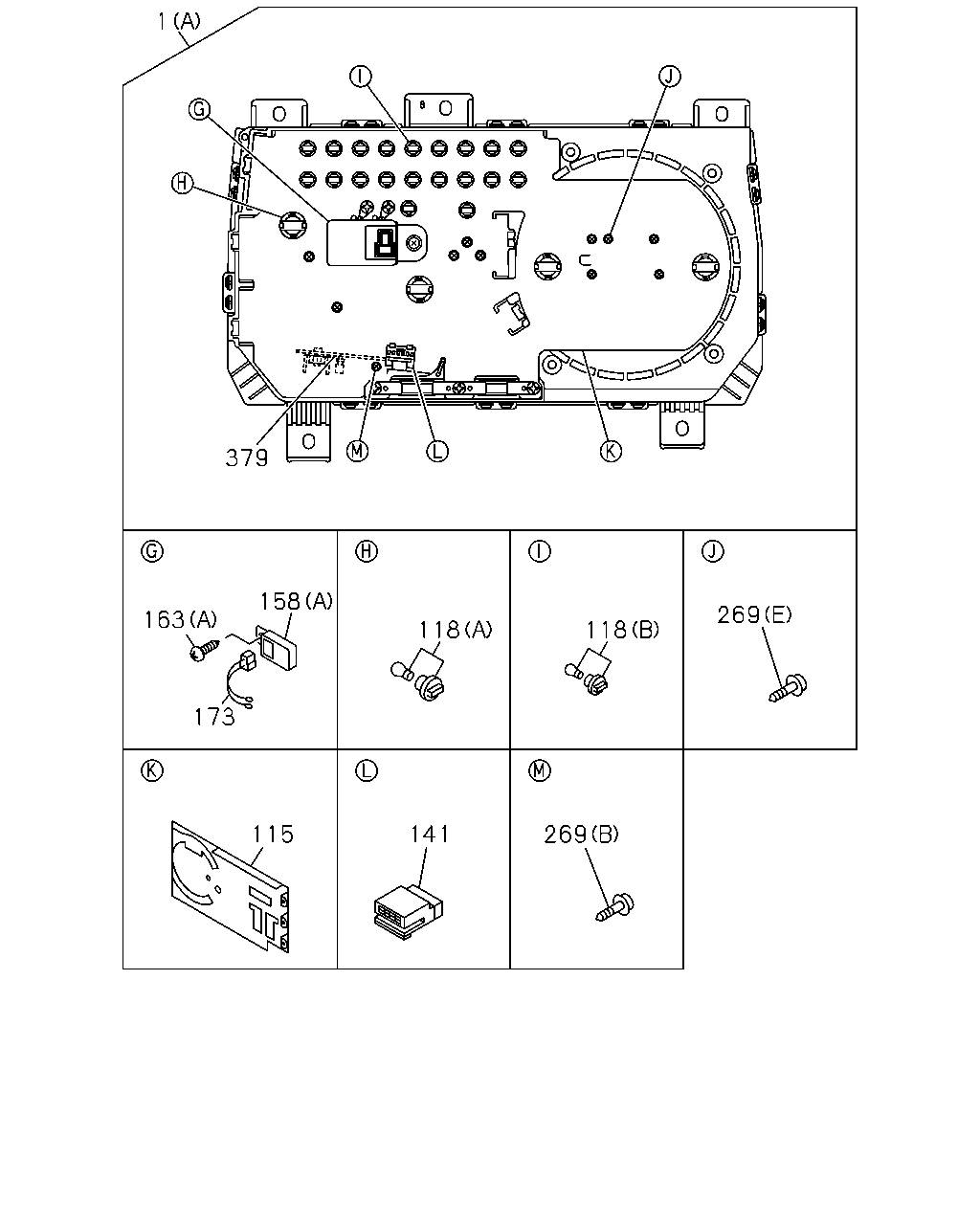

çizim 51751
1 379 158 269 163 118 118 173 115 269 141
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-98179-899-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97170-609-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97383-493-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97383-493-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97170-607-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97383-492-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97383-492-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97170-596-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97383-490-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97170-600-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HK1 ENG(RJS) TACHOMETER<U16> (B) 		8-98000-514-4 01 1 0805- ●
1 09.735 METER COMPL; CLUSTER
4HK1 ENG(RJS) EXC. TACHOMETER<U16> (B) 		8-98000-513-3 01 1 0805- ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> 		8-97185-507-0 01 1 0201-0501 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> 		8-97185-507-0 01 1 0502-1206 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-507-0 01 1 1207- ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-489-0 01 1 0201-0501 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-97185-489-0 01 1 0502-1206 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-489-0 01 1 1207- ●
118 08.991 BULB; CLUSTER METER
(A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 0201-0501 ●
118 08.991 BULB; CLUSTER METER
4HF1 ENG(RLS) (A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 0502-1206 ●
118 08.991 BULB; CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 1207- ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 09 1 0201-0501 ●
118 08.991 BULB; CLUSTER METER
4HF1 ENG(RLS) (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 10 1 0502-1206 ●
118 08.991 BULB; CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 10 1 1207- ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 0201-0501 ●
118 08.991 BULB; CLUSTER METER
4HF1 ENG(RLS) (B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 0502-1206 ●
118 08.991 BULB; CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 1207- ●
118 08.991 BULB; CLUSTER METER
4HK1 ENG(RJS) (D) 28V 1.8W 		8-97305-177-0 20 1 0805- ●
118 08.991 BULB; CLUSTER METER
4HK1 ENG(RJS) TACHOMETER<U16> (C) 28V 3W 		8-97305-178-0 05 1 0805- ●
118 08.991 BULB; CLUSTER METER
4HK1 ENG(RJS) EXC. TACHOMETER<U16> (C) 28V 3W 		8-97305-178-0 03 1 0805- ●
141 09.744 CONNECTOR; CLUSTER METER 8-97185-513-0 01 1 0201-0501 ●
141 09.744 CONNECTOR; CLUSTER METER
4HF1 ENG(RLS) 		8-97185-513-0 01 1 0502-1206 ●
141 09.744 CONNECTOR; CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-513-0 01 1 1207- ●
158 09.765 BUZZER; VAC WARNING
(A) 24V 		8-97185-519-0 01 1 0201-0501 ●
158 09.765 BUZZER; VAC WARNING
4HF1 ENG(RLS) (A) 24V 		8-97185-519-0 01 1 0502-1206 ●
158 09.765 BUZZER; VAC WARNING
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 24V 		8-97185-519-0 01 1 1207- ●
158 09.765 BUZZER; VAC WARNING
4HK1 ENG(RJS) (B) 		8-98003-830-0 01 1 0805- ●
163 08.977 SCREW; BUZZER
(A) 		8-97185-527-0 01 1 0201-0501 ●
163 08.977 SCREW; BUZZER
4HF1 ENG(RLS) (A) 		8-97185-527-0 01 1 0502-1206 ●
163 08.977 SCREW; BUZZER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-527-0 01 1 1207- ●
163 08.977 SCREW; BUZZER
4HK1 ENG(RJS) (B) 		8-97185-099-0 02 1 0805- ●
173 09.744 WIRE; LEAD 8-97185-643-0 01 1 0201-0501 ●
173 09.744 WIRE; LEAD
4HF1 ENG(RLS) 		8-97185-643-0 01 1 0502-1206 ●
173 09.744 WIRE; LEAD
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-643-0 01 1 1207- ●
269 09.743 SCREW; METER CLUSTER
08.225 (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0201-0804 ●
269 09.743 SCREW; METER CLUSTER
08.225 (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0805-1210 ● ●
269 09.743 SCREW; METER CLUSTER
02.587 (D) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 05 1 1211- ● ●
269 09.743 SCREW; METER CLUSTER
(B) 		8-97185-523-0 01 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (B) 		8-97185-523-0 01 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-523-0 01 1 1207- ●
269 09.743 SCREW; METER CLUSTER
(A) 		8-97185-525-0 06 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (A) 		8-97185-525-0 06 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-525-0 06 1 1207- ●
269 09.743 SCREW; METER CLUSTER
(C) 		8-97185-528-0 05 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) (C) 		8-97185-528-0 05 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 		8-97185-528-0 05 1 1207- ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> (E) 		8-97185-524-0 08 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> (E) 		8-97185-524-0 08 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (E) 		8-97185-524-0 08 1 1207- ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0201-0501 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> (E) 		8-97185-524-0 07 1 0502-1206 ●
269 09.743 SCREW; METER CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (E) 		8-97185-524-0 07 1 1207- ●
379 09.744 CIRCUIT; DROP 8-97185-512-0 01 1 0201-0501 ●
379 09.744 CIRCUIT; DROP
4HF1 ENG(RLS) 		8-97185-512-0 01 1 0502-1206 ●
379 09.744 CIRCUIT; DROP
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-512-0 01 1 1207- ●

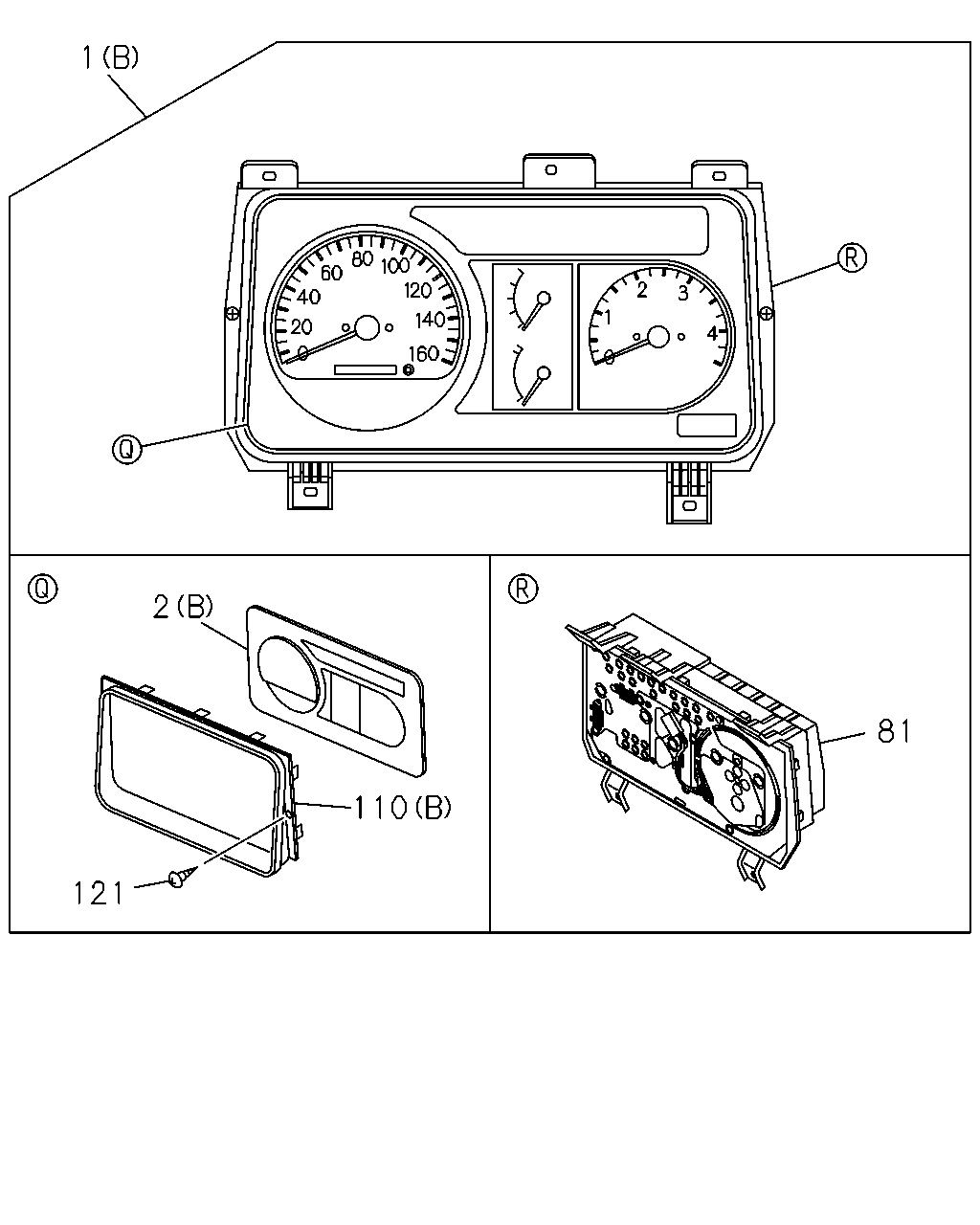

çizim 52935
1 2 81 110 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-98179-899-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97170-609-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97383-493-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97383-493-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97170-607-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97383-492-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97383-492-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97170-596-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97383-490-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97170-600-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HK1 ENG(RJS) TACHOMETER<U16> (B) 		8-98000-514-4 01 1 0805- ●
1 09.735 METER COMPL; CLUSTER
4HK1 ENG(RJS) EXC. TACHOMETER<U16> (B) 		8-98000-513-3 01 1 0805- ●
2 09.735 PANEL; CLUSTER
(A) 		8-97185-443-0 01 1 0201-0501 ●
2 09.735 PANEL; CLUSTER
4HF1 ENG(RLS) (A) 		8-97185-443-0 01 1 0502-1206 ●
2 09.735 PANEL; CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-443-0 01 1 1207- ●
2 09.735 PANEL; CLUSTER
4HK1 ENG(RJS) (B) 		8-97185-047-0 01 1 0805- ●
81 09.735 METER SUB ASM
4HK1 ENG(RJS) TACHOMETER<U16> 09.743 		8-98003-835-0 01 1 0805- ●
81 09.735 METER SUB ASM
4HK1 ENG(RJS) EXC. TACHOMETER<U16> 09.743 		8-98003-834-0 01 1 0805- ●
110 09.748 GLASS; CLUSTER METER
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-98203-825-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> (A) 		8-97185-452-0 01 1 0201-0501 ●
110 09.748 GLASS; CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> (A) 		8-97185-452-0 01 1 0502-1206 ●
110 09.748 GLASS; CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-452-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> (A) 		8-97185-451-0 01 1 0201-0501 ●
110 09.748 GLASS; CLUSTER METER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> (A) 		8-97185-451-0 01 1 0502-1206 ●
110 09.748 GLASS; CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97185-451-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4HK1 ENG(RJS) (B) 		8-97185-045-0 01 1 0805- ●
121 09.744 SCREW; PANEL FIX,CLUSTER METER
4HK1 ENG(RJS) 		8-97185-100-0 02 1 0805- ●
çizim 53353
1 2 87 86 161 230 319 110 183 131 199 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-98179-899-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97170-609-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97383-493-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97383-493-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97170-607-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97383-492-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97383-492-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97170-596-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97383-490-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97170-600-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HK1 ENG(RJS) TACHOMETER<U16> (B) 		8-98000-514-4 01 1 0805- ●
1 09.735 METER COMPL; CLUSTER
4HK1 ENG(RJS) EXC. TACHOMETER<U16> (B) 		8-98000-513-3 01 1 0805- ●
2 09.735 PANEL; CLUSTER
(A) 		8-97185-443-0 01 1 0201-0501 ●
2 09.735 PANEL; CLUSTER
4HF1 ENG(RLS) (A) 		8-97185-443-0 01 1 0502-1206 ●
2 09.735 PANEL; CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-443-0 01 1 1207- ●
2 09.735 PANEL; CLUSTER
4HK1 ENG(RJS) (B) 		8-97185-047-0 01 1 0805- ●
82 09.743 CASE ASM; CLUSTER METER 8-97185-448-0 01 1 0201-0501 ●
82 09.743 CASE ASM; CLUSTER METER
4HF1 ENG(RLS) 		8-97185-448-0 01 1 0502-1206 ●
82 09.743 CASE ASM; CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-448-0 01 1 1207- ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97185-470-0 01 1 0201-0501 ●
86 09.750 TACHOMETER; CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> 		8-98002-112-0 01 1 0502-1206 ●
86 09.750 TACHOMETER; CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-112-0 01 1 1207- ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> 		8-97185-458-0 01 1 0201-0501 ●
87 09.761 SPEEDOMETER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> 		8-98002-109-0 01 1 0502-1206 ●
87 09.761 SPEEDOMETER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-109-0 01 1 1207- ●
87 09.761 SPEEDOMETER
EXC. SPEEDOMETER MILE<UC1> 		8-97185-457-0 01 1 0201-0501 ●
87 09.761 SPEEDOMETER
4HF1 ENG(RLS) EXC. SPEEDOMETER MILE<UC1> 		8-98002-108-0 01 1 0502-1206 ●
87 09.761 SPEEDOMETER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> 		8-98002-108-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-98203-825-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> (A) 		8-97185-452-0 01 1 0201-0501 ●
110 09.748 GLASS; CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> (A) 		8-97185-452-0 01 1 0502-1206 ●
110 09.748 GLASS; CLUSTER METER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-452-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> (A) 		8-97185-451-0 01 1 0201-0501 ●
110 09.748 GLASS; CLUSTER METER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> (A) 		8-97185-451-0 01 1 0502-1206 ●
110 09.748 GLASS; CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97185-451-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4HK1 ENG(RJS) (B) 		8-97185-045-0 01 1 0805- ●
131 01.148 GAUGE; TEMP,CLUSTER METER 8-97185-475-0 01 1 0201-0501 ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HF1 ENG(RLS) 		8-98002-121-0 01 1 0502-1206 ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-121-0 01 1 1207- ●
161 09.772 CLOCK; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-462-0 01 1 0201-0501 ●
161 09.772 CLOCK; CLUSTER METER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-98002-110-0 01 1 0502-1206 ●
161 09.772 CLOCK; CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-98002-110-0 01 1 1207- ●
183 03.107 GAUGE; FUEL 8-97185-473-0 01 1 0201-0501 ●
183 03.107 GAUGE; FUEL
4HF1 ENG(RLS) 		8-98002-118-0 01 1 0502-1206 ●
183 03.107 GAUGE; FUEL
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-118-0 01 1 1207- ●
199 09.772 LENS; WARNING LAMP 8-97185-481-0 01 1 0201-0501 ●
199 09.772 LENS; WARNING LAMP
4HF1 ENG(RLS) 		8-98002-124-0 01 1 0502-1206 ●
199 09.772 LENS; WARNING LAMP
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-124-0 01 1 1207- ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0201-0501 ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0502-1206 ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-644-0 01 1 1207- ●
319 09.744 SCREW; KNOB,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0201-0501 ●
319 09.744 SCREW; KNOB,CLUSTER METER
4HF1 ENG(RLS) EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0502-1206 ●
319 09.744 SCREW; KNOB,CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-522-0 01 1 1207- ●

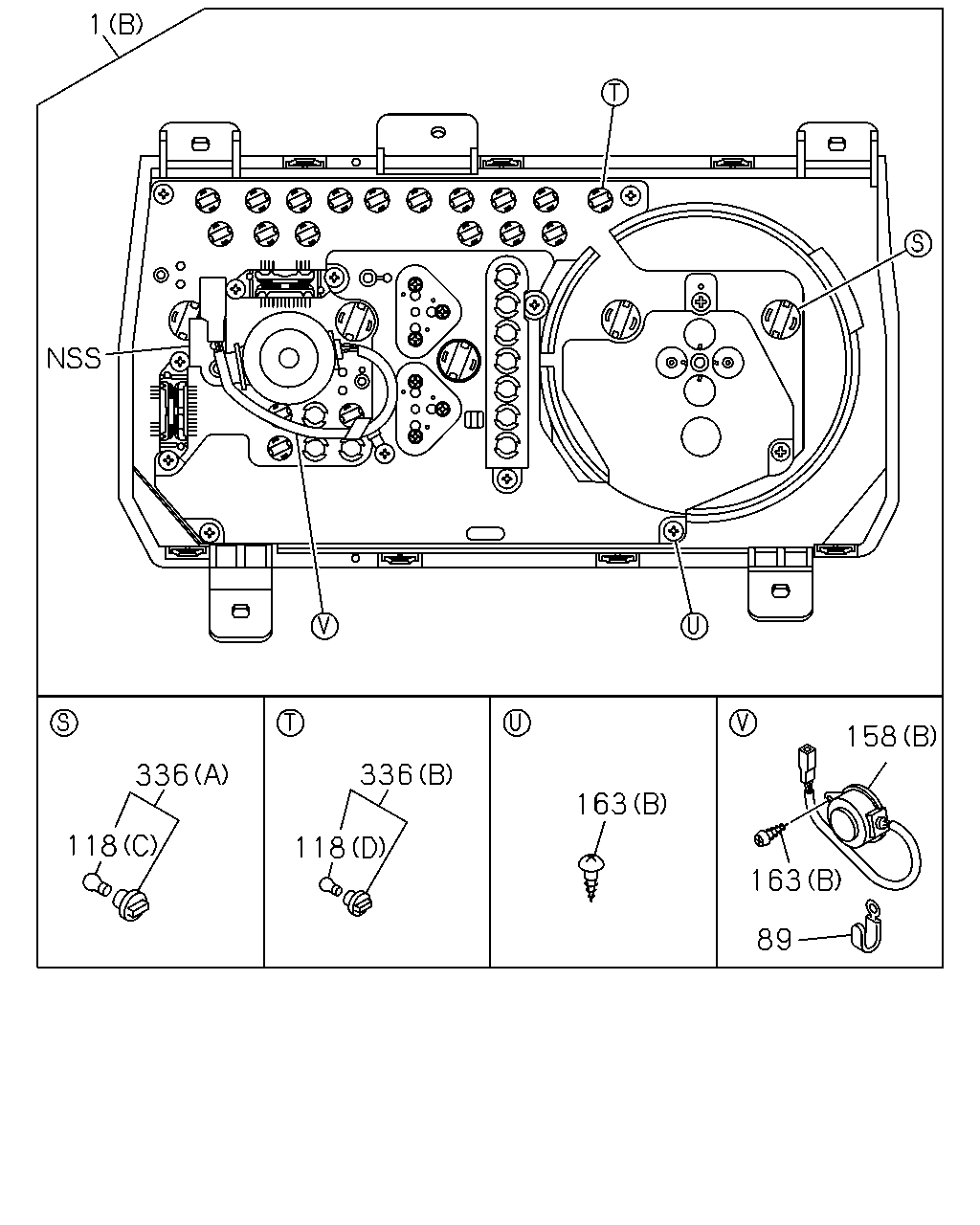

çizim 53921
1 158 336 336 163 118 118 163 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-98179-899-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97170-609-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> (A) 		8-97383-493-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97383-493-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97170-607-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> (A) 		8-97383-492-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) SPEEDOMETER MILE<UC1> EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (A) 		8-97383-492-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97170-596-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97383-490-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1>,TACHOMETER<U16> (A) 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97170-600-2 01 1 0201-0501 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 0502-1206 ●
1 09.735 METER COMPL; CLUSTER
4HF1 ENG(RLS) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC>, SPEEDOMETER MILE<UC1> (A) 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HK1 ENG(RJS) TACHOMETER<U16> (B) 		8-98000-514-4 01 1 0805- ●
1 09.735 METER COMPL; CLUSTER
4HK1 ENG(RJS) EXC. TACHOMETER<U16> (B) 		8-98000-513-3 01 1 0805- ●
89 09.761 CLIP; HARNESS
4HK1 ENG(RJS) 		8-97253-928-0 01 1 0805- ●
118 08.991 BULB; CLUSTER METER
(A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 0201-0501 ●
118 08.991 BULB; CLUSTER METER
4HF1 ENG(RLS) (A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 0502-1206 ●
118 08.991 BULB; CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 1207- ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 09 1 0201-0501 ●
118 08.991 BULB; CLUSTER METER
4HF1 ENG(RLS) (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 10 1 0502-1206 ●
118 08.991 BULB; CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 10 1 1207- ●
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 0201-0501 ●
118 08.991 BULB; CLUSTER METER
4HF1 ENG(RLS) (B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 0502-1206 ●
118 08.991 BULB; CLUSTER METER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 1207- ●
118 08.991 BULB; CLUSTER METER
4HK1 ENG(RJS) (D) 28V 1.8W 		8-97305-177-0 20 1 0805- ●
118 08.991 BULB; CLUSTER METER
4HK1 ENG(RJS) TACHOMETER<U16> (C) 28V 3W 		8-97305-178-0 05 1 0805- ●
118 08.991 BULB; CLUSTER METER
4HK1 ENG(RJS) EXC. TACHOMETER<U16> (C) 28V 3W 		8-97305-178-0 03 1 0805- ●
158 09.765 BUZZER; VAC WARNING
(A) 24V 		8-97185-519-0 01 1 0201-0501 ●
158 09.765 BUZZER; VAC WARNING
4HF1 ENG(RLS) (A) 24V 		8-97185-519-0 01 1 0502-1206 ●
158 09.765 BUZZER; VAC WARNING
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 24V 		8-97185-519-0 01 1 1207- ●
158 09.765 BUZZER; VAC WARNING
4HK1 ENG(RJS) (B) 		8-98003-830-0 01 1 0805- ●
163 08.977 SCREW; BUZZER
(A) 		8-97185-527-0 01 1 0201-0501 ●
163 08.977 SCREW; BUZZER
4HF1 ENG(RLS) (A) 		8-97185-527-0 01 1 0502-1206 ●
163 08.977 SCREW; BUZZER
4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-527-0 01 1 1207- ●
163 08.977 SCREW; BUZZER
4HK1 ENG(RJS) (B) 		8-97185-099-0 02 1 0805- ●
336 02.575 LAMP ASM; WARNING
4HK1 ENG(RJS) (B) 		8-97185-091-0 20 1 0805- ●
336 02.575 LAMP ASM; WARNING
4HK1 ENG(RJS) TACHOMETER<U16> (A) 		8-97185-093-0 05 1 0805- ●
336 02.575 LAMP ASM; WARNING
4HK1 ENG(RJS) EXC. TACHOMETER<U16> (A) 		8-97185-093-0 03 1 0805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
