Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#19397) — 233 parça

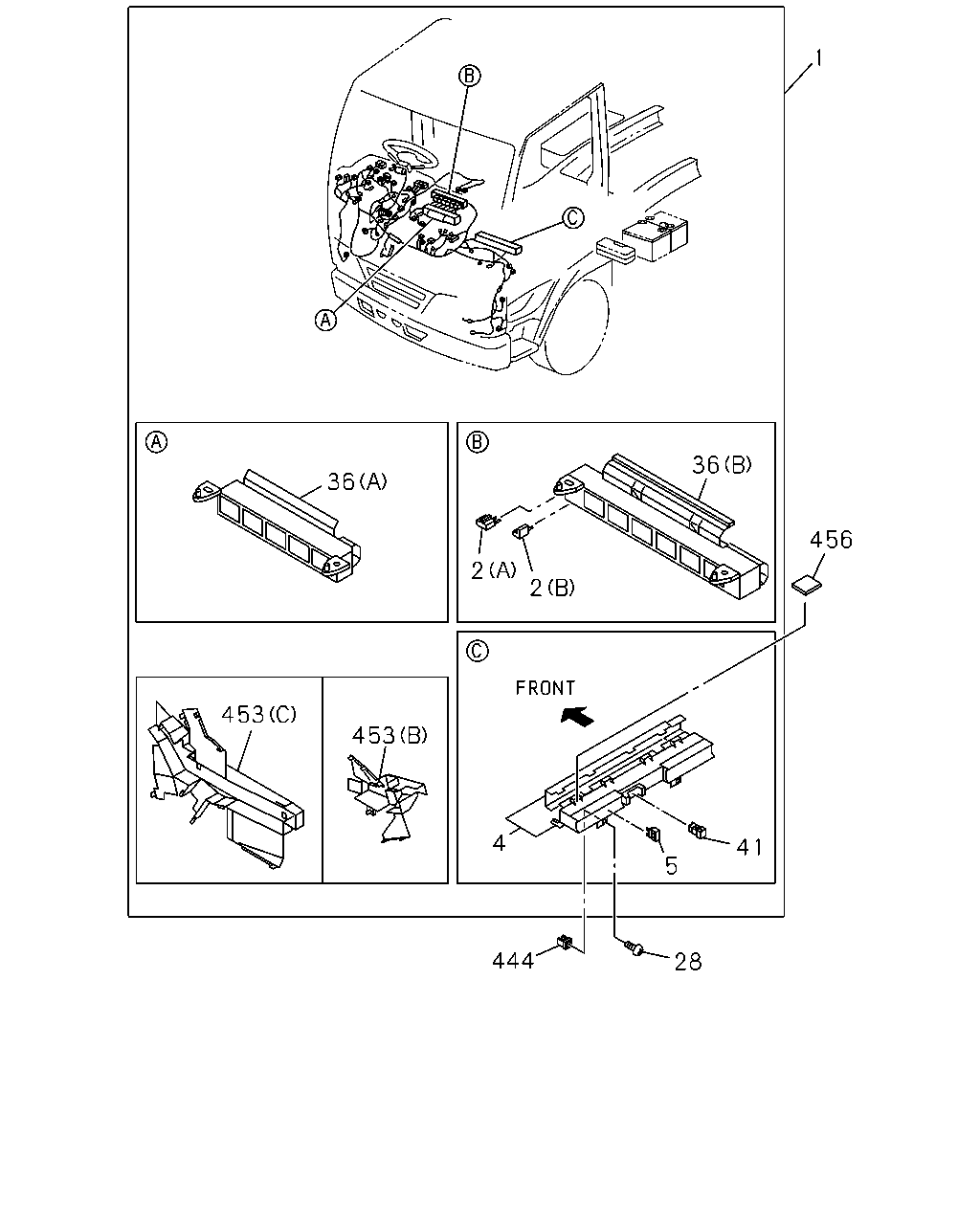

1 36 36 456 2 2 453 453 4 41 5 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB 4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC>	8-98217-081-0	01	1	1207-	●
1	02.480 HARNESS; CAB	8-97309-114-2	01	1	0201-0501	●
1	02.480 HARNESS; CAB 4HF1 ENG(RLS)	8-97377-105-2	01	1	0502-1206	●
1	02.480 HARNESS; CAB 4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97377-105-2	01	1	1207-	●
1	02.480 HARNESS; CAB 4HK1 ENG(RJS)	8-98098-499-0	01	1	0805-		●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	01	1	0201-0501	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	01	1	0201-0501	●
2	02.483 DIODE; CABLE HARNESS 4HK1 ENG(RJS) (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0805-		●
2	02.483 DIODE; CABLE HARNESS 4HK1 ENG(RJS) (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0805-		●
4	02.483 BOX ASM; FUSE,HARNESS	8-97214-415-0	01	1	0201-0501	●
4	02.483 BOX ASM; FUSE,HARNESS 4HF1 ENG(RLS)	8-97187-921-1	01	1	0502-0804	●
4	02.483 BOX ASM; FUSE,HARNESS	8-97187-921-1	01	1	0805-	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 10A RED	5-82516-002-0	09	1	0201-0501	●
5	02.485 FUSE; FACIA HARNESS 4HF1 ENG(RLS) 08.965 10A MINI RED	8-97062-022-0	11	1	0502-0511	●
5	02.485 FUSE; FACIA HARNESS 4HF1 ENG(RLS) 08.965 10A MINI RED	8-97062-022-0	12	1	0512-	●
5	02.485 FUSE; FACIA HARNESS 08.965 15A BLUE	5-82516-003-0	09	1	0201-0501	●
5	02.485 FUSE; FACIA HARNESS 4HF1 ENG(RLS) 08.965 15A MINI BLUE	8-97062-023-0	06	1	0502-0511	●
5	02.485 FUSE; FACIA HARNESS 4HF1 ENG(RLS) 08.965 15A MINI BLUE	8-97062-023-0	07	1	0512-0804	●
5	02.485 FUSE; FACIA HARNESS 08.965 15A MINI BLUE	8-97062-023-0	07	1	0805-	●	●
5	02.485 FUSE; FACIA HARNESS 4HF1 ENG(RLS) 08.965 20A MINI YELLOW	8-97062-024-0	02	1	0502-0804	●
5	02.485 FUSE; FACIA HARNESS 08.965 20A MINI YELLOW	8-97062-024-0	02	1	0805-	●	●
5	02.485 FUSE; FACIA HARNESS 4HK1 ENG(RJS) 08.965 10A MINI RED	8-97062-022-0	17	1	0805-		●
28	02.483 SCREW; FUSE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0201-0604	●
28	02.483 SCREW; FUSE BOX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-0612	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-0804	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0805-1101	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
36	02.530 BOX; RELAY (B)	8-97087-639-1	01	1	0201-0501	●
36	02.530 BOX; RELAY 4HF1 ENG(RLS) (C)	8-97187-918-1	01	1	0502-0804	●
36	02.530 BOX; RELAY (C)	8-97187-918-1	01	1	0805-	●	●
36	02.530 BOX; RELAY (A)	8-97087-640-1	01	1	0201-0501	●
36	02.530 BOX; RELAY 4HK1 ENG(RJS) (A)	8-97087-640-2	01	1	0805-		●
41	08.821 PULLER; FUSE 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	0201-0501	●
41	08.821 PULLER; FUSE 4HF1 ENG(RLS)	8-97103-388-0	01	1	0502-0804	●
41	08.821 PULLER; FUSE	8-97103-388-0	01	1	0805-	●	●
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0201-0804	●
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0805-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-97259-730-2	01	1	0201-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) (C)	8-97259-730-3	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS (C)	8-97259-730-3	01	1	0805-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-97261-653-2	01	1	0201-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) (B)	8-97261-653-2	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS (B)	8-97261-653-2	01	1	0805-	●	●
453	02.483 PROTECTOR; HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-591-1	01	1	0201-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-591-1	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-591-1	01	1	0805-	●
453	02.483 PROTECTOR; HARNESS 4HK1 ENG(RJS) (A)	8-97120-591-1	01	1	0805-		●
453	02.483 PROTECTOR; HARNESS FRAME STRAIGHT TYPE<7KJ> (D)	8-97093-668-1	01	1	0302-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97093-668-1	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97093-668-1	01	1	0805-	●
453	02.483 PROTECTOR; HARNESS 4HK1 ENG(RJS) (D)	8-97093-668-1	01	1	0805-		●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) (E)	8-97088-615-0	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS (E)	8-97088-615-0	01	1	0805-	●	●
453	02.483 PROTECTOR; HARNESS 4HK1 ENG(RJS) (F)	8-97062-169-0	01	1	0805-		●
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	01	1	0201-0804	●
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	01	1	0805-	●	●

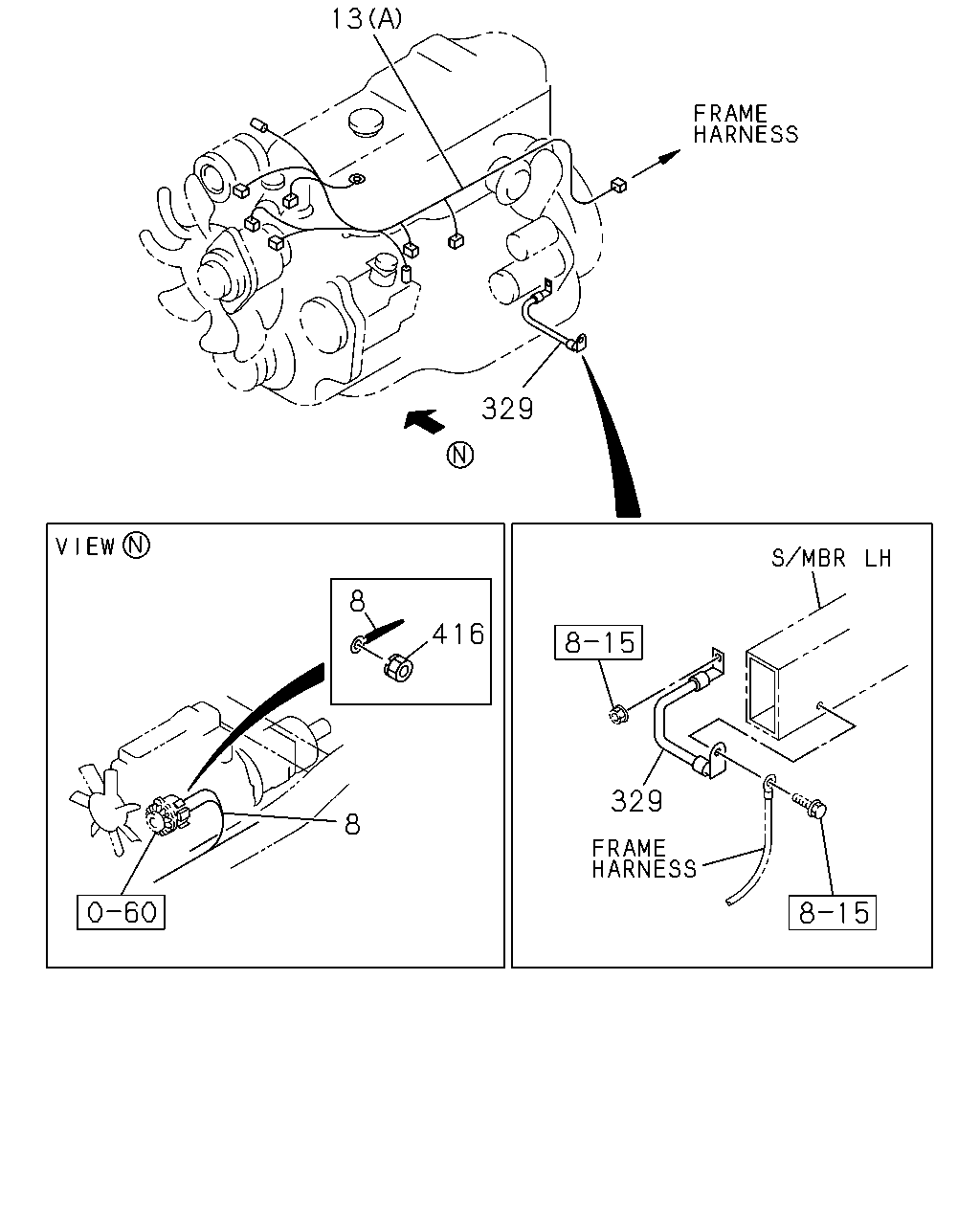

13 329 8 416 329 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT FRAME STRAIGHT TYPE<7KJ>	8-97260-976-1	01	1	0201-0301	●
8	02.480 HARNESS; FRAME,FRT FRAME STRAIGHT TYPE<7KJ>	8-97350-637-1	01	1	0302-0501	●
8	02.480 HARNESS; FRAME,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97377-016-2	01	1	0502-	●
8	02.480 HARNESS; FRAME,FRT 4HK1 ENG(RJS)	8-98098-500-0	01	1	0805-		●
13	02.525 HARNESS; ENG 4HF1 ENG(RLS) (A)	8-97170-515-1	01	1	0201-0301	●
13	02.525 HARNESS; ENG 4HF1 ENG(RLS) (A)	8-97356-988-1	01	1	0302-	●
13	02.525 HARNESS; ENG 4HK1 ENG(RJS) (B)	8-97332-133-3	01	1	0805-		●
13	02.525 HARNESS; ENG 4HK1 ENG(RJS) (A)	8-98023-708-0	01	1	0805-		●
329	02.480 CABLE; ENG TO FRAME FRAME STRAIGHT TYPE<7KJ>	8-97113-787-0	01	1	0201-0501	●
329	02.480 CABLE; ENG TO FRAME 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97113-787-0	01	1	0502-	●
329	02.480 CABLE; ENG TO FRAME 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-97182-112-0	01	1	0805-		●
416	02.559 NUT; TERMINAL 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0201-0501	●
416	02.559 NUT; TERMINAL 4HF1 ENG(RLS) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0502-0804	●
416	02.559 NUT; TERMINAL 4HF1 ENG(RLS) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0805-	●
416	02.559 NUT; TERMINAL 4HK1 ENG(RJS) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0805-		●

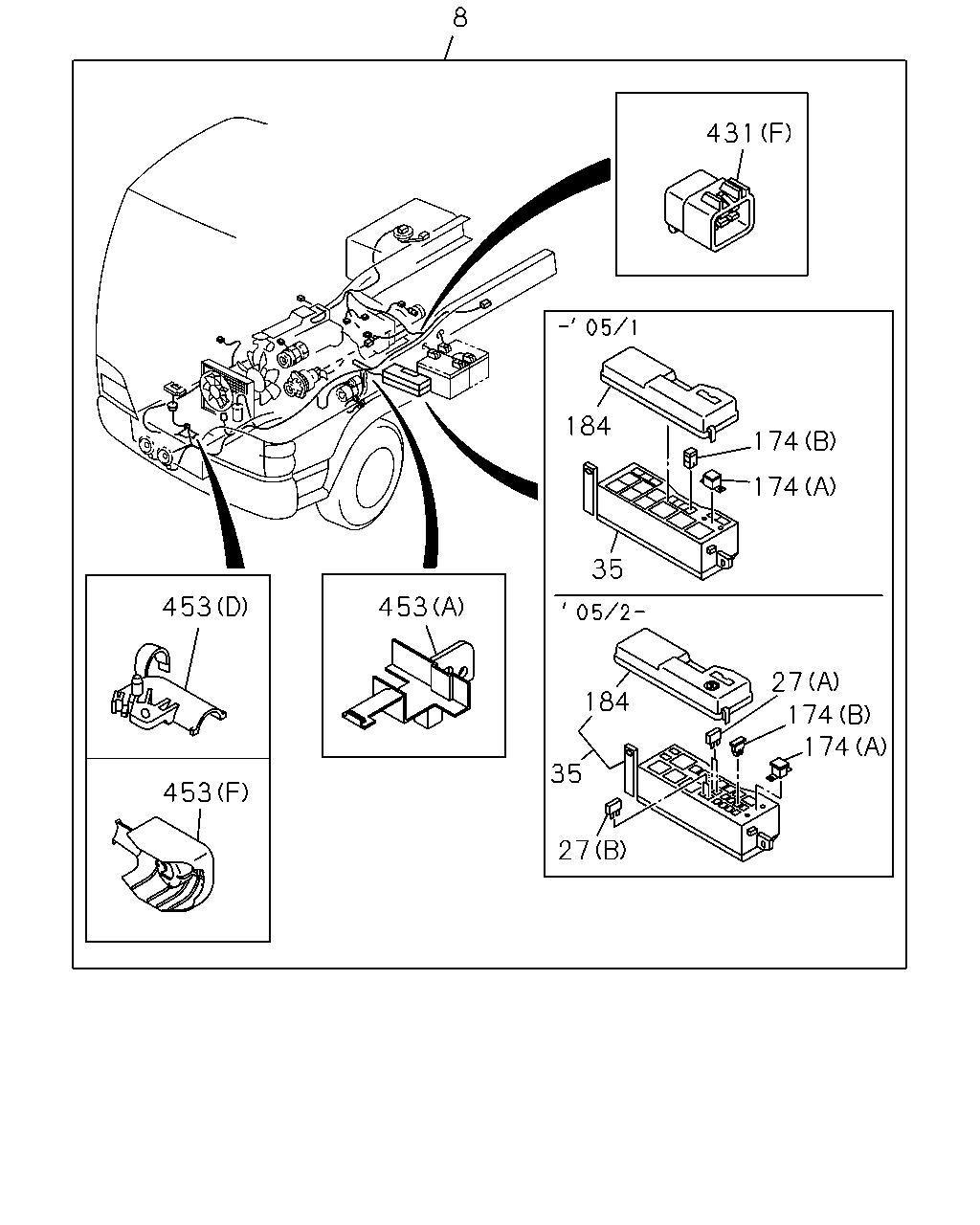

8 431 184 174 174 35 453 453 27 174 174 184 35 453 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT FRAME STRAIGHT TYPE<7KJ>	8-97260-976-1	01	1	0201-0301	●
8	02.480 HARNESS; FRAME,FRT FRAME STRAIGHT TYPE<7KJ>	8-97350-637-1	01	1	0302-0501	●
8	02.480 HARNESS; FRAME,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97377-016-2	01	1	0502-	●
8	02.480 HARNESS; FRAME,FRT 4HK1 ENG(RJS)	8-98098-500-0	01	1	0805-		●
27	08.965 FUSE UNIT 4HK1 ENG(RJS) (A) 10A MINI RED	8-97062-022-0	02	1	0805-		●
27	08.965 FUSE UNIT 4HK1 ENG(RJS) (B) 15A MINI BLUE	8-97062-023-0	02	1	0805-		●
35	02.530 BOX; RELAY & FUSE FRAME STRAIGHT TYPE<7KJ>	8-97063-150-1	01	1	0201-0501	●
35	02.530 BOX; RELAY & FUSE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97377-739-0	01	1	0502-0804	●
35	02.530 BOX; RELAY & FUSE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97377-739-0	01	1	0805-	●
35	02.530 BOX; RELAY & FUSE 4HK1 ENG(RJS)	8-97377-739-0	01	1	0805-		●
174	08.965 FUSE; SLOW BLOW FRAME STRAIGHT TYPE<7KJ> (A) 60A YELLOW	8-94388-303-1	01	1	0201-0501	●
174	08.965 FUSE; SLOW BLOW 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) 100A BLUE	8-94388-306-0	01	1	0502-0804	●
174	08.965 FUSE; SLOW BLOW 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) 100A BLUE	8-94388-306-0	01	1	0805-	●
174	08.965 FUSE; SLOW BLOW 4HK1 ENG(RJS) (A) 100A BLUE	8-94388-306-0	01	1	0805-		●
174	08.965 FUSE; SLOW BLOW FRAME STRAIGHT TYPE<7KJ> 02.483 (B) 60A YELLOW	8-94468-664-0	02	1	0201-0501	●
174	08.965 FUSE; SLOW BLOW 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) 30A PINK	8-97183-643-0	01	1	0502-0804	●
174	08.965 FUSE; SLOW BLOW 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) 30A PINK	8-97183-643-0	01	1	0805-	●
174	08.965 FUSE; SLOW BLOW 4HK1 ENG(RJS) (B) 30A PINK	8-97183-643-0	01	1	0805-		●
174	08.965 FUSE; SLOW BLOW 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) 40A GREEN	8-97183-644-0	01	1	0502-0508	●
174	08.965 FUSE; SLOW BLOW 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) 40A GREEN	8-97183-644-0	02	1	0509-	●
174	08.965 FUSE; SLOW BLOW 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) 60A YELLOW	8-97219-407-0	02	1	0502-	●
174	08.965 FUSE; SLOW BLOW 4HK1 ENG(RJS) (B) 40A GREEN	8-97183-644-0	03	1	0805-		●
174	08.965 FUSE; SLOW BLOW 4HK1 ENG(RJS) (B) 60A YELLOW	8-97219-407-0	04	1	0805-		●
184	02.559 COVER; RELAY & FUSE BOX FRAME STRAIGHT TYPE<7KJ>	8-97063-152-1	01	1	0201-0501	●
184	02.559 COVER; RELAY & FUSE BOX 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97377-741-0	01	1	0502-0804	●
184	02.559 COVER; RELAY & FUSE BOX 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97377-741-0	01	1	0805-	●
184	02.559 COVER; RELAY & FUSE BOX 4HK1 ENG(RJS)	8-97377-741-0	01	1	0805-		●
431	02.530 CONNECTOR; JOINT 4HF1 ENG(RLS) (B) 10P BLUE	1-82699-598-0	01	1	0502-0804	●
431	02.530 CONNECTOR; JOINT (B) 10P BLUE	1-82699-598-0	01	1	0805-	●	●
431	02.530 CONNECTOR; JOINT 4HF1 ENG(RLS) (C) 10P GREEN	1-82699-599-0	04	1	0502-	●
431	02.530 CONNECTOR; JOINT 4HF1 ENG(RLS) (A) 10P BROWN	1-82699-601-0	03	1	0502-	●
431	02.530 CONNECTOR; JOINT 4HF1 ENG(RLS) (E) 4P	8-97077-939-0	01	1	0502-0804	●
431	02.530 CONNECTOR; JOINT (E) 4P	8-97077-939-0	01	1	0805-	●	●
431	02.530 CONNECTOR; JOINT 4HF1 ENG(RLS) (D) 6P	8-97077-941-0	01	1	0502-0804	●
431	02.530 CONNECTOR; JOINT (D) 6P	8-97077-941-0	01	1	0805-	●	●
431	02.530 CONNECTOR; JOINT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (F) 6P	8-97381-428-0	02	1	0509-	●
431	02.530 CONNECTOR; JOINT 4HK1 ENG(RJS) (G) 6P	1-82691-206-0	03	1	0805-		●
431	02.530 CONNECTOR; JOINT 4HK1 ENG(RJS) (G) 3P & 3P	1-82698-170-0	03	1	0805-		●
431	02.530 CONNECTOR; JOINT 4HK1 ENG(RJS) (C) 10P GREEN	1-82699-599-0	02	1	0805-		●
431	02.530 CONNECTOR; JOINT 4HK1 ENG(RJS) (A) 10P BROWN	1-82699-601-0	01	1	0805-		●
453	02.483 PROTECTOR; HARNESS (C)	8-97259-730-2	01	1	0201-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) (C)	8-97259-730-3	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS (C)	8-97259-730-3	01	1	0805-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-97261-653-2	01	1	0201-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) (B)	8-97261-653-2	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS (B)	8-97261-653-2	01	1	0805-	●	●
453	02.483 PROTECTOR; HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-591-1	01	1	0201-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-591-1	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-591-1	01	1	0805-	●
453	02.483 PROTECTOR; HARNESS 4HK1 ENG(RJS) (A)	8-97120-591-1	01	1	0805-		●
453	02.483 PROTECTOR; HARNESS FRAME STRAIGHT TYPE<7KJ> (D)	8-97093-668-1	01	1	0302-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97093-668-1	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97093-668-1	01	1	0805-	●
453	02.483 PROTECTOR; HARNESS 4HK1 ENG(RJS) (D)	8-97093-668-1	01	1	0805-		●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) (E)	8-97088-615-0	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS (E)	8-97088-615-0	01	1	0805-	●	●
453	02.483 PROTECTOR; HARNESS 4HK1 ENG(RJS) (F)	8-97062-169-0	01	1	0805-		●

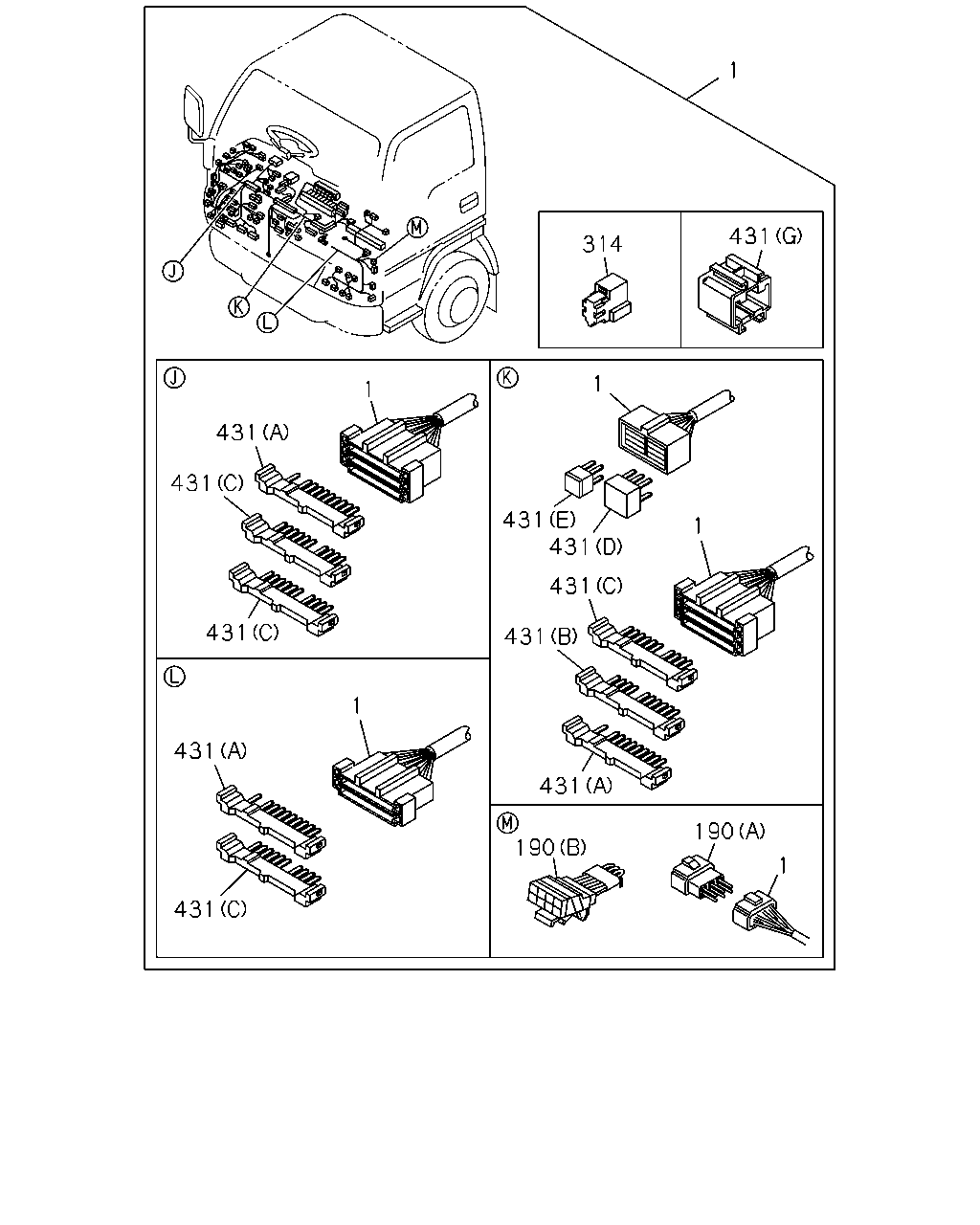

1 431 314 1 1 431 431 431 431 1 431 431 431 1 431 431 190 190 1 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB 4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC>	8-98217-081-0	01	1	1207-	●
1	02.480 HARNESS; CAB	8-97309-114-2	01	1	0201-0501	●
1	02.480 HARNESS; CAB 4HF1 ENG(RLS)	8-97377-105-2	01	1	0502-1206	●
1	02.480 HARNESS; CAB 4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97377-105-2	01	1	1207-	●
1	02.480 HARNESS; CAB 4HK1 ENG(RJS)	8-98098-499-0	01	1	0805-		●
190	02.559 CONNECTOR; SHORT CIRCUIT EXC. INTERMITTENT WIPER<C13> (B)	8-98036-238-0	01	1	0607-0804	●
190	02.559 CONNECTOR; SHORT CIRCUIT EXC. INTERMITTENT WIPER<C13> (B)	8-98036-238-0	01	1	0805-	●	●
190	02.559 CONNECTOR; SHORT CIRCUIT 4HK1 ENG(RJS) (A)	5-82690-411-0	01	1	0805-		●
314	02.510 RESISTOR; HARNESS 4HK1 ENG(RJS) BLUE	1-82691-204-0	02	1	0805-		●
431	02.530 CONNECTOR; JOINT 4HF1 ENG(RLS) (B) 10P BLUE	1-82699-598-0	01	1	0502-0804	●
431	02.530 CONNECTOR; JOINT (B) 10P BLUE	1-82699-598-0	01	1	0805-	●	●
431	02.530 CONNECTOR; JOINT 4HF1 ENG(RLS) (C) 10P GREEN	1-82699-599-0	04	1	0502-	●
431	02.530 CONNECTOR; JOINT 4HF1 ENG(RLS) (A) 10P BROWN	1-82699-601-0	03	1	0502-	●
431	02.530 CONNECTOR; JOINT 4HF1 ENG(RLS) (E) 4P	8-97077-939-0	01	1	0502-0804	●
431	02.530 CONNECTOR; JOINT (E) 4P	8-97077-939-0	01	1	0805-	●	●
431	02.530 CONNECTOR; JOINT 4HF1 ENG(RLS) (D) 6P	8-97077-941-0	01	1	0502-0804	●
431	02.530 CONNECTOR; JOINT (D) 6P	8-97077-941-0	01	1	0805-	●	●
431	02.530 CONNECTOR; JOINT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (F) 6P	8-97381-428-0	02	1	0509-	●
431	02.530 CONNECTOR; JOINT 4HK1 ENG(RJS) (G) 6P	1-82691-206-0	03	1	0805-		●
431	02.530 CONNECTOR; JOINT 4HK1 ENG(RJS) (G) 3P & 3P	1-82698-170-0	03	1	0805-		●
431	02.530 CONNECTOR; JOINT 4HK1 ENG(RJS) (C) 10P GREEN	1-82699-599-0	02	1	0805-		●
431	02.530 CONNECTOR; JOINT 4HK1 ENG(RJS) (A) 10P BROWN	1-82699-601-0	01	1	0805-		●

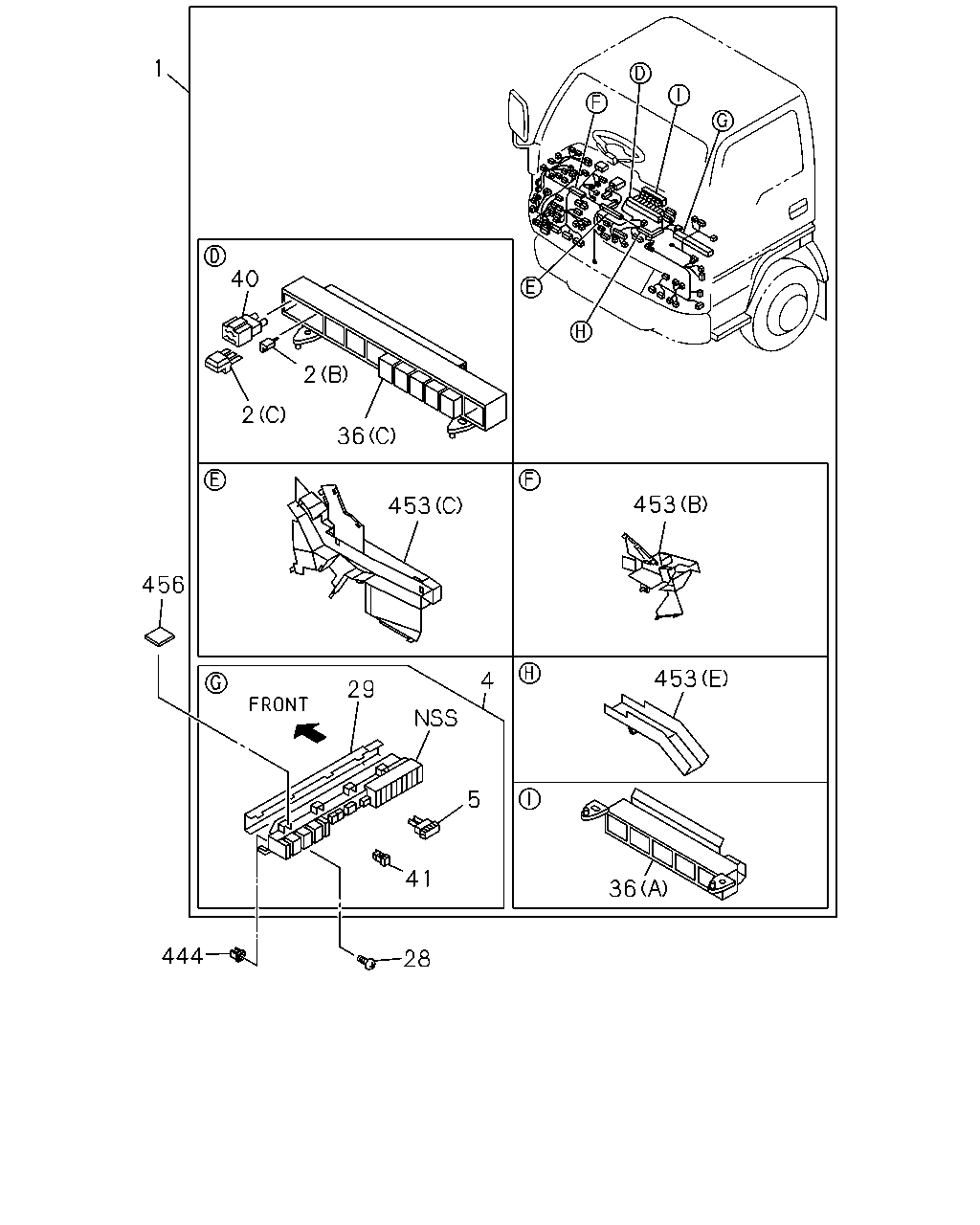

1 40 2 2 36 453 453 456 453 4 29 5 41 36 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB 4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC>	8-98217-081-0	01	1	1207-	●
1	02.480 HARNESS; CAB	8-97309-114-2	01	1	0201-0501	●
1	02.480 HARNESS; CAB 4HF1 ENG(RLS)	8-97377-105-2	01	1	0502-1206	●
1	02.480 HARNESS; CAB 4HF1 ENG(RLS) EXC. PROVISIONAL PACKAGE SPEC<BCC>	8-97377-105-2	01	1	1207-	●
1	02.480 HARNESS; CAB 4HK1 ENG(RJS)	8-98098-499-0	01	1	0805-		●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	01	1	0201-0501	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	01	1	0201-0501	●
2	02.483 DIODE; CABLE HARNESS 4HK1 ENG(RJS) (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0805-		●
2	02.483 DIODE; CABLE HARNESS 4HK1 ENG(RJS) (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0805-		●
4	02.483 BOX ASM; FUSE,HARNESS	8-97214-415-0	01	1	0201-0501	●
4	02.483 BOX ASM; FUSE,HARNESS 4HF1 ENG(RLS)	8-97187-921-1	01	1	0502-0804	●
4	02.483 BOX ASM; FUSE,HARNESS	8-97187-921-1	01	1	0805-	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 10A RED	5-82516-002-0	09	1	0201-0501	●
5	02.485 FUSE; FACIA HARNESS 4HF1 ENG(RLS) 08.965 10A MINI RED	8-97062-022-0	11	1	0502-0511	●
5	02.485 FUSE; FACIA HARNESS 4HF1 ENG(RLS) 08.965 10A MINI RED	8-97062-022-0	12	1	0512-	●
5	02.485 FUSE; FACIA HARNESS 08.965 15A BLUE	5-82516-003-0	09	1	0201-0501	●
5	02.485 FUSE; FACIA HARNESS 4HF1 ENG(RLS) 08.965 15A MINI BLUE	8-97062-023-0	06	1	0502-0511	●
5	02.485 FUSE; FACIA HARNESS 4HF1 ENG(RLS) 08.965 15A MINI BLUE	8-97062-023-0	07	1	0512-0804	●
5	02.485 FUSE; FACIA HARNESS 08.965 15A MINI BLUE	8-97062-023-0	07	1	0805-	●	●
5	02.485 FUSE; FACIA HARNESS 4HF1 ENG(RLS) 08.965 20A MINI YELLOW	8-97062-024-0	02	1	0502-0804	●
5	02.485 FUSE; FACIA HARNESS 08.965 20A MINI YELLOW	8-97062-024-0	02	1	0805-	●	●
5	02.485 FUSE; FACIA HARNESS 4HK1 ENG(RJS) 08.965 10A MINI RED	8-97062-022-0	17	1	0805-		●
28	02.483 SCREW; FUSE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0201-0604	●
28	02.483 SCREW; FUSE BOX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-0612	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-0804	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0805-1101	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
29	02.483 COVER; FUSE BOX 4HF1 ENG(RLS)	8-97074-955-0	01	1	0502-0804	●
29	02.483 COVER; FUSE BOX	8-97074-955-0	01	1	0805-	●	●
36	02.530 BOX; RELAY (B)	8-97087-639-1	01	1	0201-0501	●
36	02.530 BOX; RELAY 4HF1 ENG(RLS) (C)	8-97187-918-1	01	1	0502-0804	●
36	02.530 BOX; RELAY (C)	8-97187-918-1	01	1	0805-	●	●
36	02.530 BOX; RELAY (A)	8-97087-640-1	01	1	0201-0501	●
36	02.530 BOX; RELAY 4HK1 ENG(RJS) (A)	8-97087-640-2	01	1	0805-		●
40	02.483 BOX; DIODE 4HF1 ENG(RLS) NATURAL 8P	8-97200-753-0	01	1	0502-0804	●
40	02.483 BOX; DIODE NATURAL 8P	8-97200-753-0	01	1	0805-	●	●
41	08.821 PULLER; FUSE 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	0201-0501	●
41	08.821 PULLER; FUSE 4HF1 ENG(RLS)	8-97103-388-0	01	1	0502-0804	●
41	08.821 PULLER; FUSE	8-97103-388-0	01	1	0805-	●	●
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0201-0804	●
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0805-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-97259-730-2	01	1	0201-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) (C)	8-97259-730-3	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS (C)	8-97259-730-3	01	1	0805-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-97261-653-2	01	1	0201-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) (B)	8-97261-653-2	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS (B)	8-97261-653-2	01	1	0805-	●	●
453	02.483 PROTECTOR; HARNESS FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-591-1	01	1	0201-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-591-1	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-591-1	01	1	0805-	●
453	02.483 PROTECTOR; HARNESS 4HK1 ENG(RJS) (A)	8-97120-591-1	01	1	0805-		●
453	02.483 PROTECTOR; HARNESS FRAME STRAIGHT TYPE<7KJ> (D)	8-97093-668-1	01	1	0302-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97093-668-1	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97093-668-1	01	1	0805-	●
453	02.483 PROTECTOR; HARNESS 4HK1 ENG(RJS) (D)	8-97093-668-1	01	1	0805-		●
453	02.483 PROTECTOR; HARNESS 4HF1 ENG(RLS) (E)	8-97088-615-0	01	1	0502-0804	●
453	02.483 PROTECTOR; HARNESS (E)	8-97088-615-0	01	1	0805-	●	●
453	02.483 PROTECTOR; HARNESS 4HK1 ENG(RJS) (F)	8-97062-169-0	01	1	0805-		●
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	01	1	0201-0804	●
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	01	1	0805-	●	●

347 204 337 9 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	02.480 HARNESS; FRAME,RR FRAME STRAIGHT TYPE<7KJ>	8-97377-067-1	01	1	0502-	●
9	02.480 HARNESS; FRAME,RR 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98000-802-1	01	1	0805-		●
204	02.559 HARNESS; CABLE,FLOOR	8-97162-629-2	01	1	0201-0302	●
204	02.559 HARNESS; CABLE,FLOOR	8-97364-140-0	01	1	0303-0502	●
204	02.559 HARNESS; CABLE,FLOOR M/T MYY5T(RSM)	8-97364-140-0	01	1	0503-0804	●
204	02.559 HARNESS; CABLE,FLOOR M/T MYY5T(RSM)	8-97364-140-0	01	1	0805-	●
204	02.559 HARNESS; CABLE,FLOOR M/T MZZ6U(RSF)	8-97364-140-0	01	1	0805-		●
337	02.530 HARNESS; EXT,HTR FUEL SEDIMENTER WITH HEATER<6HU>	8-97261-149-0	01	1	0201-0501	●
337	02.530 HARNESS; EXT,HTR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-97261-149-0	01	1	0502-	●
347	02.480 HARNESS; CABLE,RR BODY	8-97213-568-0	01	1	0201-0302	●
347	02.480 HARNESS; CABLE,RR BODY	8-97364-152-0	01	1	0303-0804	●
347	02.480 HARNESS; CABLE,RR BODY	8-97364-152-0	01	1	0805-	●	●
434	02.559 CONNECTOR; SHORT CIRCUIT 4HK1 ENG(RJS)	8-97388-449-0	01	1	0805-		●

626 534 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG 4HF1 ENG(RLS) (A)	8-97170-515-1	01	1	0201-0301	●
13	02.525 HARNESS; ENG 4HF1 ENG(RLS) (A)	8-97356-988-1	01	1	0302-	●
13	02.525 HARNESS; ENG 4HK1 ENG(RJS) (B)	8-97332-133-3	01	1	0805-		●
13	02.525 HARNESS; ENG 4HK1 ENG(RJS) (A)	8-98023-708-0	01	1	0805-		●
534	02.483 BOLT 4HK1 ENG(RJS) 00.683 M10X55 FLANGE	8-94399-863-1	03	1	0805-0805		●
534	02.483 BOLT 4HK1 ENG(RJS) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	0806-		●
626	02.480 HARNESS; FLEX HOSE FRAME STRAIGHT TYPE<7KJ>	8-97253-968-1	01	1	0805-		●
626	02.480 HARNESS; FLEX HOSE FRAME STRAIGHT TYPE<7KJ>	8-97253-969-1	01	1	0805-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
