Isuzu WW
▶
TRUCKS
▶
NPR
▶
50916 - NPR(BUS CHAS)RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-41 - UNDER COVER; INSTRUMENT
▶

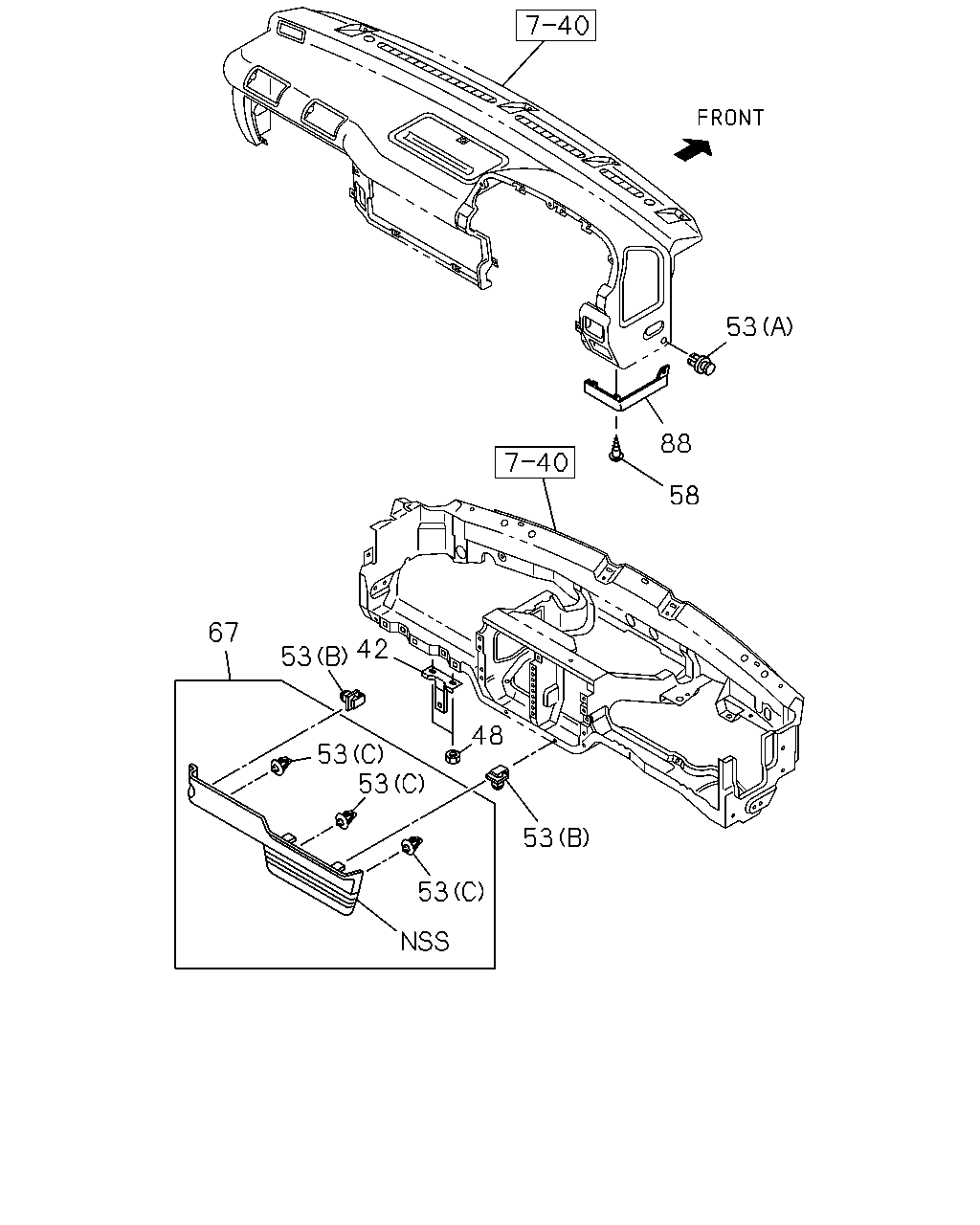

7-41 — UNDER COVER; INSTRUMENT
(#19390) — 14 parça
Tümü
A - NPC5JK
B - NPC5JN
53
88
58
42
53
67
48
53
53
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
42
16.110 BRACKET; UNDER COVER
8-97217-299-1
01
1
0502-0502
●
48
16.081 NUT; UNDER COVER
04.594 M6 FLANGE
0-91150-106-0
02
1
0502-0502
●
53
16.085 CLIP; UNDER COVER
06.521 (A) DARK GRAY
8-97857-542-0
01
1
0201-0501
●
53
16.085 CLIP; UNDER COVER
06.521 (A) DARK GRAY
8-97582-246-0
01
1
0502-0804
●
53
16.085 CLIP; UNDER COVER
06.521 (A) DARK GRAY
8-97582-246-0
01
1
0805-
●
●
53
16.085 CLIP; UNDER COVER
16.100 (C)
8-97853-169-0
04
1
0502-0502
●
53
16.085 CLIP; UNDER COVER
(B)
8-97853-249-5
03
1
0502-0502
●
58
09.264 SCREW; UNDER COVER
16.067 M5X14
8-94279-325-0
02
1
0201-0612
●
58
09.264 SCREW; UNDER COVER
09.655 M5X14 TAPPING W/TORQUES
8-98061-856-0
02
1
0701-0804
●
58
09.264 SCREW; UNDER COVER
09.655 M5X14 TAPPING W/TORQUES
8-98061-856-0
02
1
0805-
●
●
67
16.081 COVER; UNDER,INST PNL
8-97856-661-6
01
1
0502-0502
●
88
16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97859-801-2
01
1
0201-0501
●
88
16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97582-201-2
01
1
0502-0804
●
88
16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97582-201-2
01
1
0805-
●
●
