4-50 — FRONT SUSPENSION (#1939) — 114 parça

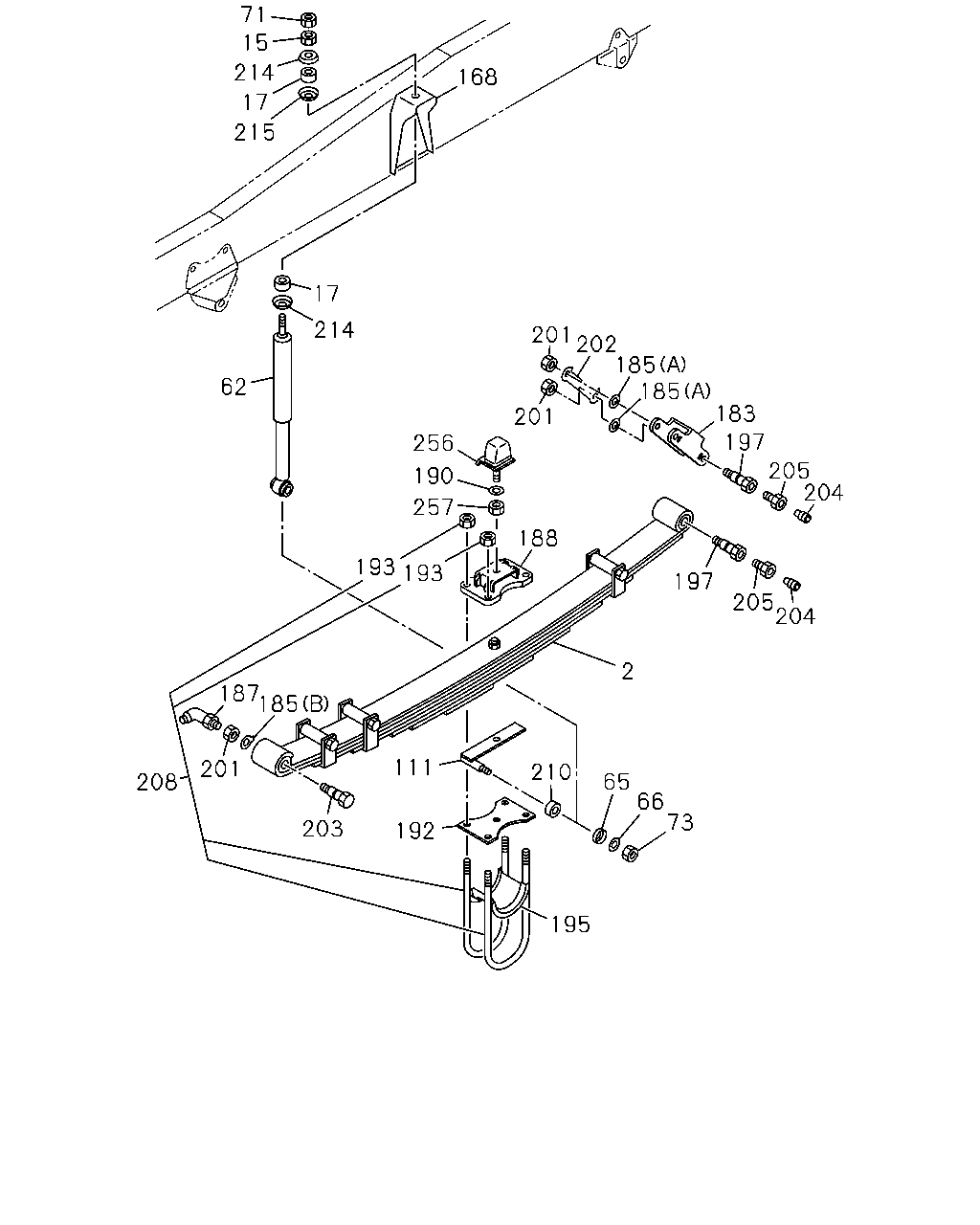

çizim 28177
71 15 214 168 17 215 17 214 201 202 185 185 62 183 201 197 256 205 204 190 257 188 193 193 197 205 204 2 187 185 111 201 210 65 66 73 208 203 192 195
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		1-51110-730-0 02 1 9207- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51110-723-0 02 1 9207- ● ●
15 NUT; S/ABS,UPR
M10 		9-09110-510-0 02 1 9207- ● ●
15 NUT; S/ABS,UPR
M12 M12 		1-09400-006-0 02 1 9207- ● ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 9207- ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9207- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-039-2 02 1 9207- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 9207- ● ●
65 WASHER; S/ABS 1-51631-018-0 02 1 9207- ● ●
65 WASHER; S/ABS 1-51631-019-0 02 1 9207- ● ●
66 WASHER; LK,S/ABS SETTING
ID=12.2 		9-09150-512-0 02 1 9207- ● ●
71 NUT; LK,S/ABS,UPR 9-09111-410-0 02 1 9207- ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9207- ● ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9207- ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 9207- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 9207- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 9207- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-470-1 01 1 9207- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-469-1 01 1 9207- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 9207- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9207- ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9207- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9207- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9207- ● ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9207- ● ●
185 WASHER; LK,PIN
(C) 		9-09150-512-0 12 1 9207-9209 ● ●
185 WASHER; LK,PIN
(C) 		9-09150-612-0 12 1 9210- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9207- ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-007-2 02 1 9207- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-016-1 02 1 9207- ● ●
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9207- ● ●
192 PIECE; DIST 1-51177-218-1 01 1 9207- ● ●
192 PIECE; DIST 1-51177-219-0 01 1 9207- ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9207- ● ●
193 NUT; U BOLT 9-09840-326-0 08 1 9207- ● ●
195 BRACKET; U BOLT,FRT SUSP 1-43219-020-1 01 1 9207- ● ●
197 PIN; FRT SPR,FRT 1-51161-005-3 04 1 9207- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9207- ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9207- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9207- ● ●
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 9207- ● ●
203 PIN; SPR TO SHACKLE 1-51161-004-3 02 1 9207- ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 04 1 9207- ● ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9207- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9207- ● ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 04 1 9207- ● ●
208 U-BOLT SET; FRT SPRING
L=370 		1-87870-325-0 04 1 9207- ● ●
210 WASHER; S/ABS,OUTER 1-51631-017-0 02 1 9207- ● ●
214 WASHER; S/ABS,UPR,INNER 1-51631-005-0 04 1 9207- ● ●
214 WASHER; S/ABS,UPR,INNER 9-51631-051-0 02 1 9207- ● ●
215 WASHER; S/ABS,UPR,OUTER 1-51631-023-0 02 1 9207- ● ●
215 WASHER; S/ABS,UPR,OUTER 9-51631-051-0 02 1 9207- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-001-2 02 1 9207- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-009-1 01 1 9207- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-008-1 01 1 9207- ● ●
257 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 9207- ● ●

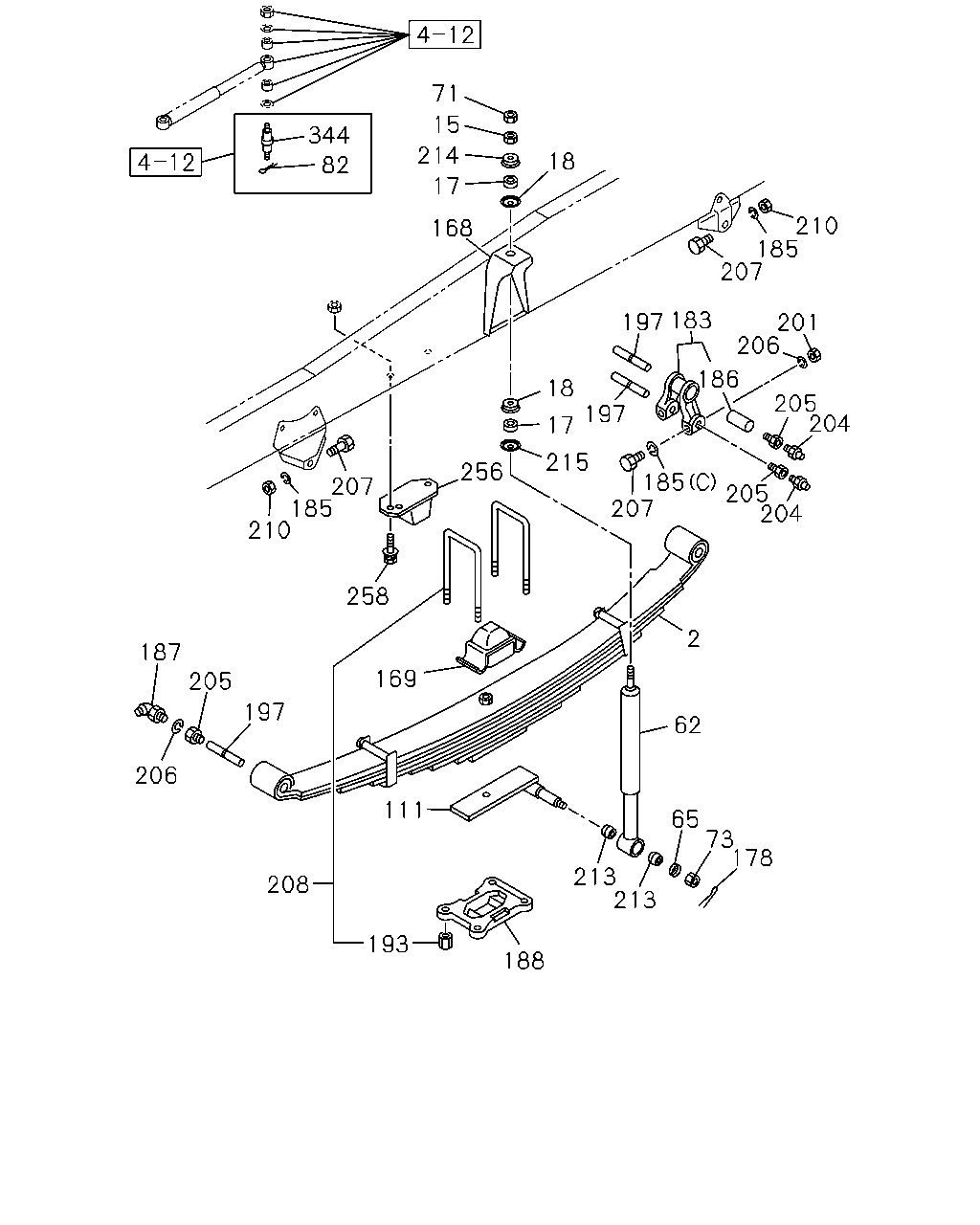

çizim 29319
71 15 344 214 18 82 17 210 185 207 168 201 206 186 18 205 204 197 17 215 256 185 205 207 204 207 185 210 258 2 187 205 169 197 62 206 111 65 73 178 213 213 208 193 188 197 183
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		1-51110-730-0 02 1 9207- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51110-723-0 02 1 9207- ● ●
15 NUT; S/ABS,UPR
M10 		9-09110-510-0 02 1 9207- ● ●
15 NUT; S/ABS,UPR
M12 M12 		1-09400-006-0 02 1 9207- ● ●
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 9207- ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9207- ● ●
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 9207- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-039-2 02 1 9207- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-3 02 1 9207- ● ●
65 WASHER; S/ABS 1-51631-018-0 02 1 9207- ● ●
65 WASHER; S/ABS 1-51631-019-0 02 1 9207- ● ●
71 NUT; LK,S/ABS,UPR 9-09111-410-0 02 1 9207- ● ●
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9207- ● ●
73 NUT; BRKT,SHOCK
M12 		9-99110-512-0 02 1 9207- ● ●
73 NUT; BRKT,SHOCK
M16 SLOTTED 		9-99116-416-0 02 1 9207- ● ●
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 9207- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-671-1 01 1 9207- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-670-1 01 1 9207- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-470-1 01 1 9207- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-469-1 01 1 9207- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-307-1 02 1 9207- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9207- ● ●
169 PAD; U BOLT,FRT SPR 1-51172-061-0 02 1 9207- ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		9-08114-025-0 02 1 9207- ● ●
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9207- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9207- ● ●
185 WASHER; LK,PIN
(A) ID=25.5 		1-09503-011-0 04 1 9207- ● ●
185 WASHER; LK,PIN
(B) ID=23 		1-51169-003-0 02 1 9207- ● ●
185 WASHER; LK,PIN
(C) 		9-09150-512-0 12 1 9207-9209 ● ●
185 WASHER; LK,PIN
(C) 		9-09150-612-0 12 1 9210- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9207- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9207- ● ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-007-2 02 1 9207- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51173-016-1 02 1 9207- ● ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9207- ● ●
193 NUT; U BOLT 9-09840-326-0 08 1 9207- ● ●
197 PIN; FRT SPR,FRT 1-51161-005-3 04 1 9207- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9207- ● ●
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9207- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9207- ● ●
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 04 1 9207- ● ● ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9207- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9207- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9207- ● ●
207 BOLT; SPR TO SHACKLE
M12X75 		0-10806-275-0 12 1 9207- ● ●
208 U-BOLT SET; FRT SPRING
L=273 		1-87870-295-0 04 1 9207- ● ●
208 U-BOLT SET; FRT SPRING
L=370 		1-87870-325-0 04 1 9207- ● ●
210 WASHER; S/ABS,OUTER 1-51631-017-0 02 1 9207- ● ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9207- ● ●
214 WASHER; S/ABS,UPR,INNER 1-51631-005-0 04 1 9207- ● ●
214 WASHER; S/ABS,UPR,INNER 9-51631-051-0 02 1 9207- ● ●
215 WASHER; S/ABS,UPR,OUTER 1-51631-023-0 02 1 9207- ● ●
215 WASHER; S/ABS,UPR,OUTER 9-51631-051-0 02 1 9207- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-001-2 02 1 9207- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-009-1 01 1 9207- ● ●
256 RUBBER; CUSHION,FRT SPR 1-51174-008-1 01 1 9207- ● ●
258 BOLT; CUSHION,WIND UP
M8X16 FLANGE 		0-28080-816-0 04 1 9207- ● ●
344 PIN; FRT S/ABS 9-43219-034-0 01 1 9207- ● ●
