Isuzu WW
▶
TRUCKS
▶
NPR
▶
50916 - NPR(BUS CHAS)RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

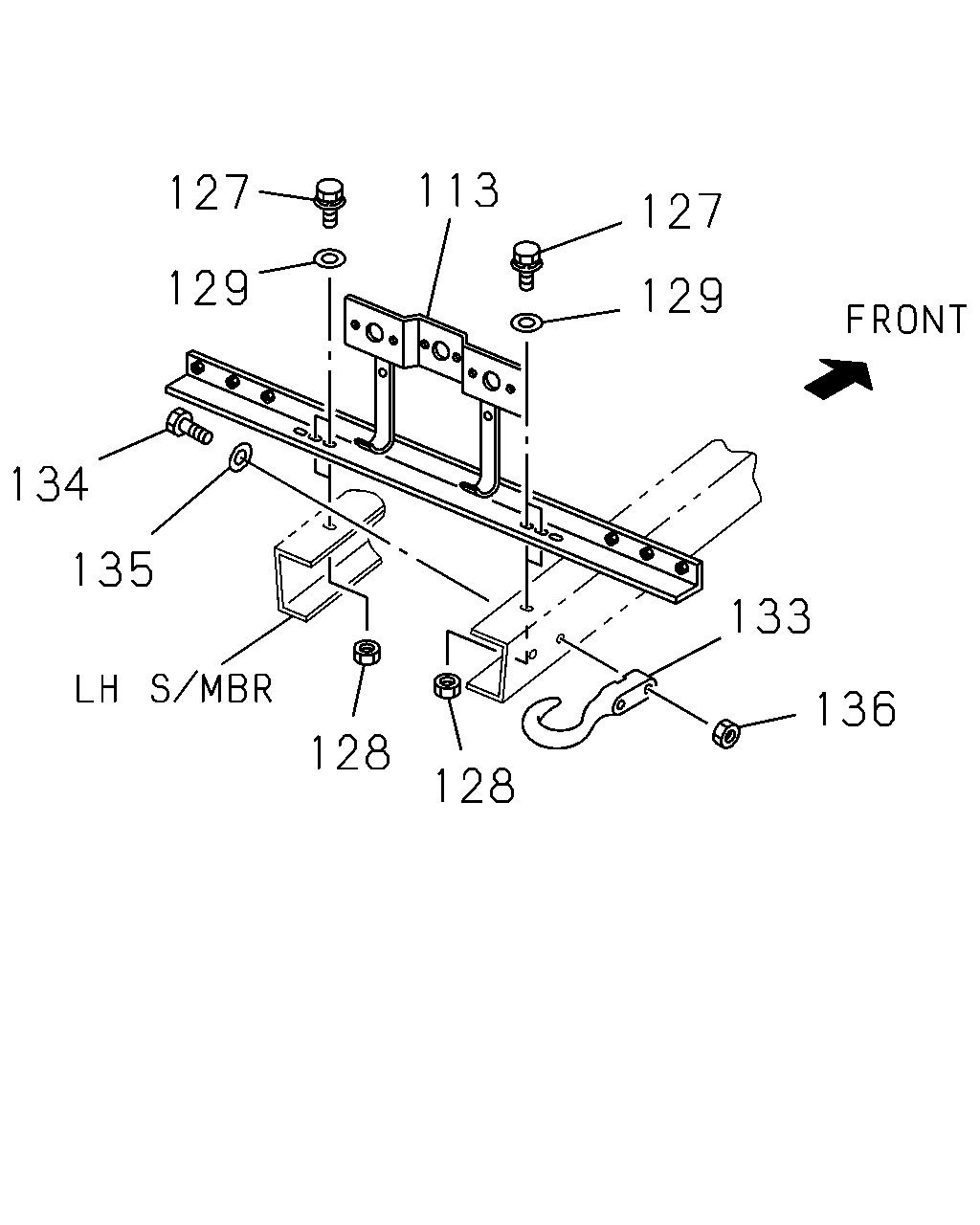

6-90 — REAR BUMPER
(#19385) — 22 parça
Tümü
A - NPC5JK
B - NPC5JN
113
127
127
129
129
134
135
133
136
128
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
113
07.800 BRACKET; LICENSE PLATE
FRAME STRAIGHT TYPE<7KJ> 02.662
8-97122-800-2
01
1
0201-0804
●
113
07.800 BRACKET; LICENSE PLATE
FRAME STRAIGHT TYPE<7KJ> 02.662
8-97122-800-2
01
1
0805-
●
●
127
02.662 BOLT; CROSS PLATE
03.483 M8X40 W/LK&PL WASHER
0-50140-840-0
02
1
0201-0403
●
127
02.662 BOLT; CROSS PLATE
03.704 M8X40 FLANGE
0-28680-840-0
02
1
0404-0408
●
127
02.662 BOLT; CROSS PLATE
03.704 M8X40 FLANGE
0-28680-840-0
02
1
0409-0512
●
127
02.662 BOLT; CROSS PLATE
00.685 M8X40 FLANGE
0-28650-840-0
02
1
0601-0804
●
127
02.662 BOLT; CROSS PLATE
00.685 M8X40 FLANGE
0-28650-840-0
02
1
0805-
●
●
128
02.662 NUT; CROSS PLATE
02.559 M8
9-09110-408-0
02
1
0201-0408
●
128
02.662 NUT; CROSS PLATE
02.559 M8
9-09110-408-0
02
1
0409-0512
●
128
02.662 NUT; CROSS PLATE
02.334 M8
0-91110-508-0
02
1
0601-0709
●
128
02.662 NUT; CROSS PLATE
01.062 M8 FLANGE
0-91180-108-0
02
1
0710-0804
●
128
02.662 NUT; CROSS PLATE
01.062 M8 FLANGE
0-91180-108-0
02
1
0805-
●
●
129
03.162 WASHER; PL,CROSS PLATE
02.334 ID=8.4 OD=26
9-09164-808-0
02
1
0201-0408
●
129
03.162 WASHER; PL,CROSS PLATE
02.334 ID=8.4 OD=26
9-09164-808-0
02
1
0409-0605
●
129
03.162 WASHER; PL,CROSS PLATE
03.706 ID=8.4 OD=26
0-91614-808-0
02
1
0606-0709
●
133
07.112 HOOK
FRAME STRAIGHT TYPE<7KJ>
8-97122-535-0
01
1
0201-0201
●
133
07.112 HOOK
FRAME STRAIGHT TYPE<7KJ>
8-97122-535-0
01
1
0805-
●
134
07.068 BOLT; HOOK
07.039 M14X50
0-10806-450-0
02
1
0201-0201
●
134
07.068 BOLT; HOOK
07.039 M14X50
0-10856-450-0
02
1
0805-
●
135
07.068 WASHER; LK,HOOK
05.422 ID=14.2
9-09150-814-0
02
1
0201-0201
●
136
07.068 NUT; HOOK
07.529 M14
9-99110-514-0
02
1
0201-0201
●
136
07.068 NUT; HOOK
00.429 M14 FLANGE
0-91180-214-0
02
1
0805-
●
