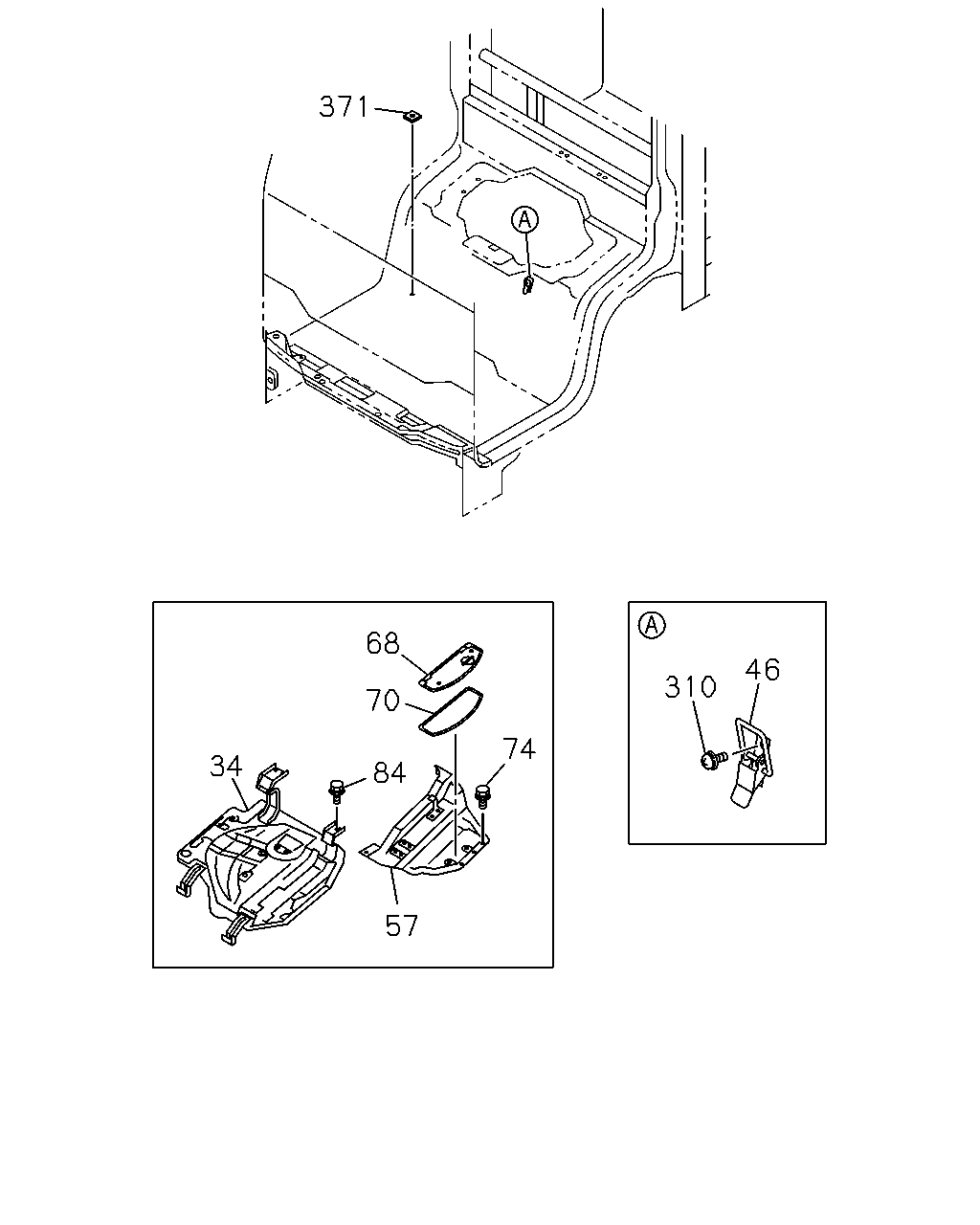

6-76 — FLOOR EQUIPMENT AND SEALING (#19383) — 27 parça

371 68 46 310 70 74 34 84 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97898-132-1	01	1	0201-0804	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97898-132-1	01	1	0805-	●	●
46	16.549 HOOK ASM; ENG COVER	8-97853-632-2	02	1	0201-0804	●
46	16.549 HOOK ASM; ENG COVER	8-97853-632-2	02	1	0805-	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97866-685-2	01	1	0201-0804	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97866-685-2	01	1	0805-	●	●
68	16.549 COVER ASM; SUB,ENG COVER	8-97853-712-3	01	1	0201-0312	●
68	16.549 COVER ASM; SUB,ENG COVER	8-97583-489-0	01	1	0401-0608	●
68	16.549 COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	0609-0804	●
68	16.549 COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	0805-	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR	8-97853-050-1	01	1	0201-0804	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR	8-97853-050-1	01	1	0805-	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.664 M8X20 FLANGE	0-28680-820-0	05	1	0201-0512	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	05	1	0601-0804	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	05	1	0805-	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0512	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0804	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-	●	●
84	16.549 BOLT; ENG COVER HINGE 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0201-0512	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0601-0804	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0805-	●	●
310	16.549 SCREW; ENG COVER HOOK 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0201-0612	●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	04	1	0701-0804	●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	04	1	0805-0810	●	●
310	16.549 SCREW; ENG COVER HOOK 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0811-	●	●
371	16.549 GROMMET; LOCATION HOLE 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0305-0804	●
371	16.549 GROMMET; LOCATION HOLE 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0805-	●	●
