◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50916 - NPR(BUS CHAS)RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#19382) — 74 parça

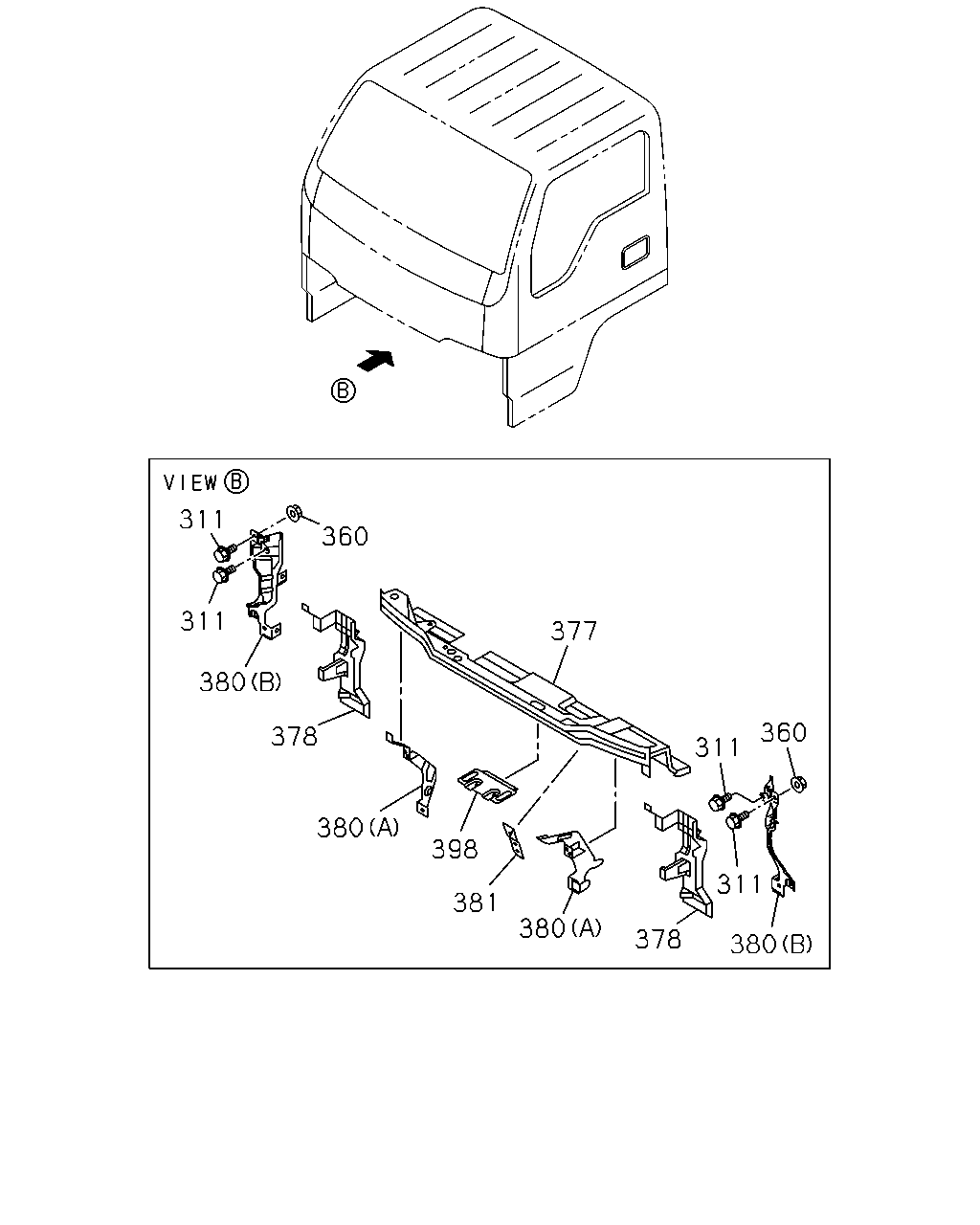

çizim 51855
311 360 311 377 380 360 378 311 380 398 311 381 380 378 380
BalonParca AdiParca NoAdetTipApplied Date A B
311 16.545 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0502-0804 ●
311 16.545 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0805-0805 ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0805- ● ●
360 16.545 NUT; BRKT
16.570 M6 POP NUT 		8-94279-537-0 02 1 0502-0804 ●
360 16.545 NUT; BRKT
16.570 M6 POP NUT 		8-94279-537-0 02 1 0805-0805 ● ●
360 16.545 NUT; BRKT
09.786 M6 POP NUT 		8-98013-752-0 02 1 0806- ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 0201-0303 ●
377 16.545 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0304-0804 ●
377 16.545 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0805- ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 0201-0305 ●
378 16.545 GASSET; LWR 8-97581-828-2 01 1 0306-0804 ●
378 16.545 GASSET; LWR 8-97581-828-2 01 1 0805- ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 0201-0305 ●
378 16.545 GASSET; LWR 8-97581-827-2 01 1 0306-0804 ●
378 16.545 GASSET; LWR 8-97581-827-2 01 1 0805- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-705-0 01 1 0201-0804 ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-705-0 01 1 0805- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-090-2 01 1 0201-0804 ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-090-2 01 1 0805- ● ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-088-0 01 1 0502-0804 ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-088-0 01 1 0805- ● ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-087-0 01 1 0502-0804 ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-087-0 01 1 0805- ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 0201-0804 ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-221-5 01 1 0805- ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0201-0804 ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0805- ● ●

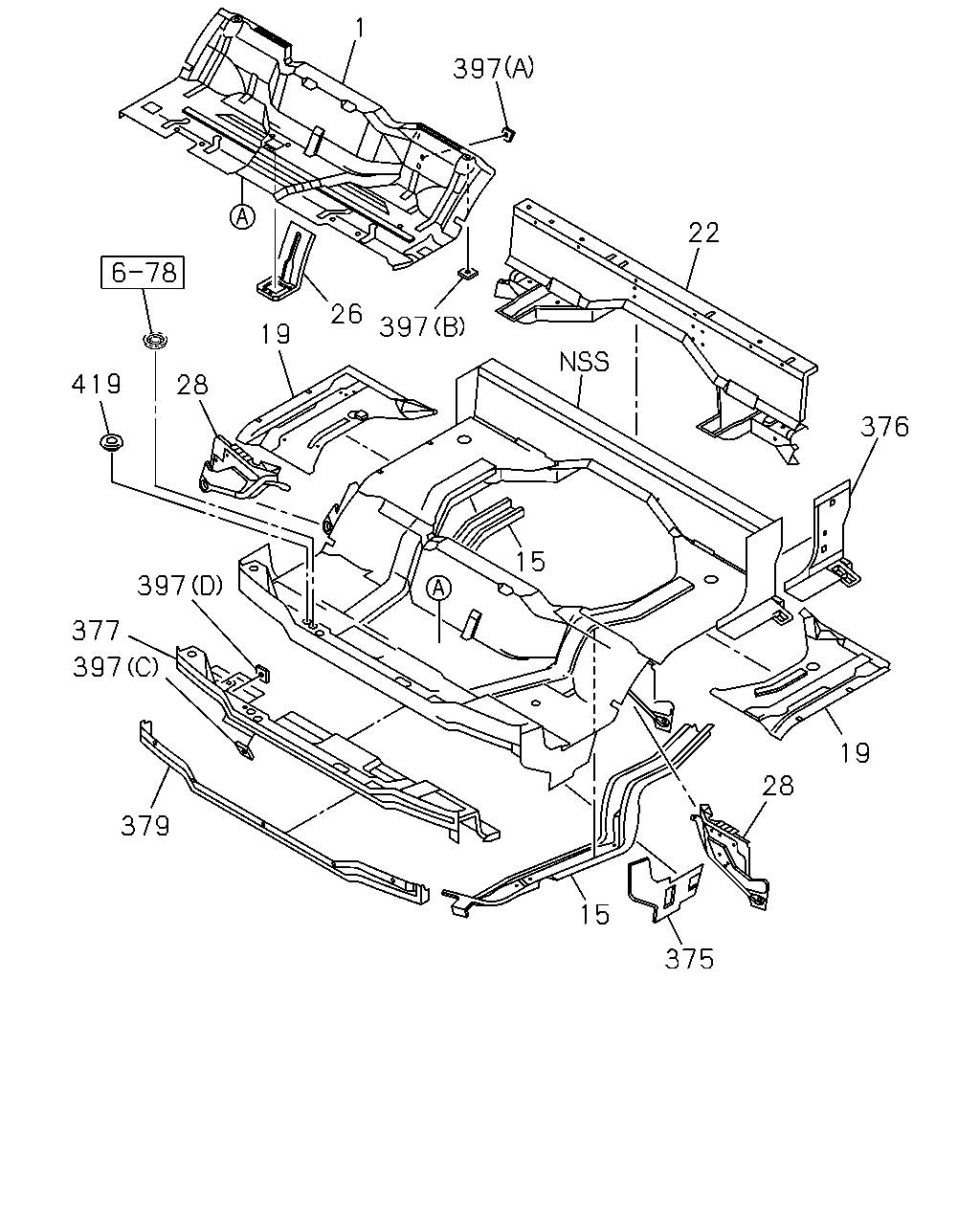

çizim 53405
1 397 22 26 397 19 419 28 376 15 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR 8-97850-117-8 01 1 0201-0303 ●
1 16.545 PANEL; FLOOR 8-97581-801-0 01 1 0304-0804 ●
1 16.545 PANEL; FLOOR 8-97581-801-0 01 1 0805- ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0201-0804 ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0805- ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0201-0505 ●
15 16.545 FRAME; UNDER 8-98013-405-0 01 1 0506-0804 ●
15 16.545 FRAME; UNDER 8-98013-405-0 01 1 0805- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-5 01 1 0201-0804 ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-008-5 01 1 0805- ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-7 01 1 0201-0804 ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-118-7 01 1 0805- ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-531-9 01 1 0201-0711 ●
22 16.545 FRAME; FLOOR REAR 8-98088-671-4 01 1 0712-0804 ●
22 16.545 FRAME; FLOOR REAR 8-98088-671-4 01 1 0805- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 0201-0804 ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-140-3 01 1 0805- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0201-0804 ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0805-1106 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-98170-771-0 01 1 1107- ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0201-0804 ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0805-1106 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-98170-770-0 01 1 1107- ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-4 01 1 0201-0804 ●
375 16.545 CLOSING; PILLAR 8-97850-087-4 01 1 0805- ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-5 01 1 0201-0804 ●
375 16.545 CLOSING; PILLAR 8-97850-086-5 01 1 0805- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0201-0804 ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0805- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0201-0804 ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0805- ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-807-2 01 1 0201-0303 ●
377 16.545 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0304-0804 ●
377 16.545 RAIL ASM; MTG,FRT 8-97997-638-0 01 1 0805- ● ●
379 16.545 PANEL 8-97850-129-2 01 1 0201-0307 ●
379 16.545 PANEL 8-97581-640-0 01 1 0308-0804 ●
379 16.545 PANEL 8-97581-640-0 01 1 0805- ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0201-0804 ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0805- ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0201-0804 ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0805- ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0201-0804 ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0805- ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 0201-0804 ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 06 1 0805- ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 0201-0804 ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 0805- ● ●
