◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50916 - NPR(BUS CHAS)RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#19377) — 52 parça

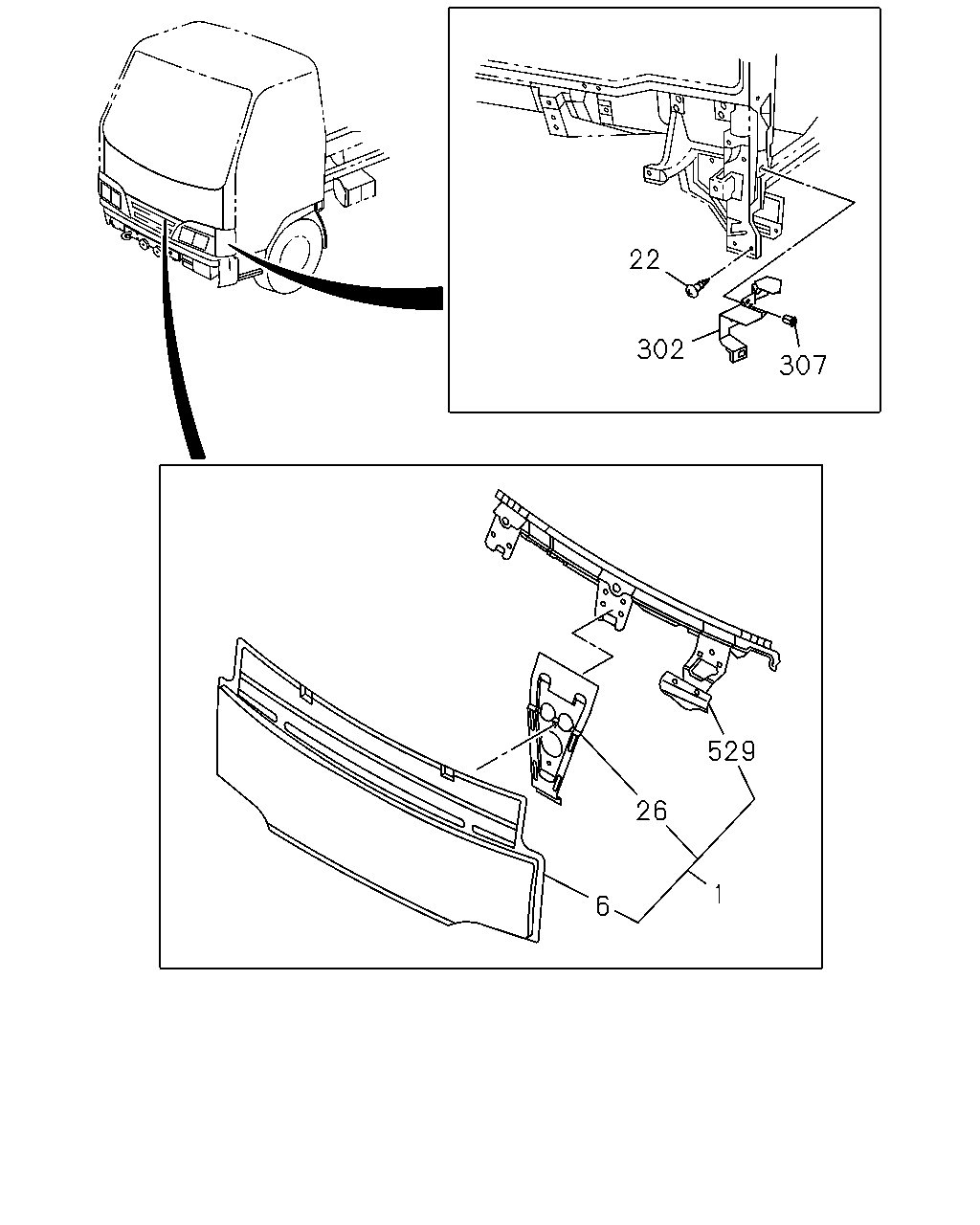

çizim 51962
22 302 307 529 26 1 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT 8-97859-458-0 01 1 0201-0501 ●
1 16.550 PANEL ASM; FRT 8-97581-817-0 01 1 0502-0804 ●
1 16.550 PANEL ASM; FRT 8-97581-817-0 01 1 0805- ● ●
6 16.570 PANEL; FRONT 8-97859-456-3 01 1 0201-0501 ●
6 16.570 PANEL; FRONT 8-97581-638-2 01 1 0502-0804 ●
6 16.570 PANEL; FRONT 8-97581-638-2 01 1 0805- ● ●
22 16.588 SCREW; FRT PANEL SIDE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 0201-0501 ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-275-0 01 1 0201-0804 ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-275-0 01 1 0805- ● ●
302 16.588 BRACKET; FRT SIDE,HD LAMP 8-97995-082-0 01 1 0201-0501 ●
302 16.588 BRACKET; FRT SIDE,HD LAMP 8-97995-081-0 01 1 0201-0501 ●
307 16.125 GROMMET; FRT PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0201-0501 ●
307 16.125 GROMMET; FRT PANEL 8-97583-397-0 04 1 0502-0804 ●
307 16.125 GROMMET; FRT PANEL 8-97583-397-0 04 1 0805- ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-101-3 01 1 0201-0804 ●
529 16.578 REINFORCEMENT; PANEL 8-97851-101-3 01 1 0805- ● ●

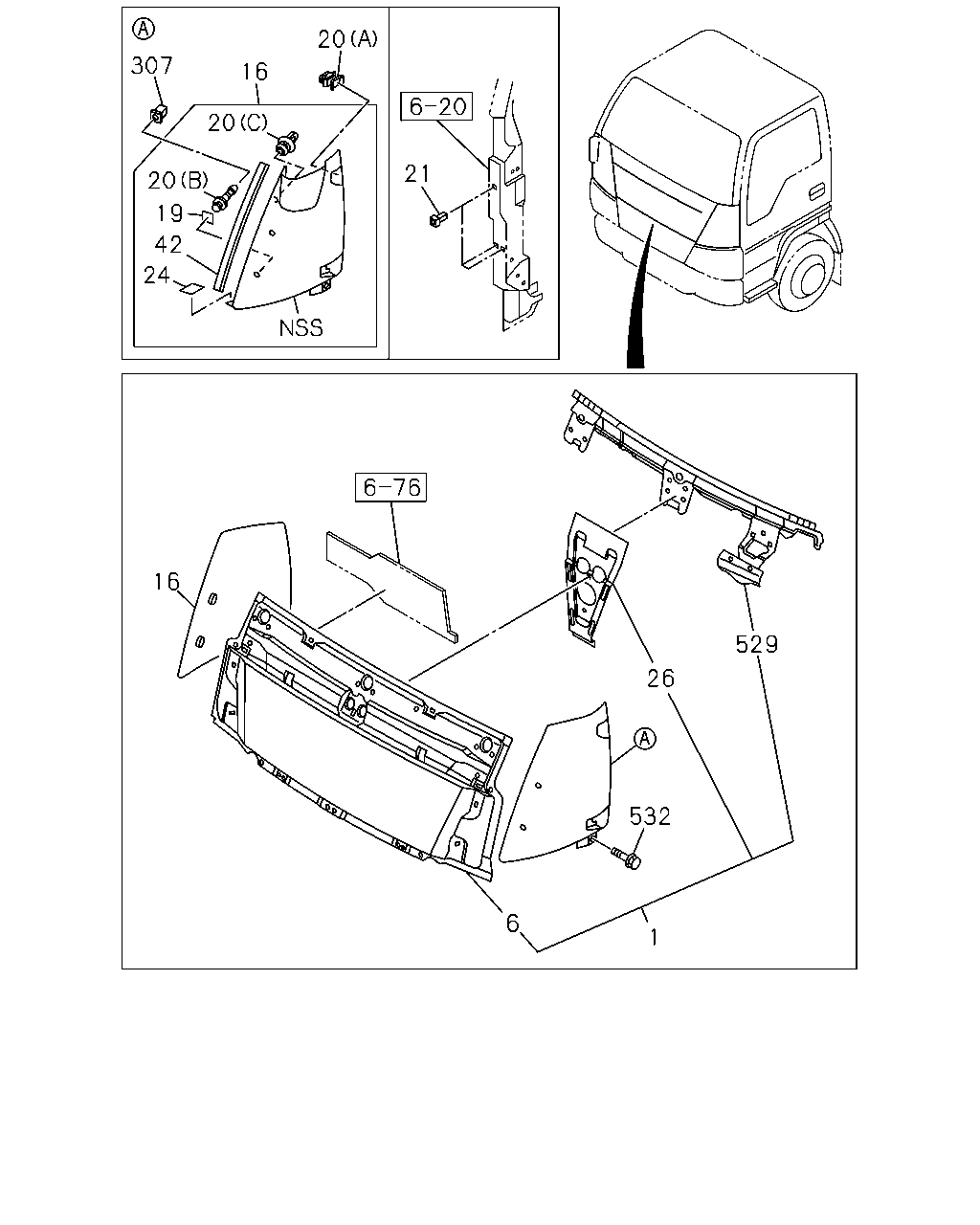

çizim 53170
20 307 16 20 21 20 19 42 24 16 529 26 532 6 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT 8-97859-458-0 01 1 0201-0501 ●
1 16.550 PANEL ASM; FRT 8-97581-817-0 01 1 0502-0804 ●
1 16.550 PANEL ASM; FRT 8-97581-817-0 01 1 0805- ● ●
6 16.570 PANEL; FRONT 8-97859-456-3 01 1 0201-0501 ●
6 16.570 PANEL; FRONT 8-97581-638-2 01 1 0502-0804 ●
6 16.570 PANEL; FRONT 8-97581-638-2 01 1 0805- ● ●
16 16.588 PANEL; FRONT,SIDE
WHITE 		8-97585-430-6 01 1 0502-0804 ●
16 16.588 PANEL; FRONT,SIDE
WHITE 		8-97585-430-6 01 1 0805- ● ●
16 16.588 PANEL; FRONT,SIDE
WHITE 		8-97585-428-6 01 1 0502-0804 ●
16 16.588 PANEL; FRONT,SIDE
WHITE 		8-97585-428-6 01 1 0805- ● ●
19 16.588 SEAL; FRT SIDE PANEL
08.131 		8-97581-676-0 04 1 0505-0804 ●
19 16.588 SEAL; FRT SIDE PANEL
08.131 		8-97581-676-0 04 1 0805-1008 ● ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0502-0804 ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0805- ● ●
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-97581-632-1 04 1 0502-0804 ●
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-97581-632-1 04 1 0805- ● ●
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0502-0504 ●
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0505-0804 ●
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0805- ● ●
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0502-0804 ●
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0805- ● ●
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0502-0804 ●
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0805- ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-275-0 01 1 0201-0804 ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-275-0 01 1 0805- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-043-0 01 1 0505-0804 ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-043-0 01 1 0805- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-044-0 01 1 0505-0804 ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-044-0 01 1 0805- ● ●
307 16.125 GROMMET; FRT PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0201-0501 ●
307 16.125 GROMMET; FRT PANEL 8-97583-397-0 04 1 0502-0804 ●
307 16.125 GROMMET; FRT PANEL 8-97583-397-0 04 1 0805- ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-101-3 01 1 0201-0804 ●
529 16.578 REINFORCEMENT; PANEL 8-97851-101-3 01 1 0805- ● ●
532 08.143 BOLT; FRT PANEL
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 0502-0804 ●
532 08.143 BOLT; FRT PANEL
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 0805- ● ●
