Isuzu WW
▶
TRUCKS
▶
NPR
▶
50916 - NPR(BUS CHAS)RHD
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

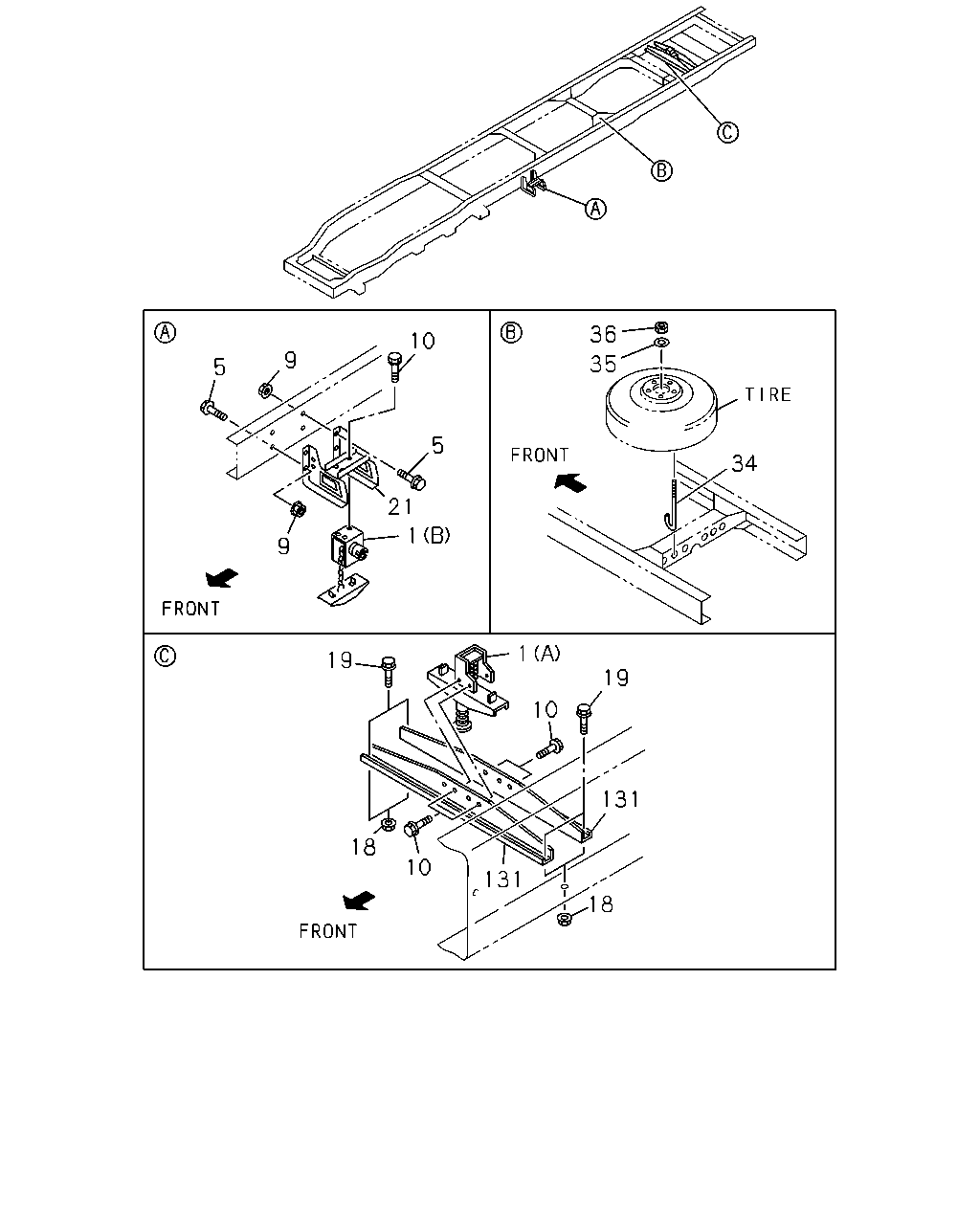

5-30 — SPARE TIRE CARRIER AND COVER
(#19375) — 21 parça
Tümü
A - NPC5JK
B - NPC5JN
36
10
9
35
5
5
34
21
1
9
1
19
19
10
131
18
10
131
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.629 HANGER ASM; TIRE FT
FRAME STRAIGHT TYPE<7KJ> (A)
1-53630-188-3
01
1
0201-
●
1
07.629 HANGER ASM; TIRE FT
FRAME STRAIGHT TYPE<7KJ> (B)
8-97010-955-1
01
1
0805-
●
5
07.632 BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE
0-28651-030-0
04
1
0805-
●
9
07.633 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE
0-91180-110-0
04
1
0805-
●
10
07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE
0-28681-025-0
04
1
0201-0512
●
10
07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE
0-28651-025-0
04
1
0601-
●
10
07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE
0-28650-820-0
03
1
0805-
●
18
07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE
0-91150-110-0
04
1
0201-0602
●
18
07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE
0-91180-110-0
04
1
0603-
●
19
07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE
0-28681-030-0
04
1
0201-0512
●
19
07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE
0-28651-030-0
04
1
0601-
●
21
07.629 BRACKET; SPARE TIRE HANGER
FRAME STRAIGHT TYPE<7KJ>
8-97188-263-1
01
1
0805-
●
34
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305
8-94441-189-0
02
1
0201-0804
●
34
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305
8-94441-189-0
02
1
0805-1209
●
●
34
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X330
8-98226-501-0
02
1
1210-
●
●
35
07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54
8-94466-483-0
02
1
0201-0804
●
35
07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54
8-94466-483-0
02
1
0805-
●
●
36
07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.816 M12
9-99110-412-0
02
1
0201-0512
●
36
07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.002 M12
0-91110-512-0
02
1
0601-0804
●
36
07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.002 M12
0-91110-512-0
02
1
0805-
●
●
131
07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
8-97167-802-0
02
1
0201-
●
