5-20 — BATTERY CARRIER (#19374) — 107 parça

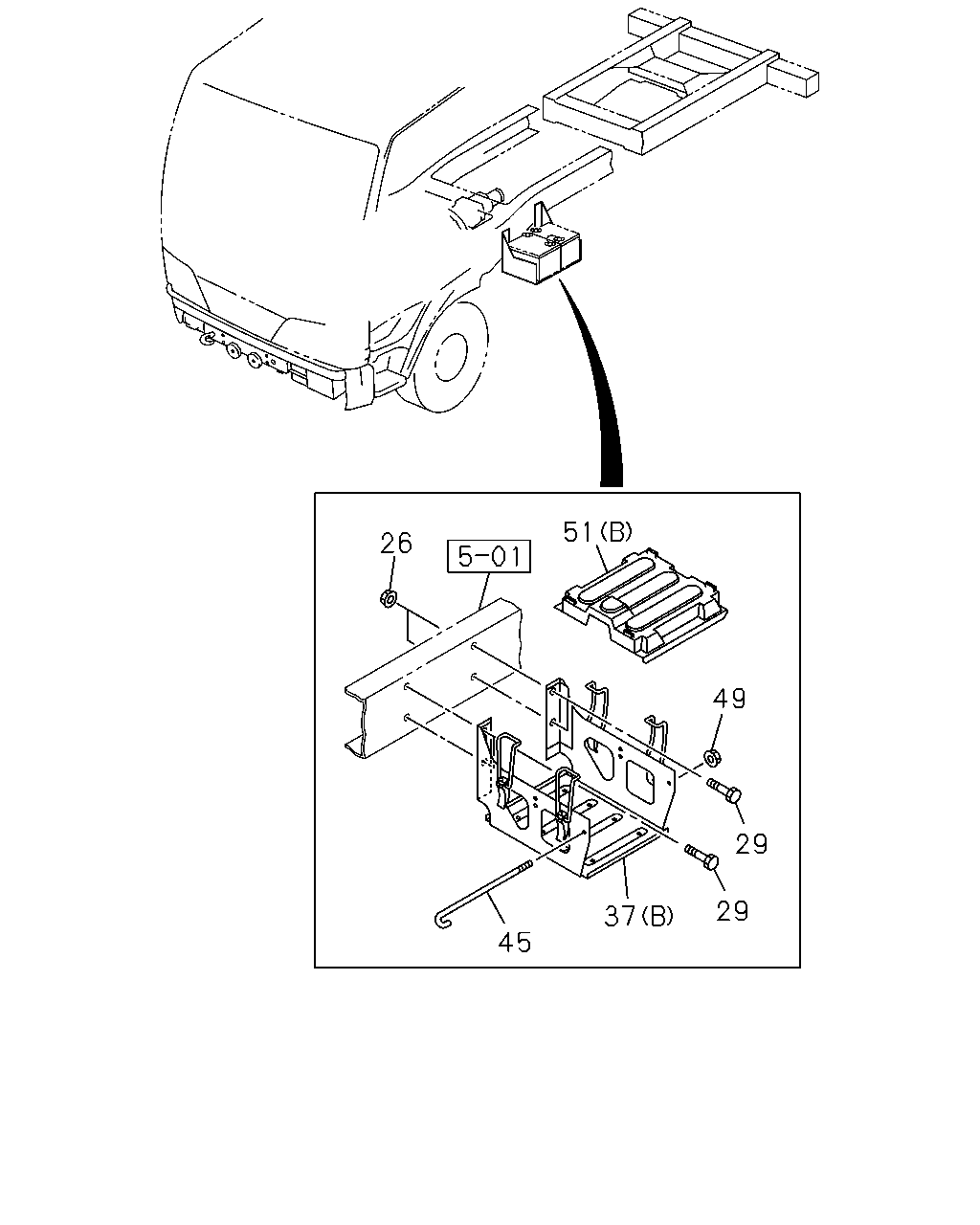

51 26 49 29 29 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	02.334 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0201-0501	●
26	02.334 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●
26	02.334 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0804	●
26	02.334 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0805-	●
26	02.334 NUT; BRKT 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0805-		●
26	02.334 NUT; BRKT 4HK1 ENG(RJS) 04.085 M10 FLANGE	0-91180-210-0	04	1	0805-		●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0201-0501	●
29	02.334 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502	●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0503-0512	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-0804	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0805-	●
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0805-		●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0805-		●
37	02.333 BRACKET; BATTERY (A)	5-53613-009-5	01	1	0201-0203	●
37	02.333 BRACKET; BATTERY (A)	8-97327-537-0	01	1	0204-0207	●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0208-0501	●
37	02.333 BRACKET; BATTERY 4HF1 ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502	●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0503-0610	●
37	02.333 BRACKET; BATTERY (A)	8-97384-068-2	01	1	0611-0612	●
37	02.333 BRACKET; BATTERY (A)	8-97384-067-2	01	1	0701-0804	●
37	02.333 BRACKET; BATTERY (A)	8-97384-067-2	01	1	0805-	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97384-067-2	01	1	0805-		●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-98091-497-0	01	1	0805-		●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0201-0501	●
45	02.334 ROD; TENSION,BATTERY 4HF1 ENG(RLS) L=120	9-53616-615-0	02	1	0502-0502	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0503-0804	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0805-	●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0805-		●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD> L=430	8-97134-740-0	02	1	0805-		●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-		●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0201-0501	●
51	02.335 COVER; BATTERY 4HF1 ENG(RLS) (A)	8-97120-747-0	01	1	0502-0502	●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0503-0804	●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0805-	●
51	02.335 COVER; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97120-747-0	01	1	0805-		●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD> (B)	9-53612-072-1	01	1	0805-		●

26 52 52 51 42 43 42 40 43 45 45 37 39 36 29 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	02.334 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0201-0501	●
26	02.334 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●
26	02.334 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0804	●
26	02.334 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0805-	●
26	02.334 NUT; BRKT 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0805-		●
26	02.334 NUT; BRKT 4HK1 ENG(RJS) 04.085 M10 FLANGE	0-91180-210-0	04	1	0805-		●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0201-0501	●
29	02.334 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502	●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0503-0512	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-0804	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0805-	●
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0805-		●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0805-		●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0201-0501	●
35	02.334 WASHER; PL,BATTERY CARRIER 4HF1 ENG(RLS) 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0502	●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0503-0605	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-0804	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0805-	●
35	02.334 WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41R<6XD> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0805-		●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0201-0804	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0805-	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>	8-94145-894-0	01	1	0805-		●
37	02.333 BRACKET; BATTERY (A)	5-53613-009-5	01	1	0201-0203	●
37	02.333 BRACKET; BATTERY (A)	8-97327-537-0	01	1	0204-0207	●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0208-0501	●
37	02.333 BRACKET; BATTERY 4HF1 ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502	●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0503-0610	●
37	02.333 BRACKET; BATTERY (A)	8-97384-068-2	01	1	0611-0612	●
37	02.333 BRACKET; BATTERY (A)	8-97384-067-2	01	1	0701-0804	●
37	02.333 BRACKET; BATTERY (A)	8-97384-067-2	01	1	0805-	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97384-067-2	01	1	0805-		●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-98091-497-0	01	1	0805-		●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 04.594 M6 FLANGE	0-91150-106-0	01	1	0201-0602	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0804	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 01.062 M6 FLANGE	0-91180-106-0	01	1	0805-	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0805-		●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0201-0501	●
40	02.335 CLAMP; BATTERY 4HF1 ENG(RLS)	5-53615-004-1	01	1	0502-0502	●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0503-0804	●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0805-	●
40	02.335 CLAMP; BATTERY EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0805-		●
42	02.334 NUT; CLAMP 02.559 M8	9-09110-408-0	02	1	0201-0501	●
42	02.334 NUT; CLAMP 4HF1 ENG(RLS) 02.559 M8	9-09110-408-0	02	1	0502-0502	●
42	02.334 NUT; CLAMP 02.559 M8	9-09110-408-0	02	1	0503-0512	●
42	02.334 NUT; CLAMP M8	0-91110-508-0	02	1	0601-0804	●
42	02.334 NUT; CLAMP M8	0-91110-508-0	02	1	0805-	●
42	02.334 NUT; CLAMP EXC. BATTERY 115E41R<6XD> M8	0-91110-508-0	02	1	0805-		●
43	02.334 WASHER; PL,CLAMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0201-0501	●
43	02.334 WASHER; PL,CLAMP 4HF1 ENG(RLS) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0502	●
43	02.334 WASHER; PL,CLAMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0503-0605	●
43	02.334 WASHER; PL,CLAMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-0804	●
43	02.334 WASHER; PL,CLAMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0805-	●
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 115E41R<6XD> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0805-		●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0201-0501	●
45	02.334 ROD; TENSION,BATTERY 4HF1 ENG(RLS) L=120	9-53616-615-0	02	1	0502-0502	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0503-0804	●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0805-	●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0805-		●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD> L=430	8-97134-740-0	02	1	0805-		●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0201-0501	●
51	02.335 COVER; BATTERY 4HF1 ENG(RLS) (A)	8-97120-747-0	01	1	0502-0502	●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0503-0804	●
51	02.335 COVER; BATTERY (A)	8-97120-747-0	01	1	0805-	●
51	02.335 COVER; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97120-747-0	01	1	0805-		●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD> (B)	9-53612-072-1	01	1	0805-		●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0201-0501	●
52	02.335 NUT; WING,COVER FIX 4HF1 ENG(RLS) M8 WING NUT	9-09118-408-0	02	1	0502-0502	●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0503-0512	●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	0601-0804	●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	0805-	●
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 115E41R<6XD> M8 WING NUT	0-91118-408-0	02	1	0805-		●
