◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50916 - NPR(BUS CHAS)RHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#19371) — 115 parça
çizim 12241
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.003 FRAME ASM 8-97322-779-0 01 1 0201-0301 ●
1 07.003 FRAME ASM 8-97350-761-0 01 1 0302-0501 ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> 		8-98003-461-0 01 1 0502- ●
1 07.003 FRAME ASM
4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> 		8-98073-757-0 01 1 0704- ●
1 07.003 FRAME ASM
4HK1 ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> 		8-98016-931-0 01 1 0805- ●
1 07.003 FRAME ASM
4HK1 ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> 		8-98016-933-0 01 1 0805- ●

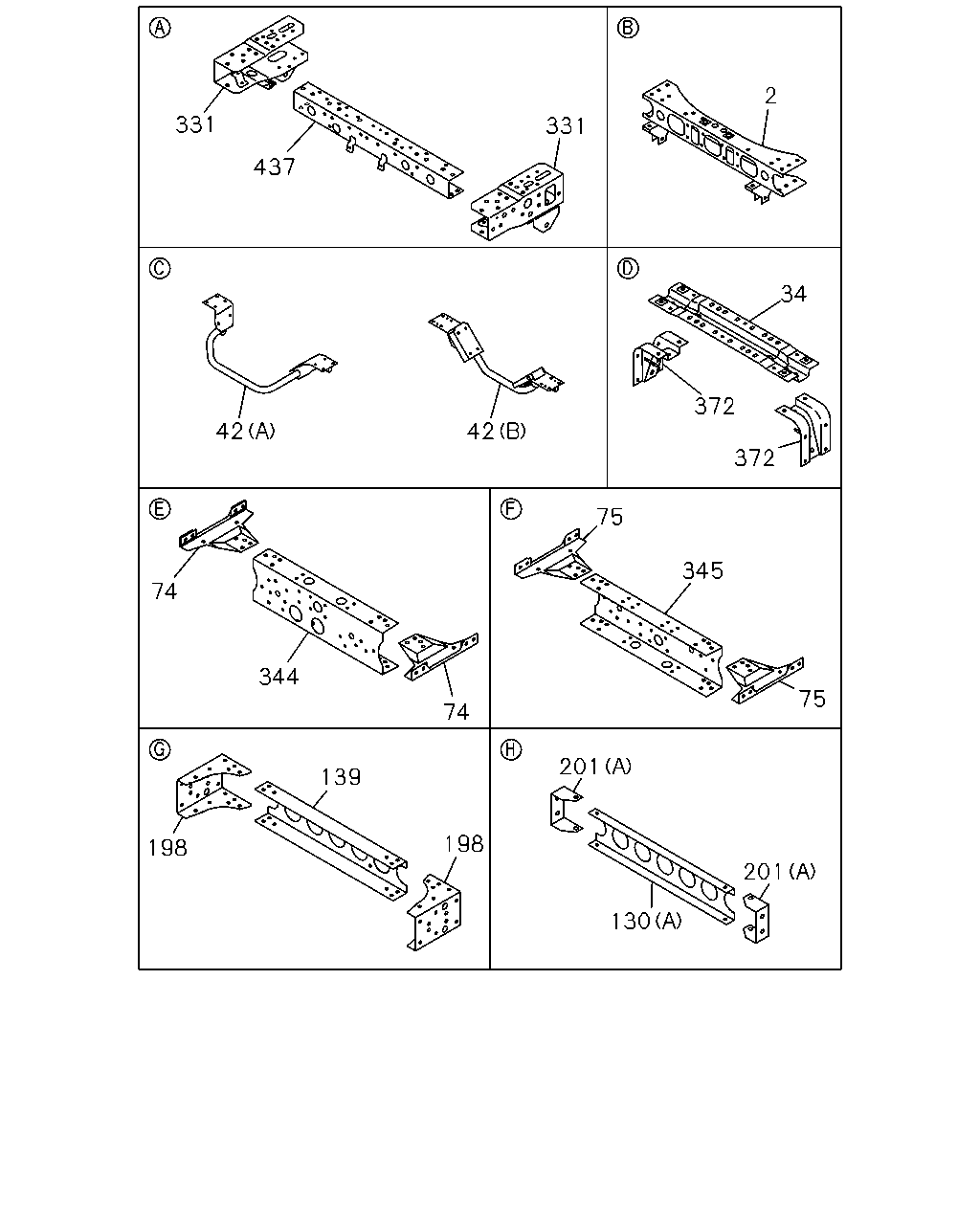

çizim 49976
2 331 331 437 34 372 42 42 372 75 345 74 344 75 74 201 139 198 198 201 130
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.010 MEMBER; CROSS,1ST 8-97080-862-4 01 1 0201-0804 ●
2 07.010 MEMBER; CROSS,1ST 8-97080-862-4 01 1 0805- ● ●
34 07.012 MEMBER; CROSS,3RD
07.010 		8-97096-875-2 01 1 0201-0804 ●
34 07.012 MEMBER; CROSS,3RD
07.010 		8-97096-875-2 01 1 0805- ● ●
42 07.011 MEMBER; CROSS,ENG MTG
(A) 		8-97165-925-2 01 1 0201- ●
42 07.011 MEMBER; CROSS,ENG MTG
(B) 		8-97080-868-0 01 1 0805- ●
74 07.039 GUSSET; 4TH C/MBR
UPPER 		8-97080-878-0 01 1 0201-0804 ●
74 07.039 GUSSET; 4TH C/MBR
UPPER 		8-97080-878-0 01 1 0805- ● ●
74 07.039 GUSSET; 4TH C/MBR
LOWER 		8-97118-876-1 01 1 0201-0804 ●
74 07.039 GUSSET; 4TH C/MBR
LOWER 		8-97118-876-1 01 1 0805- ● ●
74 07.039 GUSSET; 4TH C/MBR
UPPER 		8-97109-777-0 01 1 0201-0804 ●
74 07.039 GUSSET; 4TH C/MBR
UPPER 		8-97109-777-0 01 1 0805- ● ●
74 07.039 GUSSET; 4TH C/MBR
LOWER 		8-97118-875-1 01 1 0201-0804 ●
74 07.039 GUSSET; 4TH C/MBR
LOWER 		8-97118-875-1 01 1 0805- ● ●
75 07.039 GUSSET; 5TH C/MBR
LOWER 		8-97080-878-0 01 1 0201-0804 ●
75 07.039 GUSSET; 5TH C/MBR
LOWER 		8-97080-878-0 01 1 0805- ● ●
75 07.039 GUSSET; 5TH C/MBR
UPPER 		8-97118-876-1 01 1 0201-0804 ●
75 07.039 GUSSET; 5TH C/MBR
UPPER 		8-97118-876-1 01 1 0805- ● ●
75 07.039 GUSSET; 5TH C/MBR
LOWER 		8-97109-777-0 01 1 0201-0804 ●
75 07.039 GUSSET; 5TH C/MBR
LOWER 		8-97109-777-0 01 1 0805- ● ●
75 07.039 GUSSET; 5TH C/MBR
UPPER 		8-97118-875-1 01 1 0201-0804 ●
75 07.039 GUSSET; 5TH C/MBR
UPPER 		8-97118-875-1 01 1 0805- ● ●
130 07.014 MEMBER; CROSS,END
(A) 		8-97080-872-0 01 1 0201- ●
130 07.014 MEMBER; CROSS,END
(B) 		8-97205-394-0 01 1 0805- ●
139 07.012 MEMBER; CROSS,6TH 8-97107-384-0 01 1 0201-0804 ●
139 07.012 MEMBER; CROSS,6TH 8-97107-384-0 01 1 0805- ● ●
198 07.039 GUSSET; 6TH C/MBR 8-97080-882-1 02 1 0201-0804 ●
198 07.039 GUSSET; 6TH C/MBR 8-97080-882-1 02 1 0805- ● ●
201 07.039 GUSSET; C/MBR
(A) 		8-97096-871-0 02 1 0201-0804 ●
201 07.039 GUSSET; C/MBR
(A) 		8-97096-871-0 02 1 0805- ● ●
201 07.039 GUSSET; C/MBR
(B) 		8-97128-805-0 02 1 0805- ●
331 07.039 BRACKET; STRG UNIT 8-97096-865-1 01 1 0201-0804 ●
331 07.039 BRACKET; STRG UNIT 8-97096-865-1 01 1 0805- ● ●
331 07.039 BRACKET; STRG UNIT
07.112 		8-97096-864-0 01 1 0201-0804 ●
331 07.039 BRACKET; STRG UNIT
07.112 		8-97096-864-0 01 1 0805- ● ●
344 07.012 MEMBER; CROSS,4TH 8-97175-993-3 01 1 0201-0804 ●
344 07.012 MEMBER; CROSS,4TH 8-97175-993-3 01 1 0805- ● ●
345 07.012 MEMBER; CROSS,5TH 8-97175-993-3 01 1 0201-0804 ●
345 07.012 MEMBER; CROSS,5TH 8-97175-993-3 01 1 0805- ● ●
372 07.039 BRACKET 8-97139-128-0 02 1 0201-0804 ●
372 07.039 BRACKET 8-97139-128-0 02 1 0805- ● ●
437 07.010 MEMBER; CROSS,BUMPER
07.011 		8-97100-041-1 01 1 0201-0804 ●
437 07.010 MEMBER; CROSS,BUMPER
07.011 		8-97100-041-1 01 1 0805- ● ●

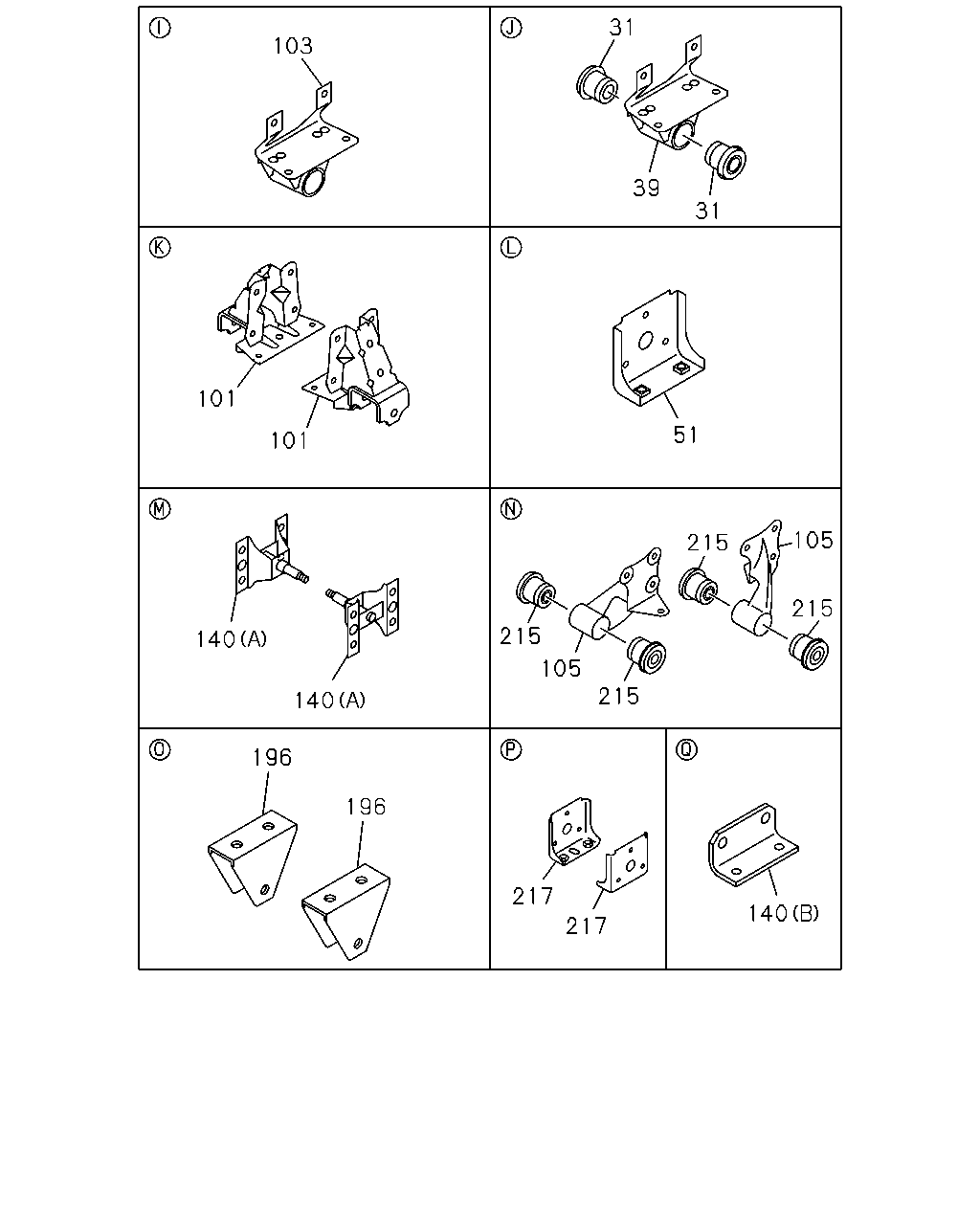

çizim 50750
31 103 39 31 101 51 101 105 215 215 215 140 105 215 140 196 196 217 140 217
BalonParca AdiParca NoAdetTipApplied Date A B
31 07.428 BUSHING; FRT SPR,RR
07.524 		8-97184-699-1 04 1 0201-0804 ●
31 07.428 BUSHING; FRT SPR,RR
07.524 		8-97184-699-1 04 1 0805- ● ●
39 07.112 BRACKET; FRT SPR,RR 8-97079-495-1 02 1 0201-0804 ●
39 07.112 BRACKET; FRT SPR,RR 8-97079-495-1 02 1 0805- ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER 8-97046-284-1 02 1 0201-0201 ●
51 07.011 BRACKET; ENG SUPPORT,OUTER 8-97202-415-1 02 1 0202-0804 ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-97202-415-1 02 1 0805- ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4HK1 ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> 		8-97202-415-1 02 1 0805- ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
4HK1 ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> 		8-97046-284-1 02 1 0805- ●
101 07.112 BRACKET; RR SPR,FRT 8-97042-245-1 02 1 0201-0804 ●
101 07.112 BRACKET; RR SPR,FRT 8-97042-245-1 02 1 0805- ● ●
103 07.420 STOPPER; SUB SPR
07.524 		8-97079-659-1 02 1 0201-0804 ●
103 07.420 STOPPER; SUB SPR
07.524 		8-97079-659-1 02 1 0805- ● ●
105 07.112 BRACKET; RR SPR,RR 8-94459-512-1 01 1 0201-0804 ●
105 07.112 BRACKET; RR SPR,RR 8-94459-512-1 01 1 0805- ● ●
105 07.112 BRACKET; RR SPR,RR 8-94459-511-1 01 1 0201-0804 ●
105 07.112 BRACKET; RR SPR,RR 8-94459-511-1 01 1 0805- ● ●
140 07.112 BRACKET; S/ABS,RR
07.395 (B) 		8-97302-511-0 02 1 0201-0804 ●
140 07.112 BRACKET; S/ABS,RR
07.395 (B) 		8-97302-511-0 02 1 0805- ● ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-97080-884-0 02 1 0201-0804 ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-97080-884-1 02 1 0805- ● ●
196 07.242 BRACKET; STAB TO FRAME 8-97118-620-2 02 1 0201-0804 ●
196 07.242 BRACKET; STAB TO FRAME 8-97118-620-2 02 1 0805- ● ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 0201-0804 ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 0805- ● ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-94258-963-0 02 1 0201-0201 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 0202-0804 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-97202-417-0 02 1 0805- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4HK1 ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> 		8-97202-417-0 02 1 0805- ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING
4HK1 ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> 		8-94258-963-0 02 1 0805- ●
çizim 52934
376 376 376 376 376 376 376 376 376 376 376 176
BalonParca AdiParca NoAdetTipApplied Date A B
176 04.085 BOLT; C/MBR,ENG MTG
03.417 M10X25 FLANGE 		0-28081-025-0 08 1 0201-0512 ●
176 04.085 BOLT; C/MBR,ENG MTG
09.171 M10X25 FLANGE 		0-28051-025-0 08 1 0601-0804 ●
176 04.085 BOLT; C/MBR,ENG MTG
09.171 M10X25 FLANGE 		0-28051-025-0 08 1 0805- ● ●
376 07.039 RIVET; FRAME
07.395 (A) D8X26 TAPER END 		9-06750-826-0 AR 1 0201-0804 ●
376 07.039 RIVET; FRAME
07.395 (A) D8X26 TAPER END 		9-06750-826-0 AR 1 0805- ● ●
376 07.039 RIVET; FRAME
(B) D10X24 TAPER END 		9-06751-024-0 AR 1 0201-0804 ●
376 07.039 RIVET; FRAME
(B) D10X24 TAPER END 		9-06751-024-0 AR 1 0805- ● ●
376 07.039 RIVET; FRAME
(C) D10X26 TAPER END 		9-06751-026-0 AR 1 0201-0804 ●
376 07.039 RIVET; FRAME
(C) D10X26 TAPER END 		9-06751-026-0 AR 1 0805- ● ●
376 07.039 RIVET; FRAME
(D) D10X28 TAPER END 		9-06751-028-0 AR 1 0201-0804 ●
376 07.039 RIVET; FRAME
(D) D10X28 TAPER END 		9-06751-028-0 AR 1 0805- ● ●
376 07.039 RIVET; FRAME
(E) D10X32 TAPER END 		9-06751-032-0 AR 1 0201-0804 ●
376 07.039 RIVET; FRAME
(E) D10X32 TAPER END 		9-06751-032-0 AR 1 0805- ● ●
376 07.039 RIVET; FRAME
(F) D10X36 TAPER END 		9-06751-036-0 AR 1 0201-0804 ●
376 07.039 RIVET; FRAME
(F) D10X36 TAPER END 		9-06751-036-0 AR 1 0805- ● ●
376 07.039 RIVET; FRAME
(G) D11X26 TAPER END 		9-06751-126-0 AR 1 0201-0804 ●
376 07.039 RIVET; FRAME
(G) D11X26 TAPER END 		9-06751-126-0 AR 1 0805- ● ●
376 07.039 RIVET; FRAME
(H) D11X30 TAPER END 		9-06751-130-0 AR 1 0201-0804 ●
376 07.039 RIVET; FRAME
(H) D11X30 TAPER END 		9-06751-130-0 AR 1 0805- ● ●
376 07.039 RIVET; FRAME
07.105 (I) D12X30 TAPER END 		9-06751-230-0 AR 1 0201-0804 ●
376 07.039 RIVET; FRAME
07.105 (I) D12X30 TAPER END 		9-06751-230-0 AR 1 0805- ● ●
376 07.039 RIVET; FRAME
07.428 (J) D12X36 TAPER END 		9-06751-236-0 AR 1 0201-0804 ●
376 07.039 RIVET; FRAME
07.428 (J) D12X36 TAPER END 		9-06751-236-0 AR 1 0805- ● ●
376 07.039 RIVET; FRAME
07.112 (K) D12X40 TAPER END 		9-06751-240-0 AR 1 0201-0804 ●
376 07.039 RIVET; FRAME
07.112 (K) D12X40 TAPER END 		9-06751-240-0 AR 1 0805- ● ●

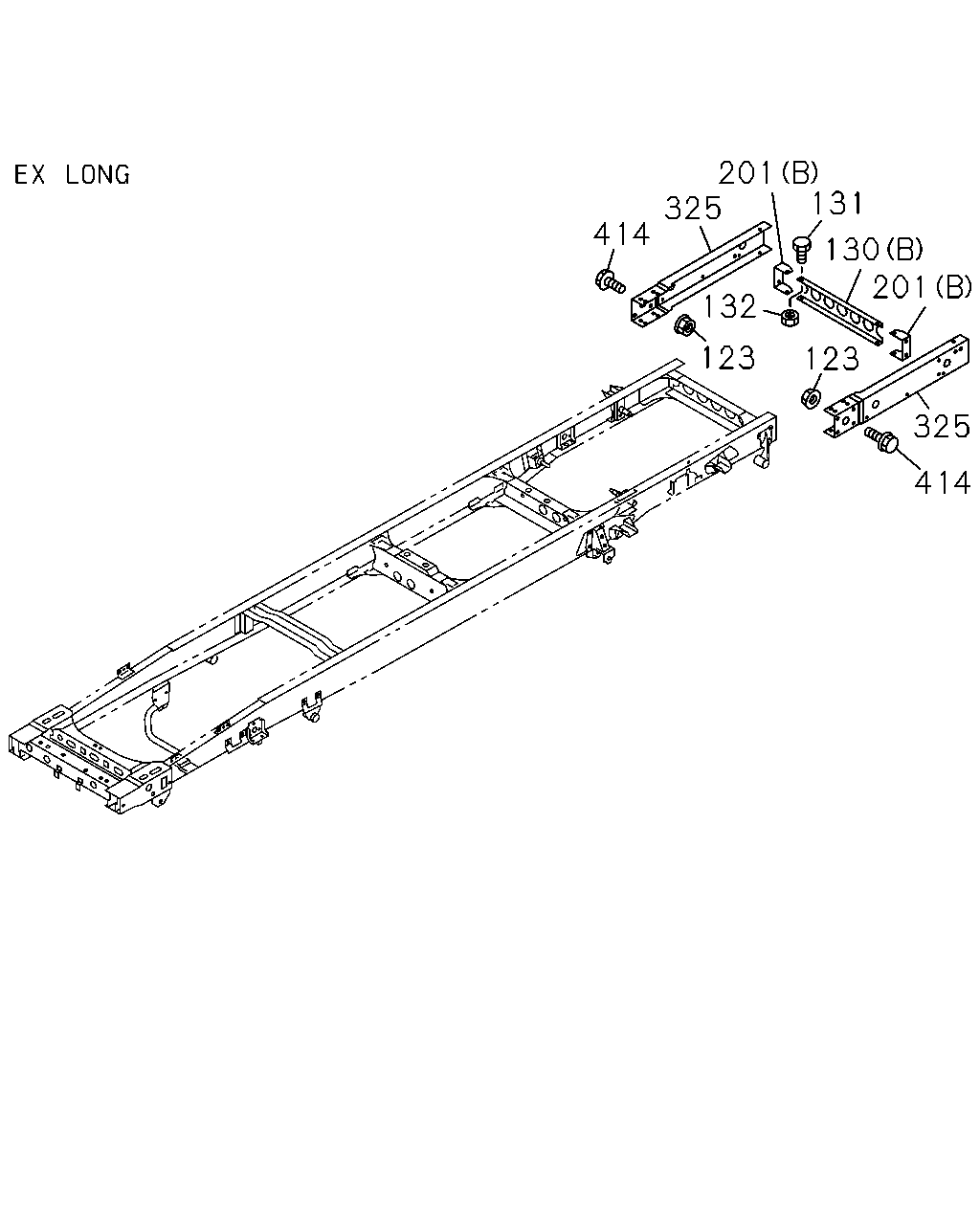

çizim 53238
201 325 131 414 130 201 132 123 123 325 414
BalonParca AdiParca NoAdetTipApplied Date A B
123 07.039 NUT
FRAME STRAIGHT TYPE<7KJ> 07.395 M12 		8-97360-126-0 16 1 0805- ●
130 07.014 MEMBER; CROSS,END
(A) 		8-97080-872-0 01 1 0201- ●
130 07.014 MEMBER; CROSS,END
(B) 		8-97205-394-0 01 1 0805- ●
131 07.014 BOLT; END C/MBR
07.833 M10X25 FLANGE 		0-28661-025-0 08 1 0805- ●
132 07.014 NUT; END C/MBR
03.162 M10 FLANGE 		0-91180-110-0 08 1 0805- ●
201 07.039 GUSSET; C/MBR
(A) 		8-97096-871-0 02 1 0201-0804 ●
201 07.039 GUSSET; C/MBR
(A) 		8-97096-871-0 02 1 0805- ● ●
201 07.039 GUSSET; C/MBR
(B) 		8-97128-805-0 02 1 0805- ●
325 07.039 EXTENSION; FRAME 8-97222-892-1 01 1 0805- ●
325 07.039 EXTENSION; FRAME 8-97222-891-1 01 1 0805- ●
414 07.011 BOLT
FRAME STRAIGHT TYPE<7KJ> 06.509 M12X30 FLANGE 		0-28661-230-0 12 1 0805- ●
