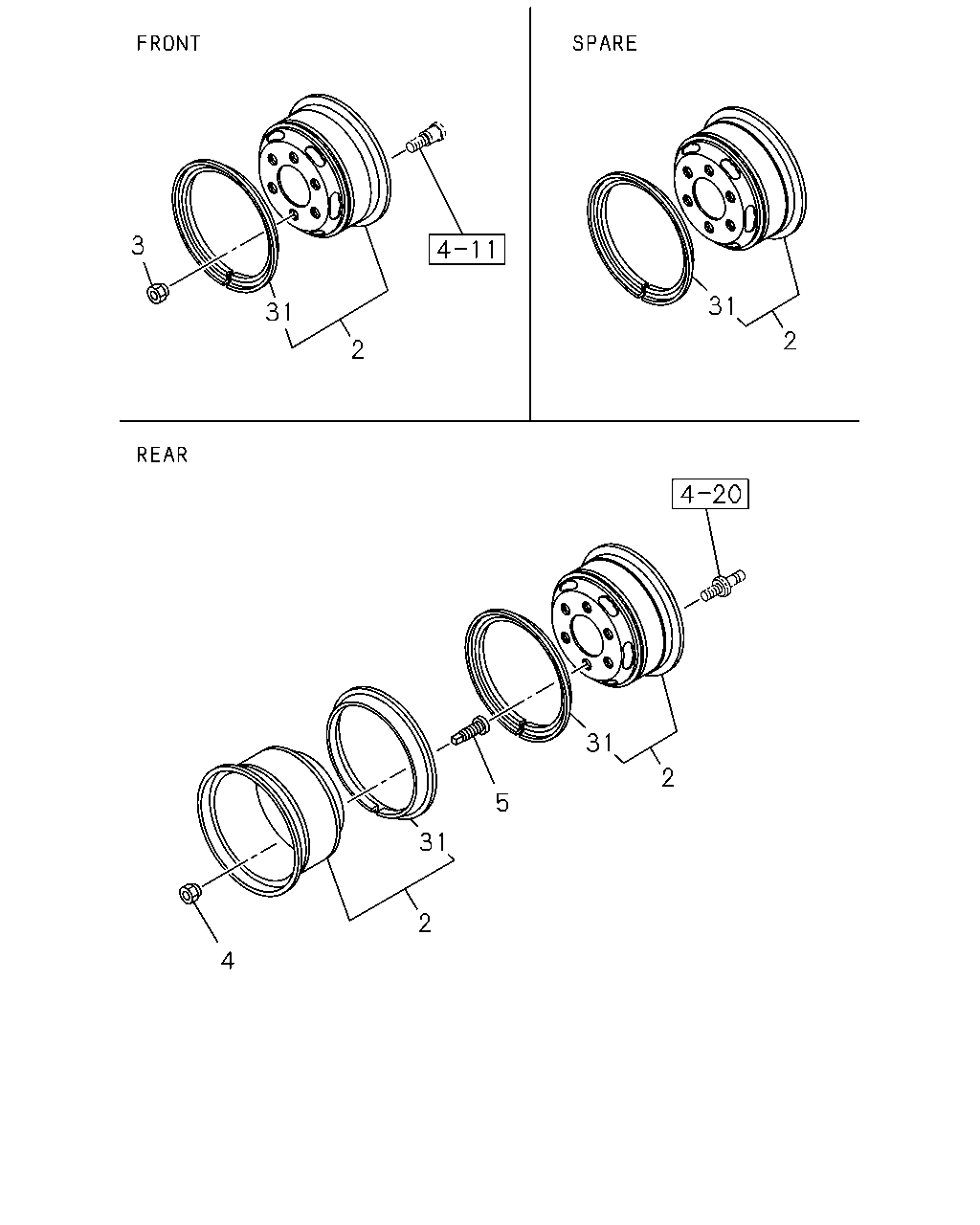

4-80 — ROAD WHEEL (#19370) — 36 parça

3 31 31 2 2 31 2 5 31 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C) ,FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL /NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6G SX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	0201-0301	●
2	05.803 WHEEL; DISC SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	0302-0804	●
2	05.803 WHEEL; DISC SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	0805-	●	●
2	05.803 WHEEL; DISC FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C) ,FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL /NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6G SX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	0201-0301	●
2	05.803 WHEEL; DISC FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	0302-0804	●
2	05.803 WHEEL; DISC FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	0805-	●	●
2	05.803 WHEEL; DISC FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C) ,FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16-127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R-16-12 5.5FX16-127 6-WHL /NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT H/D(54C) SPARE 5.5FX16 OFFSET=127 BLACK 6-HOLE	8-94455-967-0	01	1	0201-0301	●
2	05.803 WHEEL; DISC FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C) ,FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16-127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R-16-12 5.5FX16-127 6-WHL /NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT H/D(54C) FRONT,REAR 5.5FX16 OFFSET=127 BLACK 6-HOLE	8-94455-967-0	06	1	0201-0301	●
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-94427-549-1	06	1	0201-0610	●
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	0611-0804	●
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	0805-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-94427-548-1	06	1	0201-0610	●
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	0611-0804	●
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	0805-	●	●
4	05.813 NUT; WHEEL,RR AXLE FRAME STRAIGHT TYPE<7KJ> M30 LH THREAD	1-42334-023-0	06	1	0201-0610	●
4	05.813 NUT; WHEEL,RR AXLE FRAME STRAIGHT TYPE<7KJ> M30 LH THREAD	8-97359-810-0	06	1	0611-0804	●
4	05.813 NUT; WHEEL,RR AXLE FRAME STRAIGHT TYPE<7KJ> M30 LH THREAD	8-97359-810-0	06	1	0805-	●	●
4	05.813 NUT; WHEEL,RR AXLE FRAME STRAIGHT TYPE<7KJ> M30	1-42333-023-0	06	1	0201-0610	●
4	05.813 NUT; WHEEL,RR AXLE FRAME STRAIGHT TYPE<7KJ> M30 RH THREAD	8-97359-809-0	06	1	0611-0804	●
4	05.813 NUT; WHEEL,RR AXLE FRAME STRAIGHT TYPE<7KJ> M30 RH THREAD	8-97359-809-0	06	1	0805-	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	06	1	0201-0610	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0611-0804	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0805-	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	06	1	0201-0610	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0611-0804	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0805-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C) ,FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL /NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6G SX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK	8-97227-057-0	01	1	0201-0203	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C) ,FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL /NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6G SX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0204-0301	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0302-0804	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0805-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C) ,FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL /NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6G SX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-97227-057-0	06	1	0201-0203	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C) ,FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL /NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6G SX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0204-0301	●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0302-0804	●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0805-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C) ,FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16-127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R-16-12 5.5FX16-127 6-WHL /NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT H/D(54C) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0201-0301	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C) ,FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16-127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R-16-12 5.5FX16-127 6-WHL /NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT H/D(54C) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0201-0301	●
