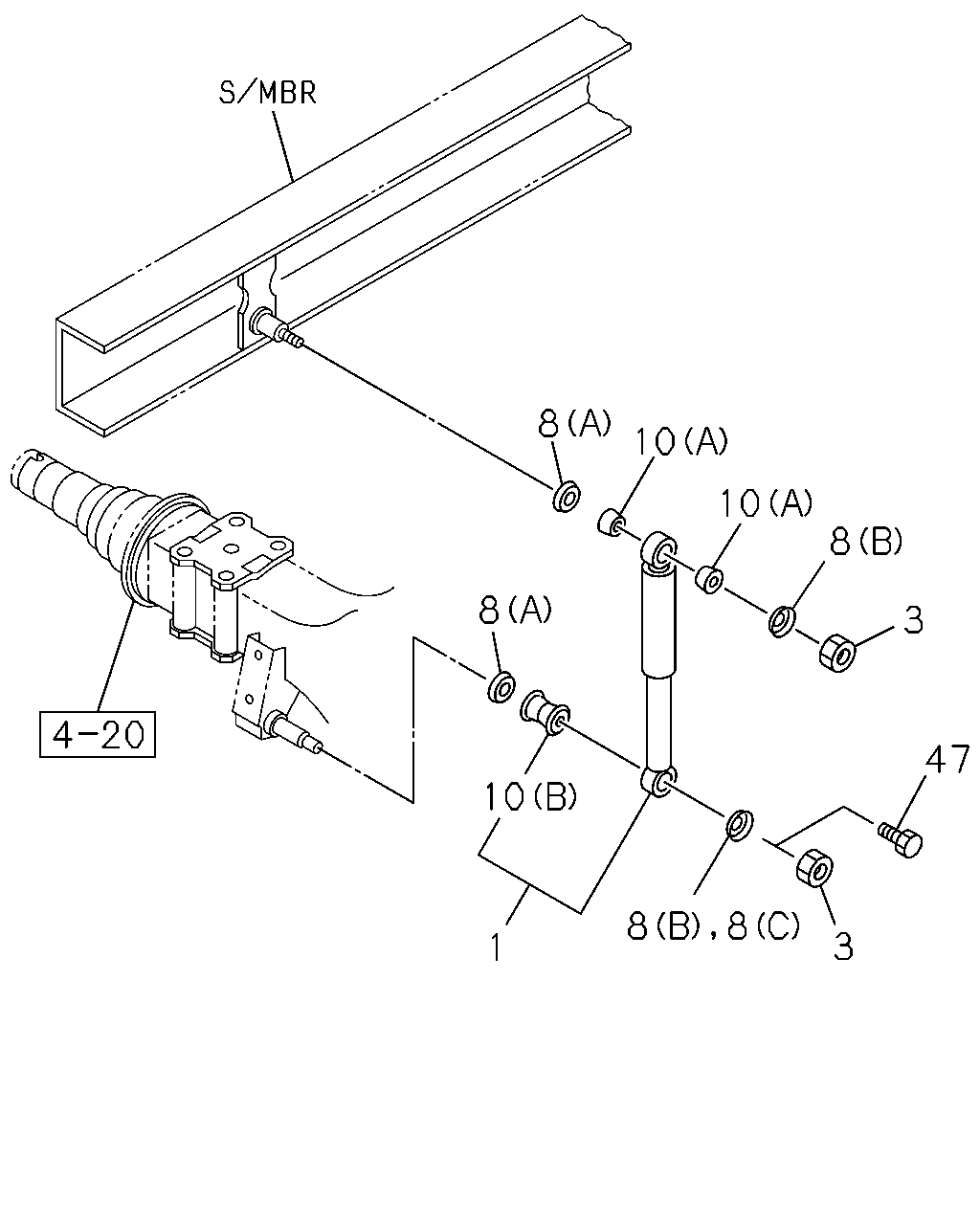

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#19368) — 27 parça

8 10 10 8 8 3 47 10 3 1 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.395 ABSORBER ASM; SHOCK,RR	8-97253-662-2	02	1	0201-0804	●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97253-662-2	02	1	0805-	●	●
1	07.395 ABSORBER ASM; SHOCK,RR BEST VALUE PARTS	5-87610-156-0	02	1	0201-0804	●
1	07.395 ABSORBER ASM; SHOCK,RR BEST VALUE PARTS	5-87610-156-0	02	1	0805-	●	●
3	07.347 NUT; S/ABS FRAME STRAIGHT TYPE<7KJ> 06.172 M14	9-99111-414-0	02	1	0201-0512	●
3	07.347 NUT; S/ABS 06.172 M14	9-99111-414-0	02	1	0201-0512	●
3	07.347 NUT; S/ABS FRAME STRAIGHT TYPE<7KJ> 06.515 M14	0-91111-514-0	02	1	0601-0612	●
3	07.347 NUT; S/ABS 06.515 M14	0-91111-514-0	02	1	0601-0612	●
3	07.347 NUT; S/ABS FRAME STRAIGHT TYPE<7KJ> 07.833 M14	0-91110-514-0	02	1	0701-0804	●
3	07.347 NUT; S/ABS 07.833 M14	0-91110-514-0	02	1	0701-0804	●
3	07.347 NUT; S/ABS 07.833 M14	0-91110-514-0	02	1	0805-	●	●
3	07.347 NUT; S/ABS FRAME STRAIGHT TYPE<7KJ> 07.833 M14	0-91110-514-0	02	1	0805-	●
8	07.347 WASHER; S/ABS (A) ID=20.0	9-51679-013-0	04	1	0201-0611	●
8	07.347 WASHER; S/ABS (A) ID=20.0	8-97360-057-0	04	1	0612-0804	●
8	07.347 WASHER; S/ABS (A) ID=20.0	8-97360-057-0	04	1	0805-	●	●
8	07.347 WASHER; S/ABS FRAME STRAIGHT TYPE<7KJ> (B) ID=15.0	9-51679-012-0	02	1	0201-0611	●
8	07.347 WASHER; S/ABS (B) ID=15.0	9-51679-012-0	02	1	0201-0611	●
8	07.347 WASHER; S/ABS FRAME STRAIGHT TYPE<7KJ> (B) ID=15	8-97360-056-0	02	1	0612-0804	●
8	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0612-0804	●
8	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0805-	●	●
8	07.347 WASHER; S/ABS FRAME STRAIGHT TYPE<7KJ> (B) ID=15	8-97360-056-0	02	1	0805-	●
8	07.347 WASHER; S/ABS FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5	8-97360-058-0	02	1	0805-		●
10	07.388 BUSHING; RUBBER,S/ABS (B) TOKICO	8-94382-149-0	02	1	0201-0804	●
10	07.388 BUSHING; RUBBER,S/ABS (B) TOKICO	8-94382-149-0	02	1	0805-	●	●
10	07.388 BUSHING; RUBBER,S/ABS (A) TOKICO	9-51631-014-0	04	1	0201-0804	●
10	07.388 BUSHING; RUBBER,S/ABS (A) TOKICO	9-51631-014-0	04	1	0805-	●	●
47	07.347 PIN; S/ABS SETTING FRAME STRAIGHT TYPE<7KJ> 02.483 M10X16 FLANGE	0-28051-016-0	02	1	0805-		●
