4-36 — POWER STEERING CONTROL; ENGINE SIDE (#19362) — 20 parça

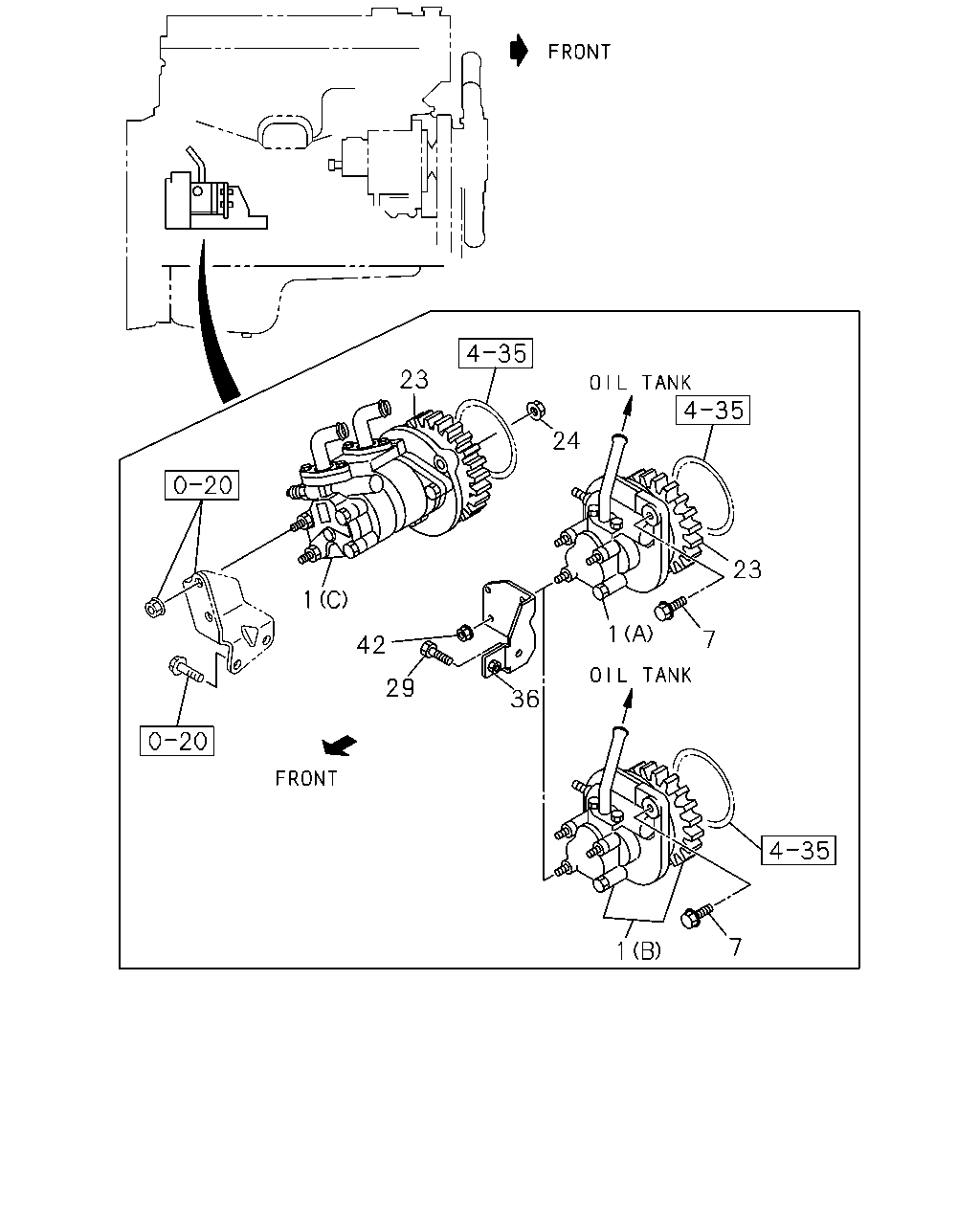

çizim 53234
23 24 23 1 1 7 42 29 36 7 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> (A) 		8-97136-574-1 01 1 0201-0304 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> (B) 		8-97357-213-0 01 1 0305-0409 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> (B) 		8-97388-651-1 01 1 0410-0812 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> (B) 		8-98138-131-2 01 1 0901- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (C) 		8-97258-461-3 01 1 0805- ●
7 09.181 BOLT; OIL PUMP,P/S
POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0201-0804 ●
7 09.181 BOLT; OIL PUMP,P/S
POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0805-0805 ●
7 09.181 BOLT; OIL PUMP,P/S
00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0805-0805 ●
7 09.181 BOLT; OIL PUMP,P/S
POWER STEERING<N40> 04.439 M10X28 FLANGE 		8-98044-944-0 02 1 0806-1010 ●
7 09.181 BOLT; OIL PUMP,P/S
04.439 M10X28 FLANGE 		8-98044-944-0 02 1 0806-1010 ●
7 09.181 BOLT; OIL PUMP,P/S
POWER STEERING<N40> 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1011- ●
7 09.181 BOLT; OIL PUMP,P/S
00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1011- ●
23 06.660 GEAR; OIL PUMP
POWER STEERING<N40> 		8-97114-550-0 01 1 0201-0304 ●
23 06.660 GEAR; OIL PUMP 8-97114-550-1 01 1 0805- ●
24 06.673 NUT; GEAR,P/S PUMP
05.816 M12 FLANGE 		0-91180-212-0 01 1 0805- ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> M14X20 FLANGE 		0-28881-420-0 01 1 0201-0512 ●
29 09.171 BOLT; BRKT,POWER STRG
POWER STEERING<N40> M14X20 FLANGE 		0-28851-420-0 01 1 0601- ●
36 06.606 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> 		8-97112-866-0 01 1 0201- ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0201-0602 ●
42 06.672 NUT; ADJ PLATE
POWER STEERING<N40> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ●
