Sayfa 4-31 - Isuzu EPC

4-31 — STEERING COLUMN AND SHAFT (#19359) — 372 parça

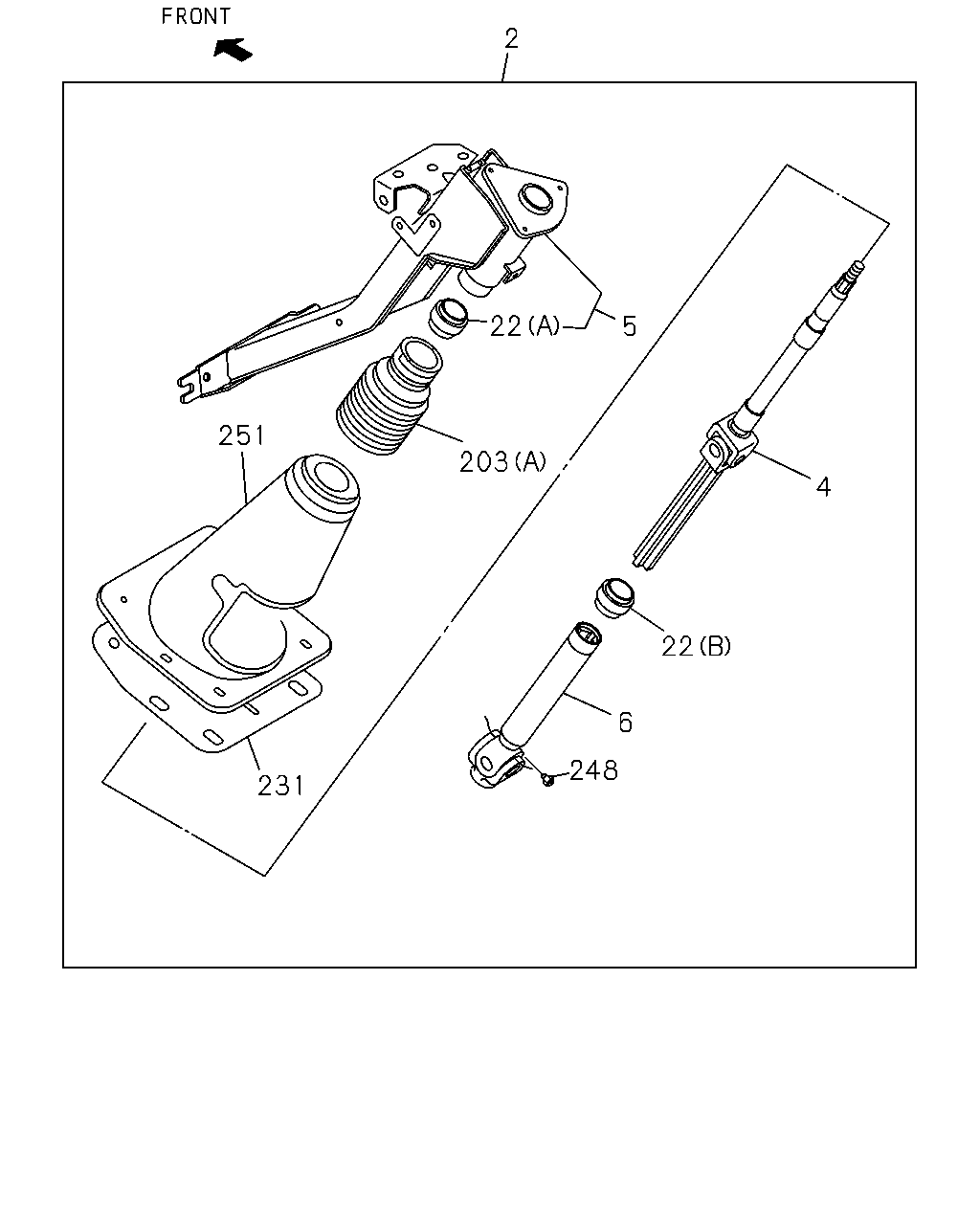

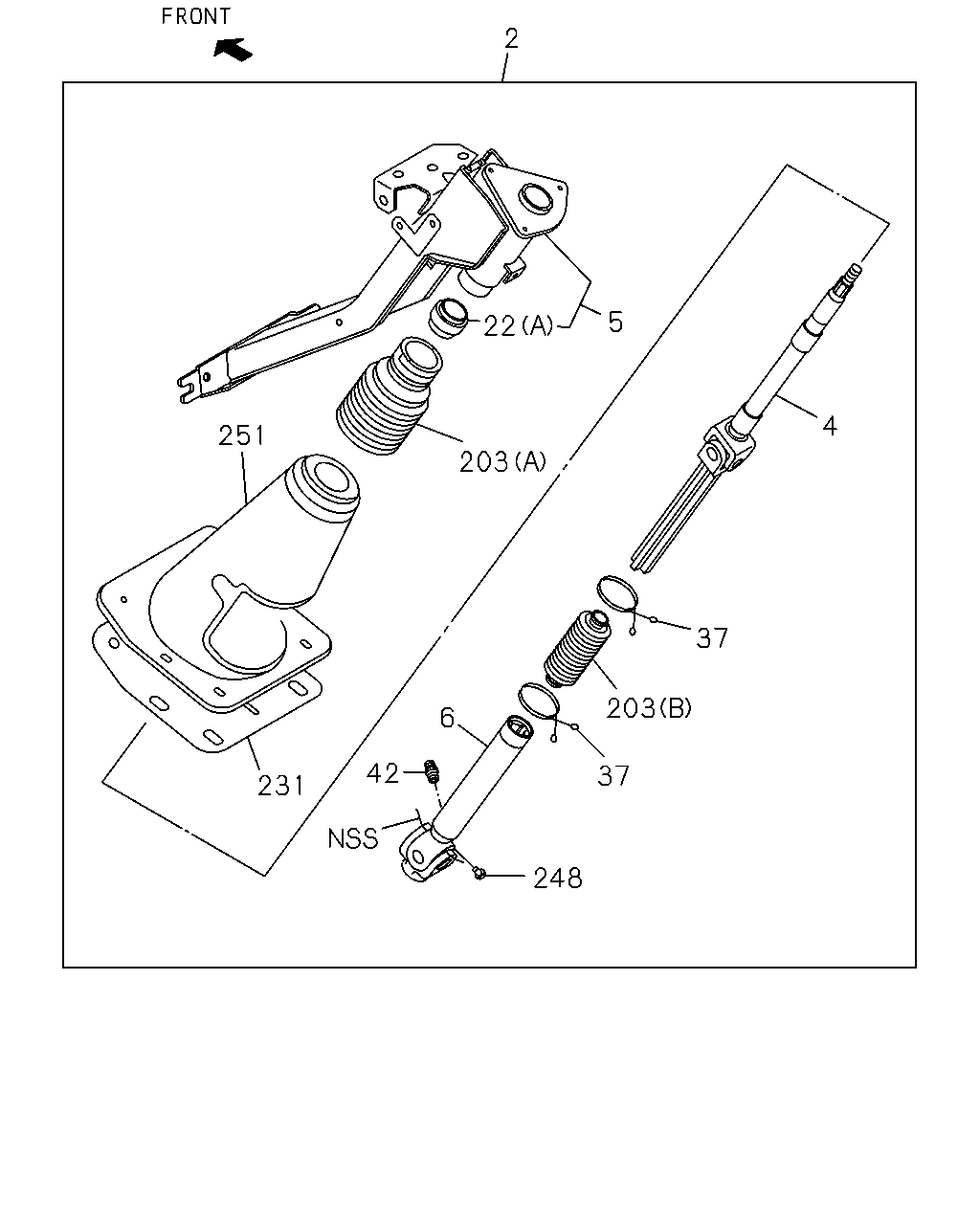

2 5 22 4 251 203 37 203 6 42 37 231 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0201-0404	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0805-	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97291-629-0	01	1	0201-0404	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-056-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-056-1	01	1	0805-	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97159-172-0	01	1	0201-0207	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0208-0311	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0805-	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97201-110-1	01	1	0201-0311	●
4	06.524 SHAFT; STRG	8-97201-110-1	01	1	0312-0404	●
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0405-0804	●
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0805-	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	0201-0207	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97351-830-0	01	1	0208-0311	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0201-0804	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0805-	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ>	8-97093-792-2	01	1	0201-0804	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ>	8-97093-792-2	01	1	0805-	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> 06.760	8-97173-626-0	01	1	0201-0311	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0312-0804	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0805-	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	0201-0311	●
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404	●
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-0804	●
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0805-	●	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	0201-0207	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0311	●
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-0804	●
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0805-	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> (A)	8-97076-821-0	01	1	0201-0311	●
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0312-0804	●
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0805-	●	●
22	06.525 BUSHING; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97201-085-0	01	1	0201-0207	●
37	06.525 CLAMP; BOOT TO SHAFT	8-97173-630-0	02	1	0201-0404	●
42	05.586 NIPPLE; GREASE,SLEEVE YOKE EXC. TILT STEERING<N33>	8-97178-201-0	01	1	0208-0311	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (A)	8-97076-822-0	01	1	0201-0311	●
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	0312-0804	●
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	0805-	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-97201-115-0	01	1	0201-0311	●
203	06.525 BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	0312-0404	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-97173-631-0	01	1	0201-0207	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-97351-851-0	01	1	0208-0311	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518 (A)	8-97173-632-0	01	1	0201-0311	●
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	0201-0311	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0312-0804	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0805-	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	0201-0311	●
248	06.518 SCREW; YOKE TILT STEERING<N33>	8-97222-984-0	01	1	0201-0311	●
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0312-0804	●
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0805-	●	●
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 BLACK	8-97159-168-1	01	1	0201-0311	●
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	0312-0804	●
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	0805-	●	●
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 BLACK	8-97159-175-0	01	1	0201-0311	●

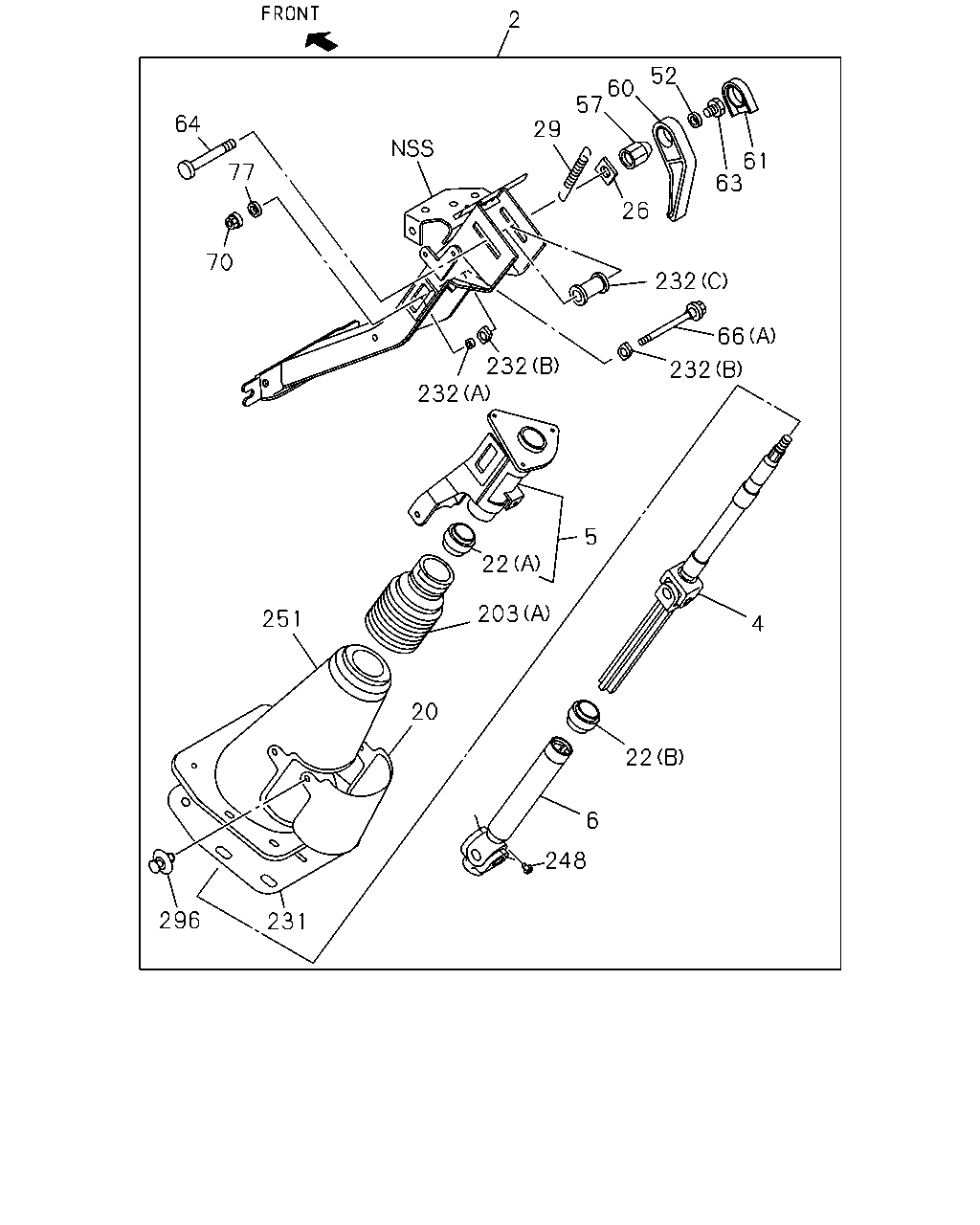

2 52 60 57 64 29 61 63 77 26 70 232 66 232 232 232 5 22 203 251 4 20 22 6 248 296 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0201-0404	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0805-	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97291-629-0	01	1	0201-0404	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-056-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-056-1	01	1	0805-	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97159-172-0	01	1	0201-0207	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0208-0311	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0805-	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97201-110-1	01	1	0201-0311	●
4	06.524 SHAFT; STRG	8-97201-110-1	01	1	0312-0404	●
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0405-0804	●
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0805-	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	0201-0207	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97351-830-0	01	1	0208-0311	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0201-0804	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0805-	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ>	8-97093-792-2	01	1	0201-0804	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ>	8-97093-792-2	01	1	0805-	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> 06.760	8-97173-626-0	01	1	0201-0311	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0312-0804	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0805-	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	0201-0311	●
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404	●
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-0804	●
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0805-	●	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	0201-0207	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0311	●
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0201-0804	●
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0805-	●	●
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-0804	●
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0805-	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> (A)	8-97076-821-0	01	1	0201-0311	●
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0312-0804	●
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0805-	●	●
22	06.525 BUSHING; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97201-085-0	01	1	0201-0207	●
26	06.514 PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0201-0804	●
26	06.514 PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0805-	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97076-811-0	01	1	0201-0804	●
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97076-811-0	01	1	0805-	●	●
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0201-0804	●
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0805-	●	●
57	06.518 NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0201-0804	●
57	06.518 NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0805-	●	●
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0201-0804	●
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0805-	●	●
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0201-0804	●
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0805-	●	●
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0201-0804	●
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0805-	●	●
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0201-0804	●
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0805-	●	●
66	06.514 BOLT; STRG COLUMN 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1201-	●	●
66	06.514 BOLT; STRG COLUMN 04.634 (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0201-0611	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-0804	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0805-1112	●	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-	●	●
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0201-0804	●
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0805-	●	●
70	06.514 NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0201-0804	●
70	06.514 NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0805-	●	●
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0201-0804	●
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0805-	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (A)	8-97076-822-0	01	1	0201-0311	●
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	0312-0804	●
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	0805-	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-97201-115-0	01	1	0201-0311	●
203	06.525 BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	0312-0404	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-97173-631-0	01	1	0201-0207	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-97351-851-0	01	1	0208-0311	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518 (A)	8-97173-632-0	01	1	0201-0311	●
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	0201-0311	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0312-0804	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0805-	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	0201-0311	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0201-0804	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0805-	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0201-0804	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0805-	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0201-0804	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0805-	●	●
248	06.518 SCREW; YOKE TILT STEERING<N33>	8-97222-984-0	01	1	0201-0311	●
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0312-0804	●
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0805-	●	●
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 BLACK	8-97159-168-1	01	1	0201-0311	●
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	0312-0804	●
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	0805-	●	●
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 BLACK	8-97159-175-0	01	1	0201-0311	●
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	0201-	●

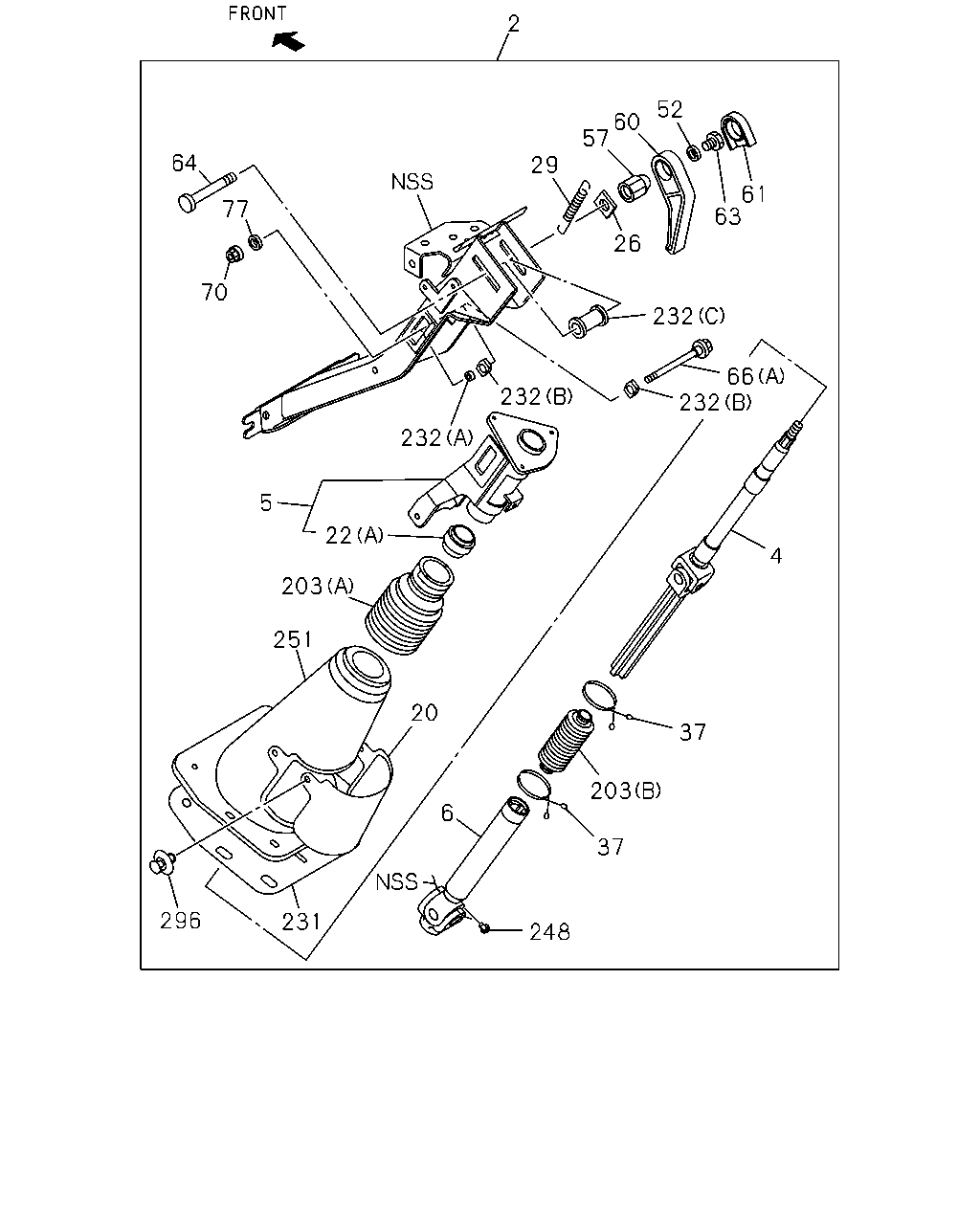

2 52 60 57 64 29 61 63 77 26 70 232 66 232 232 232 5 22 4 203 251 20 37 203 6 37 296 231 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0201-0404	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0805-	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97291-629-0	01	1	0201-0404	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-056-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-056-1	01	1	0805-	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97159-172-0	01	1	0201-0207	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0208-0311	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0805-	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97201-110-1	01	1	0201-0311	●
4	06.524 SHAFT; STRG	8-97201-110-1	01	1	0312-0404	●
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0405-0804	●
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0805-	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	0201-0207	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97351-830-0	01	1	0208-0311	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0201-0804	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0805-	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ>	8-97093-792-2	01	1	0201-0804	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ>	8-97093-792-2	01	1	0805-	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> 06.760	8-97173-626-0	01	1	0201-0311	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0312-0804	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0805-	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	0201-0311	●
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404	●
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-0804	●
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0805-	●	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	0201-0207	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0311	●
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0201-0804	●
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0805-	●	●
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-0804	●
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0805-	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> (A)	8-97076-821-0	01	1	0201-0311	●
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0312-0804	●
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0805-	●	●
22	06.525 BUSHING; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97201-085-0	01	1	0201-0207	●
26	06.514 PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0201-0804	●
26	06.514 PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0805-	●	●
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97076-811-0	01	1	0201-0804	●
29	06.514 SPRING; COLUMN TILT STEERING<N33>	8-97076-811-0	01	1	0805-	●	●
37	06.525 CLAMP; BOOT TO SHAFT	8-97173-630-0	02	1	0201-0404	●
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0201-0804	●
52	06.514 WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0805-	●	●
57	06.518 NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0201-0804	●
57	06.518 NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0805-	●	●
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0201-0804	●
60	06.518 LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0805-	●	●
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0201-0804	●
61	06.514 CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0805-	●	●
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0201-0804	●
63	06.514 BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0805-	●	●
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0201-0804	●
64	06.518 BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0805-	●	●
66	06.514 BOLT; STRG COLUMN 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1201-	●	●
66	06.514 BOLT; STRG COLUMN 04.634 (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0201-0611	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-0804	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0805-1112	●	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-	●	●
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0201-0804	●
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0805-	●	●
70	06.514 NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0201-0804	●
70	06.514 NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0805-	●	●
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0201-0804	●
77	06.760 WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0805-	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (A)	8-97076-822-0	01	1	0201-0311	●
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	0312-0804	●
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	0805-	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-97201-115-0	01	1	0201-0311	●
203	06.525 BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	0312-0404	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-97173-631-0	01	1	0201-0207	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-97351-851-0	01	1	0208-0311	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518 (A)	8-97173-632-0	01	1	0201-0311	●
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	0201-0311	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0312-0804	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0805-	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	0201-0311	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0201-0804	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0805-	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0201-0804	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0805-	●	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0201-0804	●
232	06.514 SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0805-	●	●
248	06.518 SCREW; YOKE TILT STEERING<N33>	8-97222-984-0	01	1	0201-0311	●
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0312-0804	●
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0805-	●	●
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 BLACK	8-97159-168-1	01	1	0201-0311	●
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	0312-0804	●
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	0805-	●	●
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 BLACK	8-97159-175-0	01	1	0201-0311	●
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	0201-	●

2 22 5 251 203 4 22 6 248 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0201-0404	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0805-	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97291-629-0	01	1	0201-0404	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-056-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-056-1	01	1	0805-	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97159-172-0	01	1	0201-0207	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0208-0311	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0805-	●	●
4	06.524 SHAFT; STRG TILT STEERING<N33>	8-97201-110-1	01	1	0201-0311	●
4	06.524 SHAFT; STRG	8-97201-110-1	01	1	0312-0404	●
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0405-0804	●
4	06.524 SHAFT; STRG	8-97378-634-0	01	1	0805-	●	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97173-634-0	01	1	0201-0207	●
4	06.524 SHAFT; STRG EXC. TILT STEERING<N33>	8-97351-830-0	01	1	0208-0311	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0201-0804	●
5	06.518 COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0805-	●	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ>	8-97093-792-2	01	1	0201-0804	●
5	06.518 COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ>	8-97093-792-2	01	1	0805-	●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33> 06.760	8-97173-626-0	01	1	0201-0311	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0312-0804	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0805-	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	0201-0311	●
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404	●
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-0804	●
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0805-	●	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	0201-0207	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0311	●
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0405-0804	●
22	06.525 BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0805-	●	●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33> (A)	8-97076-821-0	01	1	0201-0311	●
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0312-0804	●
22	06.525 BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0805-	●	●
22	06.525 BUSHING; STRG COLUMN EXC. TILT STEERING<N33> (A)	8-97201-085-0	01	1	0201-0207	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> 06.518 (A)	8-97076-822-0	01	1	0201-0311	●
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	0312-0804	●
203	06.525 BOOT; STRG COLUMN LWR 06.518 (A)	8-97076-822-0	01	1	0805-	●	●
203	06.525 BOOT; STRG COLUMN LWR TILT STEERING<N33> (B)	8-97201-115-0	01	1	0201-0311	●
203	06.525 BOOT; STRG COLUMN LWR (B)	8-97201-115-0	01	1	0312-0404	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-97173-631-0	01	1	0201-0207	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> (B)	8-97351-851-0	01	1	0208-0311	●
203	06.525 BOOT; STRG COLUMN LWR EXC. TILT STEERING<N33> 06.518 (A)	8-97173-632-0	01	1	0201-0311	●
231	06.525 SEAL; RUBBER,STRG COLUMN TILT STEERING<N33>	8-97076-808-1	01	1	0201-0311	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0312-0804	●
231	06.525 SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0805-	●	●
231	06.525 SEAL; RUBBER,STRG COLUMN EXC. TILT STEERING<N33>	8-97173-628-0	01	1	0201-0311	●
248	06.518 SCREW; YOKE TILT STEERING<N33>	8-97222-984-0	01	1	0201-0311	●
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0312-0804	●
248	06.518 SCREW; YOKE	8-97222-984-0	01	1	0805-	●	●
251	06.518 COVER; LWR TILT STEERING<N33> 06.578 BLACK	8-97159-168-1	01	1	0201-0311	●
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	0312-0804	●
251	06.518 COVER; LWR 06.578 BLACK	8-97159-168-2	01	1	0805-	●	●
251	06.518 COVER; LWR EXC. TILT STEERING<N33> 06.578 BLACK	8-97159-175-0	01	1	0201-0311	●

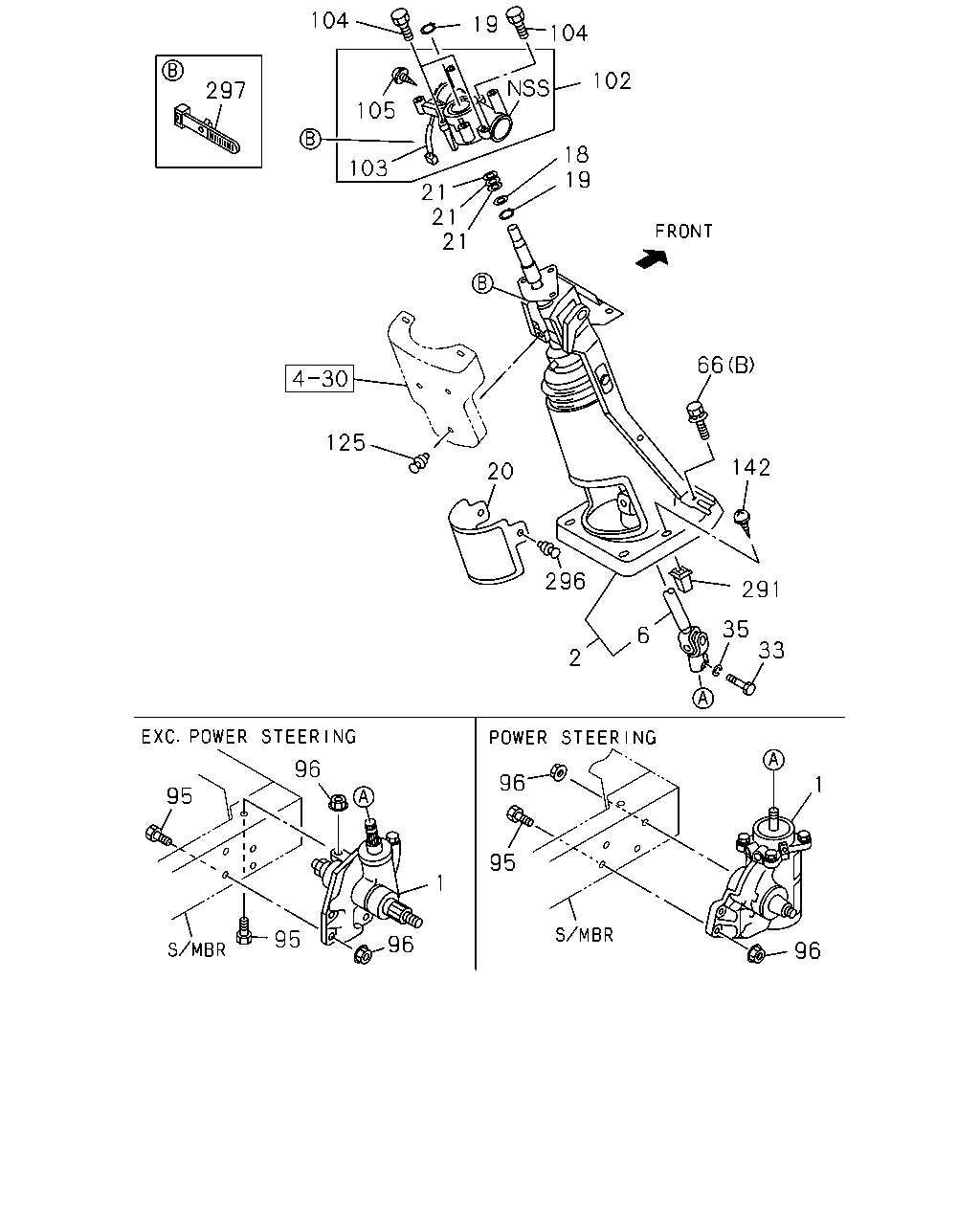

104 19 104 102 297 105 18 19 103 21 21 21 66 125 142 20 296 291 35 33 6 2 96 96 1 95 95 1 95 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97287-197-8	01	1	0201-0804	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-97287-197-8	01	1	0805-1308	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97287-197-8	01	1	0805-1308		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40>	8-98251-949-0	01	1	1309-	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98251-949-0	01	1	1309-		●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40>	8-97224-871-0	01	1	0201-	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-633-0	01	1	0201-0404	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0805-	●	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97291-629-0	01	1	0201-0404	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-056-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK	8-97400-056-1	01	1	0805-	●	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97159-172-0	01	1	0201-0207	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97394-700-1	01	1	0208-0311	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97398-853-0	01	1	0312-0404	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0405-0804	●
2	06.518 SHAFT ASM; STRG EXC. TILT STEERING<N33> BLACK	8-97400-061-1	01	1	0805-	●	●
6	06.524 SHAFT; STRG LWR TILT STEERING<N33>	8-97201-107-0	01	1	0201-0311	●
6	06.524 SHAFT; STRG LWR	8-97201-107-0	01	1	0312-0404	●
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0405-0804	●
6	06.524 SHAFT; STRG LWR	8-97378-632-0	01	1	0805-	●	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97173-635-0	01	1	0201-0207	●
6	06.524 SHAFT; STRG LWR EXC. TILT STEERING<N33>	8-97351-831-0	01	1	0208-0311	●
18	06.525 WASHER; STEERING SHAFT 06.500 ID=19	8-94146-919-0	01	1	0201-0804	●
18	06.525 WASHER; STEERING SHAFT 06.500 ID=19	8-94146-919-0	01	1	0805-	●	●
19	06.515 RING; SNAP,STRG SHAFT 00.349 ID=17.5	9-09180-019-0	02	1	0201-0804	●
19	06.515 RING; SNAP,STRG SHAFT 00.349 ID=17.5	9-09180-019-0	02	1	0805-	●	●
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0201-0804	●
20	06.525 COVER; STRG SHAFT 06.518 BLACK	8-97291-634-1	01	1	0805-	●	●
21	06.500 WASHER; WAVE,STRG LOCK TO SHAFT	8-94174-865-0	03	1	0201-0804	●
21	06.500 WASHER; WAVE,STRG LOCK TO SHAFT	8-94174-865-0	03	1	0805-	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT TILT STEERING<N33> M8X30	8-94247-692-0	01	1	0201-0311	●
33	06.525 BOLT; STRG SHAFT TO UNIT M8X30	8-94247-692-0	01	1	0312-0610	●
33	06.525 BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	0611-0804	●
33	06.525 BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	0805-	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. TILT STEERING<N33> M10X33	8-94249-011-1	01	1	0201-0311	●
35	06.525 WASHER; LK,STRG SHAFT TILT STEERING<N33> 00.002 ID=8.2	9-09150-508-0	01	1	0201-0311	●
35	06.525 WASHER; LK,STRG SHAFT 00.002 ID=8.2	9-09150-508-0	01	1	0312-0603	●
35	06.525 WASHER; LK,STRG SHAFT 04.439 ID=8.2	0-91510-508-0	01	1	0604-0610	●
35	06.525 WASHER; LK,STRG SHAFT 02.559 ID=8.2	0-91510-808-0	01	1	0611-0804	●
35	06.525 WASHER; LK,STRG SHAFT 02.559 ID=8.2	0-91510-808-0	01	1	0805-	●	●
35	06.525 WASHER; LK,STRG SHAFT EXC. TILT STEERING<N33> 08.929 ID=10.2	9-09150-810-0	01	1	0201-0311	●
66	06.514 BOLT; STRG COLUMN 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1201-	●	●
66	06.514 BOLT; STRG COLUMN 04.634 (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0201-0611	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-0804	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0805-1112	●	●
66	06.514 BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-	●	●
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0201-0804	●
66	06.514 BOLT; STRG COLUMN TILT STEERING<N33> (A)	8-97076-831-0	01	1	0805-	●	●
95	06.509 BOLT; STRG UNIT M12X45	8-97212-810-1	03	1	0201-0804	●
95	06.509 BOLT; STRG UNIT M12X45	8-97212-810-1	03	1	0805-	●	●
96	06.509 NUT; STRG UNIT M12 FLANGE	8-94436-194-0	04	1	0201-0610	●
96	06.509 NUT; STRG UNIT M12 FLANGE	8-97359-618-0	04	1	0611-0804	●
96	06.509 NUT; STRG UNIT M12 FLANGE	8-97359-618-0	04	1	0805-	●	●
102	06.500 LOCK ASM; STRG	8-97170-364-0	01	1	0201-0804	●
102	06.500 LOCK ASM; STRG	8-97170-364-0	01	1	0805-	●	●
103	02.188 SWITCH; IGNITION	8-97088-268-0	01	1	0201-0804	●
103	02.188 SWITCH; IGNITION	8-97088-268-0	01	1	0805-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	01	1	0201-0804	●
104	06.500 BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	02	1	0805-	●	●
104	06.500 BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	02	1	0201-0804	●
104	06.500 BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	01	1	0805-	●	●
105	06.500 SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	0201-0804	●
105	06.500 SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	0805-	●	●
125	06.521 CLIP; STRG SHAFT DARK GRAY	8-97857-542-0	01	1	0201-0301	●
125	06.521 CLIP; STRG SHAFT 06.525 BLACK	8-97868-409-0	01	1	0302-0501	●
125	06.521 CLIP; STRG SHAFT DARK GRAY	8-97582-246-0	01	1	0502-0804	●
125	06.521 CLIP; STRG SHAFT DARK GRAY	8-97582-246-0	01	1	0805-	●	●
142	06.518 SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74305-520-0	06	1	0201-0604	●
142	06.518 SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74365-520-0	06	1	0605-0612	●
142	06.518 SCREW; BRKT COWL 06.514 M5X18 TAPPING	0-72180-518-0	06	1	0701-0804	●
142	06.518 SCREW; BRKT COWL 06.514 M5X18 TAPPING	0-72180-518-0	06	1	0805-	●	●
291	06.518 GROMMET; STRG SHAFT COVER 04.931 H=15	8-94463-268-1	06	1	0201-0804	●
291	06.518 GROMMET; STRG SHAFT COVER 04.931 H=15	8-94463-268-1	06	1	0805-	●	●
296	06.525 CLIP; COVER BLACK	8-97868-409-0	01	1	0201-	●
297	06.525 CLIP; BAND 02.559 L=145	8-94257-575-1	03	1	0201-0804	●
297	06.525 CLIP; BAND 02.559 L=145	8-94257-575-1	03	1	0805-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
