3-60 — BRAKE PIPING; VACUUM (#19352) — 170 parça

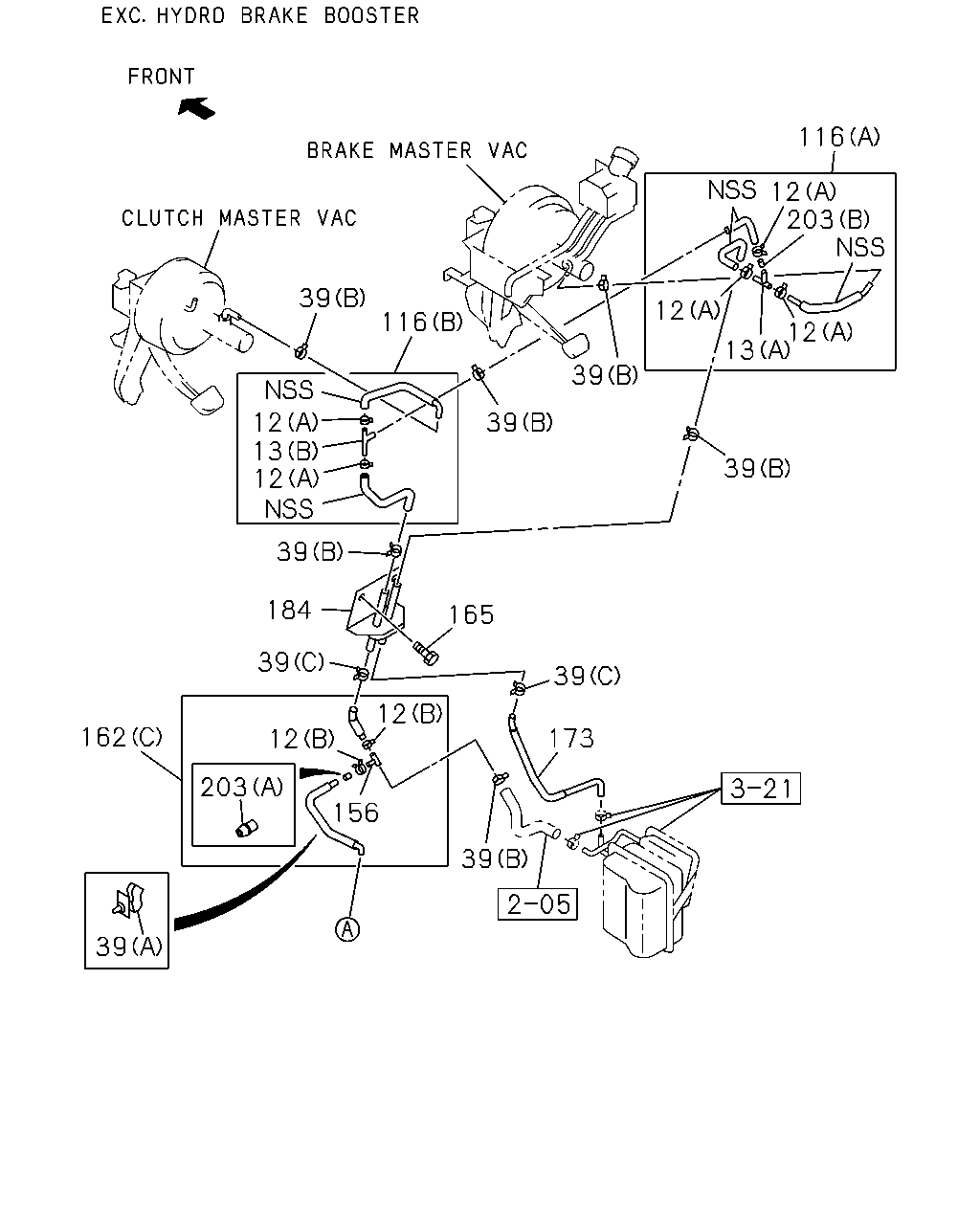

116 12 203 39 12 116 12 13 39 12 13 12 39 39 39 184 165 39 39 12 162 173 12 203 156 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0201-	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	02	1	0201-	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	02	1	0201-0804	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	02	1	0805-	●	●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0201-	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0201-	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	0201-	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0201-0804	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0805-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0805-		●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0805-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=25.5	8-97077-492-0	01	1	0805-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	06	1	0201-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	03	1	0201-0804	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=16	5-09707-023-2	01	1	0805-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97035-968-0	01	1	0201-0403	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0404-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97314-596-1	01	1	0201-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97314-597-1	01	1	0201-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97147-495-2	01	1	0805-		●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY	8-94167-478-0	01	1	0201-0804	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY	8-94167-478-0	01	1	0805-	●	●
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0804	●
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0805-	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0805-		●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (C)	8-97178-658-0	01	1	0201-0501	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (C)	8-98000-392-0	01	1	0502-0804	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (C)	8-98000-392-0	01	1	0805-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97040-991-2	01	1	0201-	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0201-0512	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-0804	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0805-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0201-	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0201-0804	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0805-	●	●
203	04.690 VALVE; CHECK (B)	8-94386-540-0	01	1	0201-	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A)	8-94104-021-0	01	1	0201-0804	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A)	8-94104-021-0	01	1	0805-	●	●

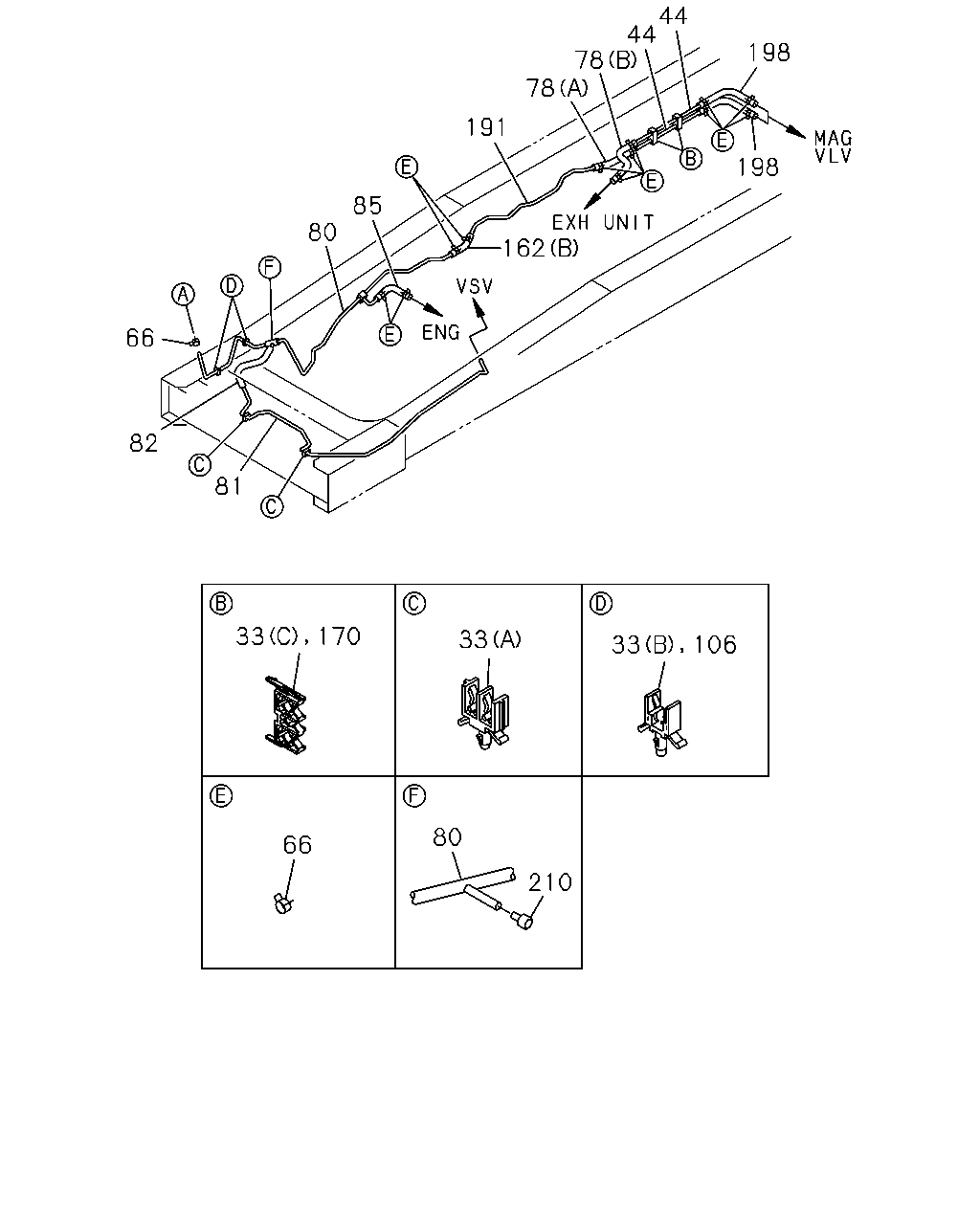

44 44 78 78 198 191 198 85 162 80 66 82 81 33 170 33 33 106 80 66 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	04.930 CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=4.8X2	8-94316-410-0	02	1	0201-0501	●
33	04.930 CLIP; VAC PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=4.8X2	8-94316-410-0	02	1	0502-	●
33	04.930 CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=10 H=40	8-94462-219-0	02	1	0302-0804	●
33	04.930 CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=10 H=40	8-94462-219-0	02	1	0805-	●
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> (B) ID=10 H=40	8-94462-219-0	02	1	0805-		●
33	04.930 CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	03	1	0302-0804	●
33	04.930 CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	03	1	0805-	●	●
33	04.930 CLIP; VAC PIPE 4HF1 ENG(RLS) 04.686 (A) ID=4.8X2	8-94316-410-0	01	1	0502-0504	●
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-97096-972-0	02	1	0201-0804	●
44	04.930 PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-97096-972-0	02	1	0805-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	13	1	0201-0804	●
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	13	1	0805-0911	●
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> ID=16	8-94238-568-0	13	1	0805-0911		●
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	13	1	0912-	●
66	04.930 CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	13	1	0912-		●
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	10	1	0805-0911		●
66	04.930 CLIP; VAC HOSE,M/VAC FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	10	1	0912-		●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0501	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.630 (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0502-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0501	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0502-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98045-768-0	01	1	0805-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0805-		●
80	04.930 PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ>	8-97096-966-3	01	1	0201-0209	●
80	04.930 PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ>	8-97356-592-0	01	1	0210-0501	●
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97356-592-0	01	1	0502-0502	●
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-98010-979-0	01	1	0502-0804	●
80	04.930 PIPE; VAC,ENG SIDE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-98010-979-0	01	1	0805-	●
80	04.930 PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ>	8-98010-979-0	01	1	0805-		●
80	04.930 PIPE; VAC,ENG SIDE 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POWER ASSIST CLUTCH(S2T)	8-97376-072-1	01	1	0805-		●
81	04.930 PIPE; VAC,VSV FRAME STRAIGHT TYPE<7KJ>	8-97096-968-5	01	1	0201-0501	●
81	04.930 PIPE; VAC,VSV 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97096-968-5	01	1	0502-	●
82	04.931 HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0201-0501	●
82	04.931 HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> 08.962 L=160 SERVICED BY L=3000	0-04740-300-0	01	1	0502-0504	●
82	04.931 HOSE; VAC,VSV 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0505-	●
85	04.931 HOSE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ>	8-97091-966-0	01	1	0201-0501	●
85	04.931 HOSE; VAC,ENG SIDE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97091-966-0	01	1	0502-	●
85	04.931 HOSE; VAC,ENG SIDE	8-97239-327-0	01	1	0805-		●
106	04.930 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> ID=10 H=40	8-94462-219-0	02	1	0201-0301	●
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0804	●
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0805-	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0805-		●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (C)	8-97178-658-0	01	1	0201-0501	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (C)	8-98000-392-0	01	1	0502-0804	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (C)	8-98000-392-0	01	1	0805-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97040-991-2	01	1	0201-	●
170	04.930 CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> 04.128 ID=10X2 & 6.4	8-97103-601-0	03	1	0201-0301	●
191	04.685 PIPE; VAC FRAME STRAIGHT TYPE<7KJ>	8-97104-170-4	01	1	0201-0501	●
191	04.685 PIPE; VAC FRAME STRAIGHT TYPE<7KJ>	8-97376-075-0	01	1	0502-0502	●
191	04.685 PIPE; VAC FRAME STRAIGHT TYPE<7KJ>	8-98010-980-1	01	1	0502-0804	●
191	04.685 PIPE; VAC FRAME STRAIGHT TYPE<7KJ>	8-98010-980-1	01	1	0805-	●
191	04.685 PIPE; VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ>	8-98010-980-1	01	1	0805-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV FRAME STRAIGHT TYPE<7KJ> 03.630 L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0201-0804	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV FRAME STRAIGHT TYPE<7KJ> 03.630 L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0805-	●	●
210	04.931 RUBBER; CAP	8-97108-680-0	01	1	0805-		●

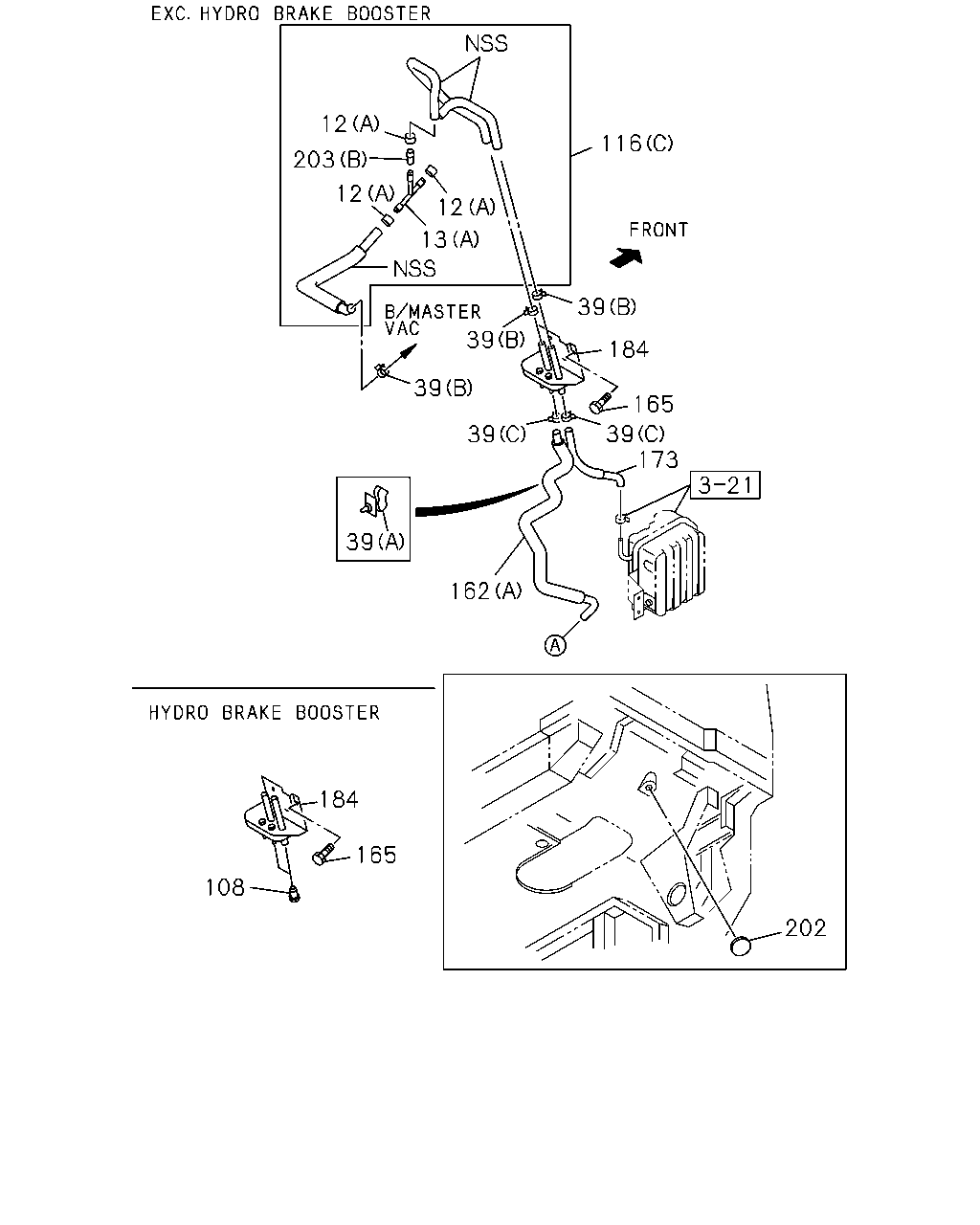

39 116 12 12 39 184 165 39 12 108 12 39 203 162 156 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0201-	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	02	1	0201-	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	02	1	0201-0804	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	02	1	0805-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	0201-	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0201-0804	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0805-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0805-		●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0805-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=25.5	8-97077-492-0	01	1	0805-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	06	1	0201-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	03	1	0201-0804	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=16	5-09707-023-2	01	1	0805-		●
108	04.931 GROMMET; PIPE POWER ASSIST CLUTCH(S2T)	9-09956-353-0	01	1	0805-		●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T)	9-09956-353-0	02	1	0805-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97035-968-0	01	1	0201-0403	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0404-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97314-596-1	01	1	0201-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97314-597-1	01	1	0201-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97147-495-2	01	1	0805-		●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY	8-94167-478-0	01	1	0201-0804	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY	8-94167-478-0	01	1	0805-	●	●
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0804	●
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0805-	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0805-		●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (C)	8-97178-658-0	01	1	0201-0501	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (C)	8-98000-392-0	01	1	0502-0804	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (C)	8-98000-392-0	01	1	0805-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97040-991-2	01	1	0201-	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0201-0512	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-0804	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0805-	●	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0201-0804	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0805-	●	●
203	04.690 VALVE; CHECK (B)	8-94386-540-0	01	1	0201-	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A)	8-94104-021-0	01	1	0201-0804	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A)	8-94104-021-0	01	1	0805-	●	●

12 116 203 12 12 13 39 39 184 39 165 39 173 39 39 162 184 165 108 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0201-	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=14.5	8-94167-480-0	02	1	0201-	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	02	1	0201-0804	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	02	1	0805-	●	●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0201-	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0201-	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	0201-	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0201-0804	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0805-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0805-		●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0805-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=25.5	8-97077-492-0	01	1	0805-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	06	1	0201-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	03	1	0201-0804	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=16	5-09707-023-2	01	1	0805-		●
108	04.931 GROMMET; PIPE POWER ASSIST CLUTCH(S2T)	9-09956-353-0	01	1	0805-		●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T)	9-09956-353-0	02	1	0805-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97035-968-0	01	1	0201-0403	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0404-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97314-596-1	01	1	0201-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97314-597-1	01	1	0201-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97147-495-2	01	1	0805-		●
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0201-0804	●
162	04.931 HOSE; VAC FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0805-	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> 03.630 (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0805-		●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (C)	8-97178-658-0	01	1	0201-0501	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (C)	8-98000-392-0	01	1	0502-0804	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (C)	8-98000-392-0	01	1	0805-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97040-991-2	01	1	0201-	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0201-0512	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-0804	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0805-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0201-	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0201-0804	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0805-	●	●
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0201-0804	●
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0805-	●	●
203	04.690 VALVE; CHECK (B)	8-94386-540-0	01	1	0201-	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A)	8-94104-021-0	01	1	0201-0804	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (A)	8-94104-021-0	01	1	0805-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
