3-58 — FIXING PARTS; OIL PIPING (#19351) — 86 parça

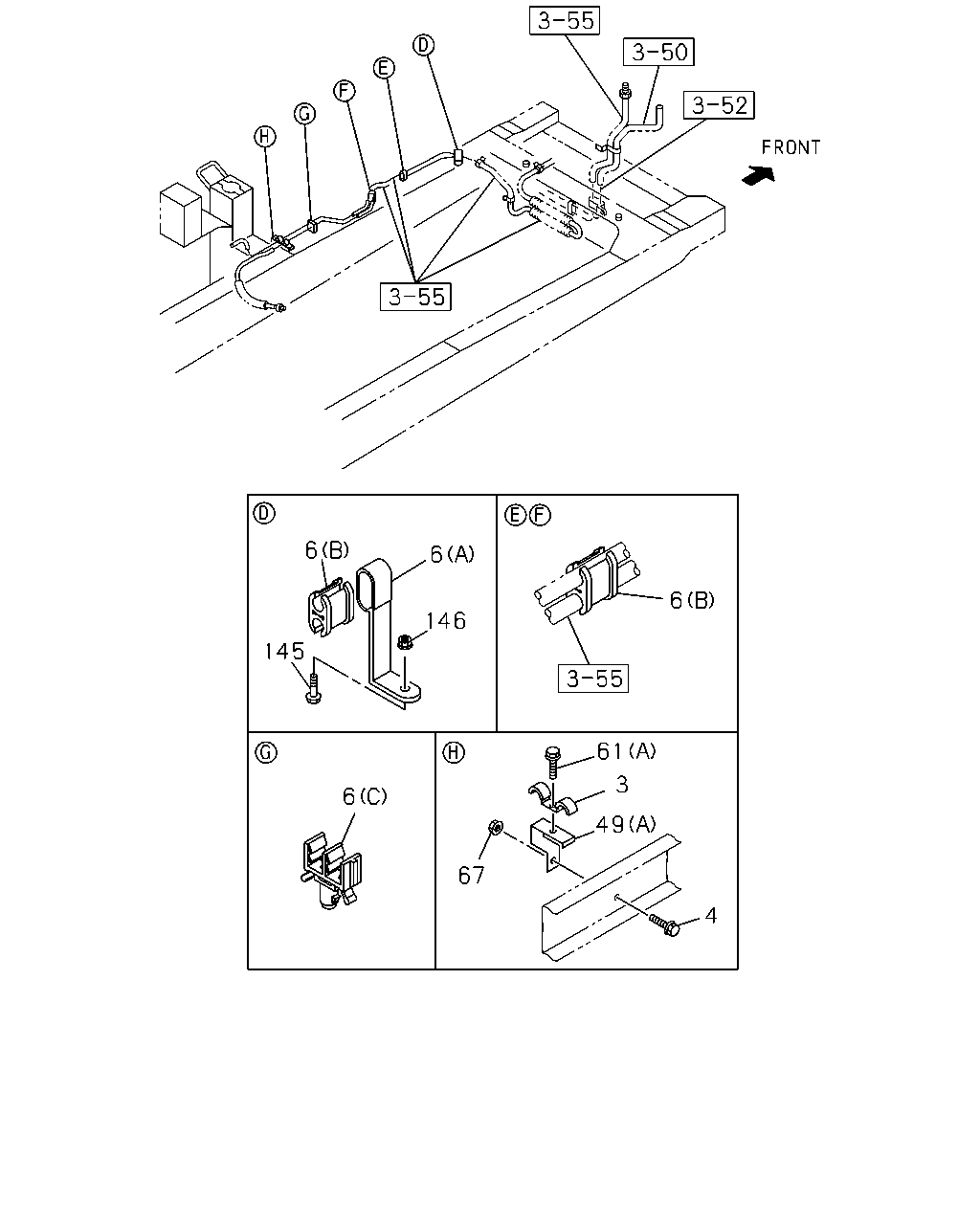

6 6 6 146 145 61 6 49 67 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
3	04.685 CLIP; BRK PIPE 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0805-	●
4	04.686 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0805-	●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0805-	●
6	04.686 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0805-	●
6	04.686 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0805-	●
6	04.686 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0805-	●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0805-	●
49	04.686 BRACKET; BRK PIPE (B)	8-97378-054-0	01	1	0805-	●
61	04.686 BOLT; BRK PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0805-	●
61	04.686 BOLT; BRK PIPE 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0805-	●
67	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	03	1	0805-	●
145	04.686 BOLT; PIPE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0805-	●
145	04.686 BOLT; PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-	●
146	04.686 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-	●

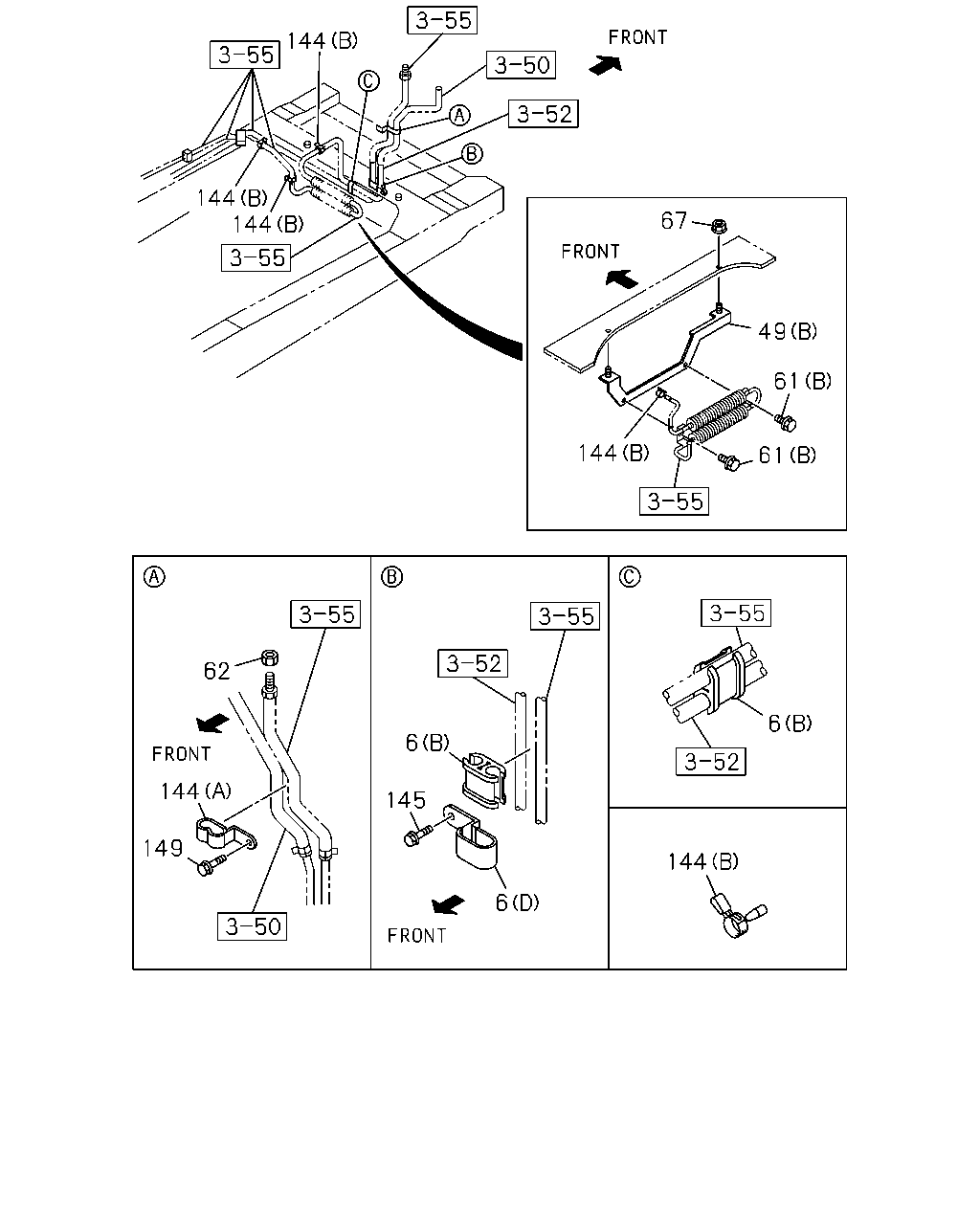

144 144 144 67 49 61 144 61 62 6 6 144 145 149 144 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
6	04.686 CLIP; PIPE 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0805-	●
6	04.686 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0805-	●
6	04.686 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0805-	●
6	04.686 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0805-	●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0805-	●
49	04.686 BRACKET; BRK PIPE (B)	8-97378-054-0	01	1	0805-	●
61	04.686 BOLT; BRK PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0805-	●
61	04.686 BOLT; BRK PIPE 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0805-	●
62	04.686 NUT 06.515 M14	0-91111-514-0	01	1	0805-	●
67	04.686 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	03	1	0805-	●
144	04.686 CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0805-	●
144	04.686 CLIP; HOSE (B) ID=11-19.5	8-94426-597-0	05	1	0805-1005	●
144	04.686 CLIP; HOSE 04.681 (B) ID=11-17	8-98173-762-1	05	1	1006-	●
145	04.686 BOLT; PIPE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0805-	●
145	04.686 BOLT; PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-	●
149	04.686 BOLT; HOSE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0805-	●

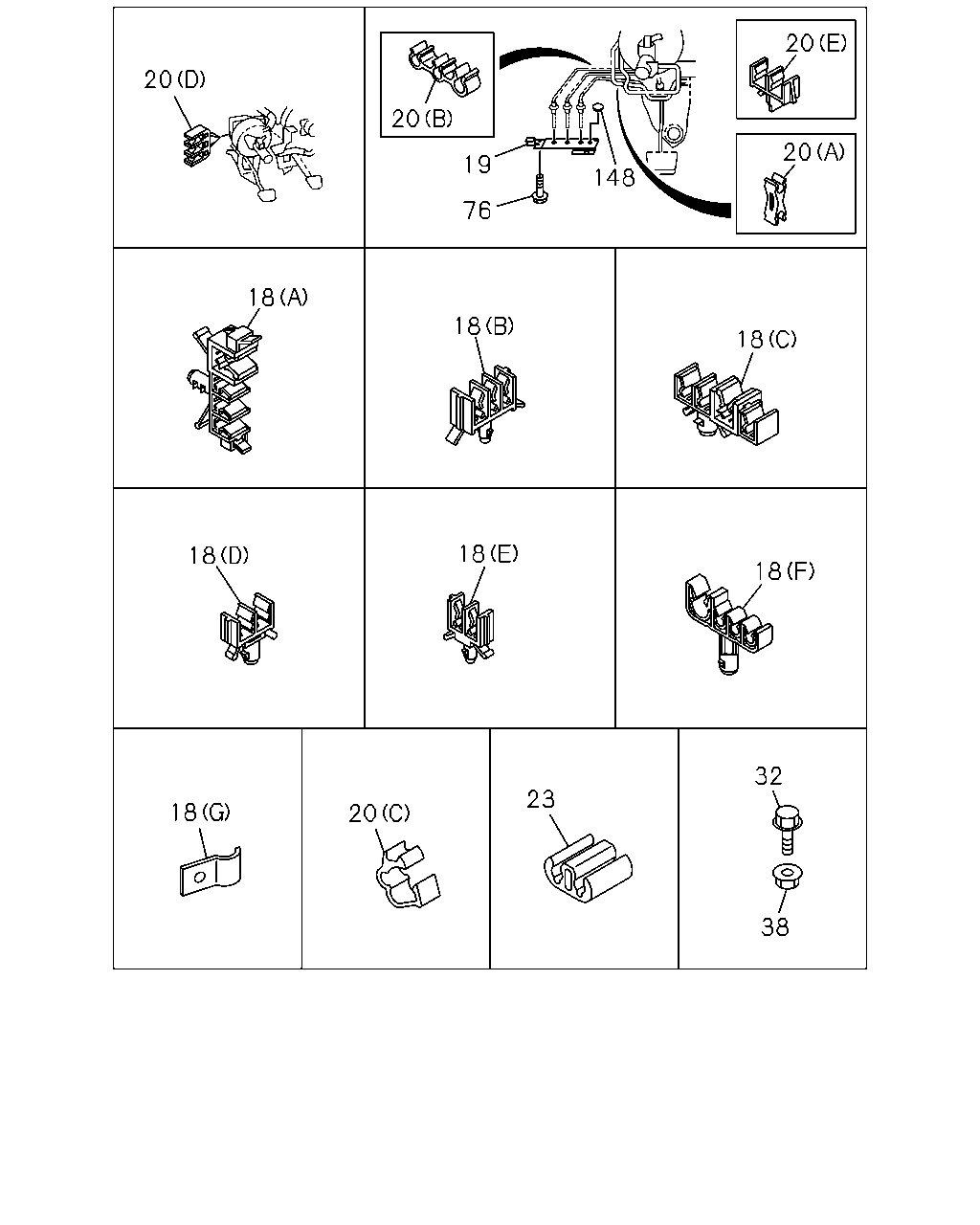

20 20 20 20 148 19 76 18 18 18 18 18 18 32 23 18 20 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	07	1	1006-		●
18	04.686 CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97326-158-1	08	1	1006-	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0302-0804		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0805-	●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 4.76X3	8-97168-819-0	02	1	0302-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	08	1	0302-0501		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	09	1	0502-0804		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	05	1	0805-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0302-0303		●
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0302-0303		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0304-0501		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0304-0501		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0502-0804		●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0502-0804		●
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0805-	●	●
18	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0805-	●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94316-410-0	01	1	0302-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (E) ID=4.8X2	8-94455-816-0	01	1	0302-0804		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94316-410-0	03	1	0805-	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0302-0501		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0302-0501		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0804		●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0502-0804		●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0805-	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0805-	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0805-	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	05	1	0302-0804		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	09	1	0805-1005	●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	01	1	1006-	●	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (E) ID=4.8X2	8-94455-816-0	01	1	0805-	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	03	1	0805-	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (G) B=18 L=20	1-09700-372-0	02	1	0805-	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 4.76X3	8-97168-819-0	01	1	0805-	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0805-	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	05	1	0805-	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) ID=10 & 4.76X3	8-97326-158-1	06	1	0805-	●
19	04.686 BRACKET; OIL PIPE	8-97149-718-2	01	1	0201-0804		●
19	04.686 BRACKET; OIL PIPE	8-97149-718-2	01	1	0805-	●	●
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0201-0501		●
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0502-1303		●
20	04.686 CLIP; BRK PIPE (E) ID=4.8X2	8-94113-470-0	01	1	0201-0804		●
20	04.686 CLIP; BRK PIPE (E) ID=4.8X2	8-94113-470-0	01	1	0805-	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0201-0804		●
20	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0805-	●	●
20	04.686 CLIP; BRK PIPE 04.868 (A) ID=4.6X2	8-94241-454-0	01	1	0201-0804		●
20	04.686 CLIP; BRK PIPE 04.868 (A) ID=4.6X2	8-94241-454-0	01	1	0805-	●	●
20	04.686 CLIP; BRK PIPE (D) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0201-0804		●
20	04.686 CLIP; BRK PIPE (D) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0805-	●	●
23	04.686 CLAMP; PIPE FRAME STRAIGHT TYPE<7KJ> ID=4.8X2	8-94389-060-0	04	1	0805-	●
23	04.686 CLAMP; PIPE FRAME STRAIGHT TYPE<7KJ> ID=4.8X2	8-94389-060-0	01	1	0805-	●
32	04.686 BOLT; CLIP,OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0805-	●
38	04.686 NUT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-	●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0512		●
76	04.686 BOLT; BRKT,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0804		●
76	04.686 BOLT; BRKT,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0805-	●	●
148	04.686 GROMMET 03.483	8-94294-358-0	01	1	0201-		●
