4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#1935) — 56 parça

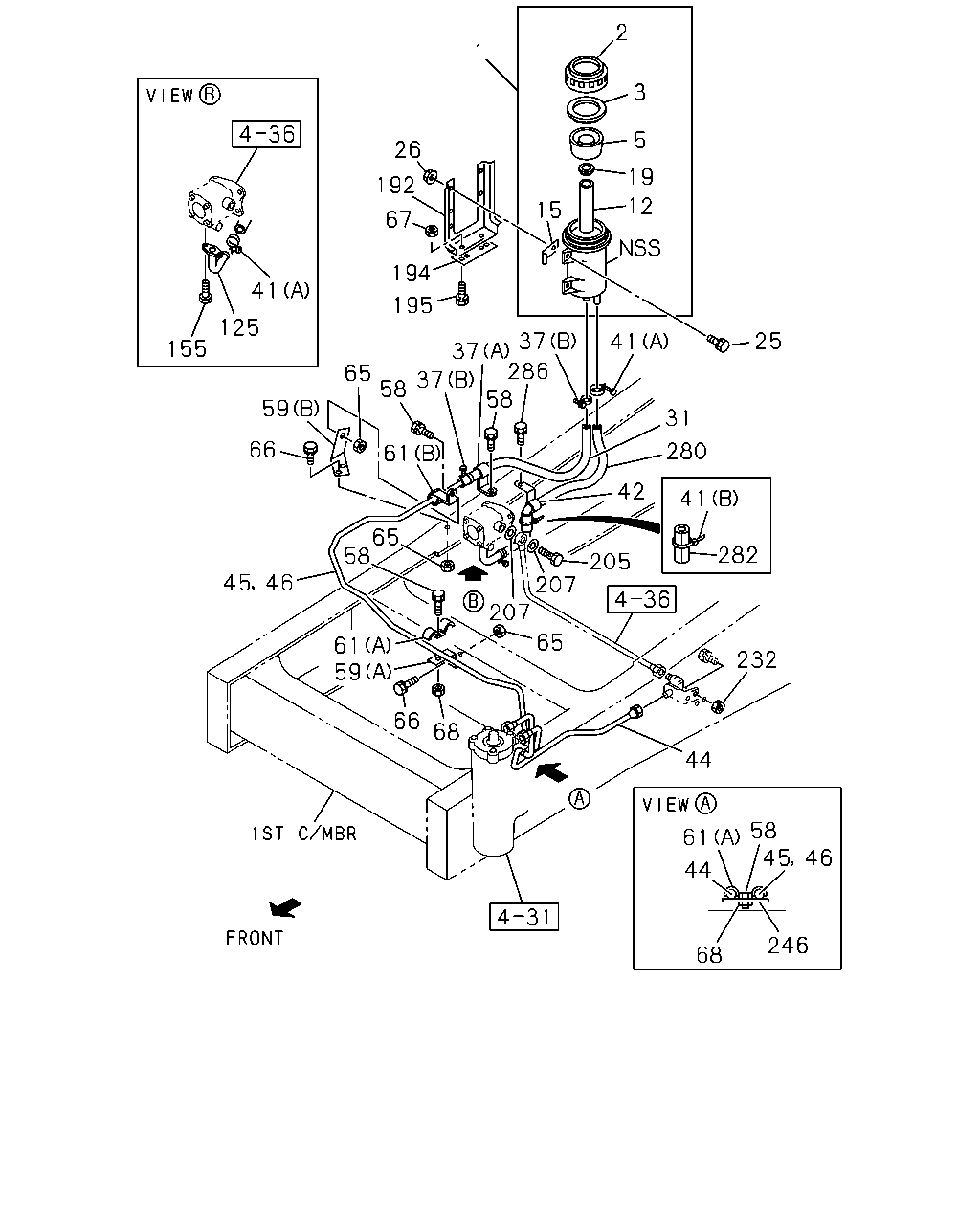

çizim 29624
2 1 3 5 26 19 192 12 15 67 194 41 195 125 25 37 286 41 155 37 65 37 58 58 59 31 66 280 61 42 41 65 58 282 205 45 46 207 207 65 61 59 232 66 68 44 58 45 61 46 44 246 68
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TANK ASM; OIL,P/S 1-21210-152-6 01 1 9207- ● ● ● ●
2 CAP; OIL TANK,P/S 1-21241-004-3 01 1 9207- ● ● ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9207- ● ● ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9207- ● ● ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 9207- ● ● ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 04 1 9207- ● ● ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 9207- ● ● ● ●
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9207- ● ● ● ●
26 NUT; OIL TANK TO BRKT
M8 		9-09110-408-0 04 1 9207- ● ● ● ●
31 HOSE; P/S OIL TANK,INL 1-21112-312-1 01 1 9207- ● ● ● ●
37 CLIP; HOSE,P/S
(A) D=24 L=21 		1-09700-380-0 01 1 9207- ● ●
37 CLIP; HOSE,P/S
(B) ID=26 		1-09704-082-0 02 1 9207- ● ● ● ●
37 CLIP; HOSE,P/S
(A) ID=24 H=60 L=27 		1-09701-004-0 01 1 9207- ● ●
41 CLIP; HOSE,P/S
(B) L=250 		5-09707-030-1 02 1 9207- ● ●
41 CLIP; HOSE,P/S
(A) ID=32 		1-09704-085-0 02 1 9207- ● ● ● ●
42 CLIP; HOSE,P/S 1-09700-823-1 01 1 9207-9306 ● ● ● ●
42 CLIP; HOSE,P/S
ID=30 		1-09701-076-1 01 1 9307- ● ● ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21113-207-0 01 1 9207-9212 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21114-553-0 01 1 9301- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21113-210-0 01 1 9207-9212 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21114-555-0 01 1 9301- ● ●
45 PIPE; OIL,P/S UNIT TO UNION 1-21112-533-2 01 1 9207- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21113-053-0 01 1 9207- ● ●
58 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9207- ● ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9207- ● ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28080-825-0 02 1 9207- ● ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ● ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ●
58 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 02 1 9207- ● ● ● ●
59 BRACKET; CLIP,OIL PIPE
(B) 		1-21119-091-0 01 1 9207- ● ●
59 BRACKET; CLIP,OIL PIPE
(A) L=60 		1-47475-455-0 01 1 9207- ● ● ● ●
61 CLIP; OIL PIPE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 9207- ● ●
61 CLIP; OIL PIPE
(A) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9207- ● ● ● ●
61 CLIP; OIL PIPE
(A) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9207- ● ● ● ●
61 CLIP; OIL PIPE
(A) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9207- ● ●
61 CLIP; OIL PIPE
(B) D=15 L=45 		5-09700-076-0 01 1 9207- ● ●
65 NUT; BRKT
M8 		9-09110-408-0 03 1 9207- ● ●
65 NUT; BRKT
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ● ●
67 NUT; BRKT
M12 		9-99110-512-0 02 1 9207- ● ● ● ●
68 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
125 CONNECTOR; P/S PUMP 1-21122-025-1 01 1 9207- ● ● ● ●
155 BOLT; CONNECTOR
M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9207- ● ● ● ●
192 BRACKET; P/S OIL TANK 1-21119-092-1 01 1 9207- ● ●
192 BRACKET; P/S OIL TANK 1-21119-099-0 01 1 9207- ● ●
194 COLLAR; DIST,BRKT 1-21219-088-0 01 1 9207- ● ●
195 BOLT; BRKT
M12X45 W/LK WASHER 		0-50041-245-0 02 1 9207- ● ●
195 BOLT; BRKT
M12X30 W/LK WASHER 		0-50041-230-0 02 1 9207- ● ●
205 BOLT; EYE,FLEX HOSE,P/S
M18X36 		1-09675-059-0 01 1 9207-9310 ● ● ● ●
205 BOLT; EYE,FLEX HOSE,P/S
M18X36 		1-09675-205-0 01 1 9311- ● ● ● ●
207 GASKET; FLEX HOSE,P/S PUMP
ID=18 		9-09571-418-0 02 1 9207- ● ● ● ●
232 NUT; BRKT
M8 		9-09110-408-0 02 1 9207- ● ● ● ●
246 PLATE; PIPE CLIP
L=50 		1-47475-299-2 01 1 9207- ● ● ● ●
280 HOSE; P/S OIL PUMP,INL 1-21112-311-0 01 1 9207- ● ● ● ●
282 SLEEVE; RUBBER,PIPE
ID=29 OD=39 L=100 		1-09337-022-0 01 1 9207- ● ●
286 BOLT; CLIP,P/S HOSE
M8X20 FLANGE 		0-28080-820-0 01 1 9207- ● ● ● ●
