3-52 — BRAKE PIPING; OIL,FRONT (#19349) — 74 parça

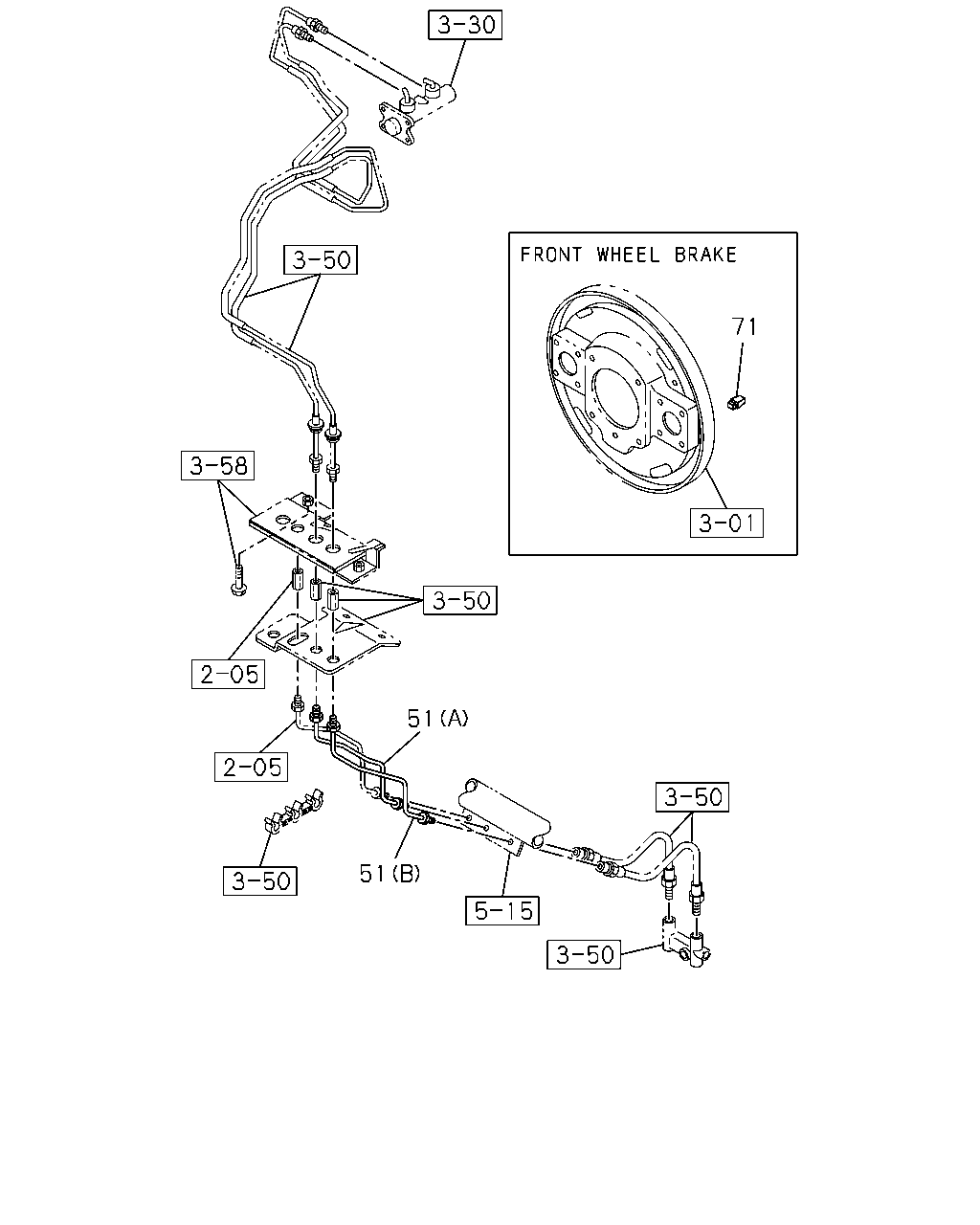

71 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	04.685 PIPE; BRK (B) FRONT	8-97209-514-0	01	1	0201-0804	●
51	04.685 PIPE; BRK (B) FRONT	8-97209-514-0	01	1	0805-	●	●
51	04.685 PIPE; BRK (A) REAR	8-97209-515-0	01	1	0201-0804	●
51	04.685 PIPE; BRK (A) REAR	8-97209-515-0	01	1	0805-	●	●
51	04.685 PIPE; BRK FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-893-0	01	1	0805-		●
71	04.686 GROMMET; OIL PIPE 05.002	8-97044-742-1	02	1	0201-	●

106 107 107 106

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	106	04.686 HOSE; FIN PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ>	8-97386-589-0	01	1	0805-		●
	107	04.686 PIPE; RETURN TO FIN PIPE	8-97385-601-0	01	1	0805-		●

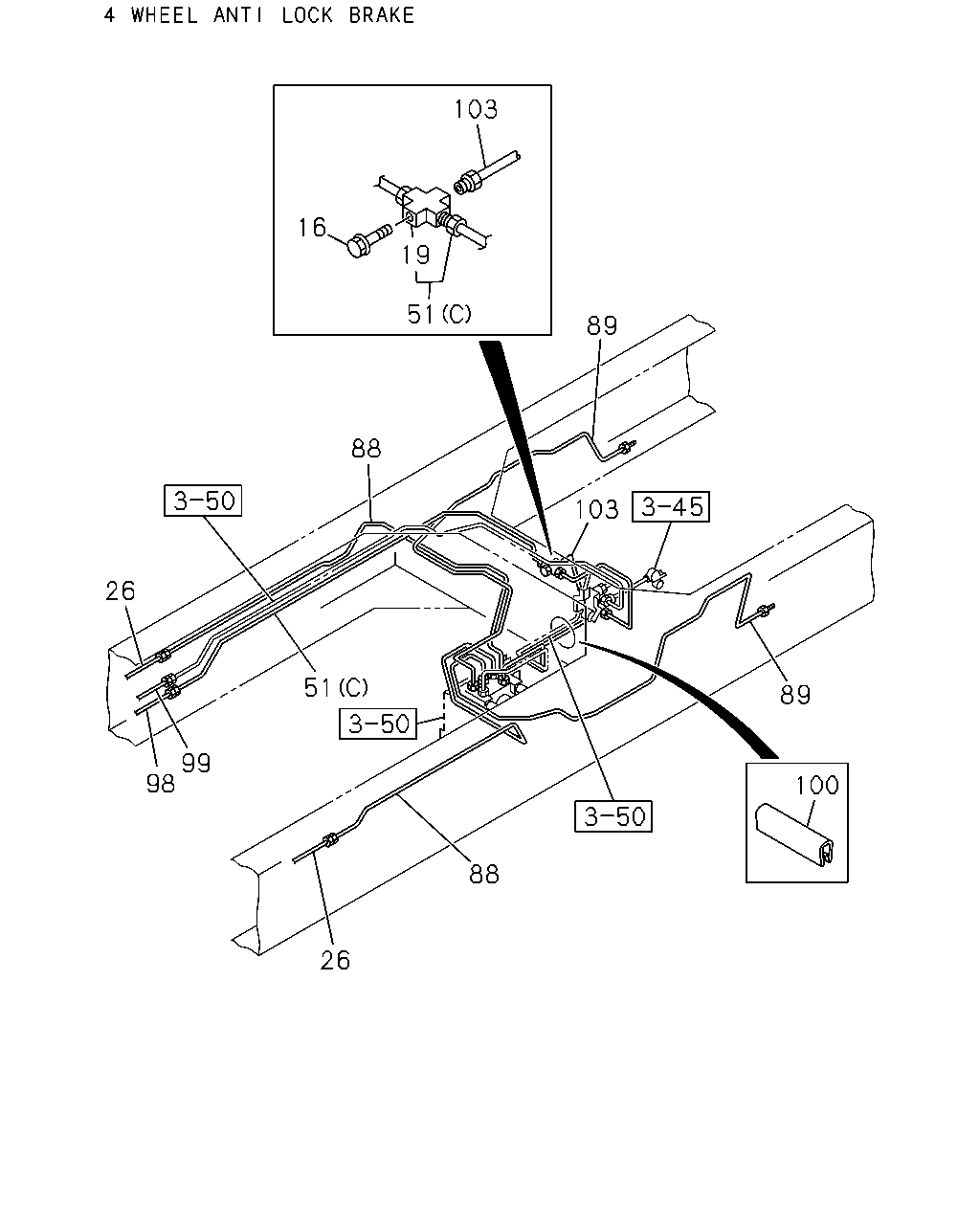

103 16 19 1 89 88 103 26 51 89 99 98 100 88 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0201-0804	●
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0805-	●	●
16	04.686 BOLT; 3 WAY CONNECTOR 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0805-		●
19	04.686 UNION; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 M10 3WAY	9-09227-325-0	01	1	0805-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY	8-98022-073-0	01	1	0805-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY	8-97377-202-1	01	1	0805-		●
51	04.685 PIPE; BRK (B) FRONT	8-97209-514-0	01	1	0201-0804	●
51	04.685 PIPE; BRK (B) FRONT	8-97209-514-0	01	1	0805-	●	●
51	04.685 PIPE; BRK (A) REAR	8-97209-515-0	01	1	0201-0804	●
51	04.685 PIPE; BRK (A) REAR	8-97209-515-0	01	1	0805-	●	●
51	04.685 PIPE; BRK FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-893-0	01	1	0805-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT FRAME STRAIGHT TYPE<7KJ>	8-97247-887-0	01	1	0805-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98010-951-0	01	1	0805-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR FRAME STRAIGHT TYPE<7KJ>	8-97375-586-0	01	1	0805-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR FRAME STRAIGHT TYPE<7KJ>	8-97247-878-2	01	1	0805-		●
98	04.686 PIPE ASM; 4/6 WAY	8-97376-060-0	01	1	0805-		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0201-	●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97376-062-0	01	1	0805-		●
100	04.931 PROTECTOR; EDGE FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0805-		●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI FRAME STRAIGHT TYPE<7KJ>	8-97247-874-0	01	1	0805-		●

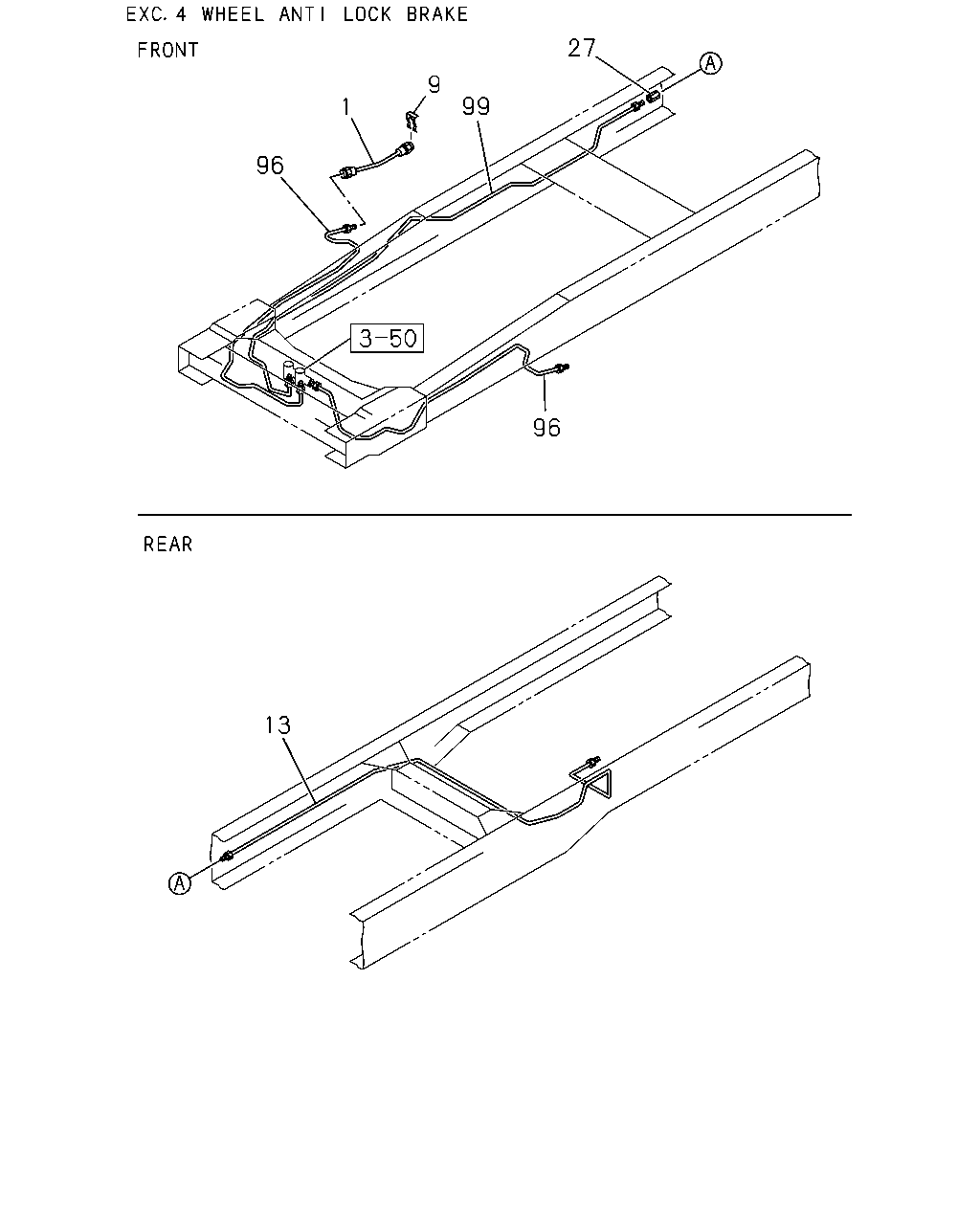

27 9 99 1 96 96 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0201-0804	●
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0805-	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0201-0610	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0201-0610	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-0804	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-0804	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0805-	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0805-	●	●
13	04.685 PIPE; OIL,UNION TO UNION FRAME STRAIGHT TYPE<7KJ>	8-97205-718-0	01	1	0201-	●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 M10 STRAIGHT	9-09227-005-0	01	1	0302-0501	●
27	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	01	1	0201-0301	●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 M10 STRAIGHT	9-09227-005-0	01	1	0502-0607	●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> M10 STRAIGHT	0-92107-005-0	01	1	0608-	●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> M10 STRAIGHT	0-92107-005-0	02	1	0805-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> M10 STRAIGHT	0-92107-005-0	02	1	0805-		●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97096-954-1	01	1	0201-	●
96	04.686 PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ>	8-97096-950-0	01	1	0201-0501	●
96	04.686 PIPE ASM; 6 WAY 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97096-950-0	01	1	0502-	●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0201-	●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97376-062-0	01	1	0805-		●

88 98 99 51 88 26 26 1 9 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0201-0804	●
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0805-	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0201-0610	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0201-0610	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-0804	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-0804	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0805-	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0805-	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY	8-98022-073-0	01	1	0805-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY	8-97377-202-1	01	1	0805-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 M10 STRAIGHT	9-09227-005-0	01	1	0302-0501	●
27	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	01	1	0201-0301	●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 08.963 M10 STRAIGHT	9-09227-005-0	01	1	0502-0607	●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> M10 STRAIGHT	0-92107-005-0	01	1	0608-	●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> M10 STRAIGHT	0-92107-005-0	02	1	0805-		●
27	04.686 UNION; BRK PIPE FRAME STRAIGHT TYPE<7KJ> M10 STRAIGHT	0-92107-005-0	02	1	0805-		●
51	04.685 PIPE; BRK (B) FRONT	8-97209-514-0	01	1	0201-0804	●
51	04.685 PIPE; BRK (B) FRONT	8-97209-514-0	01	1	0805-	●	●
51	04.685 PIPE; BRK (A) REAR	8-97209-515-0	01	1	0201-0804	●
51	04.685 PIPE; BRK (A) REAR	8-97209-515-0	01	1	0805-	●	●
51	04.685 PIPE; BRK FRAME STRAIGHT TYPE<7KJ> (C)	8-97247-893-0	01	1	0805-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT FRAME STRAIGHT TYPE<7KJ>	8-97247-887-0	01	1	0805-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98010-951-0	01	1	0805-		●
98	04.686 PIPE ASM; 4/6 WAY	8-97376-060-0	01	1	0805-		●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97142-709-0	01	1	0201-	●
99	04.686 PIPE ASM; 4/5/6 WAY	8-97376-062-0	01	1	0805-		●
