Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#19348) — 75 parça

130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	04.686 BRACKET; SPEED SENSOR	8-97080-060-2	02	1	0805-	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0512		●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0804		●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0805-	●	●

193 188 181 192 195 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
181	04.686 BOLT; PIPE 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0805-	●
188	04.685 NUT; PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0805-	●
192	04.685 PIPE; PRESSURE	8-98019-835-0	01	1	0805-	●
193	04.685 PIPE; RETURN	8-98011-706-0	01	1	0805-	●
194	04.681 HOSE; CAB TO PIPE	8-97385-615-1	01	1	0805-	●
195	04.681 CLIP; HOSE 04.686 ID=11-19.5	8-94426-597-0	01	1	0805-1005	●
195	04.681 CLIP; HOSE ID=11-17	8-98173-762-1	01	1	1006-	●

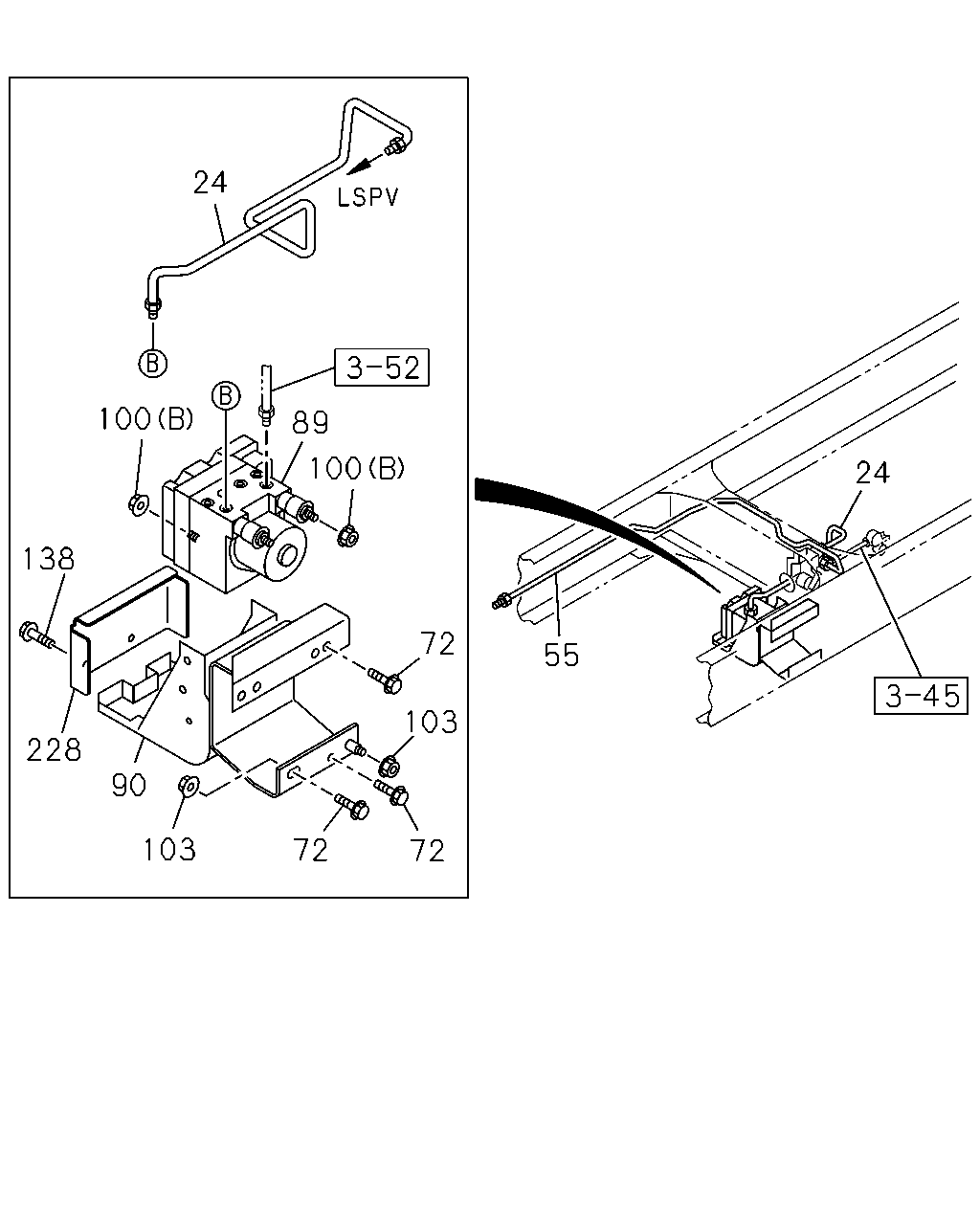

24 100 89 100 24 138 72 55 103 228 90 103 72 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
24	04.685 PIPE; BRK,PROPORTIONING VLV FRAME STRAIGHT TYPE<7KJ>	8-97247-875-1	01	1	0805-	●
55	04.686 PIPE; BRK,VLV TO UNION FRAME STRAIGHT TYPE<7KJ>	8-97247-894-0	01	1	0805-	●
72	04.686 BOLT; BRKT TO BODY 00.029 M10X25 FLANGE	0-28651-025-0	03	1	0805-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98002-693-3	01	1	0805-1006	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98157-972-1	01	1	1007-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS FRAME STRAIGHT TYPE<7KJ>	8-97245-497-4	01	1	0805-	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0805-	●
100	04.730 NUT; HYDRAULIC UNIT 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0805-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0805-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-	●
138	04.720 BOLT; COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0805-	●
228	04.730 COVER; ABS	8-97359-760-0	01	1	0805-	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	55	04.686 PIPE; BRK,VLV TO UNION FRAME STRAIGHT TYPE<7KJ>	8-97247-894-0	01	1	0805-	●

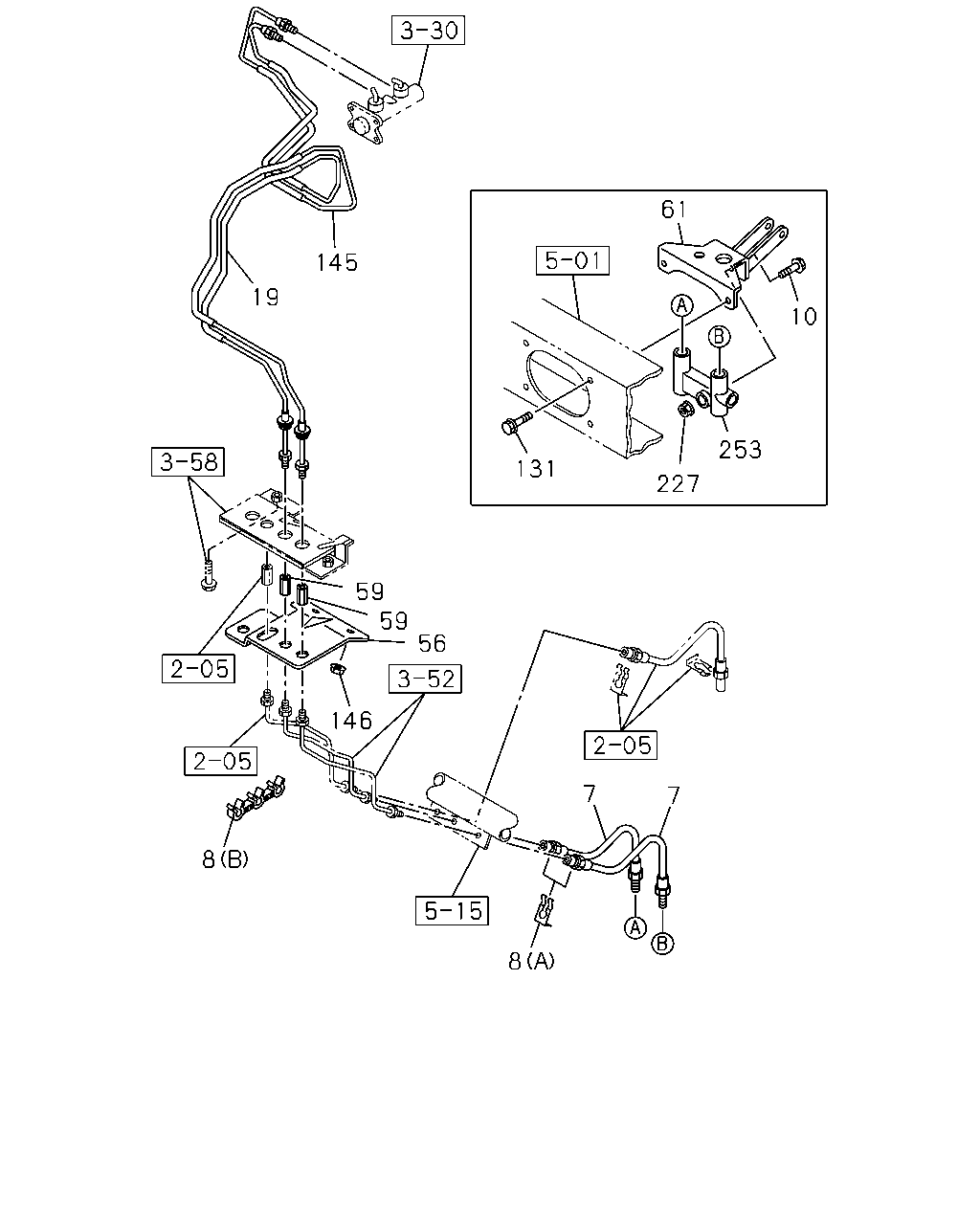

61 145 19 10 253 131 227 59 59 56 146 7 7 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0201-0804		●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0805-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	0201-0610		●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0611-0804		●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0805-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0201-0804		●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0805-	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	0201-0512		●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0601-0804		●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0805-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97314-592-0	01	1	0201-1303		●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97287-278-0	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-98011-701-0	01	1	0805-	●
56	04.686 BRACKET; UNION,BRK	8-97149-604-1	01	1	0201-0804		●
56	04.686 BRACKET; UNION,BRK	8-97149-604-1	01	1	0805-	●	●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	0201-0607		●
59	04.686 UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	0608-0804		●
59	04.686 UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	0805-	●	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97170-632-0	01	1	0201-0804		●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97170-632-0	01	1	0805-	●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0512		●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0804		●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0805-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-585-0	01	1	0201-1303		●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97168-506-1	01	1	1304-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-98019-833-0	01	1	0805-	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0602		●
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0804		●
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-	●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0201-0602		●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0804		●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0805-	●	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	0201-		●
253	04.840 JOINT 04.686	8-97139-922-1	01	1	0805-	●

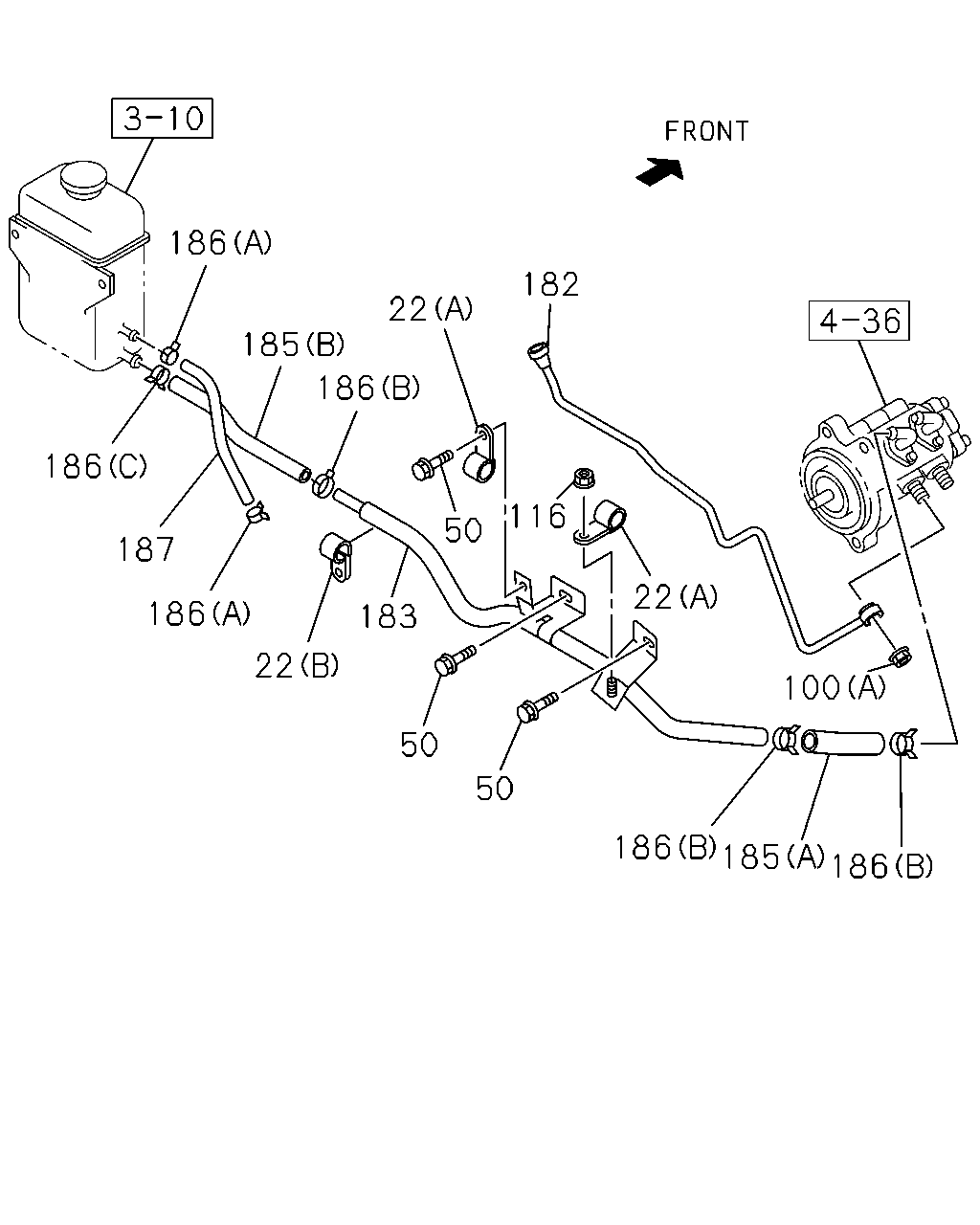

186 182 22 185 186 186 116 50 187 22 186 183 22 100 50 50 186 185 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
22	04.685 CLIP (A) ID=11 L=16	0-95235-025-0	02	1	0805-	●
22	04.685 CLIP (B) ID=19 L=20	0-95235-836-0	01	1	0805-	●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0805-	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0805-	●
100	04.730 NUT; HYDRAULIC UNIT 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0805-	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER	8-97328-692-0	01	1	0805-	●
183	04.685 PIPE; SUCTION	8-97328-693-0	01	1	0805-	●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0805-	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0805-	●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0805-0911	●
186	04.681 CLIP; HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	03	1	0805-0911	●
186	04.681 CLIP; HOSE (B) ID=21	8-98150-355-0	03	1	0912-	●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0805-1003	●
186	04.681 CLIP; HOSE 03.278 (C) ID=22	8-97359-141-0	01	1	1004-	●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0805-	●
