◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50916 - NPR(BUS CHAS)RHD ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#19345) — 26 parça

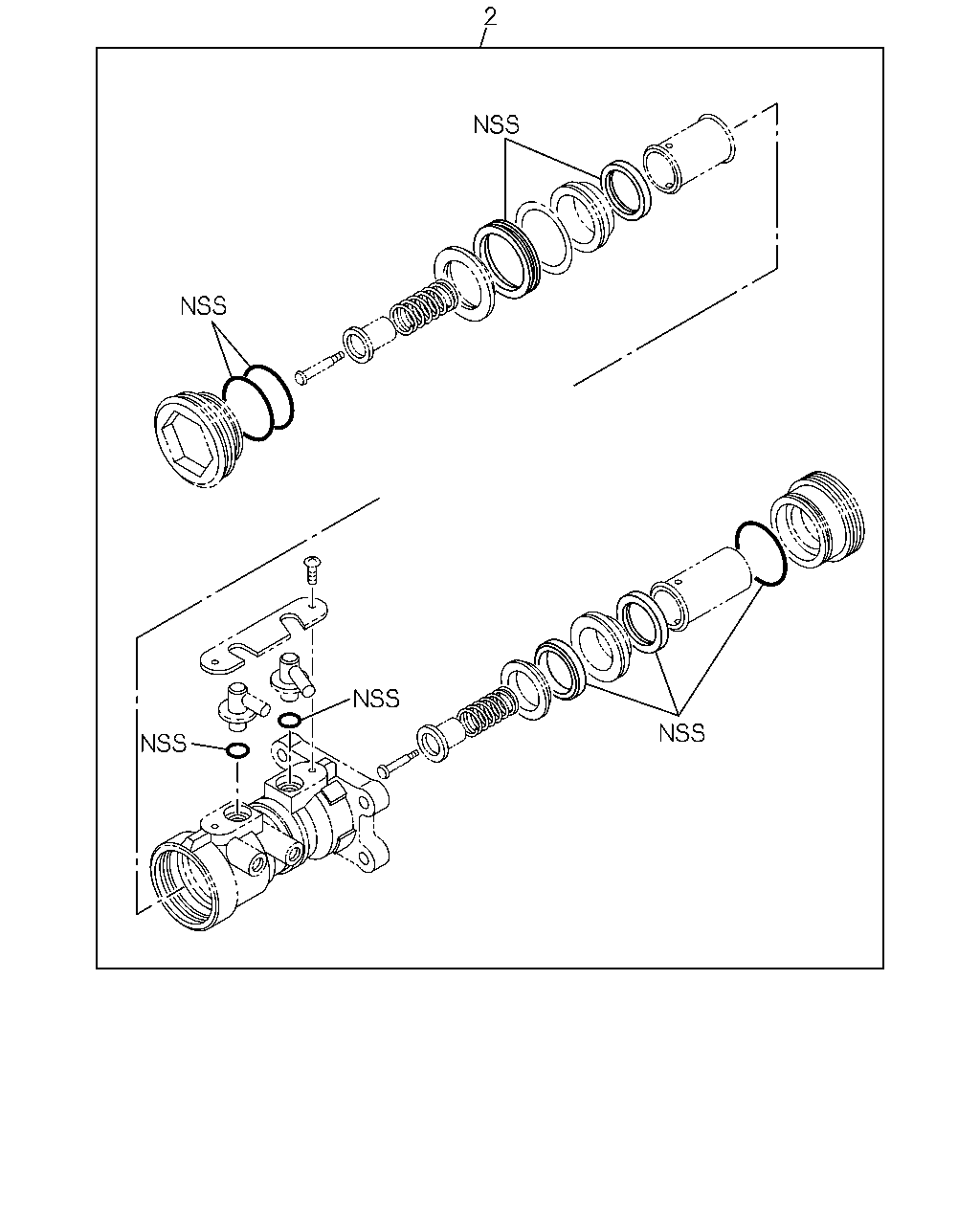

çizim 9290
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 0201- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97254-775-0 01 1 0805- ●

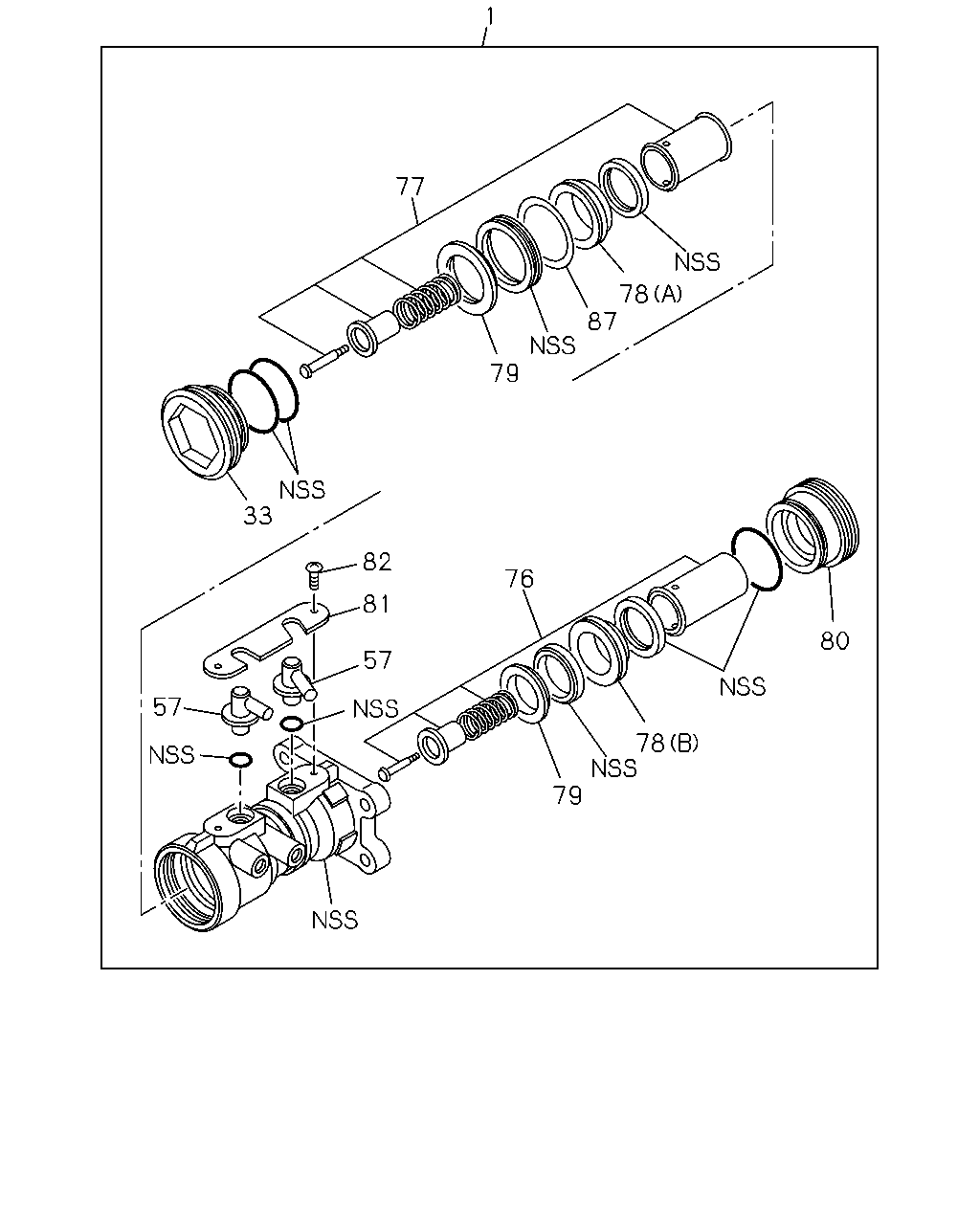

çizim 52268
1 77 78 87 79 33 82 76 81 80 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.650 CYLINDER ASM; BRK MASTER 8-97224-370-0 01 1 0201- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97254-770-0 01 1 0805- ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 0201- ●
33 04.661 PLUG; END,M/CYL 8-97186-699-0 01 1 0805- ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 0201- ●
57 04.651 NIPPLE; BRK M/CYL 8-97130-441-0 02 1 0805- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 0201- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-641-0 01 1 0805- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 0201- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-640-0 01 1 0805- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 0201- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 0201- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97170-695-0 01 1 0805- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97207-685-0 01 1 0805- ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 0201- ●
79 04.651 SUPPORTER; CUP 8-97170-698-0 02 1 0805- ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 0201- ●
80 04.651 COVER; MASTER CYL 8-97170-692-0 01 1 0805- ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 0201- ●
81 04.651 HOLDER; NIPPLE 8-97130-444-0 01 1 0805- ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0201-0804 ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0805- ● ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 0201- ●
87 04.662 SPACER; CUP 8-97170-696-0 01 1 0805- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
