Isuzu WW
▶
TRUCKS
▶
NPR
▶
50916 - NPR(BUS CHAS)RHD
▶
3 - Brakes, Brake System
▶

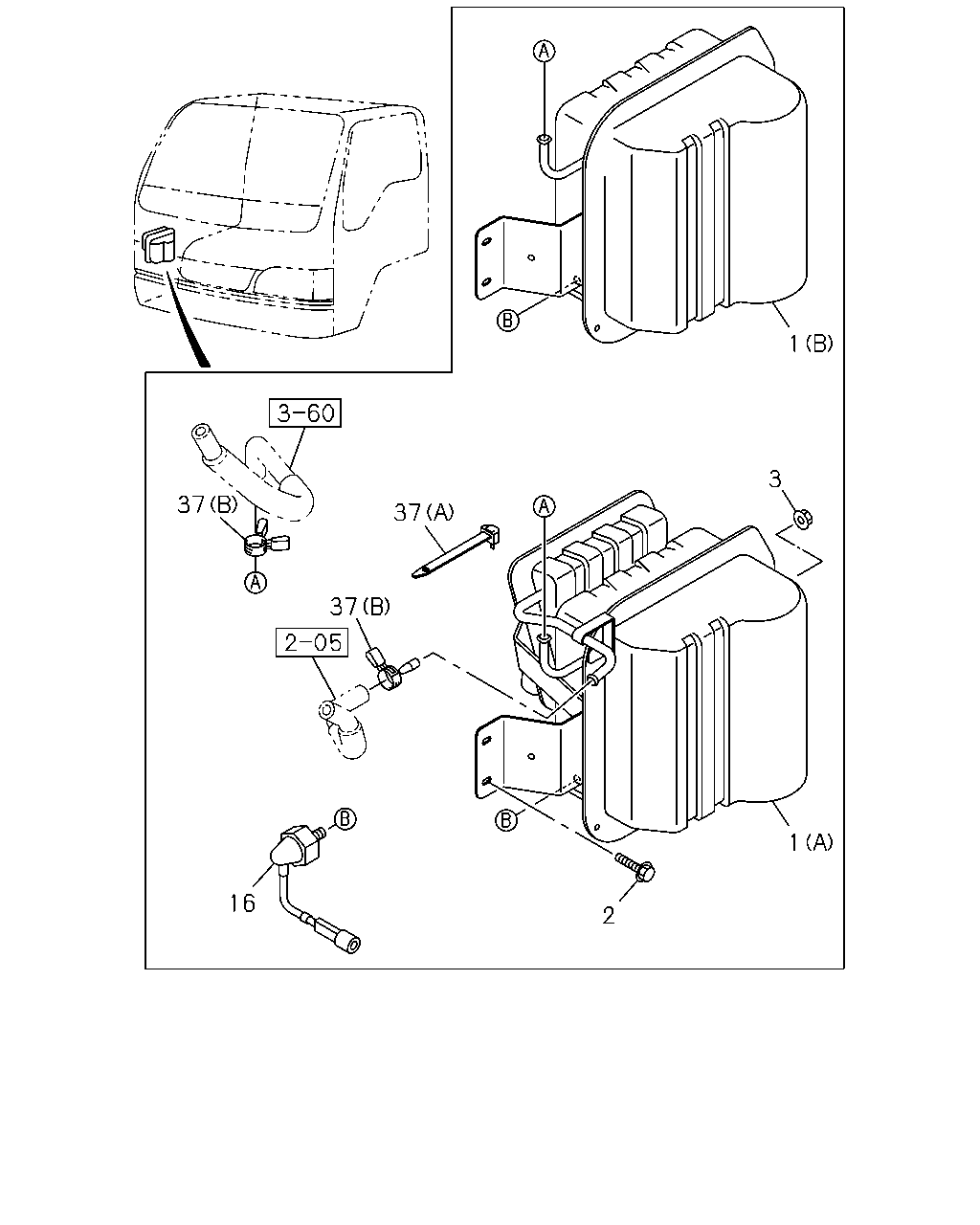

3-21 - VACUUM TANK
▶
3-21 — VACUUM TANK
(#19344) — 35 parça
Tümü
A - NPC5JK
B - NPC5JN
◀
[321A] EXC.HYDRO BRAKE BOOSTER (18 parça)
[321A] HYDRO BRAKE BOOSTER (17 parça)
▶
1
37
3
37
37
1
16
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-97062-399-5
01
1
0201-
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-97073-471-4
01
1
0201-
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-97172-122-1
01
1
0805-
●
2
04.902 BOLT; VAC TANK
02.664 M8X20 FLANGE
0-28680-820-0
02
1
0201-0512
●
2
04.902 BOLT; VAC TANK
01.531 M8X20 FLANGE
0-28650-820-0
02
1
0601-0804
●
2
04.902 BOLT; VAC TANK
01.531 M8X20 FLANGE
0-28650-820-0
02
1
0805-
●
2
04.902 BOLT; VAC TANK
POWER ASSIST CLUTCH(S2T) 01.531 M8X20 FLANGE
0-28650-820-0
02
1
0805-
●
3
04.902 NUT; VAC TANK TO BRKT
07.633 M8 FLANGE
0-91150-108-0
02
1
0201-0212
●
3
04.902 NUT; VAC TANK TO BRKT
07.633 M8 FLANGE
0-91150-108-0
01
1
0301-0602
●
3
04.902 NUT; VAC TANK TO BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0603-0804
●
3
04.902 NUT; VAC TANK TO BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0805-
●
3
04.902 NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE
0-91180-108-0
01
1
0805-
●
16
04.906 SWITCH; VAC
8-97073-374-1
01
1
0201-
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5
1-09987-136-0
01
1
0201-
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16
8-94238-568-0
02
1
0201-
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16
8-94238-568-0
01
1
0201-0804
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16
8-94238-568-0
01
1
0805-
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16
8-94238-568-0
01
1
0805-
●
1
3
37
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A)
8-97062-399-5
01
1
0201-
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-97073-471-4
01
1
0201-
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (C)
8-97172-122-1
01
1
0805-
●
2
04.902 BOLT; VAC TANK
02.664 M8X20 FLANGE
0-28680-820-0
02
1
0201-0512
●
2
04.902 BOLT; VAC TANK
01.531 M8X20 FLANGE
0-28650-820-0
02
1
0601-0804
●
2
04.902 BOLT; VAC TANK
01.531 M8X20 FLANGE
0-28650-820-0
02
1
0805-
●
2
04.902 BOLT; VAC TANK
POWER ASSIST CLUTCH(S2T) 01.531 M8X20 FLANGE
0-28650-820-0
02
1
0805-
●
3
04.902 NUT; VAC TANK TO BRKT
07.633 M8 FLANGE
0-91150-108-0
02
1
0201-0212
●
3
04.902 NUT; VAC TANK TO BRKT
07.633 M8 FLANGE
0-91150-108-0
01
1
0301-0602
●
3
04.902 NUT; VAC TANK TO BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0603-0804
●
3
04.902 NUT; VAC TANK TO BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0805-
●
3
04.902 NUT; VAC TANK TO BRKT
POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE
0-91180-108-0
01
1
0805-
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5
1-09987-136-0
01
1
0201-
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16
8-94238-568-0
02
1
0201-
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16
8-94238-568-0
01
1
0201-0804
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16
8-94238-568-0
01
1
0805-
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16
8-94238-568-0
01
1
0805-
●
