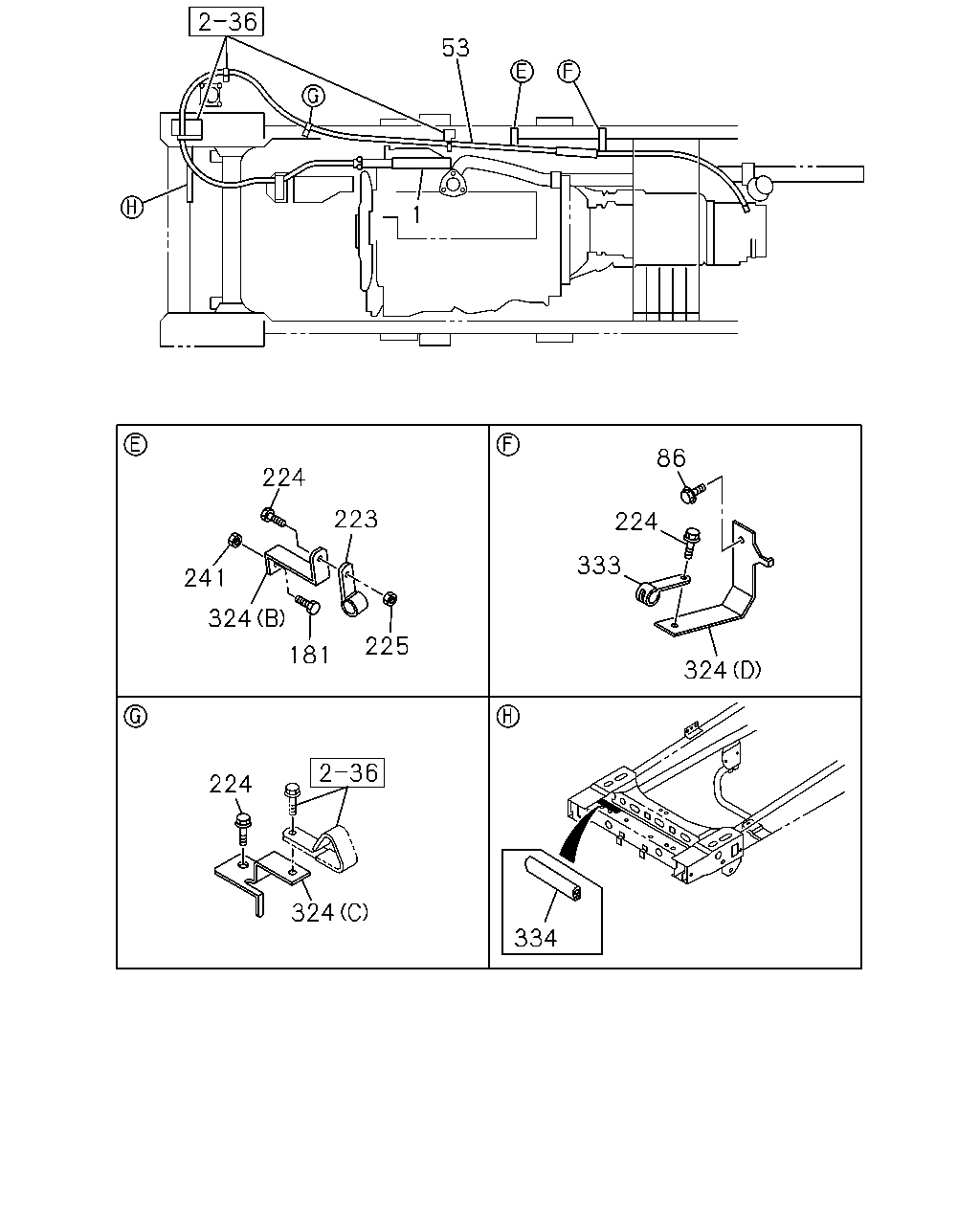

3-11 — PARKING BRAKE CONTROL (#19342) — 112 parça

53 1 86 224 223 224 333 241 324 225 181 324 224 324 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97996-542-2	01	1	0201-0501	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97582-333-2	01	1	0502-0610	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-386-0	01	1	0611-0804	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-386-0	01	1	0805-1305	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97427-545-0	01	1	1306-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98010-843-0	01	1	0805-		●
86	04.785 BOLT 00.029 M10X16 FLANGE	0-28151-016-0	01	1	0805-		●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0201-0512	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-0804	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0805-	●	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 01.531 ID=16 L=28	9-09525-556-0	01	1	0201-0606	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 06.672 ID=16 L=28	0-95235-556-0	01	1	0607-0804	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 06.672 ID=16 L=28	0-95235-556-0	01	1	0805-	●	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0512	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0804	●
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-	●	●
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-		●
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-		●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0602	●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0804	●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-	●	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0501	●
241	04.785 NUT; BRKT M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
241	04.785 NUT; BRKT M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0201-0602	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0804	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0805-	●	●
324	04.785 BRACKET (A)	8-97103-822-1	01	1	0201-	●
324	04.785 BRACKET (B)	8-97188-151-0	01	1	0805-		●
324	04.785 BRACKET (D)	8-97307-874-0	01	1	0805-		●
324	04.785 BRACKET (C)	8-98012-620-1	01	1	0805-		●
333	04.785 CLIP; CABLE ID=11 L=60	0-95235-096-0	01	1	0805-		●
334	04.785 PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0201-0804	●
334	04.785 PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0805-	●	●

49 1 237 224 236 223 85 241 235 238 324 225 181 241 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97996-542-2	01	1	0201-0501	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97582-333-2	01	1	0502-0610	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-386-0	01	1	0611-0804	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-386-0	01	1	0805-1305	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97427-545-0	01	1	1306-	●	●
49	04.779 CABLE; PARKING BRK FRAME STRAIGHT TYPE<7KJ>	8-97215-433-0	01	1	0201-0301	●
49	04.779 CABLE; PARKING BRK M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ>	8-97350-534-0	01	1	0302-0501	●
49	04.779 CABLE; PARKING BRK 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ>	8-97350-534-0	01	1	0502-	●
85	04.785 CLIP; BRKT FRAME STRAIGHT TYPE<7KJ> ID=12 L=70	1-09700-097-1	01	1	0201-0501	●
85	04.785 CLIP; BRKT M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> ID=12 L=70	1-09700-097-1	01	1	0502-	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0201-0512	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-0804	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0805-	●	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 01.531 ID=16 L=28	9-09525-556-0	01	1	0201-0606	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 06.672 ID=16 L=28	0-95235-556-0	01	1	0607-0804	●
223	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> 06.672 ID=16 L=28	0-95235-556-0	01	1	0805-	●	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0512	●
224	04.785 BOLT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0804	●
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-	●	●
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-		●
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-		●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0602	●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0804	●
225	04.785 NUT; CABLE CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ>	8-97148-597-3	01	1	0201-0301	●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ>	8-97325-052-0	01	1	0302-0501	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ>	8-97325-052-0	01	1	0502-	●
236	04.785 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0201-0501	●
236	04.785 BOLT; BRKT TO FRAME M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0502-0512	●
236	04.785 BOLT; BRKT TO FRAME M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0601-	●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0201-0501	●
237	04.785 NUT; BRKT TO FRAME M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0502-0602	●
237	04.785 NUT; BRKT TO FRAME M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0501	●
238	04.785 BOLT; CLIP TO BRKT M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●
238	04.785 BOLT; CLIP TO BRKT M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0501	●
241	04.785 NUT; BRKT M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
241	04.785 NUT; BRKT M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	01	1	0201-0602	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0804	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0805-	●	●
324	04.785 BRACKET (A)	8-97103-822-1	01	1	0201-	●
324	04.785 BRACKET (B)	8-97188-151-0	01	1	0805-		●
324	04.785 BRACKET (D)	8-97307-874-0	01	1	0805-		●
324	04.785 BRACKET (C)	8-98012-620-1	01	1	0805-		●
334	04.785 PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0201-0804	●
334	04.785 PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0805-	●	●

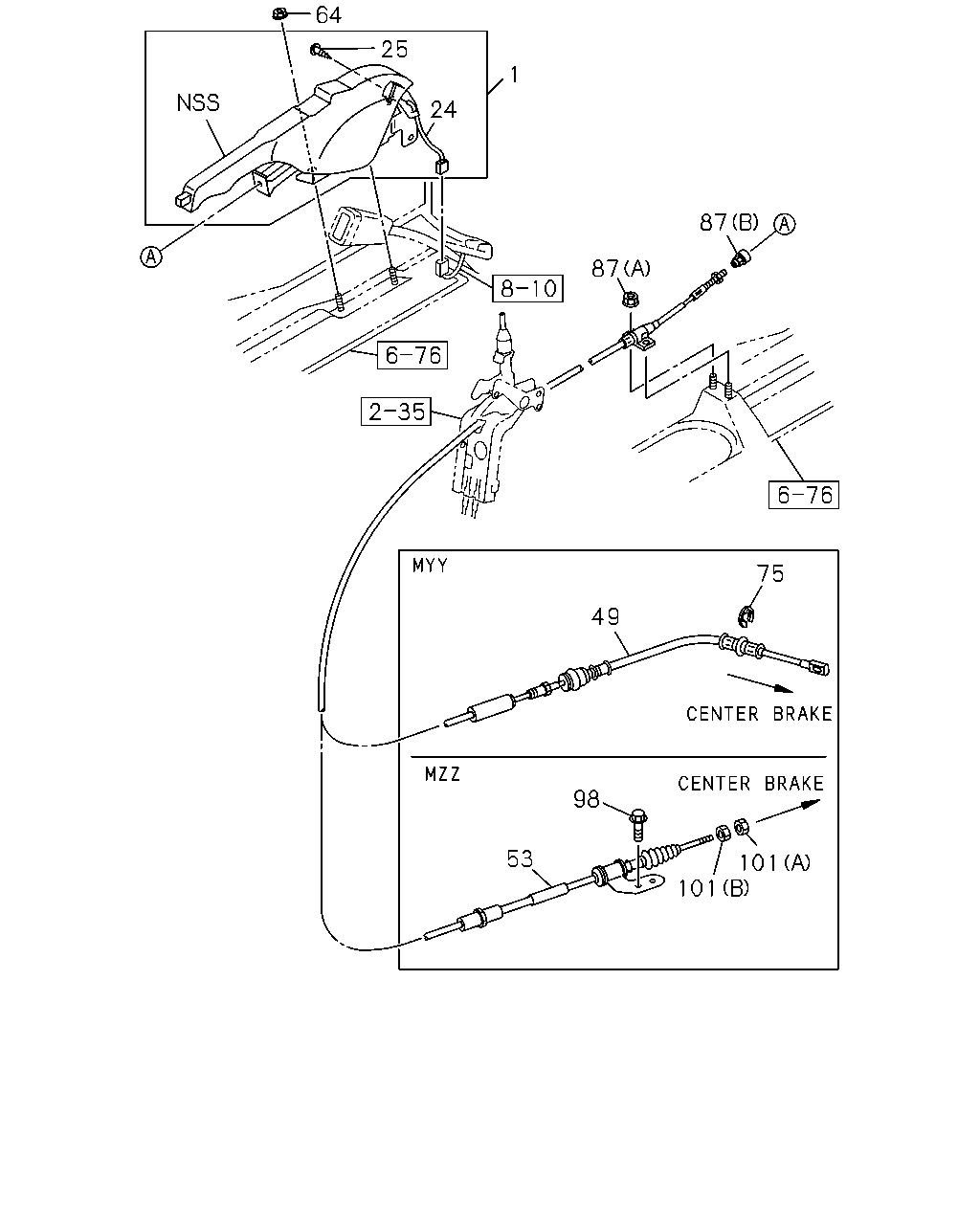

64 25 1 24 87 87 75 49 98 53 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97996-542-2	01	1	0201-0501	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97582-333-2	01	1	0502-0610	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-386-0	01	1	0611-0804	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-386-0	01	1	0805-1305	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97427-545-0	01	1	1306-	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0201-0804	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0805-1305	●	●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1306-	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0201-0804	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0805-	●	●
49	04.779 CABLE; PARKING BRK FRAME STRAIGHT TYPE<7KJ>	8-97215-433-0	01	1	0201-0301	●
49	04.779 CABLE; PARKING BRK M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ>	8-97350-534-0	01	1	0302-0501	●
49	04.779 CABLE; PARKING BRK 4HF1 ENG(RLS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ>	8-97350-534-0	01	1	0502-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98010-843-0	01	1	0805-		●
64	04.595 NUT; PARKING BRK 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0201-0610	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0611-0804	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0805-	●	●
75	04.790 RING; SNAP,HAND BRK CABLE 04.681 ID=12	9-09185-412-0	01	1	0201-0501	●
75	04.790 RING; SNAP,HAND BRK CABLE 4HF1 ENG(RLS) 04.681 ID=12	9-09185-412-0	01	1	0502-0604	●
75	04.790 RING; SNAP,HAND BRK CABLE 4HF1 ENG(RLS) ID=12	0-91805-512-0	01	1	0605-	●
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0602	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0804	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0805-	●	●
87	04.785 NUT (B) M6	8-97088-730-1	01	1	0201-0310	●
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0311-0611	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-0804	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0805-	●	●
98	04.785 BOLT; RR COVER 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0805-		●
101	04.785 NUT; CABLE TO LEVER 02.334 (A) M8	0-91110-508-0	01	1	0805-		●
101	04.785 NUT; CABLE TO LEVER (B) M8 FLANGE	9-46259-016-0	01	1	0805-		●
