3-10 — BRAKE PEDAL AND CONTROL (#19341) — 146 parça

43 44 46 163 200 199 185 199 48 203 200 197 98 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	04.651 TANK ASM; OIL (A)	8-97179-813-1	01	1	0201-0501	●
43	04.651 TANK ASM; OIL M/T MYY5T(RSM) (A)	8-97179-813-1	01	1	0502-0804	●
43	04.651 TANK ASM; OIL (A)	8-97179-813-1	01	1	0805-	●	●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0805-		●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0201-0501	●
44	04.651 CAP; OIL TANK M/T MYY5T(RSM) (A)	8-97178-291-1	01	1	0502-0804	●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0805-	●	●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0805-		●
46	04.651 FILTER; RESERVOIR,BRK 06.600	8-97094-732-0	01	1	0805-		●
48	04.651 BOLT; OIL TANK TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0805-		●
98	04.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-		●
163	04.651 COVER; OIL TANK	8-97164-749-1	01	1	0805-		●
185	04.634 BOLT; BRKT 09.003 (A) M10X25 FLANGE	0-28691-025-0	02	1	0201-0512	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-0804	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0805-	●	●
185	04.634 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0805-		●
197	04.634 BRACKET; OIL TANK (A)	8-97173-342-2	01	1	0805-		●
197	04.634 BRACKET; OIL TANK (B)	8-97333-555-2	01	1	0805-		●
199	04.634 BOLT; OIL TANK BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0805-		●
200	04.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-		●
200	04.634 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-		●
203	04.634 WASHER; PL,OIL TANK 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0805-		●

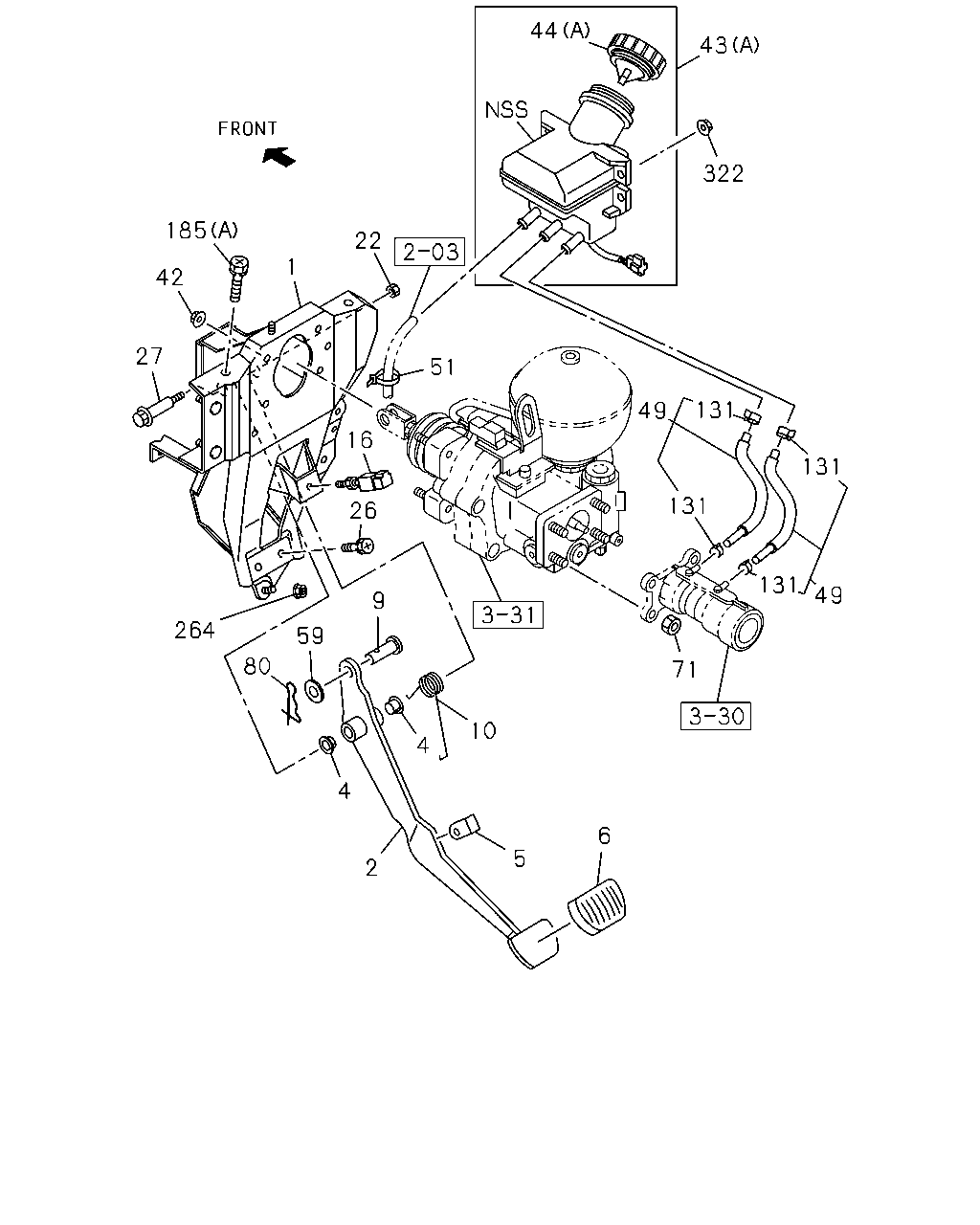

44 43 322 185 22 1 42 27 49 131 51 16 131 131 26 131 49 9 264 10 59 71 80 4 4 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.634 BRACKET ASM; PEDAL	8-97896-968-5	01	1	0201-0804	●
1	04.634 BRACKET ASM; PEDAL	8-97896-968-5	01	1	0805-	●	●
2	04.625 PEDAL; BRK	8-97853-210-3	02	1	0502-	●
2	04.625 PEDAL; BRK	8-97867-871-3	02	1	0805-		●
2	04.625 PEDAL; BRK	8-97853-210-3	01	1	0201-0501	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	0201-0804	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	0805-	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	0201-0804	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	0805-	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	0502-0804	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	0805-	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	0201-0501	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	0201-0804	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	0805-1406	●	●
9	04.634 PIN; JAW JOINT 00.833	8-97359-812-0	01	1	1407-	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0502-0804	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0805-	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0201-0501	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	0502-0804	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	0805-	●	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	0201-0501	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	0201-0804	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	0805-	●	●
26	04.634 BOLT; PEDAL 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	0201-0804	●
26	04.634 BOLT; PEDAL 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	0805-	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	0201-0804	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	0805-	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0201-0804	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0805-	●	●
43	04.651 TANK ASM; OIL (A)	8-97179-813-1	01	1	0201-0501	●
43	04.651 TANK ASM; OIL M/T MYY5T(RSM) (A)	8-97179-813-1	01	1	0502-0804	●
43	04.651 TANK ASM; OIL (A)	8-97179-813-1	01	1	0805-	●	●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0805-		●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0201-0501	●
44	04.651 CAP; OIL TANK M/T MYY5T(RSM) (A)	8-97178-291-1	01	1	0502-0804	●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0805-	●	●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0805-		●
49	04.680 HOSE; OIL TANK TO BRK M/CYL	8-97129-583-0	02	1	0201-0804	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL	8-97129-583-0	02	1	0805-	●	●
51	04.681 CLIP; HOSE,OIL TANK 03.162 L=140	5-09707-031-1	01	1	0201-0501	●
51	04.681 CLIP; HOSE,OIL TANK M/T MYY5T(RSM) 03.162 L=140	5-09707-031-1	01	1	0502-0804	●
51	04.681 CLIP; HOSE,OIL TANK M/T MYY5T(RSM) 03.162 L=140	5-09707-031-1	01	1	0805-	●
51	04.681 CLIP; HOSE,OIL TANK M/T MZZ6U(RSF) 03.162 L=140	5-09707-031-1	01	1	0805-		●
59	04.634 WASHER; PL,JAW JOINT 02.575 ID=15	9-09160-514-0	01	1	0201-0605	●
59	04.634 WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	0606-0804	●
59	04.634 WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	0805-	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0201-0804	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0805-	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0201-0804	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0805-	●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-97130-480-0	04	1	0201-0804	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-97130-480-0	04	1	0805-	●	●
185	04.634 BOLT; BRKT 09.003 (A) M10X25 FLANGE	0-28691-025-0	02	1	0201-0512	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-0804	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0805-	●	●
185	04.634 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0805-		●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 04.010 M8 FLANGE	8-97046-127-0	01	1	0201-0610	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	0611-0804	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	0805-	●	●
322	04.651 NUT; OIL TANK 04.594 M6 FLANGE	0-91150-106-0	02	1	0201-0602	●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-0804	●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	02	1	0805-	●	●

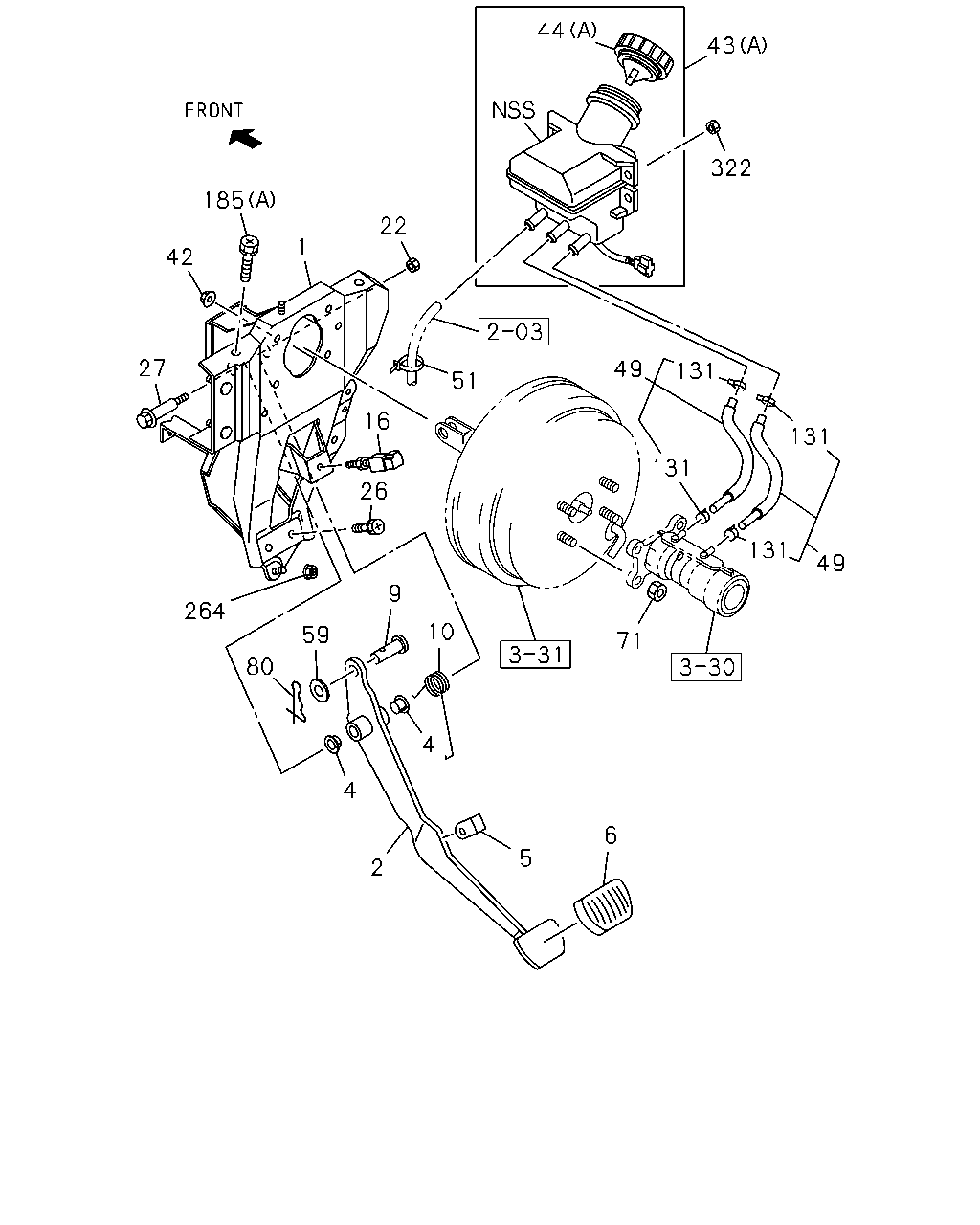

44 43 322 185 22 1 42 27 51 131 49 16 131 131 26 131 49 9 264 59 80 71 10 4 4 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.634 BRACKET ASM; PEDAL	8-97896-968-5	01	1	0201-0804	●
1	04.634 BRACKET ASM; PEDAL	8-97896-968-5	01	1	0805-	●	●
2	04.625 PEDAL; BRK	8-97853-210-3	02	1	0502-	●
2	04.625 PEDAL; BRK	8-97867-871-3	02	1	0805-		●
2	04.625 PEDAL; BRK	8-97853-210-3	01	1	0201-0501	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	0201-0804	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	0805-	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	0201-0804	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	0805-	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	0502-0804	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	0805-	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	0201-0501	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	0201-0804	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	0805-1406	●	●
9	04.634 PIN; JAW JOINT 00.833	8-97359-812-0	01	1	1407-	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0502-0804	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0805-	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0201-0501	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	0502-0804	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	0805-	●	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	0201-0501	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	0201-0804	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	0805-	●	●
26	04.634 BOLT; PEDAL 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	0201-0804	●
26	04.634 BOLT; PEDAL 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	0805-	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	0201-0804	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	0805-	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0201-0804	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0805-	●	●
43	04.651 TANK ASM; OIL (A)	8-97179-813-1	01	1	0201-0501	●
43	04.651 TANK ASM; OIL M/T MYY5T(RSM) (A)	8-97179-813-1	01	1	0502-0804	●
43	04.651 TANK ASM; OIL (A)	8-97179-813-1	01	1	0805-	●	●
43	04.651 TANK ASM; OIL (B)	8-97306-217-0	01	1	0805-		●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0201-0501	●
44	04.651 CAP; OIL TANK M/T MYY5T(RSM) (A)	8-97178-291-1	01	1	0502-0804	●
44	04.651 CAP; OIL TANK (A)	8-97178-291-1	01	1	0805-	●	●
44	04.651 CAP; OIL TANK 06.635 (B)	8-94146-153-2	01	1	0805-		●
49	04.680 HOSE; OIL TANK TO BRK M/CYL	8-97129-583-0	02	1	0201-0804	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL	8-97129-583-0	02	1	0805-	●	●
51	04.681 CLIP; HOSE,OIL TANK 03.162 L=140	5-09707-031-1	01	1	0201-0501	●
51	04.681 CLIP; HOSE,OIL TANK M/T MYY5T(RSM) 03.162 L=140	5-09707-031-1	01	1	0502-0804	●
51	04.681 CLIP; HOSE,OIL TANK M/T MYY5T(RSM) 03.162 L=140	5-09707-031-1	01	1	0805-	●
51	04.681 CLIP; HOSE,OIL TANK M/T MZZ6U(RSF) 03.162 L=140	5-09707-031-1	01	1	0805-		●
59	04.634 WASHER; PL,JAW JOINT 02.575 ID=15	9-09160-514-0	01	1	0201-0605	●
59	04.634 WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	0606-0804	●
59	04.634 WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	0805-	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0201-0804	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	0805-	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0201-0804	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0805-	●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-97130-480-0	04	1	0201-0804	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-97130-480-0	04	1	0805-	●	●
185	04.634 BOLT; BRKT 09.003 (A) M10X25 FLANGE	0-28691-025-0	02	1	0201-0512	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0601-0804	●
185	04.634 BOLT; BRKT 07.833 (A) M10X25 FLANGE	0-28661-025-0	02	1	0805-	●	●
185	04.634 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0805-		●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 04.010 M8 FLANGE	8-97046-127-0	01	1	0201-0610	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	0611-0804	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	0805-	●	●
322	04.651 NUT; OIL TANK 04.594 M6 FLANGE	0-91150-106-0	02	1	0201-0602	●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-0804	●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	02	1	0805-	●	●
