3-08 — PARKING BRAKE (#19340) — 80 parça

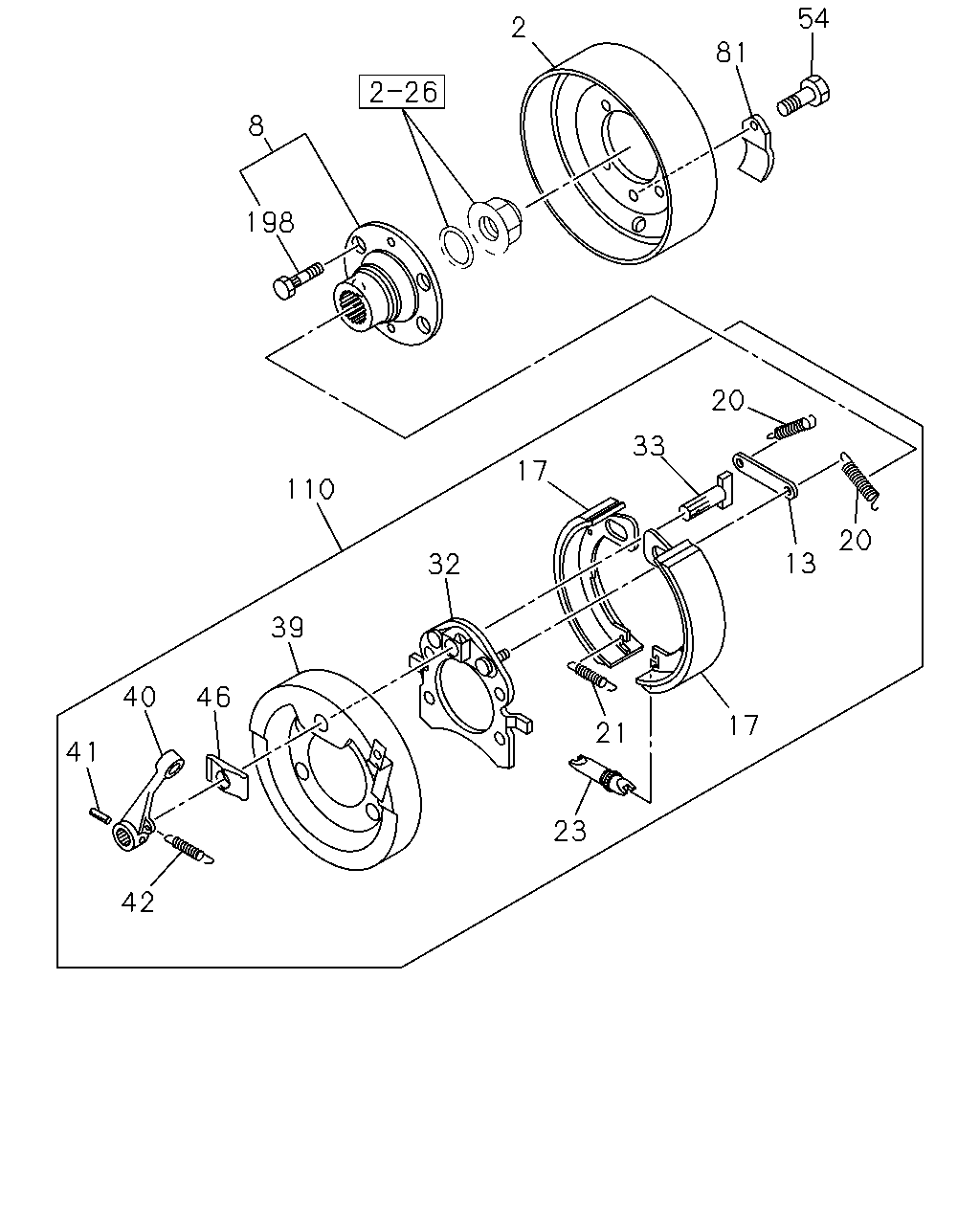

54 2 81 8 198 20 33 17 110 20 13 32 39 40 46 17 21 41 23 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.605 DRUM; PARKING BRK	8-97033-989-1	01	1	0201-0804	●
2	05.605 DRUM; PARKING BRK 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97033-989-1	01	1	0805-	●
2	05.605 DRUM; PARKING BRK	1-46211-057-1	01	1	0805-		●
8	05.605 FLANGE; PARKING BRK	8-98044-142-0	01	1	0805-		●
13	05.615 BRACE; PARKING BRK	1-46239-003-0	01	1	0805-		●
17	05.606 SHOE; PARKING BRK	8-97020-250-2	02	1	0201-	●
17	05.606 SHOE; PARKING BRK	8-97042-934-1	02	1	0805-		●
20	05.606 SPRING; RETURN,SECONDARY,PARKING	1-09586-002-0	02	1	0805-		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 05.605	8-94132-157-0	02	1	0201-	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE	1-09583-280-0	01	1	0805-		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	5-47165-025-0	01	1	0201-0611	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	8-98043-954-0	01	1	0612-	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	8-98043-963-0	01	1	0805-		●
32	05.610 PLATE; SUPPORT,PARKING BRK	8-94311-780-1	01	1	0201-0301	●
32	05.610 PLATE; SUPPORT,PARKING BRK	8-97308-176-0	01	1	0302-	●
32	05.610 PLATE; SUPPORT,PARKING BRK	1-46213-069-0	01	1	0805-		●
33	05.605 SHAFT; CAM,PARKING BRK	8-98043-961-0	01	1	0805-		●
39	05.610 COVER; DUST,PARKING BRK	1-46213-075-0	01	1	0805-		●
40	05.605 LEVER; CM/SHF,PARKING BRK	8-98047-550-0	01	1	0805-		●
41	05.605 PIN; KNOCK,LEVER	9-09878-594-0	01	1	0805-		●
42	05.605 SPRING; RETURN,LEVER	1-09583-041-0	01	1	0805-		●
46	05.605 WASHER; LEVER	1-09509-057-0	01	1	0805-		●
54	05.606 BOLT; COVER 03.403 M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0805-		●
81	05.606 COVER; CHECK HOLE,PARKING BRK	8-98031-861-0	02	1	0805-		●
110	05.610 BRAKE ASM; PARKING	8-98034-305-0	01	1	0805-		●
198	05.605 BOLT; KNURL M12X39	8-97365-446-0	04	1	0805-		●

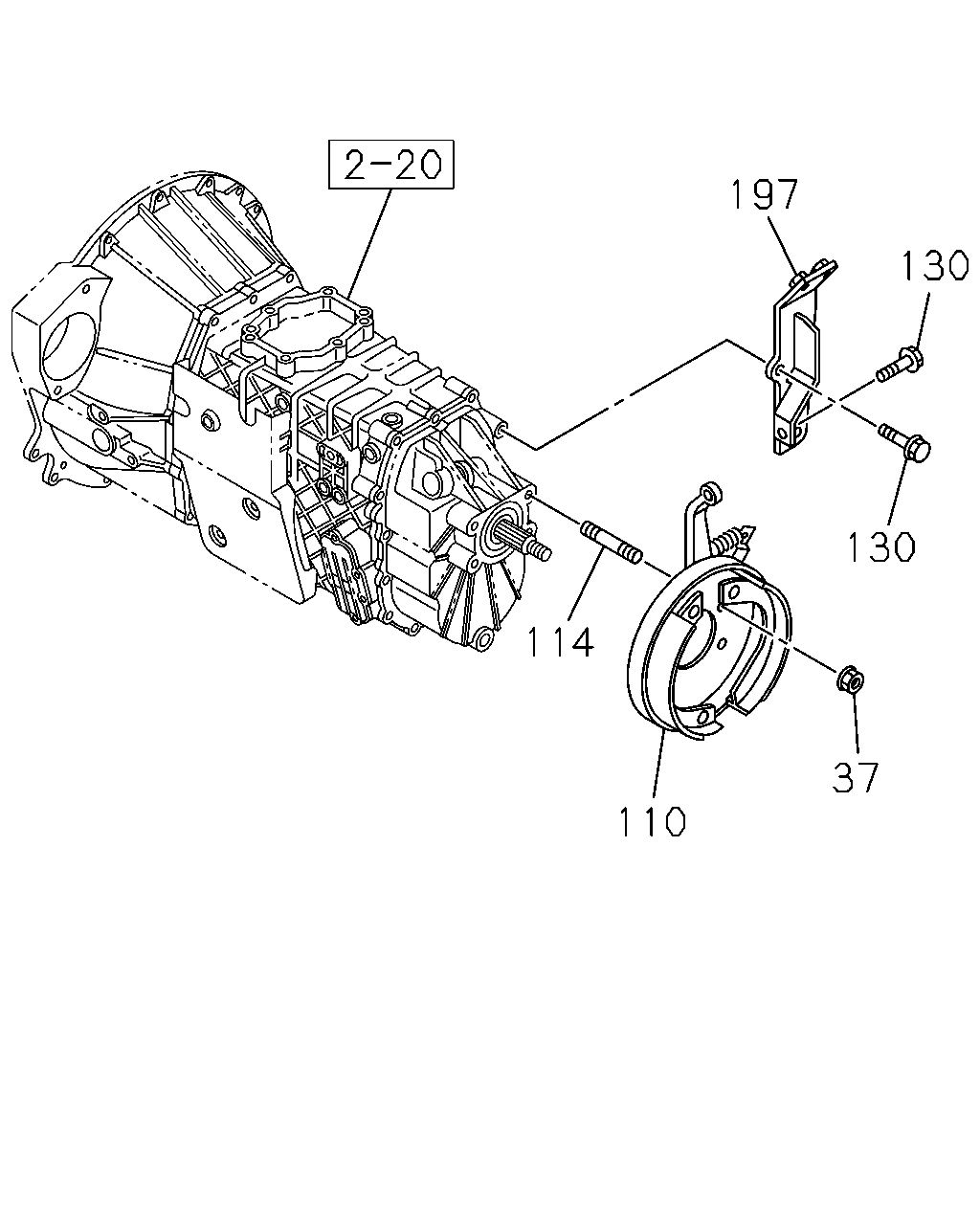

197 130 130 114 37 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-97248-173-0	04	1	0201-0604	●
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-98029-927-0	04	1	0605-	●
37	05.610 NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0805-		●
110	05.610 BRAKE ASM; PARKING	8-98034-305-0	01	1	0805-		●
114	05.605 STUD; SUPPORT PLATE	8-97289-002-0	04	1	0201-0301	●
114	05.605 STUD; SUPPORT PLATE	8-97289-280-0	04	1	0302-0604	●
114	05.605 STUD; SUPPORT PLATE	8-98029-929-0	04	1	0605-	●
114	05.605 STUD; SUPPORT PLATE M14X22.5 L=42.5	8-97365-445-0	04	1	0805-		●
130	05.605 BOLT; BRKT 02.042 M10X25 FLANGE	0-28151-025-0	03	1	0805-		●
197	05.605 BRACKET; CENTER BRAKE CABLE	8-97244-812-0	01	1	0805-		●

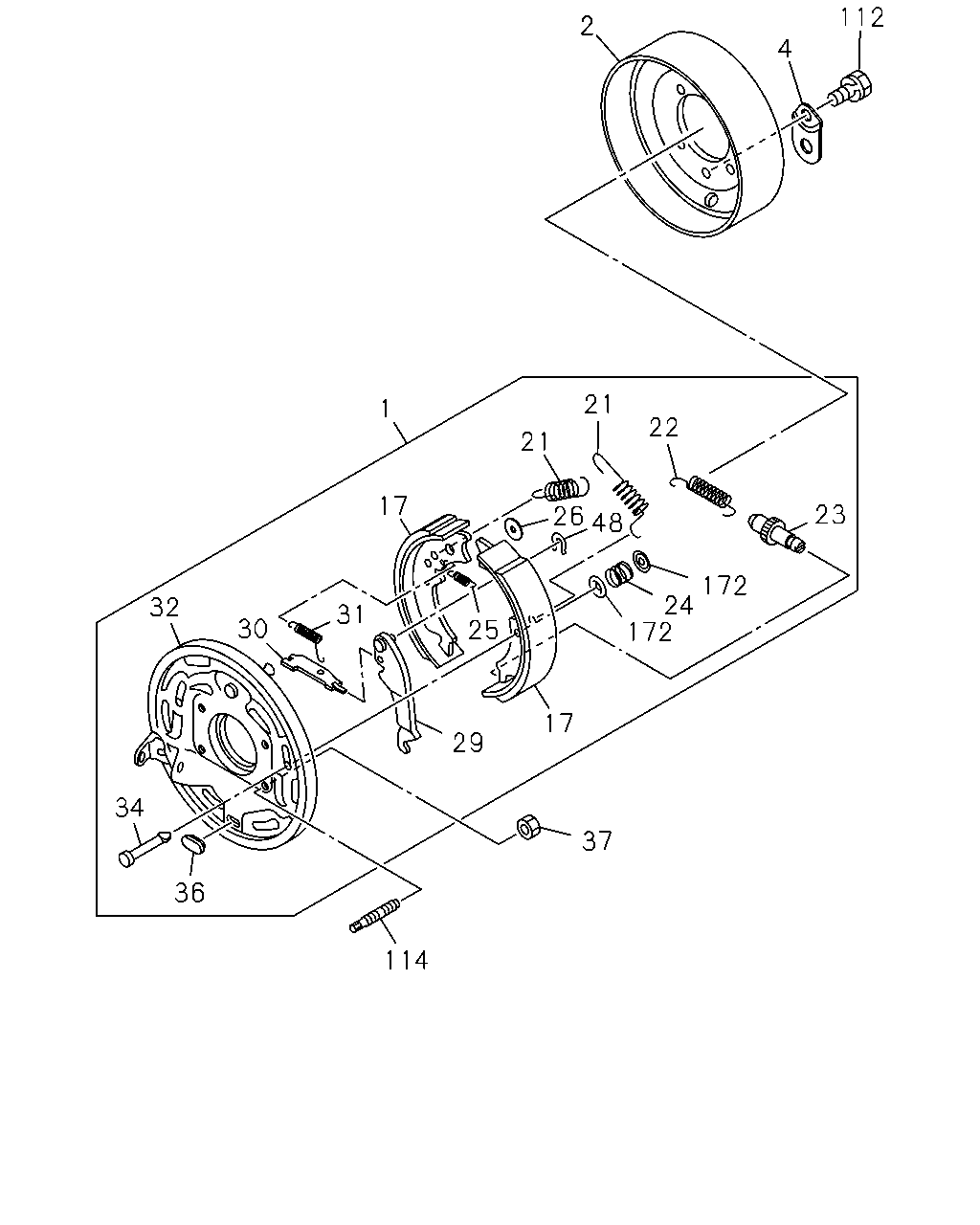

112 2 4 21 1 22 21 17 23 26 48 172 24 172 31 32 30 25 17 29 34 37 36 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.610 BRAKE ASM; CENTER,PARKING	8-97100-212-2	01	1	0201-0301	●
1	05.610 BRAKE ASM; CENTER,PARKING	8-97308-175-0	01	1	0302-0611	●
1	05.610 BRAKE ASM; CENTER,PARKING	8-98029-922-0	01	1	0612-	●
2	05.605 DRUM; PARKING BRK	8-97033-989-1	01	1	0201-0804	●
2	05.605 DRUM; PARKING BRK 4HF1 ENG(RLS) M/T MYY5T(RSM)	8-97033-989-1	01	1	0805-	●
2	05.605 DRUM; PARKING BRK	1-46211-057-1	01	1	0805-		●
4	05.606 COVER; ADJ HOLE	5-46219-001-0	01	1	0201-0604	●
4	05.606 COVER; ADJ HOLE	8-98029-820-0	01	1	0605-	●
17	05.606 SHOE; PARKING BRK	8-97020-250-2	02	1	0201-	●
17	05.606 SHOE; PARKING BRK	8-97042-934-1	02	1	0805-		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 05.605	8-94132-157-0	02	1	0201-	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE	1-09583-280-0	01	1	0805-		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 05.605	8-94107-618-0	01	1	0201-	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	5-47165-025-0	01	1	0201-0611	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	8-98043-954-0	01	1	0612-	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	8-98043-963-0	01	1	0805-		●
24	05.605 SPRING; BRK SHOE	8-94132-155-1	02	1	0201-	●
25	05.605 SPRING; SHOE ALIGNMENT	8-94132-156-0	01	1	0201-	●
26	05.605 PLATE; SHOE GUIDE	9-09851-986-0	01	1	0201-0611	●
26	05.605 PLATE; SHOE GUIDE	8-98043-959-0	01	1	0612-	●
29	04.591 LEVER; PARKING BRK 05.605	8-97027-125-0	01	1	0201-0611	●
29	04.591 LEVER; PARKING BRK	8-98043-949-0	01	1	0612-	●
30	05.605 STRUT; PARKING BRK	8-94311-779-0	01	1	0201-0611	●
30	05.605 STRUT; PARKING BRK	8-98043-953-0	01	1	0612-	●
31	05.605 SPRING; SHOE TO STRUT	8-94132-158-0	01	1	0201-	●
32	05.610 PLATE; SUPPORT,PARKING BRK	8-94311-780-1	01	1	0201-0301	●
32	05.610 PLATE; SUPPORT,PARKING BRK	8-97308-176-0	01	1	0302-	●
32	05.610 PLATE; SUPPORT,PARKING BRK	1-46213-069-0	01	1	0805-		●
34	05.605 PIN; BRK SHOE	8-94132-159-0	02	1	0201-0611	●
34	05.605 PIN; BRK SHOE	8-98043-955-0	02	1	0612-	●
36	05.606 GROMMET; ADJ HOLE 05.117	5-47169-002-0	01	1	0201-0301	●
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-97248-173-0	04	1	0201-0604	●
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-98029-927-0	04	1	0605-	●
37	05.610 NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0805-		●
48	05.605 RETAINER; PIN,PARKING BRK 05.158	9-46349-005-1	01	1	0201-0611	●
48	05.605 RETAINER; PIN,PARKING BRK	8-98043-958-0	01	1	0612-	●
112	05.606 BOLT; COVER TO BRK DRUM 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0201-0512	●
112	05.606 BOLT; COVER TO BRK DRUM 00.662 M6X16 W/LK WASHER	0-50540-616-0	01	1	0601-	●
114	05.605 STUD; SUPPORT PLATE	8-97289-002-0	04	1	0201-0301	●
114	05.605 STUD; SUPPORT PLATE	8-97289-280-0	04	1	0302-0604	●
114	05.605 STUD; SUPPORT PLATE	8-98029-929-0	04	1	0605-	●
114	05.605 STUD; SUPPORT PLATE M14X22.5 L=42.5	8-97365-445-0	04	1	0805-		●
172	05.605 CUP; SHOE HOLD 05.043	9-47162-033-0	04	1	0201-0611	●
172	05.605 CUP; SHOE HOLD	8-98043-956-0	04	1	0612-	●
