4-33 — STEERING LINKAGE (#1934) — 45 parça
çizim 96465
3 4 1 21 9 24 8 8 14 17 8 8 6 14 24 5 11 17 11 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ARM; PITMAN,STRG 1-44341-355-1 01 1 9207- ● ●
1 ARM; PITMAN,STRG 1-44341-333-1 01 1 9207- ● ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-026-0 01 1 9207- ● ● ● ●
4 NUT; PITMAN ARM
M30 		1-09400-050-0 01 1 9207- ● ● ● ●
5 BALL; JOINT,DRAG LINK 1-44361-089-0 01 1 9207- ● ●
5 BALL; JOINT,DRAG LINK 1-44361-066-0 01 1 9207- ● ●
6 PIN; SPLIT,ADJ SCREW 9-08114-055-0 02 1 9207- ● ●
6 PIN; SPLIT,ADJ SCREW 9-08115-065-0 02 1 9207- ● ●
8 SEAT; SPR,ROD END
OD=28 		1-44371-002-1 04 1 9207- ● ●
8 SEAT; SPR,ROD END
OD=36 		9-09881-340-0 04 1 9207- ● ●
9 LINK; DRAG 1-44350-823-0 01 1 9207- ● ●
9 LINK; DRAG 1-44350-744-0 01 1 9207- ● ●
11 NIPPLE; GREASE,DRAG LINK
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9207- ● ● ● ●
14 SPRING; COIL,DRAG LINK
(A) 		1-09580-409-0 02 1 9207- ● ●
14 SPRING; COIL,DRAG LINK
(B) 		1-09580-410-0 02 1 9207- ● ●
14 SPRING; COIL,DRAG LINK
(A) 		9-09940-639-1 02 1 9207- ● ●
17 GUARD; MUD,DRAG LINK 1-44365-007-0 02 1 9207- ● ●
17 GUARD; MUD,DRAG LINK 1-44365-020-0 02 1 9207- ● ●
21 NUT; LK,JOINT BALL
M16 		1-09449-014-0 01 1 9207- ● ●
21 NUT; LK,JOINT BALL
M24 		9-09844-669-2 01 1 9207- ● ●
24 PLUG; ADJ,DRAG LINK 1-44375-021-1 02 1 9207- ● ●
24 PLUG; ADJ,DRAG LINK 9-44375-021-0 02 1 9207- ● ●

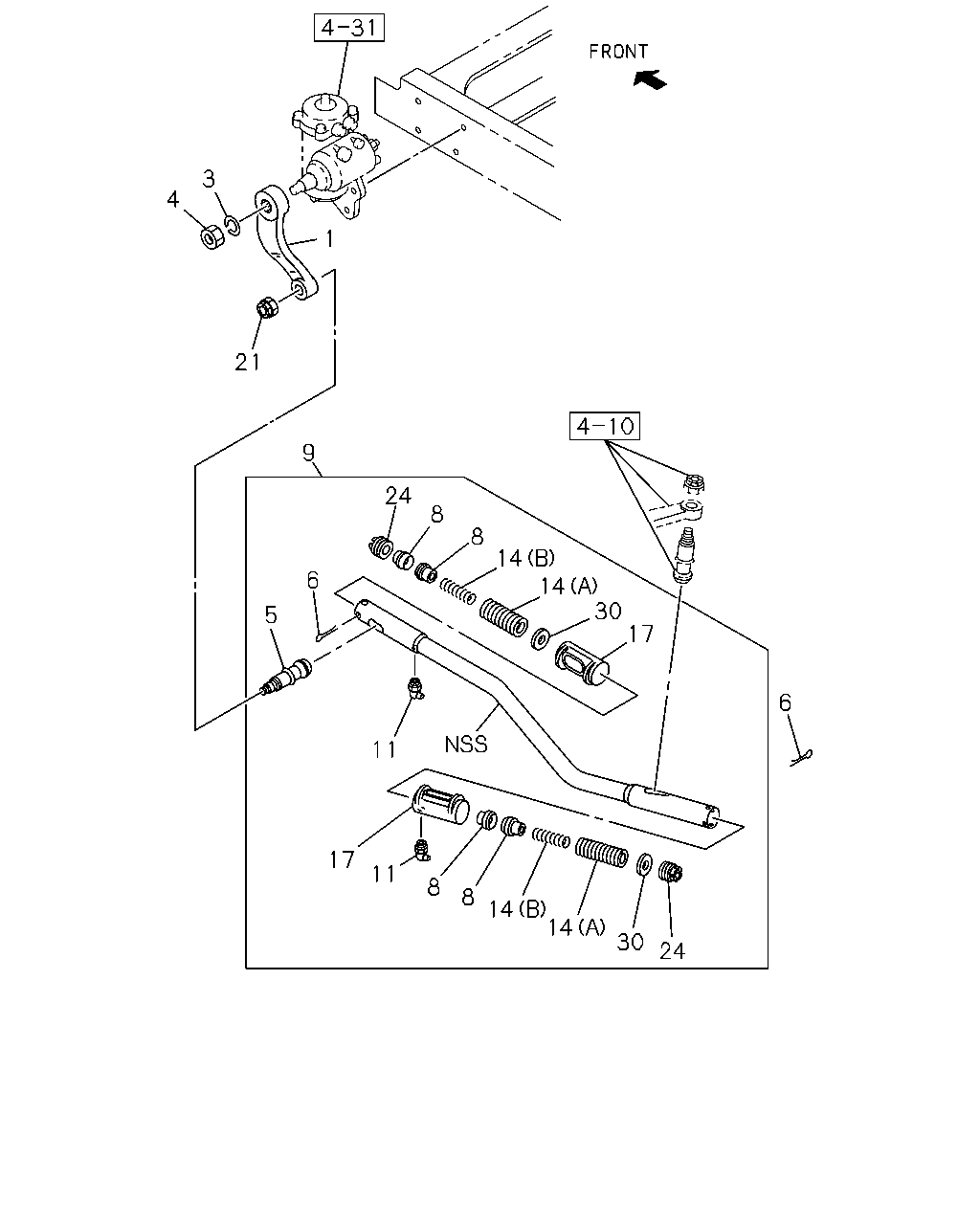

çizim 96478
3 4 1 21 9 24 8 8 14 14 6 30 17 5 6 11 17 11 8 8 14 14 30 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ARM; PITMAN,STRG 1-44341-355-1 01 1 9207- ● ●
1 ARM; PITMAN,STRG 1-44341-333-1 01 1 9207- ● ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-026-0 01 1 9207- ● ● ● ●
4 NUT; PITMAN ARM
M30 		1-09400-050-0 01 1 9207- ● ● ● ●
5 BALL; JOINT,DRAG LINK 1-44361-089-0 01 1 9207- ● ●
5 BALL; JOINT,DRAG LINK 1-44361-066-0 01 1 9207- ● ●
6 PIN; SPLIT,ADJ SCREW 9-08114-055-0 02 1 9207- ● ●
6 PIN; SPLIT,ADJ SCREW 9-08115-065-0 02 1 9207- ● ●
8 SEAT; SPR,ROD END
OD=28 		1-44371-002-1 04 1 9207- ● ●
8 SEAT; SPR,ROD END
OD=36 		9-09881-340-0 04 1 9207- ● ●
9 LINK; DRAG 1-44350-823-0 01 1 9207- ● ●
9 LINK; DRAG 1-44350-744-0 01 1 9207- ● ●
11 NIPPLE; GREASE,DRAG LINK
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9207- ● ● ● ●
14 SPRING; COIL,DRAG LINK
(A) 		1-09580-409-0 02 1 9207- ● ●
14 SPRING; COIL,DRAG LINK
(B) 		1-09580-410-0 02 1 9207- ● ●
14 SPRING; COIL,DRAG LINK
(A) 		9-09940-639-1 02 1 9207- ● ●
17 GUARD; MUD,DRAG LINK 1-44365-007-0 02 1 9207- ● ●
17 GUARD; MUD,DRAG LINK 1-44365-020-0 02 1 9207- ● ●
21 NUT; LK,JOINT BALL
M16 		1-09449-014-0 01 1 9207- ● ●
21 NUT; LK,JOINT BALL
M24 		9-09844-669-2 01 1 9207- ● ●
24 PLUG; ADJ,DRAG LINK 1-44375-021-1 02 1 9207- ● ●
24 PLUG; ADJ,DRAG LINK 9-44375-021-0 02 1 9207- ● ●
30 SPACER; DRAG LINK 1-44379-008-0 02 1 9207- ● ●
