3-05 — REAR WHEEL BRAKE (#19339) — 66 parça

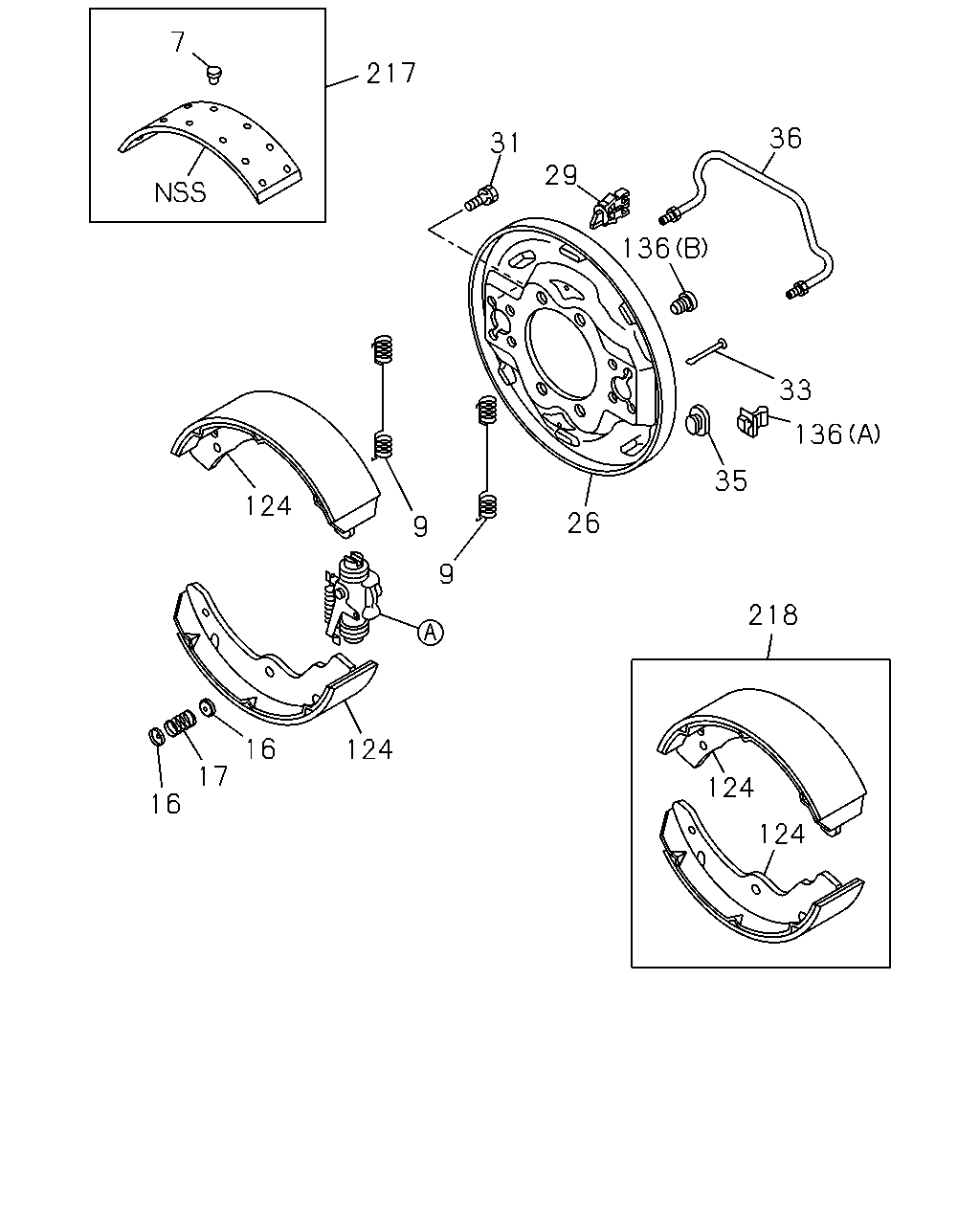

çizim 50352
7 217 36 31 29 136 33 136 35 124 26 9 9 218 16 124 17 124 16 124
BalonParca AdiParca NoAdetTipApplied Date A B
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 48 1 0201- ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 64 1 0805- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 0201- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0805- ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0201-0804 ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0805- ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0201-0804 ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0805- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97223-574-0 01 1 0201- ●
26 05.001 PLATE; BACK,RR BRK 8-97223-573-0 01 1 0201- ●
26 05.001 PLATE; BACK,RR BRK 8-97207-158-0 01 1 0805- ●
26 05.001 PLATE; BACK,RR BRK 8-97207-157-0 01 1 0805- ●
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 0201-0804 ●
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 0805- ● ●
31 04.665 BOLT; RR WHEEL CYL 8-97022-088-0 16 1 0201-0502 ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0503-0804 ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0805- ● ●
33 05.043 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 0201- ●
33 05.043 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 0805- ●
35 05.002 GROMMET; CHECK HOLE 8-97017-507-0 02 1 0201- ●
35 05.002 GROMMET; CHECK HOLE 8-97017-507-0 06 1 0805- ●
36 04.685 PIPE; OIL,RR BRK 8-97192-215-0 02 1 0201-0804 ●
36 04.685 PIPE; OIL,RR BRK 8-97192-215-0 02 1 0805- ● ●
124 05.017 SHOE ASM; BRK,RR 8-97201-061-0 04 1 0201- ●
124 05.017 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0805- ●
136 05.002 GROMMET
(A) 		8-97044-742-1 04 1 0201- ●
136 05.002 GROMMET
04.670 (B) 		1-47154-008-0 04 1 0805- ●
217 05.018 LINING KIT; RR BRK 5-87831-774-0 01 1 0201- ●
217 05.018 LINING KIT; RR BRK 5-87831-692-0 01 1 0805- ●
217 05.018 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-120-0 01 1 0201- ●
217 05.018 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-119-0 01 1 0805- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-775-0 01 1 0204- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0805- ●
çizim 50454
94 94 95 102 102 104 101 97 96 103 97 96 106 99 110 99 108 101 107 101
BalonParca AdiParca NoAdetTipApplied Date A B
94 04.665 CYLINDER; WHEEL,RR BRK
(A) 		8-97139-825-0 02 1 0201- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97139-822-0 01 1 0201- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97139-824-0 01 1 0201- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97358-878-0 01 1 0805- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97358-880-0 01 1 0805- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97358-879-0 01 1 0805- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97358-881-0 01 1 0805- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-598-0 02 1 0201- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-051-0 02 1 0805- ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0201-0711 ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 0712- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 0805- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0201-0711 ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 0712- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 0805- ●
99 04.668 PISTON; RR WHEEL CYL 8-94414-700-1 04 1 0201- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-731-0 02 1 0805- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-732-0 02 1 0805- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-94414-702-0 04 1 0201- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 0805- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97349-741-0 02 1 0805- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97349-742-0 02 1 0805- ●
102 04.668 PISTON; REAR WHEEL CYL
D=30.16 		8-94414-701-1 04 1 0201-0810 ●
102 04.668 PISTON; REAR WHEEL CYL 8-97078-045-0 04 1 0811- ●
102 04.668 PISTON; REAR WHEEL CYL 8-97332-043-0 04 1 0805- ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0201- ●
104 05.103 LEVER; ADJ 8-97349-743-0 02 1 0805- ●
104 05.103 LEVER; ADJ 8-97349-744-0 02 1 0805- ●
106 05.107 SPRING; ADJ LEVER 8-97349-745-0 04 1 0805- ●
107 05.110 GEAR; ADJ,RR W/CYL
04.665 		8-97358-894-0 02 1 0805- ●
107 05.110 GEAR; ADJ,RR W/CYL
04.665 		8-97358-895-0 02 1 0805- ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97349-736-0 04 1 0805- ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0201- ●
