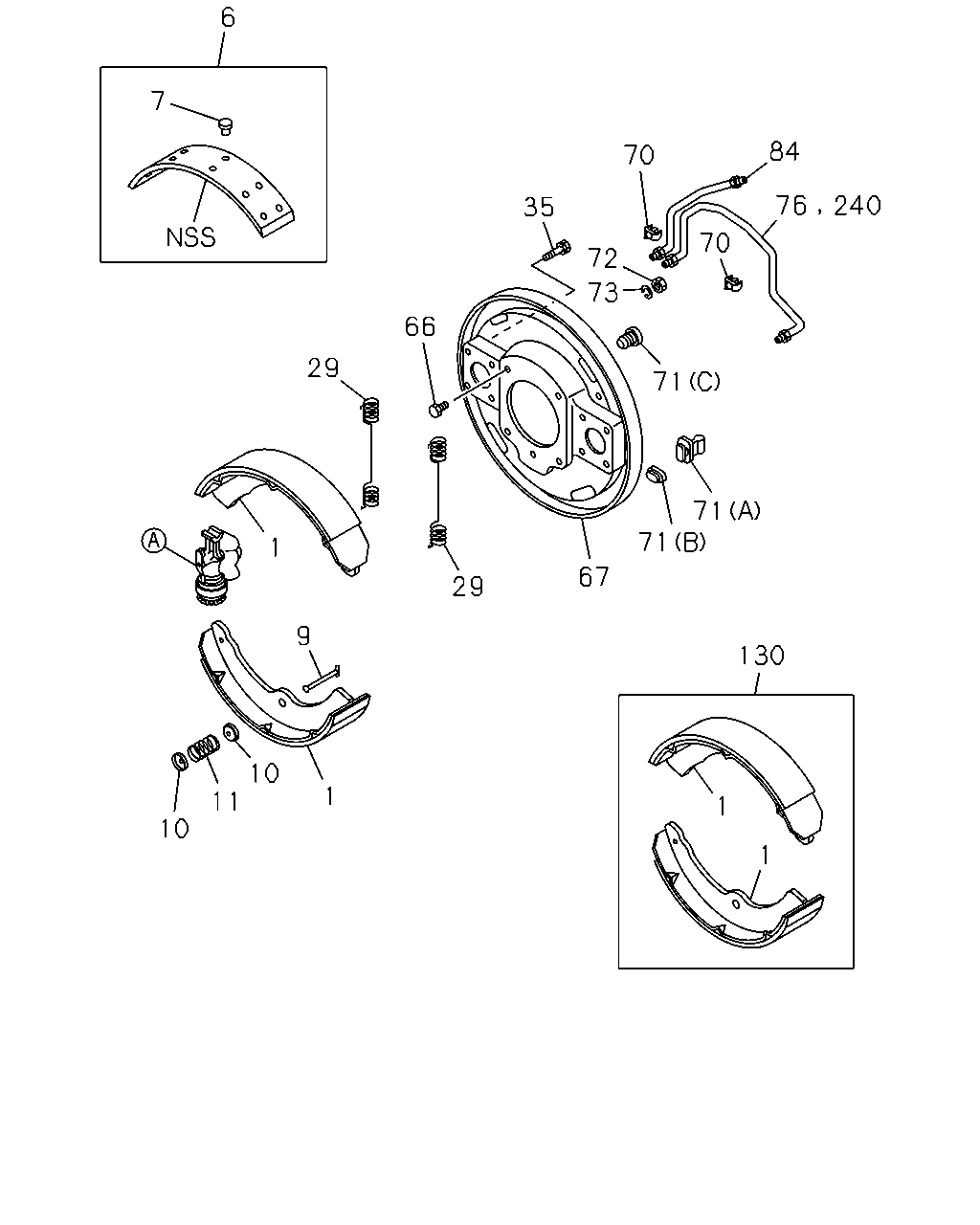

3-01 — FRONT WHEEL BRAKE (#19338) — 79 parça

6 7 84 70 35 70 72 73 66 29 71 71 71 1 67 29 9 130 10 1 11 1 10 1 76 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.017 SHOE; BRK,FRT	8-97201-061-0	04	1	0201-	●
1	05.017 SHOE; BRK,FRT	8-97188-455-0	04	1	0805-		●
6	05.018 LINING KIT; FRT BRK	5-87831-774-0	01	1	0201-	●
6	05.018 LINING KIT; FRT BRK	5-87831-692-0	01	1	0805-		●
6	05.018 LINING KIT; FRT BRK BEST VALUE PARTS	5-87610-120-0	01	1	0201-	●
6	05.018 LINING KIT; FRT BRK BEST VALUE PARTS	5-87610-119-0	01	1	0805-		●
7	05.019 RIVET; LINING,FRT BRK	1-09732-029-0	48	1	0201-	●
7	05.019 RIVET; LINING,FRT BRK	1-09732-029-0	64	1	0805-		●
9	05.026 PIN; SHOE HOLDER 05.043	8-97022-089-0	04	1	0201-	●
9	05.026 PIN; SHOE HOLDER 05.043	8-97122-870-0	04	1	0805-		●
10	05.043 CUP; SHOE HOLDING	9-47165-096-0	08	1	0201-0804	●
10	05.043 CUP; SHOE HOLDING	9-47165-096-0	08	1	0805-	●	●
11	05.027 SPRING; SHOE HOLDING 05.043	5-09580-101-1	04	1	0201-0804	●
11	05.027 SPRING; SHOE HOLDING 05.043	5-09580-101-1	04	1	0805-	●	●
29	05.026 SPRING; RETURN,FRT BRK SHOE	8-97022-087-0	04	1	0201-	●
29	05.026 SPRING; RETURN,FRT BRK SHOE	8-97122-869-0	04	1	0805-		●
35	04.665 BOLT; FRT WHEEL CYL	8-97022-088-0	16	1	0201-0502	●
35	04.665 BOLT; FRT WHEEL CYL	8-97081-305-0	16	1	0503-0804	●
35	04.665 BOLT; FRT WHEEL CYL	8-97081-305-0	16	1	0805-	●	●
66	05.815 BOLT; OIL SHIELD COVER M12X33	9-09600-043-3	08	1	0201-0611	●
66	05.815 BOLT; OIL SHIELD COVER M12X33	8-98009-493-2	08	1	0612-	●
66	05.815 BOLT; OIL SHIELD COVER 05.002 M14X40	8-98007-879-0	08	1	0805-		●
67	05.001 PLATE; BACK,FRT BRK	8-97302-597-0	01	1	0201-	●
67	05.001 PLATE; BACK,FRT BRK	8-97302-596-0	01	1	0201-	●
67	05.001 PLATE; BACK,FRT BRK	8-97358-869-0	01	1	0805-		●
67	05.001 PLATE; BACK,FRT BRK	8-97358-868-0	01	1	0805-		●
70	04.685 CLIP; PIPE HOLD	8-97022-086-0	04	1	0201-0804	●
70	04.685 CLIP; PIPE HOLD	8-97022-086-0	04	1	0805-	●	●
71	05.002 GROMMET; CHECK HOLE (B)	8-97017-507-0	01	1	0201-0301	●
71	05.002 GROMMET; CHECK HOLE (A)	8-97044-742-1	02	1	0201-	●
71	05.002 GROMMET; CHECK HOLE (B)	8-97017-507-0	02	1	0302-	●
71	05.002 GROMMET; CHECK HOLE 04.670 (C)	1-47154-008-0	04	1	0805-		●
71	05.002 GROMMET; CHECK HOLE (B)	8-97017-507-0	06	1	0805-		●
72	05.815 NUT; OIL SHIELD COVER 04.634 M12	9-99110-512-0	08	1	0201-0512	●
72	05.815 NUT; OIL SHIELD COVER 05.002 M12	0-91110-512-0	08	1	0601-	●
72	05.815 NUT; OIL SHIELD COVER 07.833 M14	0-91110-514-0	08	1	0805-		●
73	05.815 WASHER; LK,OIL SHIELD COVER 06.515 ID=12.2	9-09150-612-0	08	1	0201-0603	●
73	05.815 WASHER; LK,OIL SHIELD COVER 00.002 ID=12.2	0-91510-612-0	08	1	0604-0611	●
73	05.815 WASHER; LK,OIL SHIELD COVER 07.347 ID=12.2	0-91510-812-0	08	1	0612-	●
73	05.815 WASHER; LK,OIL SHIELD COVER 06.174 ID=14.2	0-91510-814-0	08	1	0805-		●
76	04.685 PIPE; OIL,BACKWARD,FRT BRK	8-97079-847-0	02	1	0201-	●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE	8-97039-677-0	01	1	0201-0804	●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE	8-97039-677-0	01	1	0805-	●	●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE	8-97039-676-0	01	1	0201-0804	●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE	8-97039-676-0	01	1	0805-	●	●
130	05.017 SHOE KIT; BRK,FRT	5-87831-775-0	01	1	0204-	●
130	05.017 SHOE KIT; BRK,FRT	5-87831-693-0	01	1	0805-		●
240	04.685 PIPE; OIL,FRT BRK	8-97079-847-0	02	1	0805-		●

15 15 26 17 16 17 16 18 19 255 302 254 24 24 25 253 252 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	04.665 CYLINDER; WHEEL,FRT BRK (A) REAR	8-97139-819-0	01	1	0201-	●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) FRONT	8-97139-821-0	01	1	0201-	●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) REAR	8-97139-818-0	01	1	0201-	●
15	04.665 CYLINDER; WHEEL,FRT BRK (A) FRONT	8-97139-820-0	01	1	0201-	●
15	04.665 CYLINDER; WHEEL,FRT BRK 04.556 (B) FRONT	8-97358-874-0	01	1	0805-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (B) REAR	8-97358-876-0	01	1	0805-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (B) FRONT	8-97358-875-0	01	1	0805-		●
15	04.665 CYLINDER; WHEEL,FRT BRK (B) REAR	8-97358-877-0	01	1	0805-		●
16	04.666 SCREW; BLEEDER,FRT BRK	9-47615-027-0	02	1	0201-0711	●
16	04.666 SCREW; BLEEDER,FRT BRK	8-98050-476-0	02	1	0712-	●
16	04.666 SCREW; BLEEDER,FRT BRK	8-98050-477-0	02	1	0805-		●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL	1-47619-009-0	02	1	0201-0711	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL	8-98050-479-0	02	1	0712-0804	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL	8-98050-479-0	02	1	0805-	●	●
18	05.107 STOPPER; ADJ SCREW	8-94128-486-0	04	1	0201-	●
19	05.107 SCREW; STOPPER SETTING	8-94128-727-0	04	1	0201-	●
24	04.668 PISTON; FRT WHEEL CYL	8-94414-700-1	04	1	0201-	●
24	04.668 PISTON; FRT WHEEL CYL	8-97349-729-0	02	1	0805-		●
24	04.668 PISTON; FRT WHEEL CYL	8-97349-730-0	02	1	0805-		●
25	05.110 SCREW; ADJ,FRT WHEEL CYL 04.666	8-94414-702-0	04	1	0201-	●
25	05.110 SCREW; ADJ,FRT WHEEL CYL 04.666	8-97349-741-0	02	1	0805-		●
25	05.110 SCREW; ADJ,FRT WHEEL CYL 04.666	8-97349-742-0	02	1	0805-		●
26	04.667 CUP SET; FRT WHEEL CYL 04.665	5-87831-598-0	01	1	0201-	●
26	04.667 CUP SET; FRT WHEEL CYL	5-87832-069-0	01	1	0805-		●
252	04.665 GEAR; ADJ,FRT WHEEL CYL	8-97358-894-0	02	1	0805-		●
252	04.665 GEAR; ADJ,FRT WHEEL CYL	8-97358-895-0	02	1	0805-		●
253	04.665 WASHER; THRUST 05.110	8-97349-736-0	04	1	0805-		●
254	04.665 SPRING; ADJ LEVER 05.107	8-97349-745-0	04	1	0805-		●
255	04.665 LEVER; ADJ 05.103	8-97349-743-0	02	1	0805-		●
255	04.665 LEVER; ADJ 05.103	8-97349-744-0	02	1	0805-		●
302	04.665 SCREW; ADJ LEVER 04.666	8-97349-747-0	04	1	0805-		●
