Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#19336) — 178 parça

1 3 226 228 222 3 274 219 1 278 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ>	8-97096-511-3	01	1	0201-0301	●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> L=2973	8-97350-421-1	01	1	0302-0501		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> L=2973	8-97350-421-1	01	1	0502-0911		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-98146-841-0	01	1	0912-		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ> L=3070	8-97329-417-1	01	1	0805-0911			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98146-836-0	01	1	0912-			●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> L=3012	8-97096-506-3	01	1	0201-0301	●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> L=3031	8-97350-422-0	01	1	0302-0501		●
3	00.852 CABLE; SELECT,TRANS CONT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> L=3031	8-97350-422-0	01	1	0502-		●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ> L=3151	8-98009-288-1	01	1	0805-			●
6	04.047 CLIP; CABLE (A)	8-97011-448-0	02	1	0201-0301	●
6	04.047 CLIP; CABLE (A)	8-97011-448-0	02	1	0302-0804		●
6	04.047 CLIP; CABLE (A)	8-97011-448-0	02	1	0805-		●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	02	1	0201-0301	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0302-0804		●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0805-		●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0201-0301	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0302-0804		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0805-		●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	02	1	0201-0301	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0302-0501		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0302-0501		●
6	04.047 CLIP; CABLE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0502-0804		●
6	04.047 CLIP; CABLE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0502-0804		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0805-		●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0805-		●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (E)	8-97147-985-0	01	1	0201-0301	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (E)	8-97147-985-0	01	1	0302-0804		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (E)	8-97147-985-0	01	1	0805-		●	●
6	04.047 CLIP; CABLE 00.854 (F) ID=22.2	1-09701-209-1	01	1	0302-0804		●
6	04.047 CLIP; CABLE 00.854 (F) ID=22.2	1-09701-209-1	01	1	0805-		●	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0201-0301	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0302-0804		●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0805-		●	●
222	04.010 GROMMET; CABLE	8-97065-212-1	01	1	0201-0301	●
222	04.010 GROMMET; CABLE	8-97065-212-1	01	1	0302-0804		●
222	04.010 GROMMET; CABLE	8-97065-212-1	01	1	0805-		●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0201-0301	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0302-0804		●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0805-		●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0201-0301	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0302-0804		●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0805-		●	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0201-0301	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0302-0804		●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0805-		●	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0201-0301	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0302-0605		●
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-0804		●
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0805-		●	●
274	04.008 CLIP; CONT CABLE	8-97093-491-1	01	1	0201-0301	●
274	04.008 CLIP; CONT CABLE	8-97093-491-1	01	1	0302-0804		●
274	04.008 CLIP; CONT CABLE	8-97093-491-1	01	1	0805-		●	●
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0201-0301	●
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0302-0604		●
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-0804		●
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0805-		●	●

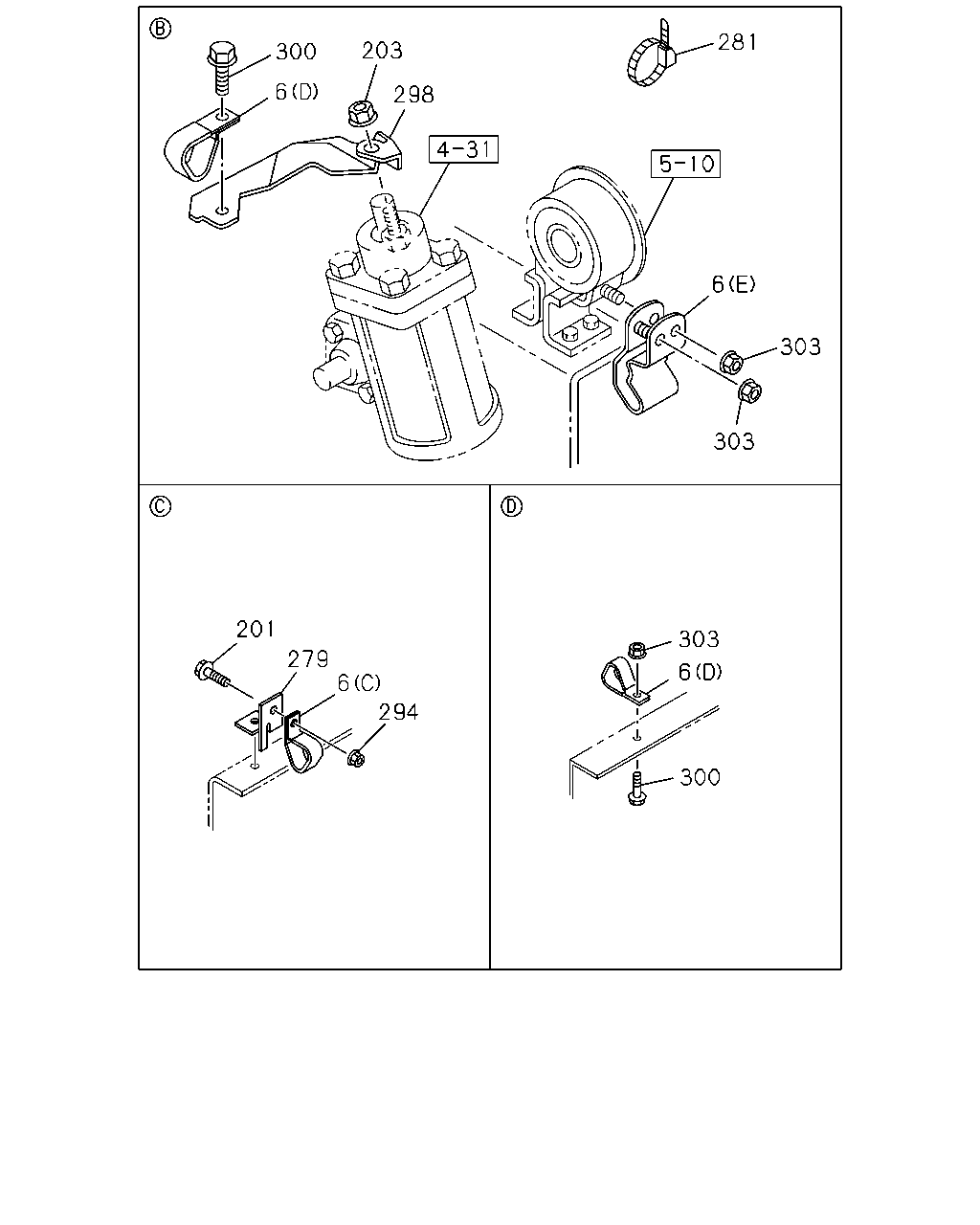

281 203 300 6 298 6 303 303 201 303 279 6 6 294 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	04.047 CLIP; CABLE (A)	8-97011-448-0	02	1	0201-0301	●
6	04.047 CLIP; CABLE (A)	8-97011-448-0	02	1	0302-0804		●
6	04.047 CLIP; CABLE (A)	8-97011-448-0	02	1	0805-		●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	02	1	0201-0301	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0302-0804		●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0805-		●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0201-0301	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0302-0804		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0805-		●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	02	1	0201-0301	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0302-0501		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0302-0501		●
6	04.047 CLIP; CABLE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0502-0804		●
6	04.047 CLIP; CABLE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0502-0804		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0805-		●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0805-		●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (E)	8-97147-985-0	01	1	0201-0301	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (E)	8-97147-985-0	01	1	0302-0804		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (E)	8-97147-985-0	01	1	0805-		●	●
6	04.047 CLIP; CABLE 00.854 (F) ID=22.2	1-09701-209-1	01	1	0302-0804		●
6	04.047 CLIP; CABLE 00.854 (F) ID=22.2	1-09701-209-1	01	1	0805-		●	●
201	04.032 BOLT; BRKT 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-			●
203	04.032 NUT; BRKT FIX POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301	●
203	04.032 NUT; BRKT FIX POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602		●
203	04.032 NUT; BRKT FIX POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0804		●
203	04.032 NUT; BRKT FIX POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-		●	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-97171-065-0	01	1	0805-			●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0201-0301	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0302-0804		●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0805-		●	●
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301	●
294	00.854 NUT; CLIP 4HK1 ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-			●
298	00.854 BRACKET POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97288-446-0	01	1	0201-0301	●
298	00.854 BRACKET POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97288-446-0	01	1	0302-0804		●
298	00.854 BRACKET POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97288-446-0	01	1	0805-		●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0512		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0804		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0805-		●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0201-0301	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0302-0512		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
300	00.854 BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0301	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0201-0301	●
300	00.854 BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0512		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0512		●
300	00.854 BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0804		●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0804		●
300	00.854 BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-		●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0805-		●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602		●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0804		●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0805-		●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0301	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0602		●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0804		●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0805-		●	●

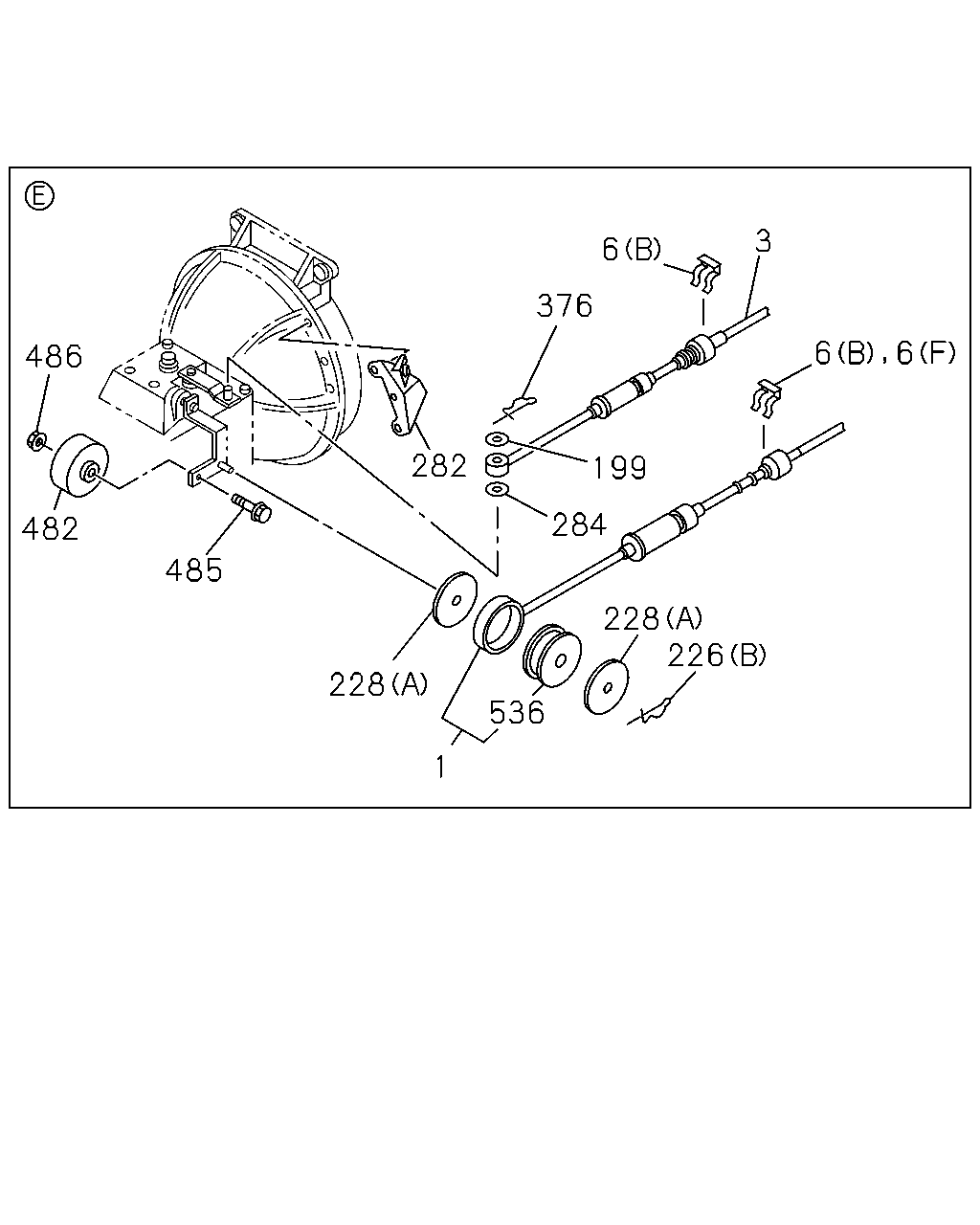

3 6 376 486 282 199 284 482 485 228 226 228 536 1 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ>	8-97096-511-3	01	1	0201-0301	●
1	00.854 CABLE; SHIFT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> L=2973	8-97350-421-1	01	1	0302-0501		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> L=2973	8-97350-421-1	01	1	0502-0911		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-98146-841-0	01	1	0912-		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ> L=3070	8-97329-417-1	01	1	0805-0911			●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98146-836-0	01	1	0912-			●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> L=3012	8-97096-506-3	01	1	0201-0301	●
3	00.852 CABLE; SELECT,TRANS CONT FRAME STRAIGHT TYPE<7KJ> L=3031	8-97350-422-0	01	1	0302-0501		●
3	00.852 CABLE; SELECT,TRANS CONT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> L=3031	8-97350-422-0	01	1	0502-		●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1 ENG(RJS) FRAME STRAIGHT TYPE<7KJ> L=3151	8-98009-288-1	01	1	0805-			●
6	04.047 CLIP; CABLE (A)	8-97011-448-0	02	1	0201-0301	●
6	04.047 CLIP; CABLE (A)	8-97011-448-0	02	1	0302-0804		●
6	04.047 CLIP; CABLE (A)	8-97011-448-0	02	1	0805-		●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	02	1	0201-0301	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0302-0804		●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0805-		●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0201-0301	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0302-0804		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (C)	8-97036-332-1	01	1	0805-		●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	02	1	0201-0301	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0302-0501		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0302-0501		●
6	04.047 CLIP; CABLE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0502-0804		●
6	04.047 CLIP; CABLE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0502-0804		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0805-		●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (D)	8-97036-333-1	01	1	0805-		●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (E)	8-97147-985-0	01	1	0201-0301	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (E)	8-97147-985-0	01	1	0302-0804		●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (E)	8-97147-985-0	01	1	0805-		●	●
6	04.047 CLIP; CABLE 00.854 (F) ID=22.2	1-09701-209-1	01	1	0302-0804		●
6	04.047 CLIP; CABLE 00.854 (F) ID=22.2	1-09701-209-1	01	1	0805-		●	●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0201-0301	●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0302-0605		●
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-0804		●
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0805-		●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0201-0301	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0302-0804		●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0805-		●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0201-0301	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0302-0804		●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0805-		●	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0201-0301	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0302-0804		●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0805-		●	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0201-0301	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0302-0605		●
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-0804		●
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0805-		●	●
282	04.010 BRACKET; TRANS SIDE	8-97182-260-0	01	1	0201-0301	●
282	04.010 BRACKET; TRANS SIDE	8-97311-441-1	01	1	0302-0501		●
282	04.010 BRACKET; TRANS SIDE 4HF1 ENG(RLS)	8-97311-441-1	01	1	0502-		●
282	04.010 BRACKET; TRANS SIDE	8-97311-442-1	01	1	0805-			●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0201-0301	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0302-0804		●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0805-		●	●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0201-0301	●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0302-0804		●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0805-		●	●
482	04.047 WEIGHT; SHIFT CABLE	8-97066-730-2	01	1	0302-0305		●
485	04.047 BOLT; WEIGHT M12X60 FLANGE	0-28091-260-0	01	1	0302-0305		●
486	04.047 NUT; WEIGHT 06.509 M12 FLANGE	8-94436-194-0	01	1	0302-0305		●
536	00.854 DAMPER; CABLE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-98097-681-0	01	1	0302-0804		●
536	00.854 DAMPER; CABLE FRAME STRAIGHT TYPE<7KJ>	8-98097-681-0	01	1	0805-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
