Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#19334) — 284 parça

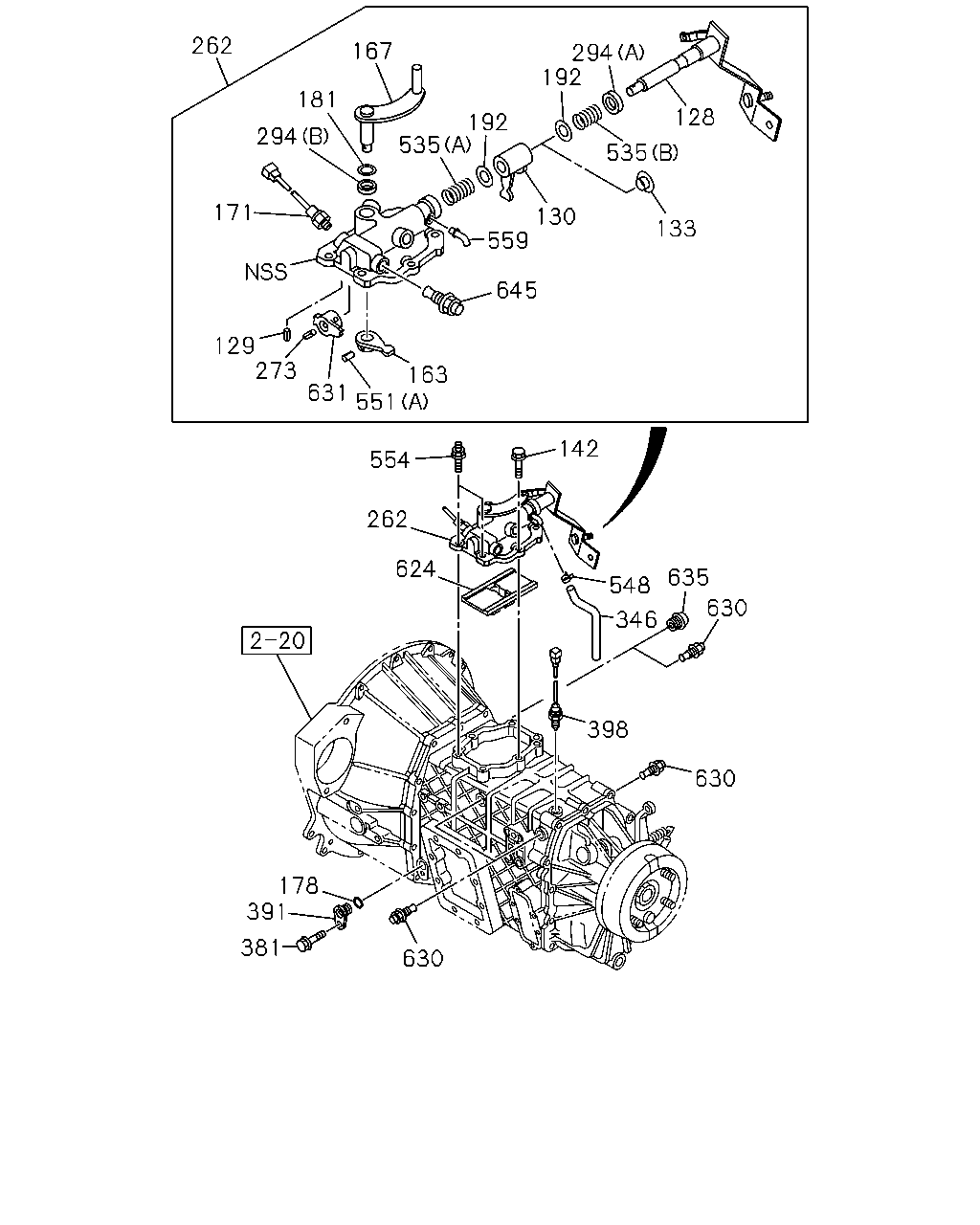

262 167 294 192 181 128 192 294 535 535 171 130 559 133 645 129 273 163 551 631 142 554 262 624 635 548 630 346 398 630 178 391 381 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
128	04.030 LEVER; SHIFT,EXTERNAL	8-97305-725-0	01	1	0302-0501	●
128	04.030 LEVER; SHIFT,EXTERNAL 4HF1 ENG(RLS)	8-97305-725-0	01	1	0502-	●
128	04.030 LEVER; SHIFT,EXTERNAL 4HK1 ENG(RJS)	8-97363-226-0	01	1	0805-		●
129	04.027 PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0302-0501	●
129	04.027 PIN; SPR,SHIFT 4HF1 ENG(RLS) L=30 OD=4	1-09748-031-0	01	1	0502-0804	●
129	04.027 PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0805-	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	0201-0301			●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0302-0501	●
130	04.302 LEVER; SHIFT,INTERNAL 4HF1 ENG(RLS)	8-97306-647-0	01	1	0502-0804	●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0805-	●	●
133	04.027 SEAT; SPR	8-97305-667-0	01	1	0302-0501	●
133	04.027 SEAT; SPR 4HF1 ENG(RLS)	8-97305-667-0	01	1	0502-	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0302-0501	●
142	04.012 BOLT; QUAD BOX 4HF1 ENG(RLS) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0502-0604	●
142	04.012 BOLT; QUAD BOX 4HF1 ENG(RLS) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0804	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0805-	●	●
163	04.302 LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	0201-0301			●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0302-0501	●
163	04.302 LEVER; SELECT,INTERNAL 4HF1 ENG(RLS)	8-97305-663-0	01	1	0502-0804	●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0805-	●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	0201-0301			●
167	04.302 LEVER; SELECT,EXTERNAL	8-97306-648-0	01	1	0302-0501	●
167	04.302 LEVER; SELECT,EXTERNAL 4HF1 ENG(RLS)	8-97306-648-0	01	1	0502-0611	●
167	04.302 LEVER; SELECT,EXTERNAL 4HF1 ENG(RLS)	8-98039-434-0	01	1	0612-0804	●
167	04.302 LEVER; SELECT,EXTERNAL	8-98039-434-0	01	1	0805-	●	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	0201-0301			●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0302-0501	●
171	04.054 SWITCH; NEUTRAL 4HF1 ENG(RLS)	8-97316-688-1	01	1	0502-0611	●
171	04.054 SWITCH; NEUTRAL 4HF1 ENG(RLS) 02.698	8-98023-050-0	01	1	0612-0804	●
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	0805-1312	●	●
171	04.054 SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●	●
171	04.054 SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	0201-0301			●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0302-0501	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS)	9-09567-113-0	01	1	0502-0804	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0805-	●	●
181	04.302 WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0302-0303	●
181	04.302 WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0304-0501	●
181	04.302 WASHER; PL,SELECT LEVER 4HF1 ENG(RLS)	8-97367-327-0	01	1	0502-0804	●
181	04.302 WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0805-	●	●
192	04.309 WASHER; PL	8-97305-661-0	02	1	0302-0303	●
192	04.309 WASHER; PL	8-97305-661-0	01	1	0304-0501	●
192	04.309 WASHER; PL 4HF1 ENG(RLS)	8-97305-661-0	01	1	0502-	●
192	04.309 WASHER; PL 4HK1 ENG(RJS)	8-97305-661-0	02	1	0805-		●
262	04.105 BOX ASM; SHIFT CONT	8-97256-825-7	01	1	0302-0404	●
262	04.105 BOX ASM; SHIFT CONT	8-97362-750-0	01	1	0405-0501	●
262	04.105 BOX ASM; SHIFT CONT 4HF1 ENG(RLS)	8-97362-750-2	01	1	0502-1312	●
262	04.105 BOX ASM; SHIFT CONT 4HF1 ENG(RLS)	8-98240-999-2	01	1	1401-	●
262	04.105 BOX ASM; SHIFT CONT 4HK1 ENG(RJS)	8-98039-441-0	01	1	0805-1312		●
262	04.105 BOX ASM; SHIFT CONT 4HK1 ENG(RJS)	8-98240-996-2	01	1	1401-		●
273	04.309 PIN; SPR,STOPPER 04.307 D=4.2 L=25	8-97103-142-0	01	1	0302-0501	●
273	04.309 PIN; SPR,STOPPER 4HF1 ENG(RLS) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0502-0804	●
273	04.309 PIN; SPR,STOPPER 04.307 D=4.2 L=25	8-97103-142-0	01	1	0805-	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0302-0303	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97363-225-0	01	1	0304-0501	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) (A)	8-97363-225-0	01	1	0502-0804	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97363-225-0	01	1	0805-	●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97305-662-0	01	1	0302-0501	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) (B)	8-97305-662-0	01	1	0502-0804	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97305-662-0	01	1	0805-	●	●
346	04.545 HOSE; AIR	8-97309-855-0	01	1	0302-0501	●
346	04.545 HOSE; AIR 4HF1 ENG(RLS)	8-97309-855-0	01	1	0502-0804	●
346	04.545 HOSE; AIR	8-97309-855-0	01	1	0805-	●	●
381	04.105 BOLT 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0302-0501	●
381	04.105 BOLT 4HF1 ENG(RLS) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0502-0512	●
381	04.105 BOLT 4HF1 ENG(RLS) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0601-0804	●
381	04.105 BOLT 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0805-	●	●
391	04.104 PLUG; SW HOLE	8-97300-273-1	01	1	0302-0501	●
391	04.104 PLUG; SW HOLE 4HF1 ENG(RLS)	8-97300-273-1	01	1	0502-0804	●
391	04.104 PLUG; SW HOLE	8-97300-273-1	01	1	0805-	●	●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	0201-0301			●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0302-0501	●
398	02.698 SWITCH; REV LAMP 4HF1 ENG(RLS) 04.054	8-97316-688-1	01	1	0502-0604	●
398	02.698 SWITCH; REV LAMP 4HF1 ENG(RLS)	8-98023-050-0	01	1	0605-0804	●
398	02.698 SWITCH; REV LAMP	8-98023-050-0	01	1	0805-1312	●	●
398	02.698 SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●	●
535	04.302 SPRING; LEVER (A)	8-97323-771-0	01	1	0302-0501	●
535	04.302 SPRING; LEVER 4HF1 ENG(RLS) (A)	8-97323-771-0	01	1	0502-	●
535	04.302 SPRING; LEVER (B)	8-97323-772-0	01	1	0302-0501	●
535	04.302 SPRING; LEVER 4HF1 ENG(RLS) (B)	8-97323-772-0	01	1	0502-	●
535	04.302 SPRING; LEVER 4HK1 ENG(RJS) (A)	8-97305-659-0	01	1	0805-		●
535	04.302 SPRING; LEVER 4HK1 ENG(RJS) (B)	8-97305-660-0	01	1	0805-		●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	0302-0501	●
548	04.457 CLIP; HOSE 4HF1 ENG(RLS) 03.278	8-97031-674-0	01	1	0502-0804	●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	0805-	●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0302-0501	●
551	04.303 PIN; SPRING 4HF1 ENG(RLS) (A) L=25 OD=5	1-09748-032-0	01	1	0502-0804	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0805-	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0302-0501	●
551	04.303 PIN; SPRING 4HF1 ENG(RLS) 04.302 (B) L=32	8-97011-596-2	04	1	0502-	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0302-0501	●
551	04.303 PIN; SPRING 4HF1 ENG(RLS) (C) L=20	8-97241-340-0	01	1	0502-0804	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0805-	●	●
551	04.303 PIN; SPRING 4HK1 ENG(RJS) 04.302 (B) L=32	8-97011-596-2	05	1	0805-		●
554	04.302 STUD; CONT BOX M8X15,M8X25 L=49	8-97352-677-0	02	1	0302-0501	●
554	04.302 STUD; CONT BOX 4HF1 ENG(RLS) M8X15,M8X25 L=49	8-97352-677-0	02	1	0502-0604	●
554	04.302 STUD; CONT BOX 4HF1 ENG(RLS) M8X15,M8X25 L=49	8-97365-378-0	02	1	0605-0804	●
554	04.302 STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	0805-	●	●
559	04.302 PIPE; BREATHER	8-97305-517-0	01	1	0302-0501	●
559	04.302 PIPE; BREATHER 4HF1 ENG(RLS)	8-97305-517-0	01	1	0502-0604	●
559	04.302 PIPE; BREATHER 4HF1 ENG(RLS) 04.510	8-97358-318-0	01	1	0605-0804	●
559	04.302 PIPE; BREATHER 04.510	8-97358-318-0	01	1	0805-	●	●
624	04.105 PLATE; INTER LOCK	8-97241-317-2	01	1	0302-0501	●
624	04.105 PLATE; INTER LOCK 4HF1 ENG(RLS)	8-97241-317-3	01	1	0502-0804	●
624	04.105 PLATE; INTER LOCK	8-97241-317-3	01	1	0805-	●	●
630	04.307 DETENT ASM	8-97241-341-0	03	1	0302-0501	●
630	04.307 DETENT ASM 4HF1 ENG(RLS)	8-97241-341-0	03	1	0502-0604	●
630	04.307 DETENT ASM 4HF1 ENG(RLS)	8-98019-536-0	03	1	0605-	●
630	04.307 DETENT ASM 4HK1 ENG(RJS)	8-98019-536-0	04	1	0805-		●
631	04.105 STOPPER; SPRING	8-97305-666-0	01	1	0302-0501	●
631	04.105 STOPPER; SPRING 4HF1 ENG(RLS)	8-97305-666-0	01	1	0502-0804	●
631	04.105 STOPPER; SPRING	8-97305-666-0	01	1	0805-	●	●
635	04.309 PLUG; DETENT 00.206	8-97229-313-2	01	1	0302-0501	●
635	04.309 PLUG; DETENT 4HF1 ENG(RLS) 00.206	8-97229-313-2	01	1	0502-0611	●
635	04.309 PLUG; DETENT 4HF1 ENG(RLS) 00.206	8-97380-892-0	01	1	0612-	●
645	04.311 DETENT ASM 04.307	8-97241-341-0	01	1	0405-0501	●
645	04.311 DETENT ASM 4HF1 ENG(RLS) 04.307	8-97241-341-0	01	1	0502-0604	●
645	04.311 DETENT ASM 4HF1 ENG(RLS) 04.307	8-98019-536-0	01	1	0605-	●

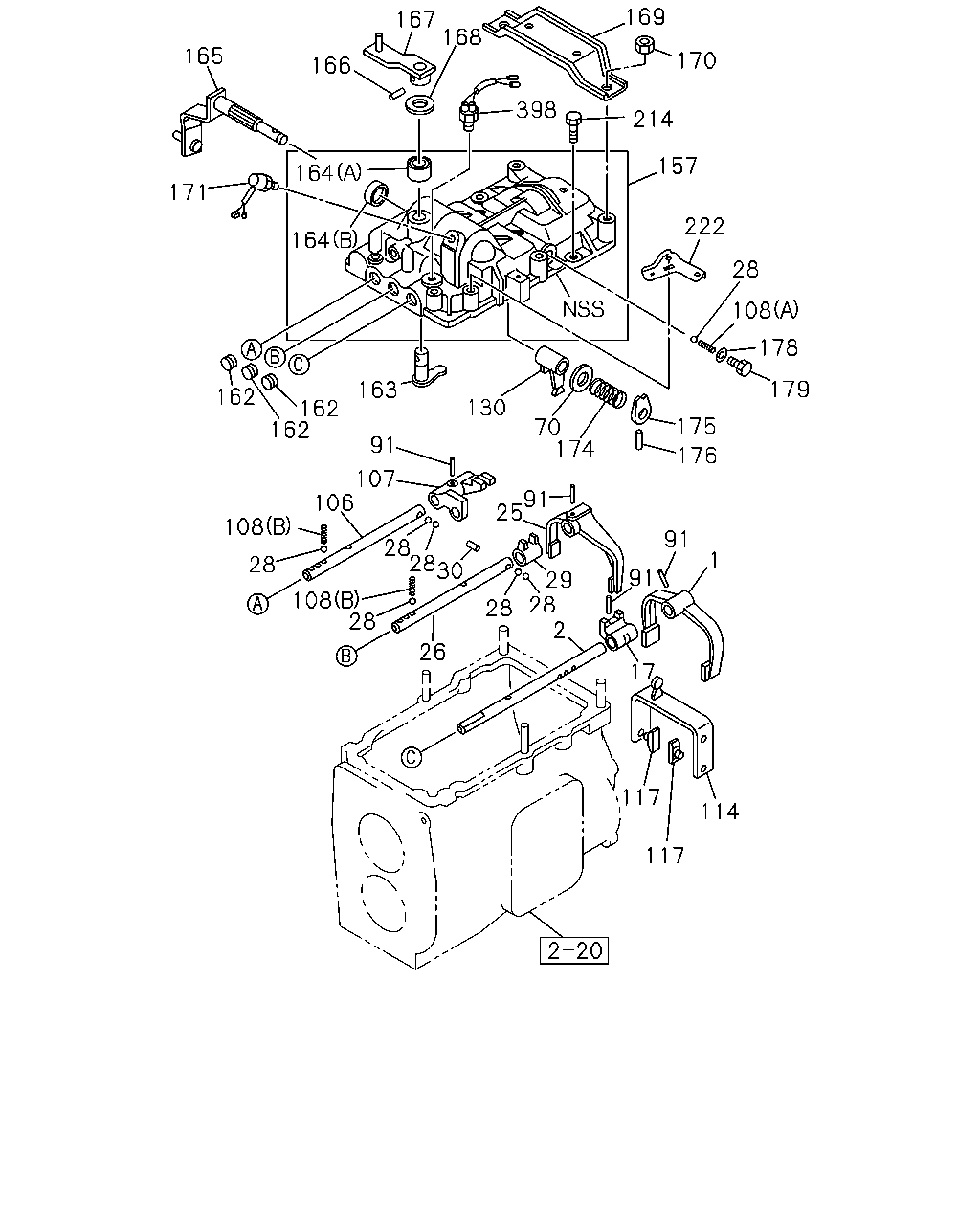

169 167 168 165 170 166 398 214 157 164 171 222 164 28 108 178 179 163 162 130 162 162 175 70 174 91 176 107 106 91 25 108 91 28 28 30 1 28 91 29 28 2 108 28 28 26 17 117 114 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	0201-0301			●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-320-2	01	1	0302-0501	●
1	04.302 ARM; SHIFT,1ST & REV 4HF1 ENG(RLS)	8-97241-320-2	01	1	0502-	●
1	04.302 ARM; SHIFT,1ST & REV 4HK1 ENG(RJS)	8-97241-319-2	01	1	0805-		●
2	04.309 ROD; SHIFT,1ST & REV	8-97034-820-0	01	1	0201-0301			●
17	04.303 BLOCK; SHIFT,1ST & REV	8-97034-829-1	01	1	0201-0301			●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	0201-0301			●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97355-690-0	01	1	0302-0404	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97362-731-1	01	1	0405-0501	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-97362-731-2	01	1	0502-1407	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-98255-926-1	01	1	1408-	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HK1 ENG(RJS)	8-97362-737-1	01	1	0805-		●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-493-0	01	1	0201-0301			●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0201-0301			●
29	04.303 BLOCK; SHIFT,2ND & 3RD	8-97034-830-0	01	1	0201-0301			●
30	04.307 PIN; INTER LK	8-97035-041-0	01	1	0201-0301			●
70	04.302 WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	0201-0301			●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	03	1	0201-0301			●
91	04.302 PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	0201-0301			●
106	04.309 ROD; SHIFT,OD TO TOP	8-97166-578-0	01	1	0201-0301			●
107	04.303 BLOCK; SHIFT,OD TO TOP	8-97034-832-0	01	1	0201-0301			●
108	04.311 SPRING; LOCK BALL (A)	8-97035-053-0	01	1	0201-0301			●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0201-0301			●
114	04.302 ARM; SHIFT,OD TO TOP	8-97034-827-1	01	1	0201-0301			●
117	04.302 PIECE; SHIFT,OD TO TOP	8-94316-996-0	02	1	0201-0301			●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	0201-0301			●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0302-0501	●
130	04.302 LEVER; SHIFT,INTERNAL 4HF1 ENG(RLS)	8-97306-647-0	01	1	0502-0804	●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0805-	●	●
157	04.105 BOX; QUAD,TRANS	8-97249-547-0	01	1	0201-0301			●
162	04.105 COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	04	1	0201-0301			●
163	04.302 LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	0201-0301			●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0302-0501	●
163	04.302 LEVER; SELECT,INTERNAL 4HF1 ENG(RLS)	8-97305-663-0	01	1	0502-0804	●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0805-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-97304-066-0	01	1	0201-0301			●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-97304-068-0	01	1	0201-0301			●
165	04.302 LEVER; SHIFT	8-97034-816-0	01	1	0201-0301			●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	0201-0301			●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	0201-0301			●
167	04.302 LEVER; SELECT,EXTERNAL	8-97306-648-0	01	1	0302-0501	●
167	04.302 LEVER; SELECT,EXTERNAL 4HF1 ENG(RLS)	8-97306-648-0	01	1	0502-0611	●
167	04.302 LEVER; SELECT,EXTERNAL 4HF1 ENG(RLS)	8-98039-434-0	01	1	0612-0804	●
167	04.302 LEVER; SELECT,EXTERNAL	8-98039-434-0	01	1	0805-	●	●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	0201-0301			●
169	00.029 BRACKET; ENG MTG TO TRANS	8-94112-892-2	01	1	0201-0301			●
170	04.105 NUT; CONT BOX M12 FLANGE	8-94249-242-0	04	1	0201-0301			●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	0201-0301			●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0302-0501	●
171	04.054 SWITCH; NEUTRAL 4HF1 ENG(RLS)	8-97316-688-1	01	1	0502-0611	●
171	04.054 SWITCH; NEUTRAL 4HF1 ENG(RLS) 02.698	8-98023-050-0	01	1	0612-0804	●
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	0805-1312	●	●
171	04.054 SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●	●
171	04.054 SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●
174	04.307 SPRING; REV	8-97035-052-0	01	1	0201-0301			●
175	04.302 RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	0201-0301			●
176	04.302 PIN; SPR,STOPPER 04.555 L=30 OD=4	9-09678-549-0	02	1	0201-0301			●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	0201-0301			●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0302-0501	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS)	9-09567-113-0	01	1	0502-0804	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0805-	●	●
179	04.311 PLUG; LOCK BALL	8-97031-668-0	01	1	0201-0301			●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X25	8-94128-786-0	04	1	0201-0301			●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X45	8-94132-164-0	06	1	0201-0301			●
222	04.057 BRACKET; CLIP	8-97061-051-0	01	1	0201-0301			●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	0201-0301			●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0302-0501	●
398	02.698 SWITCH; REV LAMP 4HF1 ENG(RLS) 04.054	8-97316-688-1	01	1	0502-0604	●
398	02.698 SWITCH; REV LAMP 4HF1 ENG(RLS)	8-98023-050-0	01	1	0605-0804	●
398	02.698 SWITCH; REV LAMP	8-98023-050-0	01	1	0805-1312	●	●
398	02.698 SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●	●

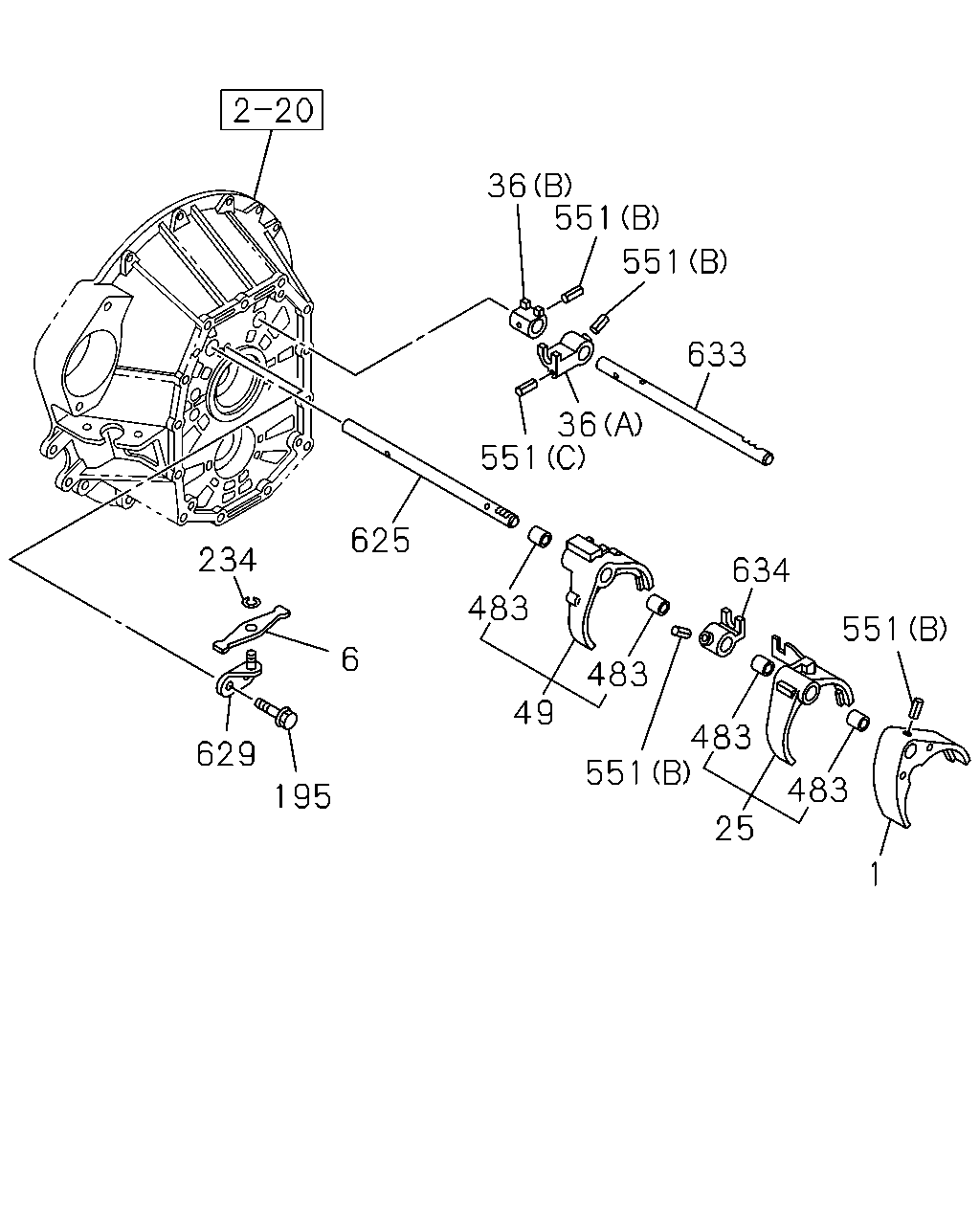

36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	0201-0301			●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-320-2	01	1	0302-0501	●
1	04.302 ARM; SHIFT,1ST & REV 4HF1 ENG(RLS)	8-97241-320-2	01	1	0502-	●
1	04.302 ARM; SHIFT,1ST & REV 4HK1 ENG(RJS)	8-97241-319-2	01	1	0805-		●
6	04.302 LEVER; RELAY	8-97241-344-0	01	1	0302-0501	●
6	04.302 LEVER; RELAY 4HF1 ENG(RLS)	8-97241-344-0	01	1	0502-	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	0201-0301			●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97355-690-0	01	1	0302-0404	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97362-731-1	01	1	0405-0501	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-97362-731-2	01	1	0502-1407	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-98255-926-1	01	1	1408-	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HK1 ENG(RJS)	8-97362-737-1	01	1	0805-		●
36	04.303 BLOCK; SHIFT,4TH & 5TH (A)	8-97241-329-1	01	1	0302-0501	●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HF1 ENG(RLS) (A)	8-97241-329-1	01	1	0502-	●
36	04.303 BLOCK; SHIFT,4TH & 5TH (B)	8-97241-330-0	01	1	0302-0501	●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HF1 ENG(RLS) (B)	8-97241-330-0	01	1	0502-	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-716-0	01	1	0302-0501	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HF1 ENG(RLS)	8-97258-716-0	01	1	0502-	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HK1 ENG(RJS)	8-97362-738-1	01	1	0805-		●
195	04.105 BOLT 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0302-0501	●
195	04.105 BOLT 4HF1 ENG(RLS) 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0502-0604	●
195	04.105 BOLT 4HF1 ENG(RLS) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0605-0804	●
195	04.105 BOLT M10X28 FLANGE REAMER	8-97365-375-0	02	1	0805-	●	●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	01	1	0302-0501	●
234	04.311 RING; SNAP 4HF1 ENG(RLS) 04.307 ID=12	8-94460-357-0	01	1	0502-	●
234	04.311 RING; SNAP 4HK1 ENG(RJS) ID=16.5	0-91800-618-0	01	1	0805-		●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	0302-0501	●
483	04.419 BUSHING; SHIFT ARM 4HF1 ENG(RLS) 00.683	8-97241-326-2	04	1	0502-0804	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	0805-	●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0302-0501	●
551	04.303 PIN; SPRING 4HF1 ENG(RLS) (A) L=25 OD=5	1-09748-032-0	01	1	0502-0804	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0805-	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0302-0501	●
551	04.303 PIN; SPRING 4HF1 ENG(RLS) 04.302 (B) L=32	8-97011-596-2	04	1	0502-	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0302-0501	●
551	04.303 PIN; SPRING 4HF1 ENG(RLS) (C) L=20	8-97241-340-0	01	1	0502-0804	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0805-	●	●
551	04.303 PIN; SPRING 4HK1 ENG(RJS) 04.302 (B) L=32	8-97011-596-2	05	1	0805-		●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97241-333-3	01	1	0302-0404	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-741-0	01	1	0405-0501	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HF1 ENG(RLS)	8-97362-741-0	01	1	0502-	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HK1 ENG(RJS)	8-97362-735-0	01	1	0805-		●
629	04.555 BRIDGE; LEVER	8-97237-107-1	01	1	0302-0501	●
629	04.555 BRIDGE; LEVER 4HF1 ENG(RLS)	8-97237-107-1	01	1	0502-	●
629	04.555 BRIDGE; LEVER 4HK1 ENG(RJS)	8-97241-345-1	01	1	0805-		●
633	04.309 ROD; GEAR SHIFT,4TH,5TH	8-97358-832-0	01	1	0302-0404	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH	8-97362-743-0	01	1	0405-0501	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4HF1 ENG(RLS)	8-97362-743-0	01	1	0502-	●
634	04.303 BLOCK; SHIFT,LOW,REV	8-97241-327-1	01	1	0302-0501	●
634	04.303 BLOCK; SHIFT,LOW,REV 4HF1 ENG(RLS)	8-97241-327-1	01	1	0502-	●

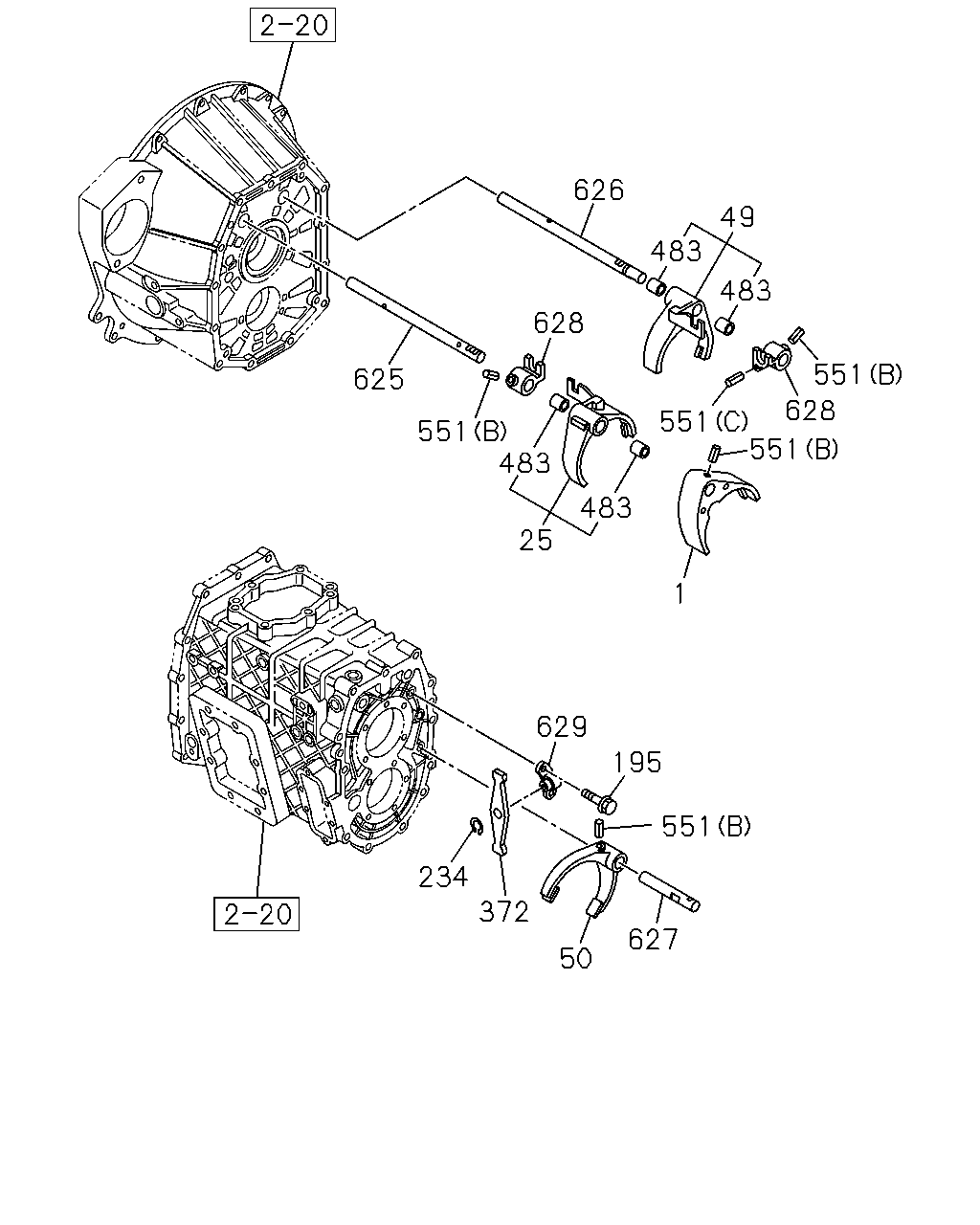

626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 629 195 551 234 372 627 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	0201-0301			●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-320-2	01	1	0302-0501	●
1	04.302 ARM; SHIFT,1ST & REV 4HF1 ENG(RLS)	8-97241-320-2	01	1	0502-	●
1	04.302 ARM; SHIFT,1ST & REV 4HK1 ENG(RJS)	8-97241-319-2	01	1	0805-		●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	0201-0301			●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97355-690-0	01	1	0302-0404	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97362-731-1	01	1	0405-0501	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-97362-731-2	01	1	0502-1407	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-98255-926-1	01	1	1408-	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HK1 ENG(RJS)	8-97362-737-1	01	1	0805-		●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-716-0	01	1	0302-0501	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HF1 ENG(RLS)	8-97258-716-0	01	1	0502-	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HK1 ENG(RJS)	8-97362-738-1	01	1	0805-		●
50	04.302 ARM; SHIFT,6TH 4HK1 ENG(RJS)	8-97241-324-1	01	1	0805-		●
195	04.105 BOLT 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0302-0501	●
195	04.105 BOLT 4HF1 ENG(RLS) 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0502-0604	●
195	04.105 BOLT 4HF1 ENG(RLS) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0605-0804	●
195	04.105 BOLT M10X28 FLANGE REAMER	8-97365-375-0	02	1	0805-	●	●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	01	1	0302-0501	●
234	04.311 RING; SNAP 4HF1 ENG(RLS) 04.307 ID=12	8-94460-357-0	01	1	0502-	●
234	04.311 RING; SNAP 4HK1 ENG(RJS) ID=16.5	0-91800-618-0	01	1	0805-		●
372	04.302 LEVER; RELAY,6TH 4HK1 ENG(RJS)	8-97241-342-0	01	1	0805-		●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	0302-0501	●
483	04.419 BUSHING; SHIFT ARM 4HF1 ENG(RLS) 00.683	8-97241-326-2	04	1	0502-0804	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	0805-	●	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0302-0501	●
551	04.303 PIN; SPRING 4HF1 ENG(RLS) (A) L=25 OD=5	1-09748-032-0	01	1	0502-0804	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0805-	●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0302-0501	●
551	04.303 PIN; SPRING 4HF1 ENG(RLS) 04.302 (B) L=32	8-97011-596-2	04	1	0502-	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0302-0501	●
551	04.303 PIN; SPRING 4HF1 ENG(RLS) (C) L=20	8-97241-340-0	01	1	0502-0804	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0805-	●	●
551	04.303 PIN; SPRING 4HK1 ENG(RJS) 04.302 (B) L=32	8-97011-596-2	05	1	0805-		●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97241-333-3	01	1	0302-0404	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-741-0	01	1	0405-0501	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HF1 ENG(RLS)	8-97362-741-0	01	1	0502-	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HK1 ENG(RJS)	8-97362-735-0	01	1	0805-		●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 4HK1 ENG(RJS)	8-98107-548-0	01	1	0805-		●
627	04.309 ROD; GEAR SHIFT,6TH SUB 4HK1 ENG(RJS)	8-97241-339-0	01	1	0805-0805		●
627	04.309 ROD; GEAR SHIFT,6TH SUB 4HK1 ENG(RJS)	8-98119-293-0	01	1	0806-		●
628	04.303 BLOCK; SHIFT,LOW,REV & 6TH 4HK1 ENG(RJS)	8-97241-327-1	02	1	0805-		●
629	04.555 BRIDGE; LEVER	8-97237-107-1	01	1	0302-0501	●
629	04.555 BRIDGE; LEVER 4HF1 ENG(RLS)	8-97237-107-1	01	1	0502-	●
629	04.555 BRIDGE; LEVER 4HK1 ENG(RJS)	8-97241-345-1	01	1	0805-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
