Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#19333) — 541 parça

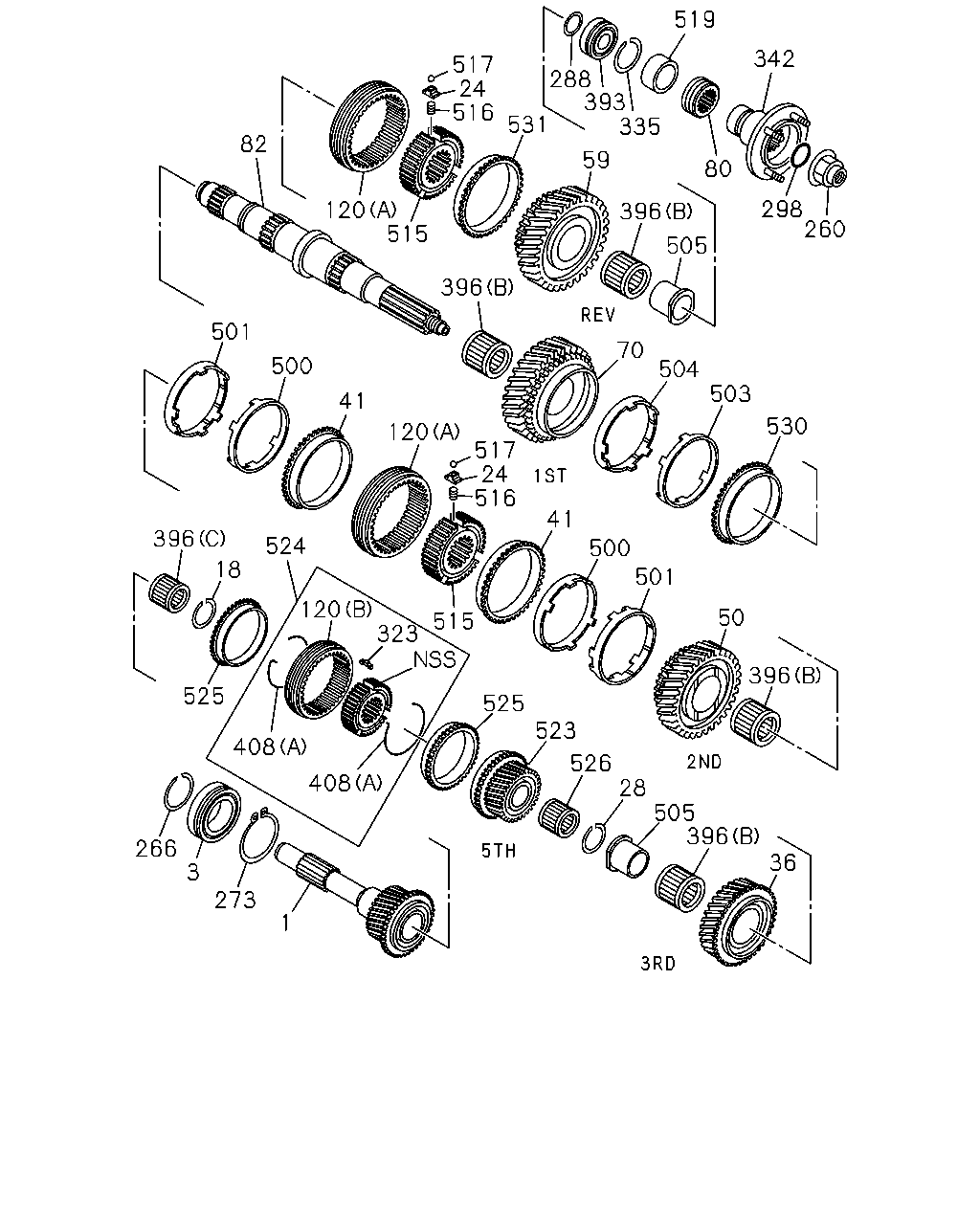

519 342 517 24 516 288 393 335 531 82 59 80 298 260 120 515 396 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 120 323 50 515 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	0201-0301	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-97252-924-1	01	1	0302-0501		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HF1 ENG(RLS) Z=28	8-97252-924-1	01	1	0502-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1 ENG(RJS) Z=25	8-97371-090-0	01	1	0805-			●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	0201-0301	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0302-0501		●
3	04.403 BEARING; TOP GEAR SHAFT 4HF1 ENG(RLS) NSK	8-97253-098-1	01	1	0502-		●
3	04.403 BEARING; TOP GEAR SHAFT 4HK1 ENG(RJS) NSK	8-97253-097-1	01	1	0805-			●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0302-0501		●
18	04.384 RING; SNAP,CLU HUB 4HF1 ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0502-		●
18	04.384 RING; SNAP,CLU HUB 4HK1 ENG(RJS) ID=35.7 T=1.8	8-97256-855-0	01	1	0805-			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	0302-0501		●
24	04.383 BLOCK; INDEX,SYN 4HF1 ENG(RLS)	8-97241-313-1	06	1	0502-		●
24	04.383 BLOCK; INDEX,SYN 4HK1 ENG(RJS)	8-97241-313-1	12	1	0805-			●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0302-0501		●
28	04.416 RING; SNAP,3RD GEAR 4HF1 ENG(RLS) ID=46.5 T=1.8	8-97254-743-0	01	1	0502-0804		●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0805-		●	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HK1 ENG(RJS) Z=29	8-97241-228-0	01	1	0805-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	0201-0301	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0302-0501		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HF1 ENG(RLS) Z=34	8-97241-234-0	01	1	0502-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HK1 ENG(RJS) Z=34	8-97241-233-1	01	1	0805-			●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0302-0501		●
41	04.383 RING; BLOCK,2ND & 3RD 4HF1 ENG(RLS) Z=45	8-97241-306-1	02	1	0502-		●
41	04.383 RING; BLOCK,2ND & 3RD 4HK1 ENG(RJS) Z=54	8-97241-305-2	02	1	0805-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0201-0301	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0302-0501		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HF1 ENG(RLS) Z=38	8-97241-237-1	01	1	0502-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HK1 ENG(RJS) Z=43	8-97241-236-1	01	1	0805-			●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	0201-0301	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0302-0501		●
59	04.417 GEAR; REV MAINSHAFT 4HF1 ENG(RLS) Z=41	8-97241-244-0	01	1	0502-		●
59	04.417 GEAR; REV MAINSHAFT 4HK1 ENG(RJS) Z=45	8-97241-243-0	01	1	0805-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	0201-0301	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0302-0404		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-0501		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97350-010-0	01	1	0502-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1 ENG(RJS) Z=45	8-97241-241-0	01	1	0805-			●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	0201-0301	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0302-0501		●
80	04.343 GEAR; SPD DRIVE 4HF1 ENG(RLS) Z=4	8-97253-556-0	01	1	0502-		●
80	04.343 GEAR; SPD DRIVE 4HK1 ENG(RJS) Z=4	8-97253-555-0	01	1	0805-			●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	0201-0301	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0302-0501		●
82	04.403 SHAFT; MAIN,TRANS 4HF1 ENG(RLS) Z=28-42-42-21	8-97253-117-3	01	1	0502-		●
82	04.403 SHAFT; MAIN,TRANS 4HK1 ENG(RJS) Z=26-42-23	8-97253-115-3	01	1	0805-			●
120	04.383 SLEEVE 4HF1 ENG(RLS) 04.535 (B) Z=45	8-94421-871-1	01	1	0502-		●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0302-0501		●
120	04.383 SLEEVE 4HF1 ENG(RLS) (A) Z=45	8-97241-296-1	02	1	0502-1311		●
120	04.383 SLEEVE 4HF1 ENG(RLS) (A) Z=45	8-98258-279-0	02	1	1312-		●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0302-0501		●
260	04.412 NUT; MAINSHAFT END 4HF1 ENG(RLS) M27 H=25	8-97253-126-0	01	1	0502-0604		●
260	04.412 NUT; MAINSHAFT END 4HF1 ENG(RLS) 04.525 M27 H=25	8-97360-410-0	01	1	0605-0804		●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0805-		●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0302-0501		●
266	04.525 RING; SNAP,BRG INNER 4HF1 ENG(RLS)	8-97286-916-0	01	1	0502-		●
266	04.525 RING; SNAP,BRG INNER 4HK1 ENG(RJS)	8-97286-915-0	01	1	0805-			●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0302-0501		●
273	04.525 RING; SNAP,BRG OUTER 4HF1 ENG(RLS)	8-97254-610-0	01	1	0502-		●
273	04.525 RING; SNAP,BRG OUTER 4HK1 ENG(RJS)	8-97254-609-0	01	1	0805-			●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0302-0501		●
288	04.399 SPACER; BRG,MAINSHAFT 4HF1 ENG(RLS)	8-97252-942-0	01	1	0502-		●
288	04.399 SPACER; BRG,MAINSHAFT 4HK1 ENG(RJS)	8-97252-941-0	01	1	0805-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0302-0501		●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0502-0507		●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=30.6 T=5.7	8-98028-226-0	01	1	0508-		●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1 ENG(RJS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0805-			●
323	04.384 INSERT	8-94448-202-2	03	1	0302-0501		●
323	04.384 INSERT 4HF1 ENG(RLS)	8-94448-202-2	03	1	0502-		●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0302-0501		●
335	04.383 RING; SNAP,BEARING 4HF1 ENG(RLS)	8-97254-722-0	01	1	0502-		●
335	04.383 RING; SNAP,BEARING 4HK1 ENG(RJS)	8-97254-720-0	01	1	0805-			●
342	05.545 FLANGE; OUTPUT	8-97252-814-1	01	1	0302-0501		●
342	05.545 FLANGE; OUTPUT 4HF1 ENG(RLS)	8-97252-814-1	01	1	0502-0604		●
342	05.545 FLANGE; OUTPUT 4HF1 ENG(RLS)	8-98031-640-0	01	1	0605-		●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	0201-0301	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0302-0501		●
393	04.352 BEARING; MAINSHAFT END 4HF1 ENG(RLS)	8-97253-105-1	01	1	0502-		●
393	04.352 BEARING; MAINSHAFT END 4HK1 ENG(RJS)	8-97253-104-0	01	1	0805-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97228-274-0	01	1	0201-0301	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-102-1	01	1	0302-0501		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (C)	8-97253-102-1	01	1	0502-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0302-0501		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (B)	8-97253-110-0	04	1	0502-0804		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0805-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1 ENG(RJS) (D)	8-97253-099-1	01	1	0805-			●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0302-0501		●
408	04.384 SPRING 4HF1 ENG(RLS) 04.422 (B)	8-94148-196-0	03	1	0502-		●
408	04.384 SPRING (A)	8-94422-075-0	02	1	0302-0404		●
408	04.384 SPRING (A)	8-97366-040-0	02	1	0405-0501		●
408	04.384 SPRING 4HF1 ENG(RLS) (A)	8-97366-040-1	02	1	0502-		●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0302-0501		●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HF1 ENG(RLS)	8-97241-309-1	02	1	0502-		●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HK1 ENG(RJS)	8-97241-307-1	02	1	0805-			●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0302-0501		●
501	04.383 RING; INSIDE,3RD & 2ND 4HF1 ENG(RLS)	8-97241-312-1	02	1	0502-		●
501	04.383 RING; INSIDE,3RD & 2ND 4HK1 ENG(RJS)	8-97241-311-1	02	1	0805-			●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	0302-0501		●
503	04.383 RING; OUTSIDE,LOW & REV 4HF1 ENG(RLS)	8-97241-309-1	01	1	0502-		●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1 ENG(RJS)	8-97241-307-1	02	1	0805-			●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	0302-0501		●
504	04.383 RING; INSIDE,LOW & REV 4HF1 ENG(RLS)	8-97241-312-1	01	1	0502-		●
504	04.383 RING; INSIDE,LOW & REV 4HK1 ENG(RJS)	8-97241-311-1	02	1	0805-			●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0302-0501		●
505	04.419 COLLAR; 3RD & REV 4HF1 ENG(RLS)	8-97253-119-2	02	1	0502-0804		●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0805-		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-2	02	1	0302-0501		●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HF1 ENG(RLS)	8-97241-298-3	02	1	0502-		●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HK1 ENG(RJS)	8-97239-155-2	02	1	0805-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0302-0501		●
516	04.384 SPRING; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97254-835-0	06	1	0502-		●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1 ENG(RJS)	8-97305-803-1	12	1	0805-			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0302-0501		●
517	04.384 BALL; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97252-935-0	06	1	0502-		●
517	04.384 BALL; SYNCHRO,INDEX 4HK1 ENG(RJS)	8-97252-935-0	12	1	0805-			●
519	04.419 COLLAR; MAINSHAFT END,5TH 04.415	8-97252-940-0	01	1	0302-0501		●
519	04.419 COLLAR; MAINSHAFT END,5TH 4HF1 ENG(RLS) 04.415	8-97252-940-0	01	1	0502-		●
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	0302-0501		●
523	04.395 GEAR; OD,MAINSHAFT 4HF1 ENG(RLS) Z=22	8-97241-231-0	01	1	0502-		●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97300-195-0	01	1	0302-0404		●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	0405-0501		●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HF1 ENG(RLS)	8-97366-526-0	01	1	0502-		●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	0302-0501		●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HF1 ENG(RLS) Z=45	8-97309-532-0	02	1	0502-		●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	0302-0501		●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HF1 ENG(RLS)	8-97253-112-0	01	1	0502-		●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0302-0501		●
530	04.383 RING; BLOCK,LOW 4HF1 ENG(RLS) Z=45	8-97241-306-1	01	1	0502-		●
530	04.383 RING; BLOCK,LOW 4HK1 ENG(RJS) Z=54	8-97241-305-2	01	1	0805-			●
531	04.383 RING; BLOCK,REV Z=45	8-97328-151-1	01	1	0302-0305		●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	0306-0501		●
531	04.383 RING; BLOCK,REV 4HF1 ENG(RLS) Z=45	8-97368-343-0	01	1	0502-		●
531	04.383 RING; BLOCK,REV 4HK1 ENG(RJS) Z=54	8-97241-305-2	01	1	0805-			●

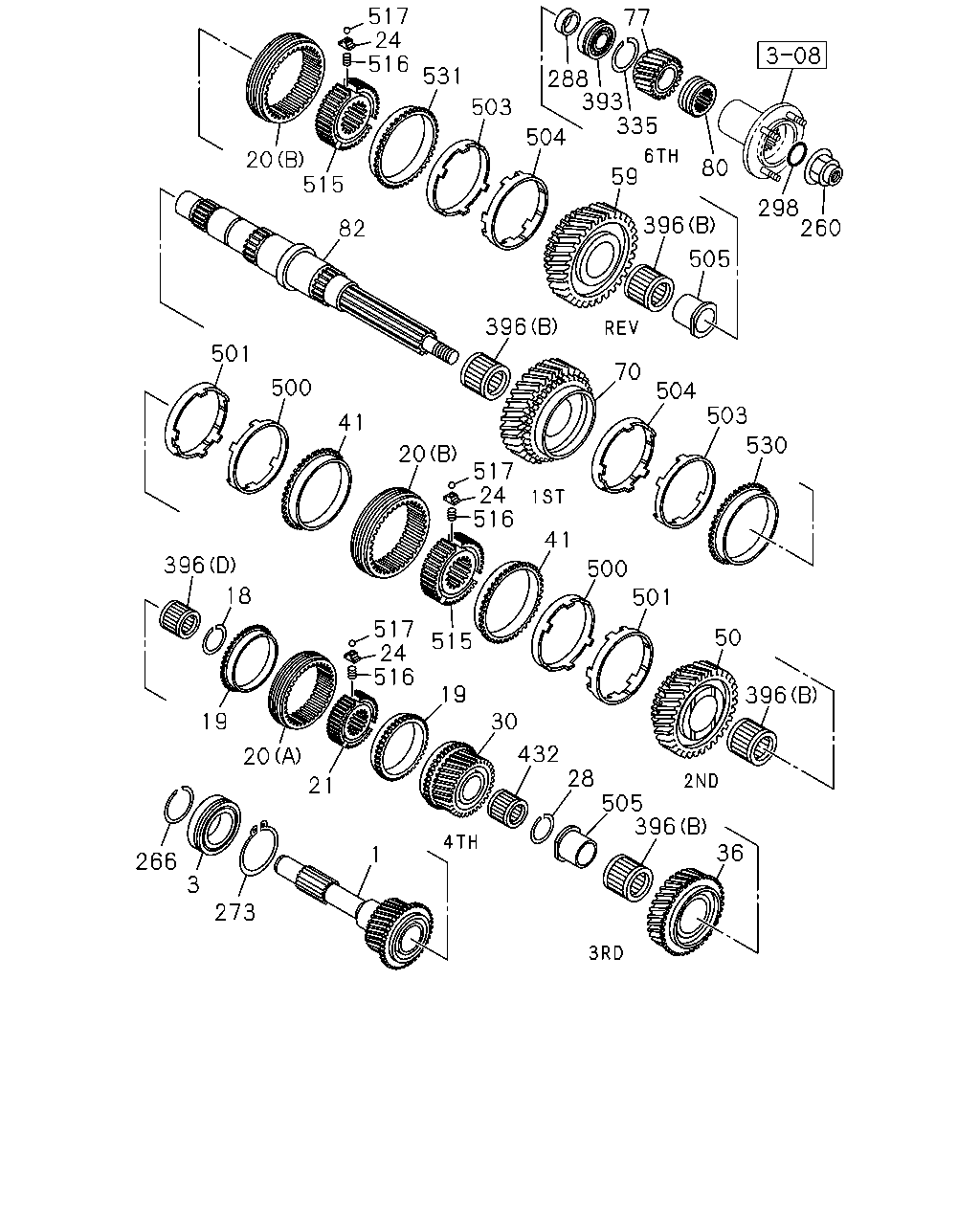

517 24 516 77 531 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 530 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 20 21 1 266 3 273 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	0201-0301	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-97252-924-1	01	1	0302-0501		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HF1 ENG(RLS) Z=28	8-97252-924-1	01	1	0502-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1 ENG(RJS) Z=25	8-97371-090-0	01	1	0805-			●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	0201-0301	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0302-0501		●
3	04.403 BEARING; TOP GEAR SHAFT 4HF1 ENG(RLS) NSK	8-97253-098-1	01	1	0502-		●
3	04.403 BEARING; TOP GEAR SHAFT 4HK1 ENG(RJS) NSK	8-97253-097-1	01	1	0805-			●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0302-0501		●
18	04.384 RING; SNAP,CLU HUB 4HF1 ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0502-		●
18	04.384 RING; SNAP,CLU HUB 4HK1 ENG(RJS) ID=35.7 T=1.8	8-97256-855-0	01	1	0805-			●
19	04.383 RING; BLOCK,4TH & 5TH 4HK1 ENG(RJS) Z=45	8-97241-306-1	02	1	0805-			●
20	04.383 SLEEVE 4HK1 ENG(RJS) (B) Z=54	8-97241-295-2	02	1	0805-			●
20	04.383 SLEEVE 4HK1 ENG(RJS) (A) Z=45	8-97241-296-1	02	1	0805-1311			●
20	04.383 SLEEVE 4HK1 ENG(RJS) (A) Z=45	8-98258-279-0	02	1	1312-			●
21	04.384 HUB; CLU,4TH & 5TH 4HK1 ENG(RJS)	8-97241-299-3	01	1	0805-			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	0302-0501		●
24	04.383 BLOCK; INDEX,SYN 4HF1 ENG(RLS)	8-97241-313-1	06	1	0502-		●
24	04.383 BLOCK; INDEX,SYN 4HK1 ENG(RJS)	8-97241-313-1	12	1	0805-			●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0302-0501		●
28	04.416 RING; SNAP,3RD GEAR 4HF1 ENG(RLS) ID=46.5 T=1.8	8-97254-743-0	01	1	0502-0804		●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0805-		●	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HK1 ENG(RJS) Z=29	8-97241-228-0	01	1	0805-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	0201-0301	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0302-0501		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HF1 ENG(RLS) Z=34	8-97241-234-0	01	1	0502-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HK1 ENG(RJS) Z=34	8-97241-233-1	01	1	0805-			●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0302-0501		●
41	04.383 RING; BLOCK,2ND & 3RD 4HF1 ENG(RLS) Z=45	8-97241-306-1	02	1	0502-		●
41	04.383 RING; BLOCK,2ND & 3RD 4HK1 ENG(RJS) Z=54	8-97241-305-2	02	1	0805-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0201-0301	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0302-0501		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HF1 ENG(RLS) Z=38	8-97241-237-1	01	1	0502-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HK1 ENG(RJS) Z=43	8-97241-236-1	01	1	0805-			●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	0201-0301	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0302-0501		●
59	04.417 GEAR; REV MAINSHAFT 4HF1 ENG(RLS) Z=41	8-97241-244-0	01	1	0502-		●
59	04.417 GEAR; REV MAINSHAFT 4HK1 ENG(RJS) Z=45	8-97241-243-0	01	1	0805-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	0201-0301	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0302-0404		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-0501		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97350-010-0	01	1	0502-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1 ENG(RJS) Z=45	8-97241-241-0	01	1	0805-			●
77	04.421 GEAR; 6TH,MAINSHAFT 4HK1 ENG(RJS) Z=20	8-97252-634-0	01	1	0805-			●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	0201-0301	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0302-0501		●
80	04.343 GEAR; SPD DRIVE 4HF1 ENG(RLS) Z=4	8-97253-556-0	01	1	0502-		●
80	04.343 GEAR; SPD DRIVE 4HK1 ENG(RJS) Z=4	8-97253-555-0	01	1	0805-			●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	0201-0301	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0302-0501		●
82	04.403 SHAFT; MAIN,TRANS 4HF1 ENG(RLS) Z=28-42-42-21	8-97253-117-3	01	1	0502-		●
82	04.403 SHAFT; MAIN,TRANS 4HK1 ENG(RJS) Z=26-42-23	8-97253-115-3	01	1	0805-			●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0302-0501		●
260	04.412 NUT; MAINSHAFT END 4HF1 ENG(RLS) M27 H=25	8-97253-126-0	01	1	0502-0604		●
260	04.412 NUT; MAINSHAFT END 4HF1 ENG(RLS) 04.525 M27 H=25	8-97360-410-0	01	1	0605-0804		●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0805-		●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0302-0501		●
266	04.525 RING; SNAP,BRG INNER 4HF1 ENG(RLS)	8-97286-916-0	01	1	0502-		●
266	04.525 RING; SNAP,BRG INNER 4HK1 ENG(RJS)	8-97286-915-0	01	1	0805-			●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0302-0501		●
273	04.525 RING; SNAP,BRG OUTER 4HF1 ENG(RLS)	8-97254-610-0	01	1	0502-		●
273	04.525 RING; SNAP,BRG OUTER 4HK1 ENG(RJS)	8-97254-609-0	01	1	0805-			●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0302-0501		●
288	04.399 SPACER; BRG,MAINSHAFT 4HF1 ENG(RLS)	8-97252-942-0	01	1	0502-		●
288	04.399 SPACER; BRG,MAINSHAFT 4HK1 ENG(RJS)	8-97252-941-0	01	1	0805-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0302-0501		●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0502-0507		●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=30.6 T=5.7	8-98028-226-0	01	1	0508-		●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HK1 ENG(RJS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0805-			●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0302-0501		●
335	04.383 RING; SNAP,BEARING 4HF1 ENG(RLS)	8-97254-722-0	01	1	0502-		●
335	04.383 RING; SNAP,BEARING 4HK1 ENG(RJS)	8-97254-720-0	01	1	0805-			●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	0201-0301	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0302-0501		●
393	04.352 BEARING; MAINSHAFT END 4HF1 ENG(RLS)	8-97253-105-1	01	1	0502-		●
393	04.352 BEARING; MAINSHAFT END 4HK1 ENG(RJS)	8-97253-104-0	01	1	0805-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97228-274-0	01	1	0201-0301	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-102-1	01	1	0302-0501		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (C)	8-97253-102-1	01	1	0502-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0302-0501		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (B)	8-97253-110-0	04	1	0502-0804		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0805-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1 ENG(RJS) (D)	8-97253-099-1	01	1	0805-			●
432	04.419 BEARING; NEEDLE,4TH 4HK1 ENG(RJS) NSK	8-97253-111-0	01	1	0805-			●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0302-0501		●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HF1 ENG(RLS)	8-97241-309-1	02	1	0502-		●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HK1 ENG(RJS)	8-97241-307-1	02	1	0805-			●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0302-0501		●
501	04.383 RING; INSIDE,3RD & 2ND 4HF1 ENG(RLS)	8-97241-312-1	02	1	0502-		●
501	04.383 RING; INSIDE,3RD & 2ND 4HK1 ENG(RJS)	8-97241-311-1	02	1	0805-			●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	0302-0501		●
503	04.383 RING; OUTSIDE,LOW & REV 4HF1 ENG(RLS)	8-97241-309-1	01	1	0502-		●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1 ENG(RJS)	8-97241-307-1	02	1	0805-			●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	0302-0501		●
504	04.383 RING; INSIDE,LOW & REV 4HF1 ENG(RLS)	8-97241-312-1	01	1	0502-		●
504	04.383 RING; INSIDE,LOW & REV 4HK1 ENG(RJS)	8-97241-311-1	02	1	0805-			●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0302-0501		●
505	04.419 COLLAR; 3RD & REV 4HF1 ENG(RLS)	8-97253-119-2	02	1	0502-0804		●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0805-		●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-2	02	1	0302-0501		●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HF1 ENG(RLS)	8-97241-298-3	02	1	0502-		●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HK1 ENG(RJS)	8-97239-155-2	02	1	0805-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0302-0501		●
516	04.384 SPRING; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97254-835-0	06	1	0502-		●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1 ENG(RJS)	8-97305-803-1	12	1	0805-			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0302-0501		●
517	04.384 BALL; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97252-935-0	06	1	0502-		●
517	04.384 BALL; SYNCHRO,INDEX 4HK1 ENG(RJS)	8-97252-935-0	12	1	0805-			●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	0302-0501		●
530	04.383 RING; BLOCK,LOW 4HF1 ENG(RLS) Z=45	8-97241-306-1	01	1	0502-		●
530	04.383 RING; BLOCK,LOW 4HK1 ENG(RJS) Z=54	8-97241-305-2	01	1	0805-			●
531	04.383 RING; BLOCK,REV Z=45	8-97328-151-1	01	1	0302-0305		●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	0306-0501		●
531	04.383 RING; BLOCK,REV 4HF1 ENG(RLS) Z=45	8-97368-343-0	01	1	0502-		●
531	04.383 RING; BLOCK,REV 4HK1 ENG(RJS) Z=54	8-97241-305-2	01	1	0805-			●

314 318 393 276 80 49 82 313 70 66 62 175 234 397 387 63 62 397 14 35 13 173 59 36 51 174 405 4 30 32 33 40 3 35 180 1 396 172 182 40 51 287 398 84 180 184 50 109 186 183 190 132 135

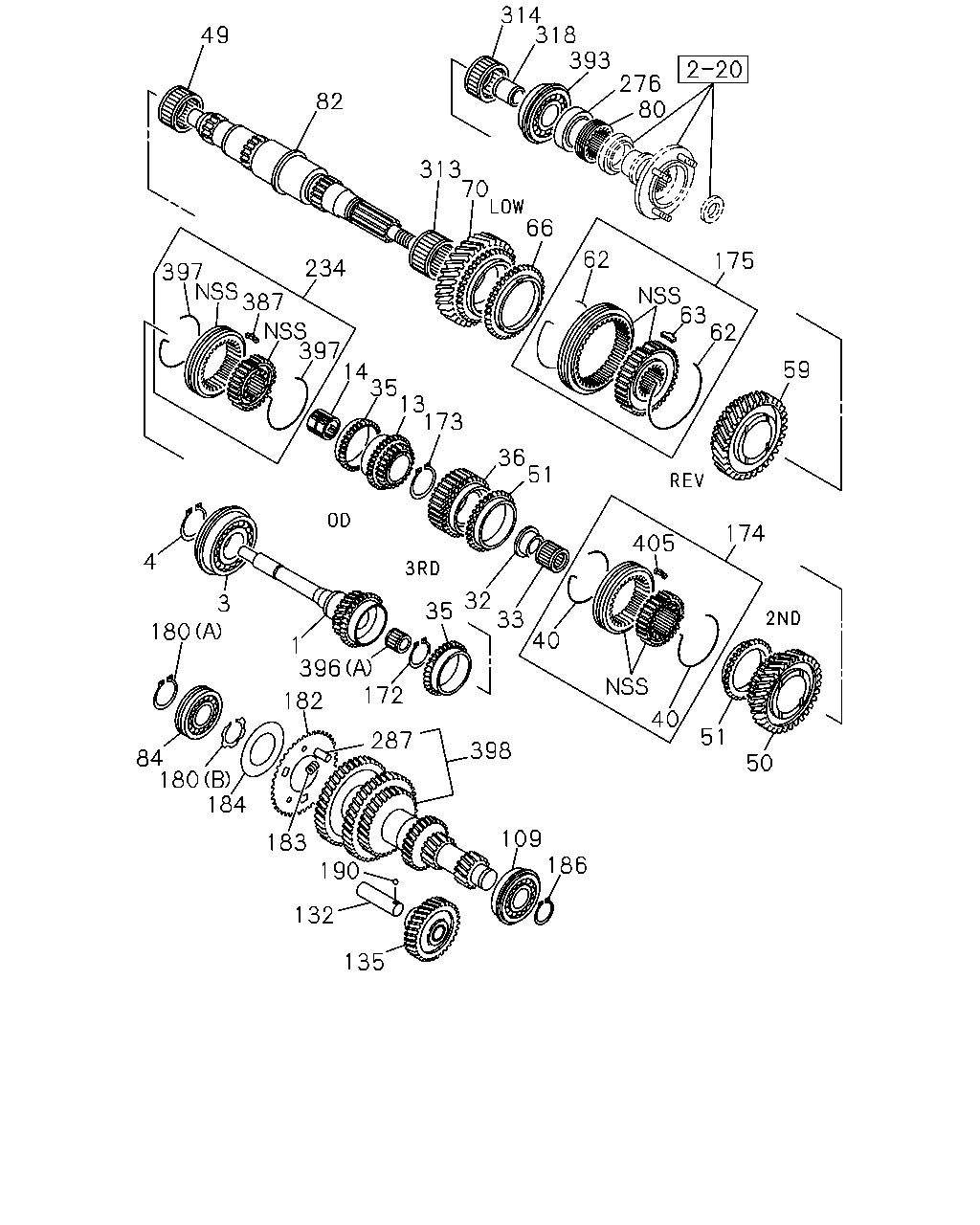

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	0201-0301	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-97252-924-1	01	1	0302-0501		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HF1 ENG(RLS) Z=28	8-97252-924-1	01	1	0502-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1 ENG(RJS) Z=25	8-97371-090-0	01	1	0805-			●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	0201-0301	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0302-0501		●
3	04.403 BEARING; TOP GEAR SHAFT 4HF1 ENG(RLS) NSK	8-97253-098-1	01	1	0502-		●
3	04.403 BEARING; TOP GEAR SHAFT 4HK1 ENG(RJS) NSK	8-97253-097-1	01	1	0805-			●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT	8-97035-040-0	01	1	0201-0301	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=23	8-97034-856-0	01	1	0201-0301	●
14	04.419 BEARING; NEEDLE,5TH	8-97147-572-0	01	1	0201-0301	●
30	04.415 GEAR; 4TH,MAINSHAFT 4HK1 ENG(RJS) Z=29	8-97241-228-0	01	1	0805-			●
32	04.415 COLLAR; 3RD GEAR	8-94178-500-2	01	1	0201-0301	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	8-97201-005-0	01	1	0201-0301	●
33	04.352 BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	0201-0301	●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	0201-0301	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	0201-0301	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0302-0501		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HF1 ENG(RLS) Z=34	8-97241-234-0	01	1	0502-		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HK1 ENG(RJS) Z=34	8-97241-233-1	01	1	0805-			●
40	04.384 SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	0201-0301	●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NTN	8-97201-005-0	01	1	0201-0301	●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	0201-0301	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0201-0301	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0302-0501		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HF1 ENG(RLS) Z=38	8-97241-237-1	01	1	0502-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HK1 ENG(RJS) Z=43	8-97241-236-1	01	1	0805-			●
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	0201-0301	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	0201-0301	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	0302-0501		●
59	04.417 GEAR; REV MAINSHAFT 4HF1 ENG(RLS) Z=41	8-97241-244-0	01	1	0502-		●
59	04.417 GEAR; REV MAINSHAFT 4HK1 ENG(RJS) Z=45	8-97241-243-0	01	1	0805-			●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-709-0	02	1	0201-0301	●
63	04.384 INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	0201-0301	●
66	04.383 RING; BLOCK,SYN Z=45	8-97061-752-0	01	1	0201-0301	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	0201-0301	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97241-242-1	01	1	0302-0404		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	0405-0501		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97350-010-0	01	1	0502-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1 ENG(RJS) Z=45	8-97241-241-0	01	1	0805-			●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	0201-0301	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0302-0501		●
80	04.343 GEAR; SPD DRIVE 4HF1 ENG(RLS) Z=4	8-97253-556-0	01	1	0502-		●
80	04.343 GEAR; SPD DRIVE 4HK1 ENG(RJS) Z=4	8-97253-555-0	01	1	0805-			●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	0201-0301	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	0302-0501		●
82	04.403 SHAFT; MAIN,TRANS 4HF1 ENG(RLS) Z=28-42-42-21	8-97253-117-3	01	1	0502-		●
82	04.403 SHAFT; MAIN,TRANS 4HK1 ENG(RJS) Z=26-42-23	8-97253-115-3	01	1	0805-			●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	0201-0301	●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	0201-0301	●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	0201-0301	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0302-0501		●
132	04.433 SHAFT; REV 4HF1 ENG(RLS)	8-97252-655-0	01	1	0502-0804		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0805-		●	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	0201-0301	●
135	04.430 GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0302-0501		●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-97241-293-0	01	1	0502-0512		●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-98031-869-1	01	1	0601-		●
135	04.430 GEAR; REV IDLER 4HK1 ENG(RJS) Z=26	8-97241-292-2	01	1	0805-			●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	0201-0301	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	0201-0301	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	0201-0301	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	0201-0301	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	0201-0301	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	0201-0301	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	0201-0301	●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD	8-97190-992-0	01	1	0201-0301	●
175	04.380 SYNCHRONIZER; LOW-REV	8-97091-434-0	01	1	0201-0301	●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=44.5	5-09589-010-0	01	1	0201-0301	●
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	0201-0301	●
182	04.422 PLATE; CLUSTER GEAR	8-94131-924-1	01	1	0201-0301	●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94148-196-0	03	1	0201-0301	●
184	04.422 SPRING; CLUSTER GEAR	8-94101-320-0	01	1	0201-0301	●
186	04.422 RING; SNAP,CLUSTER GEAR 08.934 ID=32.2	9-09180-035-0	01	1	0201-0301	●
190	04.435 BALL; LK,REV SHAFT 04.311	9-00097-509-0	01	1	0201-0301	●
234	04.380 SYNCHRONIZER ASM; 4TH TO 5TH	8-97034-841-1	01	1	0201-0301	●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97034-876-0	01	1	0201-0301	●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	03	1	0201-0301	●
313	04.419 BEARING; NEEDLE,LOW GEAR NTN	8-97201-005-0	01	1	0201-0301	●
313	04.419 BEARING; NEEDLE,LOW GEAR 04.352 NSK	9-00096-638-0	01	1	0201-0301	●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	0201-0301	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0302-0501		●
314	04.419 BEARING; NEEDLE,REV GEAR 4HF1 ENG(RLS) NSK	8-97253-114-0	01	1	0502-0804		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0805-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	0201-0301	●
318	04.419 COLLAR; DIST,REV GEAR	8-97076-908-0	01	1	0201-0301	●
387	04.384 INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	0201-0301	●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	0201-0301	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0302-0501		●
393	04.352 BEARING; MAINSHAFT END 4HF1 ENG(RLS)	8-97253-105-1	01	1	0502-		●
393	04.352 BEARING; MAINSHAFT END 4HK1 ENG(RJS)	8-97253-104-0	01	1	0805-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97228-274-0	01	1	0201-0301	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-102-1	01	1	0302-0501		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (C)	8-97253-102-1	01	1	0502-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0302-0501		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (B)	8-97253-110-0	04	1	0502-0804		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0805-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1 ENG(RJS) (D)	8-97253-099-1	01	1	0805-			●
397	04.384 SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	0201-0301	●
398	04.421 GEAR; COUNTER Z=45-49-36-20-14-13	8-97075-976-0	01	1	0201-0301	●
405	04.384 INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	0201-0301	●

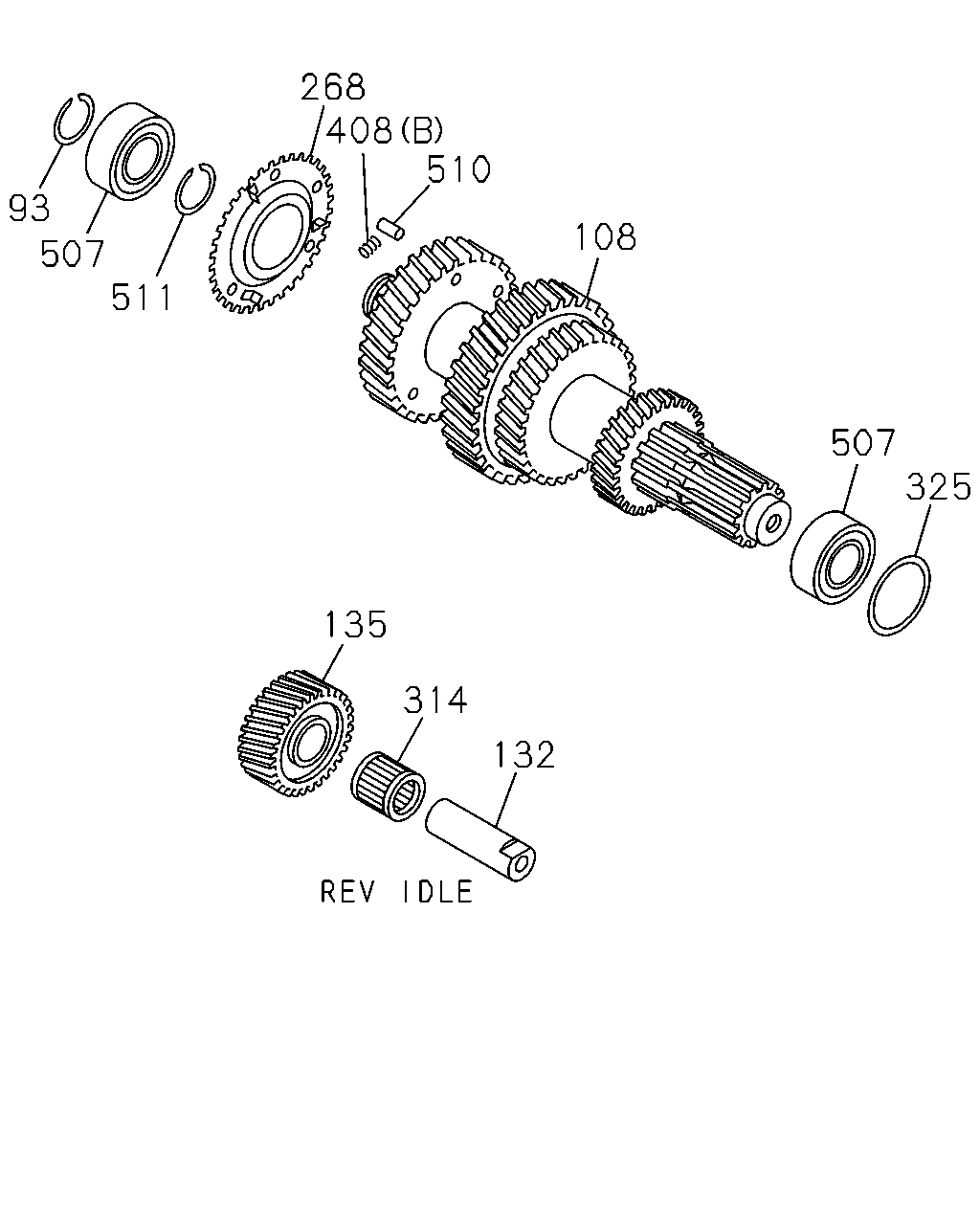

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0302-0501		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0502-		●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0302-0501		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0502-		●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0302-0501		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0502-		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1 ENG(RJS) ID=34.4 T=1.9	8-97254-735-0	01	1	0805-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1 ENG(RJS) ID=34.4 T=2.1	8-97254-738-0	01	1	0805-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1 ENG(RJS) ID=34.4 T=2.3	8-97254-741-0	01	1	0805-			●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97326-590-0	01	1	0302-0404		●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-0	01	1	0405-0501		●
108	04.428 SHAFT; COUNTER 4HF1 ENG(RLS) Z=45-49-33-20	8-97380-630-1	01	1	0502-		●
108	04.428 SHAFT; COUNTER 4HK1 ENG(RJS) Z=46-37-28-21	8-97252-636-0	01	1	0805-0910			●
108	04.428 SHAFT; COUNTER 4HK1 ENG(RJS) Z=46-37-28-21	8-98113-220-0	01	1	0911-1308			●
108	04.428 SHAFT; COUNTER 4HK1 ENG(RJS) Z=46-37-28-21	8-98249-484-0	01	1	1309-			●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	0201-0301	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0302-0501		●
132	04.433 SHAFT; REV 4HF1 ENG(RLS)	8-97252-655-0	01	1	0502-0804		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0805-		●	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	0201-0301	●
135	04.430 GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0302-0501		●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-97241-293-0	01	1	0502-0512		●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-98031-869-1	01	1	0601-		●
135	04.430 GEAR; REV IDLER 4HK1 ENG(RJS) Z=26	8-97241-292-2	01	1	0805-			●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	0302-0501		●
268	04.537 PLATE; ANTI LASH,COUNTER 4HF1 ENG(RLS)	8-97257-300-1	01	1	0502-		●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	0201-0301	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0302-0501		●
314	04.419 BEARING; NEEDLE,REV GEAR 4HF1 ENG(RLS) NSK	8-97253-114-0	01	1	0502-0804		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0805-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	0201-0301	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.41	8-97252-668-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.47	8-97252-669-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.53	8-97252-670-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.59	8-97252-671-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.65	8-97252-672-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.71	8-97252-673-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.77	8-97252-674-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.83	8-97252-675-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.89	8-97257-622-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.95	8-97320-549-0	01	1	0302-0404		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0405-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.29	8-97252-666-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.01	8-97320-550-0	01	1	0302-0404		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0405-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.35	8-97252-667-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.07	8-97320-551-0	01	1	0302-0404		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0405-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.11	8-97306-188-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.13	8-97320-552-0	01	1	0302-0404		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0405-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.17	8-97306-189-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.19	8-97320-553-0	01	1	0302-0404		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0405-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.23	8-97306-190-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.38	8-97252-656-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.44	8-97252-657-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.50	8-97252-658-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.56	8-97252-659-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.62	8-97252-660-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.68	8-97252-661-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.74	8-97252-662-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.80	8-97252-663-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.86	8-97252-664-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.92	8-97252-665-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.98	8-97257-621-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.20	8-97306-185-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.26	8-97306-186-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.32	8-97306-187-0	01	1	0805-			●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	0302-0501		●
408	04.384 SPRING 4HF1 ENG(RLS) 04.422 (B)	8-94148-196-0	03	1	0502-		●
408	04.384 SPRING (A)	8-94422-075-0	02	1	0302-0404		●
408	04.384 SPRING (A)	8-97366-040-0	02	1	0405-0501		●
408	04.384 SPRING 4HF1 ENG(RLS) (A)	8-97366-040-1	02	1	0502-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0302-0501		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HF1 ENG(RLS)	8-97253-107-0	02	1	0502-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HK1 ENG(RJS)	8-97253-106-0	02	1	0805-			●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0302-0501		●
510	04.540 PIN; STRAIGHT,ANTI LASH 4HF1 ENG(RLS) 00.862	9-08160-825-0	03	1	0502-		●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0302-0501		●
511	04.416 RING; SNAP,ANTI LASH PLATE 4HF1 ENG(RLS)	8-97254-767-0	01	1	0502-		●

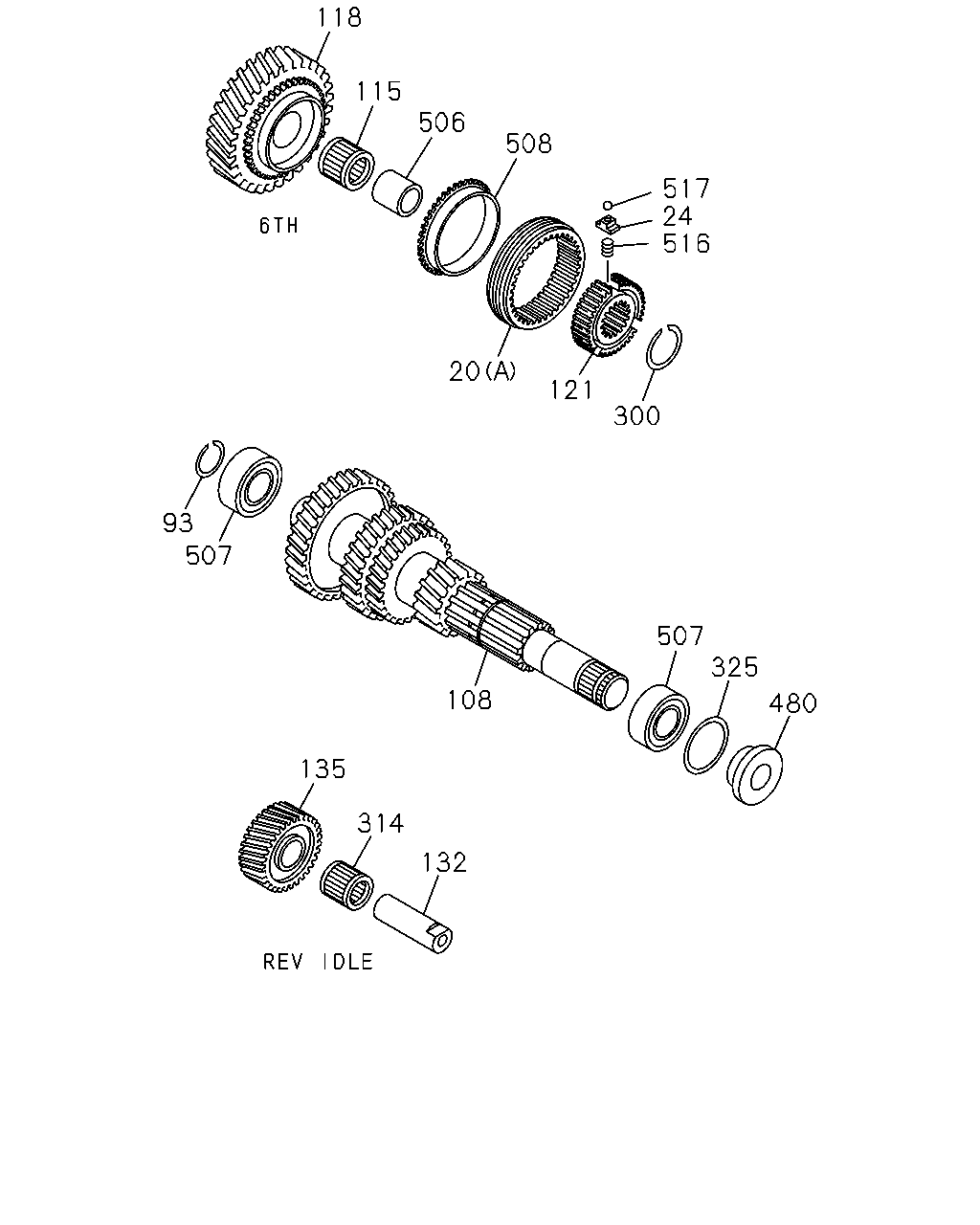

118 115 506 508 517 24 516 20 121 300 93 507 507 325 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	04.383 SLEEVE 4HK1 ENG(RJS) (B) Z=54	8-97241-295-2	02	1	0805-			●
20	04.383 SLEEVE 4HK1 ENG(RJS) (A) Z=45	8-97241-296-1	02	1	0805-1311			●
20	04.383 SLEEVE 4HK1 ENG(RJS) (A) Z=45	8-98258-279-0	02	1	1312-			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	0302-0501		●
24	04.383 BLOCK; INDEX,SYN 4HF1 ENG(RLS)	8-97241-313-1	06	1	0502-		●
24	04.383 BLOCK; INDEX,SYN 4HK1 ENG(RJS)	8-97241-313-1	12	1	0805-			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0302-0501		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0502-		●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0302-0501		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0502-		●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0302-0501		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0502-		●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1 ENG(RJS) ID=34.4 T=1.9	8-97254-735-0	01	1	0805-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1 ENG(RJS) ID=34.4 T=2.1	8-97254-738-0	01	1	0805-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1 ENG(RJS) ID=34.4 T=2.3	8-97254-741-0	01	1	0805-			●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97326-590-0	01	1	0302-0404		●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-0	01	1	0405-0501		●
108	04.428 SHAFT; COUNTER 4HF1 ENG(RLS) Z=45-49-33-20	8-97380-630-1	01	1	0502-		●
108	04.428 SHAFT; COUNTER 4HK1 ENG(RJS) Z=46-37-28-21	8-97252-636-0	01	1	0805-0910			●
108	04.428 SHAFT; COUNTER 4HK1 ENG(RJS) Z=46-37-28-21	8-98113-220-0	01	1	0911-1308			●
108	04.428 SHAFT; COUNTER 4HK1 ENG(RJS) Z=46-37-28-21	8-98249-484-0	01	1	1309-			●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HK1 ENG(RJS) OD=49.8	8-98286-084-0	01	1	1411-			●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HK1 ENG(RJS) OD=49.75	8-97253-113-0	01	1	0805-			●
118	04.421 GEAR; 6TH,COUNTER 4HK1 ENG(RJS) Z=47	8-97241-246-0	01	1	0805-			●
121	04.384 HUB; CLU,6TH 4HK1 ENG(RJS)	8-97241-301-2	01	1	0805-			●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	0201-0301	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0302-0501		●
132	04.433 SHAFT; REV 4HF1 ENG(RLS)	8-97252-655-0	01	1	0502-0804		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0805-		●	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	0201-0301	●
135	04.430 GEAR; REV IDLER Z=25	8-97241-293-0	01	1	0302-0501		●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-97241-293-0	01	1	0502-0512		●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-98031-869-1	01	1	0601-		●
135	04.430 GEAR; REV IDLER 4HK1 ENG(RJS) Z=26	8-97241-292-2	01	1	0805-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1 ENG(RJS) ID=33.2 T=1.7	8-97288-618-0	01	1	0805-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1 ENG(RJS) ID=33.2 T=1.8	8-97288-619-0	01	1	0805-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1 ENG(RJS) ID=33.2 T=1.9	8-97288-620-0	01	1	0805-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HK1 ENG(RJS) ID=33.2 T=1.6	8-97365-616-0	01	1	0805-			●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	0201-0301	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0302-0501		●
314	04.419 BEARING; NEEDLE,REV GEAR 4HF1 ENG(RLS) NSK	8-97253-114-0	01	1	0502-0804		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0805-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	0201-0301	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.41	8-97252-668-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.47	8-97252-669-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.53	8-97252-670-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.59	8-97252-671-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.65	8-97252-672-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.71	8-97252-673-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.77	8-97252-674-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.83	8-97252-675-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0302-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.89	8-97257-622-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.95	8-97320-549-0	01	1	0302-0404		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0405-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.29	8-97252-666-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.01	8-97320-550-0	01	1	0302-0404		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0405-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.35	8-97252-667-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.07	8-97320-551-0	01	1	0302-0404		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0405-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.11	8-97306-188-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.13	8-97320-552-0	01	1	0302-0404		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0405-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.17	8-97306-189-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=3.19	8-97320-553-0	01	1	0302-0404		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0405-0501		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.23	8-97306-190-0	01	1	0502-		●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.38	8-97252-656-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.44	8-97252-657-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.50	8-97252-658-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.56	8-97252-659-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.62	8-97252-660-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.68	8-97252-661-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.74	8-97252-662-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.80	8-97252-663-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.86	8-97252-664-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.92	8-97252-665-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.98	8-97257-621-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.20	8-97306-185-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.26	8-97306-186-0	01	1	0805-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1 ENG(RJS) ID=70 T=1.32	8-97306-187-0	01	1	0805-			●
480	04.419 WASHER; THRUST,6TH 4HK1 ENG(RJS)	8-97253-122-1	01	1	0805-			●
506	04.419 COLLAR; 6TH,COUNTER 4HK1 ENG(RJS)	8-97253-120-1	01	1	0805-			●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0302-0501		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HF1 ENG(RLS)	8-97253-107-0	02	1	0502-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HK1 ENG(RJS)	8-97253-106-0	02	1	0805-			●
508	04.383 RING; BLOCK,6TH 4HK1 ENG(RJS) Z=45	8-97241-306-1	01	1	0805-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	0302-0501		●
516	04.384 SPRING; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97254-835-0	06	1	0502-		●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1 ENG(RJS)	8-97305-803-1	12	1	0805-			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	0302-0501		●
517	04.384 BALL; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97252-935-0	06	1	0502-		●
517	04.384 BALL; SYNCHRO,INDEX 4HK1 ENG(RJS)	8-97252-935-0	12	1	0805-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
