2-20 — MANUAL TRANSMISSION ASM AND CASE (#19331) — 343 parça

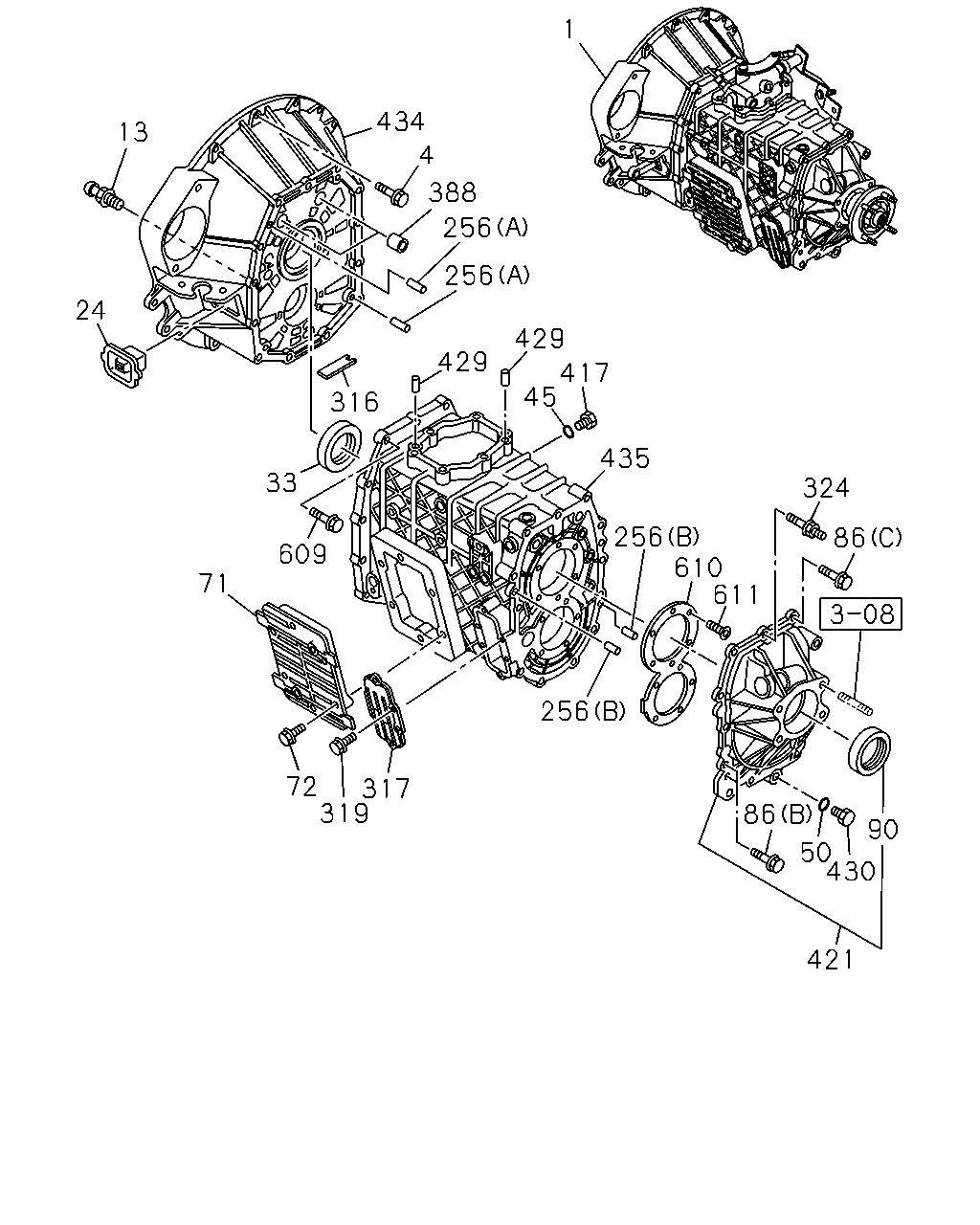

1 434 13 4 388 256 256 24 429 429 417 45 316 435 33 324 256 610 611 86 609 71 256 86 72 317 319 90 50 430 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL	8-97161-342-1	01	1	0201-0301	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97350-617-0	01	1	0302-0404		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97373-914-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97373-914-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1 ENG(RJS)	8-97307-744-0	01	1	0805-			●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0301	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0301	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0804		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0804		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0805-		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0805-		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1 ENG(RJS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0805-			●
4	00.683 BOLT; FLYWHEEL HSG 4HK1 ENG(RJS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0805-			●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0201-0301	●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0302-0501		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0512		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-0804		●
4	00.683 BOLT; FLYWHEEL HSG 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0805-		●	●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0201-0301	●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0302-0501		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0611		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X55 FLANGE	8-97365-449-0	02	1	0612-0804		●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-97365-449-0	02	1	0805-		●	●
13	04.302 SUPPORT; SHIFT FORK	8-97255-384-1	01	1	0302-0501		●
13	04.302 SUPPORT; SHIFT FORK 4HF1 ENG(RLS)	8-97255-384-1	01	1	0502-		●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	0302-0501		●
24	00.797 COVER; CHECK HOLE,DUST 4HF1 ENG(RLS)	8-97255-201-0	01	1	0502-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0302-0501		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS)	8-97253-550-0	01	1	0502-0804		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0805-		●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-0804		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0805-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-0804		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0805-		●	●
71	04.439 COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	0201-0301	●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	0302-0501		●
71	04.439 COVER; SIDE,TRANS CASE 4HF1 ENG(RLS)	8-97252-625-0	01	1	0502-		●
71	04.439 COVER; SIDE,TRANS CASE 4HK1 ENG(RJS)	8-97252-624-2	01	1	0805-			●
72	04.439 BOLT; SIDE COVER 04.105 M10X12 FLANGE	8-94128-791-0	06	1	0201-0301	●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-97254-833-0	06	1	0302-0501		●
72	04.439 BOLT; SIDE COVER 4HF1 ENG(RLS) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0502-		●
72	04.439 BOLT; SIDE COVER 4HK1 ENG(RJS) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0805-			●
86	04.317 BOLT; RR COVER 04.104 (A) M10X50	8-94318-782-0	01	1	0201-0301	●
86	04.317 BOLT; RR COVER 04.510 (C) M10X40 FLANGE	0-28181-040-0	10	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HF1 ENG(RLS) 04.510 (C) M10X40 FLANGE	0-28181-040-0	10	1	0502-0512		●
86	04.317 BOLT; RR COVER 4HF1 ENG(RLS) 09.171 (C) M10X40 FLANGE	0-28151-040-0	10	1	0601-0804		●
86	04.317 BOLT; RR COVER 09.171 (C) M10X40 FLANGE	0-28151-040-0	10	1	0805-		●	●
86	04.317 BOLT; RR COVER (A) M10X30 FLANGE	8-94482-338-0	06	1	0201-0301	●
86	04.317 BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HF1 ENG(RLS) (B) M10X40 FLANGE	8-97305-392-0	02	1	0502-0604		●
86	04.317 BOLT; RR COVER 4HF1 ENG(RLS) 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-0804		●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0805-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	0201-0301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0302-0501		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) NOK	8-97253-552-1	01	1	0502-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1 ENG(RJS) NOK	8-97253-551-1	01	1	0805-			●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0302-0501		●
256	04.317 PIN; KNOCK 4HF1 ENG(RLS) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0502-0804		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0805-		●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0302-0501		●
256	04.317 PIN; KNOCK 4HF1 ENG(RLS) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0502-0804		●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0805-		●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0302-0501		●
316	04.105 MAGNET; TRANS CASE 4HF1 ENG(RLS)	8-94249-524-2	01	1	0502-0804		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0805-		●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0302-0501		●
317	04.109 COVER; CASE 4HF1 ENG(RLS)	8-97252-626-0	01	1	0502-0804		●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0805-		●	●
319	04.109 BOLT; COVER 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0302-0501		●
319	04.109 BOLT; COVER 4HF1 ENG(RLS) 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0502-0512		●
319	04.109 BOLT; COVER 4HF1 ENG(RLS) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0601-0804		●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0805-		●	●
324	04.319 STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0302-0501		●
324	04.319 STUD; RR COVER 4HF1 ENG(RLS) M10X15,M10X40 L=65	8-97309-013-0	01	1	0502-0604		●
324	04.319 STUD; RR COVER 4HF1 ENG(RLS) 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-0804		●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0805-		●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0302-0501		●
388	00.683 BUSHING; CLU HSG 4HF1 ENG(RLS)	8-97241-326-2	02	1	0502-0804		●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0805-		●	●
417	04.105 PLUG; OIL FILLER,TRANS M18	8-94337-946-1	01	1	0201-0301	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0302-0501		●
417	04.105 PLUG; OIL FILLER,TRANS 4HF1 ENG(RLS) 08.971	8-94310-917-0	01	1	0502-0604		●
417	04.105 PLUG; OIL FILLER,TRANS 4HF1 ENG(RLS)	8-97365-373-0	01	1	0605-0804		●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0805-		●	●
421	04.317 COVER; RR,TRANS	8-97249-001-1	01	1	0201-0301	●
421	04.317 COVER; RR,TRANS	8-97252-621-0	01	1	0302-0501		●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-97252-621-0	01	1	0502-0507		●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-98020-029-0	01	1	0508-		●
421	04.317 COVER; RR,TRANS 4HK1 ENG(RJS)	8-97238-934-5	01	1	0805-			●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0501		●
429	04.105 PIN; STRAIGHT 4HF1 ENG(RLS) 04.510 OD=10 L=20	8-97135-423-0	02	1	0502-0804		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0805-		●	●
430	04.105 PLUG; OIL DRAIN	8-94336-512-1	01	1	0201-0301	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0302-0501		●
430	04.105 PLUG; OIL DRAIN 4HF1 ENG(RLS)	9-09662-004-0	01	1	0502-0604		●
430	04.105 PLUG; OIL DRAIN 4HF1 ENG(RLS)	8-97365-374-0	01	1	0605-0804		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0805-		●	●
434	00.683 HOUSING; CLU	8-97034-801-2	01	1	0201-0301	●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	0302-0501		●
434	00.683 HOUSING; CLU 4HF1 ENG(RLS)	8-97237-099-5	01	1	0502-		●
434	00.683 HOUSING; CLU 4HK1 ENG(RJS)	8-97238-930-4	01	1	0805-			●
435	04.103 CASE; TRANS	8-97204-132-1	01	1	0201-0301	●
435	04.103 CASE; TRANS	8-97252-623-7	01	1	0302-0403		●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	0404-0501		●
435	04.103 CASE; TRANS 4HF1 ENG(RLS)	8-97379-375-0	01	1	0502-		●
435	04.103 CASE; TRANS 4HK1 ENG(RJS)	8-97382-868-1	01	1	0805-			●
609	04.104 BOLT; HSG TO CASE 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0302-0501		●
609	04.104 BOLT; HSG TO CASE 4HF1 ENG(RLS) 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0502-0512		●
609	04.104 BOLT; HSG TO CASE 4HF1 ENG(RLS) 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0601-0804		●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0805-		●	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0302-0501		●
610	04.412 RETAINER; BRG 4HF1 ENG(RLS)	8-97241-315-1	01	1	0502-		●
610	04.412 RETAINER; BRG 4HK1 ENG(RJS)	8-97241-314-2	01	1	0805-			●
611	04.104 SCREW M10X27	8-97254-834-2	11	1	0302-0501		●
611	04.104 SCREW 4HF1 ENG(RLS) M10X27	8-97254-834-2	11	1	0502-0604		●
611	04.104 SCREW 4HF1 ENG(RLS) M10X27 TORQUES	8-97365-354-0	11	1	0605-		●
611	04.104 SCREW 4HK1 ENG(RJS) M10X27 TORQUES	8-97365-354-0	10	1	0805-			●

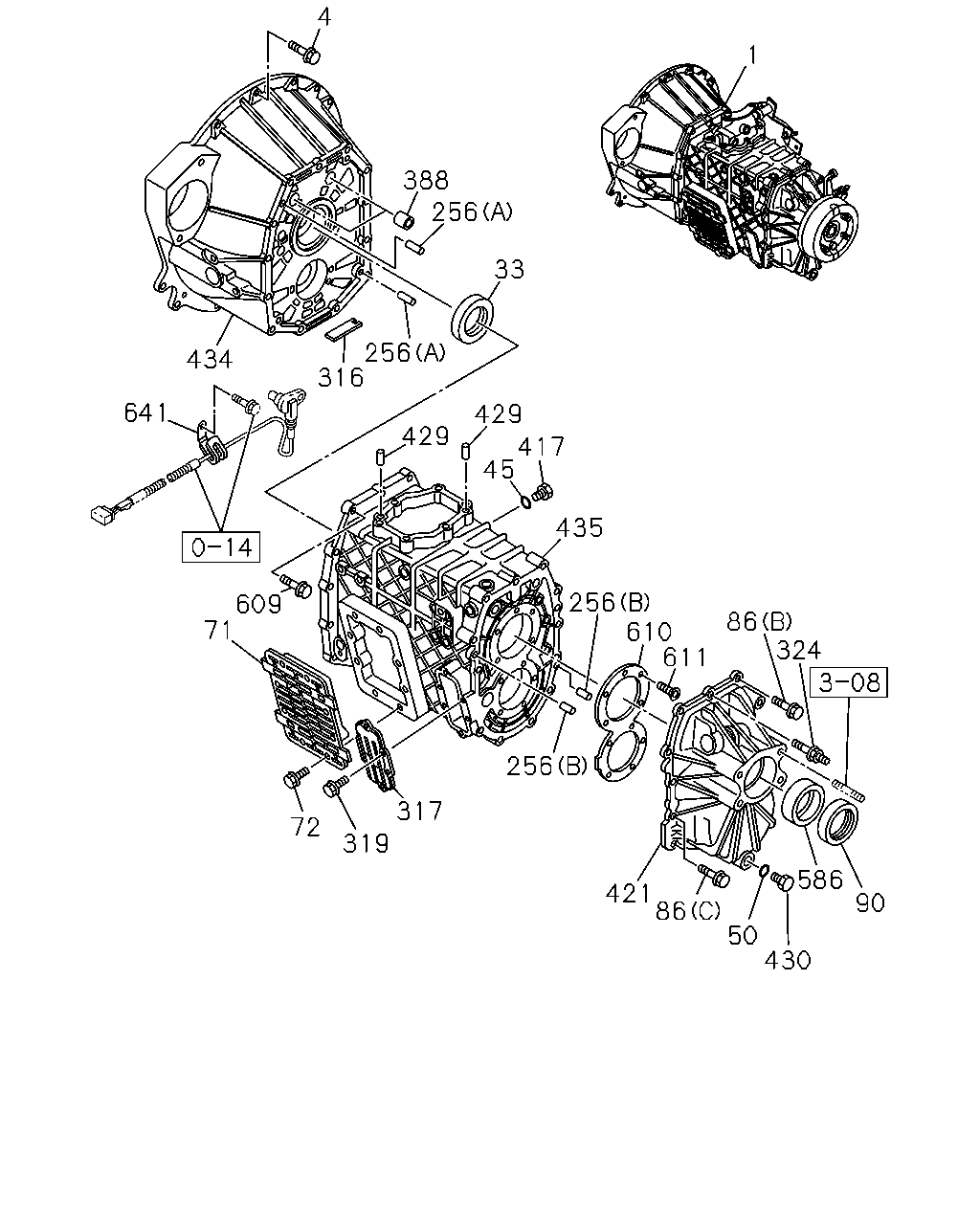

4 1 388 256 33 256 316 434 641 429 429 417 45 435 256 610 611 609 71 86 324 256 317 72 319 586 421 86 50 430 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL	8-97161-342-1	01	1	0201-0301	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97350-617-0	01	1	0302-0404		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97373-914-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97373-914-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1 ENG(RJS)	8-97307-744-0	01	1	0805-			●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0301	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0301	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0804		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0804		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0805-		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0805-		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1 ENG(RJS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0805-			●
4	00.683 BOLT; FLYWHEEL HSG 4HK1 ENG(RJS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0805-			●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0201-0301	●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0302-0501		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0512		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-0804		●
4	00.683 BOLT; FLYWHEEL HSG 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0805-		●	●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0201-0301	●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0302-0501		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0611		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X55 FLANGE	8-97365-449-0	02	1	0612-0804		●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-97365-449-0	02	1	0805-		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0302-0501		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS)	8-97253-550-0	01	1	0502-0804		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0805-		●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-0804		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0805-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-0804		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0805-		●	●
71	04.439 COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	0201-0301	●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	0302-0501		●
71	04.439 COVER; SIDE,TRANS CASE 4HF1 ENG(RLS)	8-97252-625-0	01	1	0502-		●
71	04.439 COVER; SIDE,TRANS CASE 4HK1 ENG(RJS)	8-97252-624-2	01	1	0805-			●
72	04.439 BOLT; SIDE COVER 04.105 M10X12 FLANGE	8-94128-791-0	06	1	0201-0301	●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-97254-833-0	06	1	0302-0501		●
72	04.439 BOLT; SIDE COVER 4HF1 ENG(RLS) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0502-		●
72	04.439 BOLT; SIDE COVER 4HK1 ENG(RJS) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0805-			●
86	04.317 BOLT; RR COVER 04.104 (A) M10X50	8-94318-782-0	01	1	0201-0301	●
86	04.317 BOLT; RR COVER 04.510 (C) M10X40 FLANGE	0-28181-040-0	10	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HF1 ENG(RLS) 04.510 (C) M10X40 FLANGE	0-28181-040-0	10	1	0502-0512		●
86	04.317 BOLT; RR COVER 4HF1 ENG(RLS) 09.171 (C) M10X40 FLANGE	0-28151-040-0	10	1	0601-0804		●
86	04.317 BOLT; RR COVER 09.171 (C) M10X40 FLANGE	0-28151-040-0	10	1	0805-		●	●
86	04.317 BOLT; RR COVER (A) M10X30 FLANGE	8-94482-338-0	06	1	0201-0301	●
86	04.317 BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HF1 ENG(RLS) (B) M10X40 FLANGE	8-97305-392-0	02	1	0502-0604		●
86	04.317 BOLT; RR COVER 4HF1 ENG(RLS) 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-0804		●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0805-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	0201-0301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0302-0501		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) NOK	8-97253-552-1	01	1	0502-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1 ENG(RJS) NOK	8-97253-551-1	01	1	0805-			●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0302-0501		●
256	04.317 PIN; KNOCK 4HF1 ENG(RLS) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0502-0804		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0805-		●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0302-0501		●
256	04.317 PIN; KNOCK 4HF1 ENG(RLS) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0502-0804		●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0805-		●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0302-0501		●
316	04.105 MAGNET; TRANS CASE 4HF1 ENG(RLS)	8-94249-524-2	01	1	0502-0804		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0805-		●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0302-0501		●
317	04.109 COVER; CASE 4HF1 ENG(RLS)	8-97252-626-0	01	1	0502-0804		●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0805-		●	●
319	04.109 BOLT; COVER 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0302-0501		●
319	04.109 BOLT; COVER 4HF1 ENG(RLS) 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0502-0512		●
319	04.109 BOLT; COVER 4HF1 ENG(RLS) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0601-0804		●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0805-		●	●
324	04.319 STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0302-0501		●
324	04.319 STUD; RR COVER 4HF1 ENG(RLS) M10X15,M10X40 L=65	8-97309-013-0	01	1	0502-0604		●
324	04.319 STUD; RR COVER 4HF1 ENG(RLS) 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-0804		●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0805-		●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0302-0501		●
388	00.683 BUSHING; CLU HSG 4HF1 ENG(RLS)	8-97241-326-2	02	1	0502-0804		●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0805-		●	●
417	04.105 PLUG; OIL FILLER,TRANS M18	8-94337-946-1	01	1	0201-0301	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0302-0501		●
417	04.105 PLUG; OIL FILLER,TRANS 4HF1 ENG(RLS) 08.971	8-94310-917-0	01	1	0502-0604		●
417	04.105 PLUG; OIL FILLER,TRANS 4HF1 ENG(RLS)	8-97365-373-0	01	1	0605-0804		●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0805-		●	●
421	04.317 COVER; RR,TRANS	8-97249-001-1	01	1	0201-0301	●
421	04.317 COVER; RR,TRANS	8-97252-621-0	01	1	0302-0501		●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-97252-621-0	01	1	0502-0507		●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-98020-029-0	01	1	0508-		●
421	04.317 COVER; RR,TRANS 4HK1 ENG(RJS)	8-97238-934-5	01	1	0805-			●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0501		●
429	04.105 PIN; STRAIGHT 4HF1 ENG(RLS) 04.510 OD=10 L=20	8-97135-423-0	02	1	0502-0804		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0805-		●	●
430	04.105 PLUG; OIL DRAIN	8-94336-512-1	01	1	0201-0301	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0302-0501		●
430	04.105 PLUG; OIL DRAIN 4HF1 ENG(RLS)	9-09662-004-0	01	1	0502-0604		●
430	04.105 PLUG; OIL DRAIN 4HF1 ENG(RLS)	8-97365-374-0	01	1	0605-0804		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0805-		●	●
434	00.683 HOUSING; CLU	8-97034-801-2	01	1	0201-0301	●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	0302-0501		●
434	00.683 HOUSING; CLU 4HF1 ENG(RLS)	8-97237-099-5	01	1	0502-		●
434	00.683 HOUSING; CLU 4HK1 ENG(RJS)	8-97238-930-4	01	1	0805-			●
435	04.103 CASE; TRANS	8-97204-132-1	01	1	0201-0301	●
435	04.103 CASE; TRANS	8-97252-623-7	01	1	0302-0403		●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	0404-0501		●
435	04.103 CASE; TRANS 4HF1 ENG(RLS)	8-97379-375-0	01	1	0502-		●
435	04.103 CASE; TRANS 4HK1 ENG(RJS)	8-97382-868-1	01	1	0805-			●
586	00.683 BEARING; NEEDLE 4HK1 ENG(RJS)	8-97253-108-0	01	1	0805-			●
609	04.104 BOLT; HSG TO CASE 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0302-0501		●
609	04.104 BOLT; HSG TO CASE 4HF1 ENG(RLS) 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0502-0512		●
609	04.104 BOLT; HSG TO CASE 4HF1 ENG(RLS) 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0601-0804		●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0805-		●	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0302-0501		●
610	04.412 RETAINER; BRG 4HF1 ENG(RLS)	8-97241-315-1	01	1	0502-		●
610	04.412 RETAINER; BRG 4HK1 ENG(RJS)	8-97241-314-2	01	1	0805-			●
611	04.104 SCREW M10X27	8-97254-834-2	11	1	0302-0501		●
611	04.104 SCREW 4HF1 ENG(RLS) M10X27	8-97254-834-2	11	1	0502-0604		●
611	04.104 SCREW 4HF1 ENG(RLS) M10X27 TORQUES	8-97365-354-0	11	1	0605-		●
611	04.104 SCREW 4HK1 ENG(RJS) M10X27 TORQUES	8-97365-354-0	10	1	0805-			●
641	04.710 CLIP; CAM SENSOR 4HK1 ENG(RJS) 02.698 ID=8	8-94107-659-0	01	1	0805-			●

1 4 18 434 55 54 67 417 430 50 420 67 67 88 45 67 85 54 34 421 435 90 93 71 72 55 92 95 86 73 94 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL	8-97161-342-1	01	1	0201-0301	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97350-617-0	01	1	0302-0404		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97373-914-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97373-914-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1 ENG(RJS)	8-97307-744-0	01	1	0805-			●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0301	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0301	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0804		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0804		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0805-		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0805-		●
4	00.683 BOLT; FLYWHEEL HSG 4HK1 ENG(RJS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0805-			●
4	00.683 BOLT; FLYWHEEL HSG 4HK1 ENG(RJS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0805-			●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0201-0301	●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0302-0501		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0512		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-0804		●
4	00.683 BOLT; FLYWHEEL HSG 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0805-		●	●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0201-0301	●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0302-0501		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0611		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X55 FLANGE	8-97365-449-0	02	1	0612-0804		●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-97365-449-0	02	1	0805-		●	●
18	00.683 SUPPORT; DRAW LEVER L=47.5	8-97225-469-1	01	1	0201-0301	●
34	00.686 COVER; DUST,SHIFT FORK	8-97017-333-0	01	1	0201-0301	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-0804		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0805-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-0804		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0805-		●	●
54	04.105 BOLT; FULCRUM	8-97171-503-0	02	1	0201-0301	●
55	04.105 PIN; KNOCK,CASE,TRANS	9-08161-016-0	02	1	0201-0301	●
67	04.105 STUD; CASE TRANS	5-09302-011-0	04	1	0201-0301	●
71	04.439 COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	0201-0301	●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	0302-0501		●
71	04.439 COVER; SIDE,TRANS CASE 4HF1 ENG(RLS)	8-97252-625-0	01	1	0502-		●
71	04.439 COVER; SIDE,TRANS CASE 4HK1 ENG(RJS)	8-97252-624-2	01	1	0805-			●
72	04.439 BOLT; SIDE COVER 04.105 M10X12 FLANGE	8-94128-791-0	06	1	0201-0301	●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-97254-833-0	06	1	0302-0501		●
72	04.439 BOLT; SIDE COVER 4HF1 ENG(RLS) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0502-		●
72	04.439 BOLT; SIDE COVER 4HK1 ENG(RJS) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0805-			●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-601-0	01	1	0201-0301	●
85	04.104 BREATHER; RR COVER	8-97165-939-0	01	1	0201-0301	●
86	04.317 BOLT; RR COVER 04.104 (A) M10X50	8-94318-782-0	01	1	0201-0301	●
86	04.317 BOLT; RR COVER 04.510 (C) M10X40 FLANGE	0-28181-040-0	10	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HF1 ENG(RLS) 04.510 (C) M10X40 FLANGE	0-28181-040-0	10	1	0502-0512		●
86	04.317 BOLT; RR COVER 4HF1 ENG(RLS) 09.171 (C) M10X40 FLANGE	0-28151-040-0	10	1	0601-0804		●
86	04.317 BOLT; RR COVER 09.171 (C) M10X40 FLANGE	0-28151-040-0	10	1	0805-		●	●
86	04.317 BOLT; RR COVER (A) M10X30 FLANGE	8-94482-338-0	06	1	0201-0301	●
86	04.317 BOLT; RR COVER (B) M10X40 FLANGE	8-97305-392-0	02	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HF1 ENG(RLS) (B) M10X40 FLANGE	8-97305-392-0	02	1	0502-0604		●
86	04.317 BOLT; RR COVER 4HF1 ENG(RLS) 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-0804		●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0805-		●	●
88	04.338 SCREW; SPEEDOMETER BUSHING M8X12	8-94128-785-0	01	1	0201-0301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	0201-0301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0302-0501		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) NOK	8-97253-552-1	01	1	0502-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1 ENG(RJS) NOK	8-97253-551-1	01	1	0805-			●
91	05.605 DRIVER; COUPLING	8-97212-108-0	01	1	0201-0301	●
92	05.605 BOLT; COUPLING DRIVER	8-97109-697-1	04	1	0201-0301	●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-94178-725-0	01	1	0201-0301	●
94	05.595 WASHER; COUPLING DRIVER	8-94249-240-0	01	1	0201-0301	●
95	05.595 NUT; MAINSHAFT 04.162 M24 FLANGE	8-97087-750-0	01	1	0201-0301	●
417	04.105 PLUG; OIL FILLER,TRANS M18	8-94337-946-1	01	1	0201-0301	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0302-0501		●
417	04.105 PLUG; OIL FILLER,TRANS 4HF1 ENG(RLS) 08.971	8-94310-917-0	01	1	0502-0604		●
417	04.105 PLUG; OIL FILLER,TRANS 4HF1 ENG(RLS)	8-97365-373-0	01	1	0605-0804		●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0805-		●	●
420	04.354 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97017-350-0	01	1	0201-0301	●
421	04.317 COVER; RR,TRANS	8-97249-001-1	01	1	0201-0301	●
421	04.317 COVER; RR,TRANS	8-97252-621-0	01	1	0302-0501		●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-97252-621-0	01	1	0502-0507		●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-98020-029-0	01	1	0508-		●
421	04.317 COVER; RR,TRANS 4HK1 ENG(RJS)	8-97238-934-5	01	1	0805-			●
430	04.105 PLUG; OIL DRAIN	8-94336-512-1	01	1	0201-0301	●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0302-0501		●
430	04.105 PLUG; OIL DRAIN 4HF1 ENG(RLS)	9-09662-004-0	01	1	0502-0604		●
430	04.105 PLUG; OIL DRAIN 4HF1 ENG(RLS)	8-97365-374-0	01	1	0605-0804		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0805-		●	●
434	00.683 HOUSING; CLU	8-97034-801-2	01	1	0201-0301	●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	0302-0501		●
434	00.683 HOUSING; CLU 4HF1 ENG(RLS)	8-97237-099-5	01	1	0502-		●
434	00.683 HOUSING; CLU 4HK1 ENG(RJS)	8-97238-930-4	01	1	0805-			●
435	04.103 CASE; TRANS	8-97204-132-1	01	1	0201-0301	●
435	04.103 CASE; TRANS	8-97252-623-7	01	1	0302-0403		●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	0404-0501		●
435	04.103 CASE; TRANS 4HF1 ENG(RLS)	8-97379-375-0	01	1	0502-		●
435	04.103 CASE; TRANS 4HK1 ENG(RJS)	8-97382-868-1	01	1	0805-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
