◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50916 - NPR(BUS CHAS)RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#19329) — 166 parça

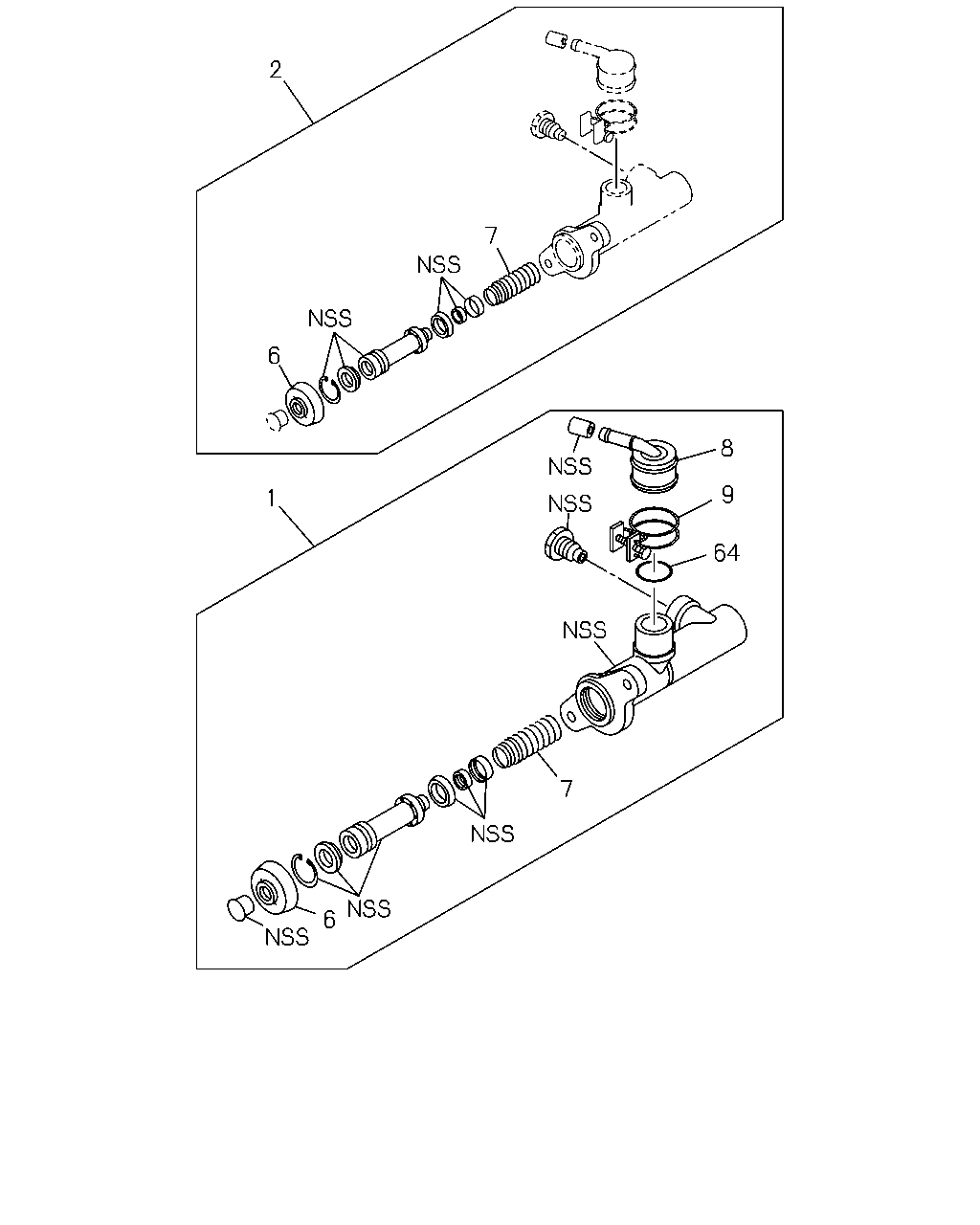

çizim 12170
2 7 6 8 9 1 64 7 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-747-1 01 1 0201-0301 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-747-1 01 1 0302-0610 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98004-782-2 01 1 0611-0709 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98062-277-0 01 1 0710-0804 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98062-277-0 01 1 0805- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97162-963-0 01 1 0201-0301 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97162-963-0 01 1 0302-0501 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97162-963-0 01 1 0502-0803 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-639-0 01 1 0804-0804 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-639-0 01 1 0805- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0201-0301 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0302-0709 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0710-0804 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0805- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0201-0301 ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0302-0501 ●
2 00.775 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0502-0803 ●
2 00.775 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804-0804 ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0805- ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0201-0301 ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0302-0709 ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0201-0301 ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0302-0501 ●
6 00.775 BOOT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0502-0804 ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0805- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0201-0301 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0302-0709 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0710-0804 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0805- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0201-0301 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0302-0501 ●
7 00.775 SPRING ASM; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0502-0804 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0805- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-154-0 01 1 0201-0301 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-154-0 01 1 0302-0709 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0201-0301 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0302-0501 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0502-0709 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HF1 ENG(RLS) 		8-97163-191-0 01 1 0710-0804 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0805- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0201-0301 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0302-0610 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98061-352-0 01 1 0611-0709 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0201-0301 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0302-0501 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0502-0709 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HF1 ENG(RLS) 		8-97167-773-0 01 1 0710-0804 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0805- ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0201-0301 ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0302-0501 ●
64 00.777 GASKET; CONNECTOR
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0502-0709 ●
64 00.777 GASKET; CONNECTOR
4HF1 ENG(RLS) 		8-97167-767-0 01 1 0710-0804 ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0805- ● ●

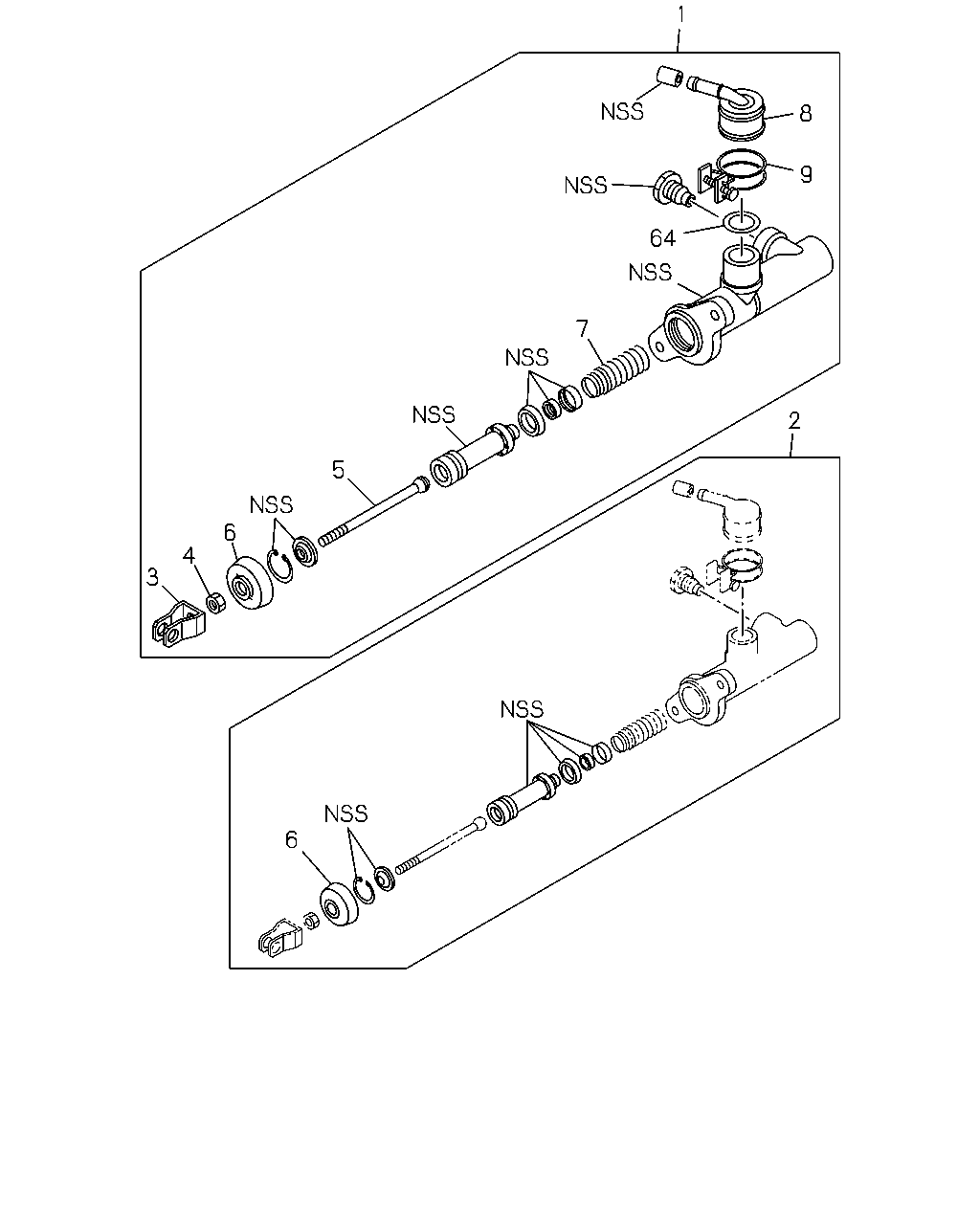

çizim 51667
1 8 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-747-1 01 1 0201-0301 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-747-1 01 1 0302-0610 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98004-782-2 01 1 0611-0709 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98062-277-0 01 1 0710-0804 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98062-277-0 01 1 0805- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97162-963-0 01 1 0201-0301 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97162-963-0 01 1 0302-0501 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97162-963-0 01 1 0502-0803 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-639-0 01 1 0804-0804 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-639-0 01 1 0805- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0201-0301 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0302-0709 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0710-0804 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0805- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0201-0301 ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0302-0501 ●
2 00.775 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0502-0803 ●
2 00.775 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804-0804 ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0805- ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0201-0301 ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0302-0501 ●
3 00.777 JOINT; JAW,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0502-0804 ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0805- ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8 		9-09111-408-0 01 1 0201-0301 ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8 		9-09111-408-0 01 1 0302-0501 ●
4 00.777 NUT; JAW JOINT
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8 		9-09111-408-0 01 1 0502-0511 ●
4 00.777 NUT; JAW JOINT
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 0512-0804 ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 0805- ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0201-0301 ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0302-0501 ●
5 00.775 ROD; PUSH,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0502-0804 ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0805- ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0201-0301 ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0302-0709 ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0201-0301 ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0302-0501 ●
6 00.775 BOOT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0502-0804 ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0805- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0201-0301 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0302-0709 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0710-0804 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0805- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0201-0301 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0302-0501 ●
7 00.775 SPRING ASM; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0502-0804 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0805- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-154-0 01 1 0201-0301 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-154-0 01 1 0302-0709 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0201-0301 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0302-0501 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0502-0709 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HF1 ENG(RLS) 		8-97163-191-0 01 1 0710-0804 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0805- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0201-0301 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0302-0610 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98061-352-0 01 1 0611-0709 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0201-0301 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0302-0501 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0502-0709 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HF1 ENG(RLS) 		8-97167-773-0 01 1 0710-0804 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0805- ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0201-0301 ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0302-0501 ●
64 00.777 GASKET; CONNECTOR
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0502-0709 ●
64 00.777 GASKET; CONNECTOR
4HF1 ENG(RLS) 		8-97167-767-0 01 1 0710-0804 ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0805- ● ●
çizim 51839
8 1 9 64 7 2 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-747-1 01 1 0201-0301 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-747-1 01 1 0302-0610 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98004-782-2 01 1 0611-0709 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98062-277-0 01 1 0710-0804 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98062-277-0 01 1 0805- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97162-963-0 01 1 0201-0301 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97162-963-0 01 1 0302-0501 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97162-963-0 01 1 0502-0803 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-639-0 01 1 0804-0804 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-639-0 01 1 0805- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0201-0301 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0302-0709 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0710-0804 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0805- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0201-0301 ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0302-0501 ●
2 00.775 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0502-0803 ●
2 00.775 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804-0804 ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0805- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0201-0301 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0302-0709 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0710-0804 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0805- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0201-0301 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0302-0501 ●
7 00.775 SPRING ASM; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0502-0804 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0805- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-154-0 01 1 0201-0301 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-154-0 01 1 0302-0709 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0201-0301 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0302-0501 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 0502-0709 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HF1 ENG(RLS) 		8-97163-191-0 01 1 0710-0804 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 0805- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0201-0301 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0302-0610 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98061-352-0 01 1 0611-0709 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0201-0301 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0302-0501 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0502-0709 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HF1 ENG(RLS) 		8-97167-773-0 01 1 0710-0804 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0805- ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0201-0301 ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0302-0501 ●
64 00.777 GASKET; CONNECTOR
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0502-0709 ●
64 00.777 GASKET; CONNECTOR
4HF1 ENG(RLS) 		8-97167-767-0 01 1 0710-0804 ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0805- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
